Medical equipment Select an image to inspect
Available for inquiry Specification-led inquiry
Medical equipment sourcing
Portable 3Channel Vet ECG Machine with Monitoring System
Reference: 1601243084305Veterinary Monitoring Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

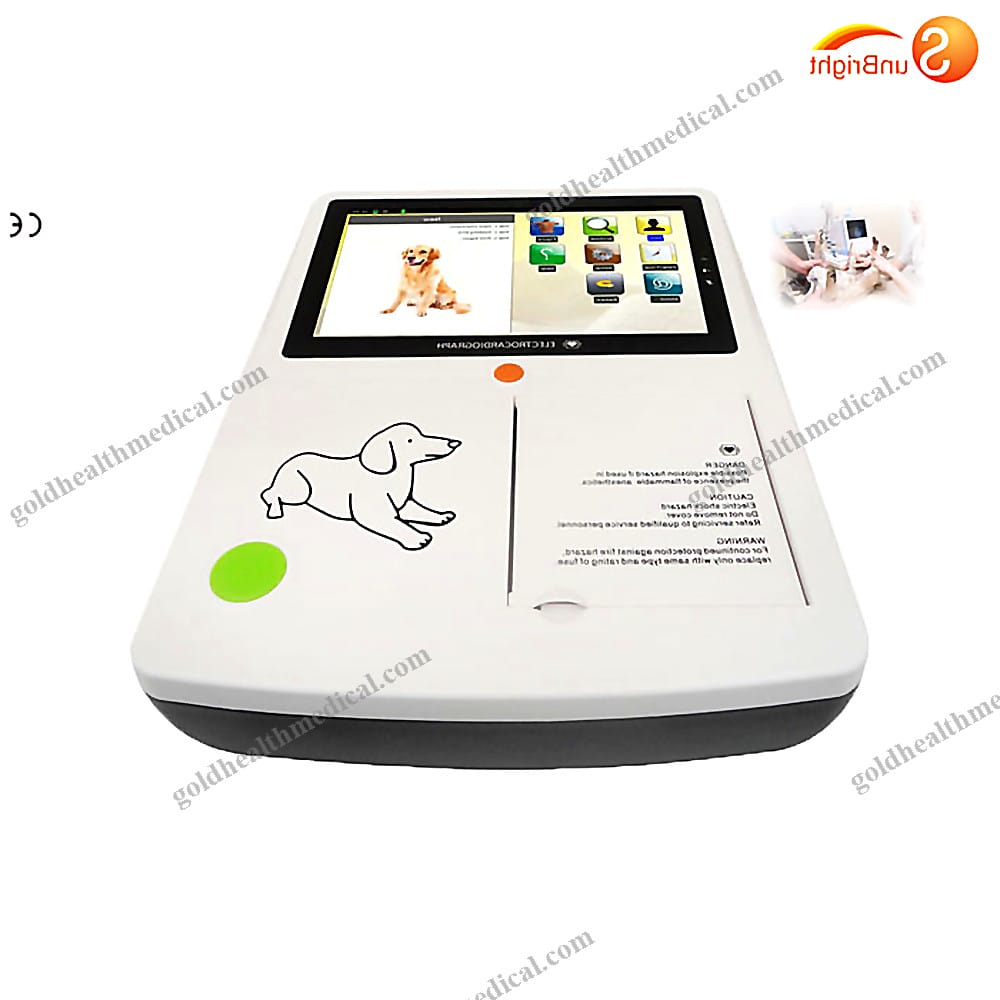

GoldHealth Medical Portable 3-Channel Veterinary ECG Machine
Product Overview
GoldHealth Medical introduces a cutting-edge portable veterinary ECG machine designed for precision, reliability, and ease of use. This advanced device combines a 7/12-lead ECG synchronous sampling system with a high-resolution thermal printer, making it an indispensable tool for veterinary professionals. Its sleek design, intuitive interface, and robust functionality ensure accurate diagnostics in any setting—whether in clinics, research labs, or on-the-go fieldwork.

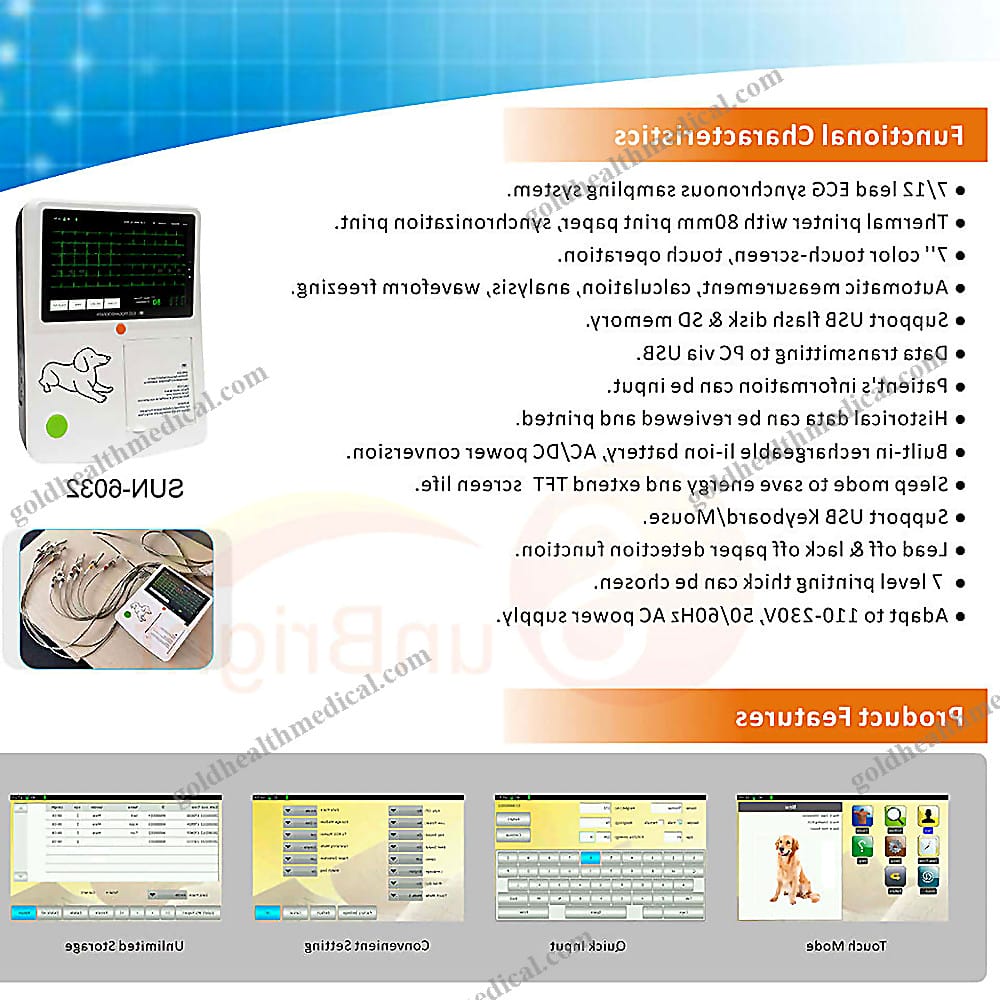

Key Features and Benefits
- Advanced 7/12-Lead ECG System: Delivers precise synchronous sampling for comprehensive cardiac analysis.
- High-Resolution Thermal Printer: Equipped with 80mm thermal paper for clear, detailed waveform printing.
- 7-Inch Color Touchscreen: Intuitive touch operation for seamless navigation and control.
- Automated Analysis: Offers automatic measurement, calculation, waveform freezing, and analysis for enhanced efficiency.
- Data Management: Supports USB flash drives and SD memory for secure data storage. Transfer data to a PC via USB for further analysis.
- Patient Information Input: Easily input and manage patient details for organized record-keeping.
- Historical Data Review: Access, review, and reprint past ECG records for longitudinal monitoring.
- Energy-Efficient Design: Built-in rechargeable lithium-ion battery with AC/DC power conversion and sleep mode to conserve energy and extend screen life.
- Enhanced Connectivity: Compatible with USB keyboards and mice for added convenience.
- Smart Detection: Features lead-off and paper-out detection alerts to prevent interruptions during use.
- Customizable Printing: Choose from 7 levels of print thickness for tailored output.
Technical Specifications
- Power Supply: Adaptable to 110-230V, 50/60Hz AC power.
- CMRR: ≥ 100dB with AC filter for superior noise rejection.
- Calibrating Voltage: 1mV ± 3% for consistent accuracy.
- Input Circuit: Floating design with ≤ 0.1µA current and > 50MΩ impedance.
- Voltage Tolerance: ± 500mV for reliable performance under varying conditions.
- Time Constant: > 3.2s for stable signal processing.
- Resolution: 12-bit/1000Hz for high-definition waveform capture.
- Frequency Response: 0.05Hz–150Hz for comprehensive signal analysis.
- Noise Level: ≤ 15µVp-p for minimal interference.
- Filters: Includes AC, EMG, and anti-drift filters for clean signals.
- Paper Speed: Adjustable to 12.5, 25, or 50mm/s (± 3%) for flexible recording.
- Sensitivity: 5, 10, 20mm/mV for adaptable waveform scaling.
- Patient Safety: < 10µA current leakage ensures safe operation.
- Battery: Built-in rechargeable Li-ion battery (11.1V, 2200mAh) for extended portability.
- Recorder: High-resolution thermal printer with Ø5×20 T1.6A 250V fuse protection.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare professionals. Our portable ECG machine is engineered to meet the rigorous demands of modern veterinary care, offering unmatched precision, durability, and user-friendly features.
Applications
- Veterinary clinics and hospitals
- Mobile veterinary services
- Research institutions and laboratories
- Rehabilitation centers and nursing homes
- Home healthcare settings
Additional Notes
This device is designed to elevate veterinary diagnostics with its advanced technology and thoughtful design. Whether you're conducting routine check-ups or managing complex cardiac cases, GoldHealth Medical’s portable ECG machine is your trusted partner in delivering exceptional care.
Recommended Accessories
- Thermal recording paper for uninterrupted operation
- USB flash drives and SD cards for expanded data storage
GoldHealth Medical: Precision Redefined.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Portable 3-Channel Veterinary ECG/EKG Machine
Product Highlights
- Precision Redefined: Equipped with a 12-bit resolution and a sampling rate of 1000Hz, this device delivers highly accurate and detailed cardiac readings for veterinary diagnostics.
- Advanced Protection: Features a floating input circuit and robust defibrillator protection, ensuring safety and reliability during critical procedures.
- Smart Filtering Technology: Includes AC, EMG, and drift filters, along with an Anti-Drift System, to eliminate interference and provide clear, stable ECG waveforms.
- Versatile Operation Modes: Switch seamlessly between Manual and Auto modes to suit different diagnostic needs and streamline workflows.
- Compact and Portable Design: Lightweight at just 3kg, with a sleek form factor (256mm x 204mm x 66mm), making it ideal for use in clinics, fieldwork, or home care settings.
Technical Specifications
- Voltage Tolerance: 500mV
- Time Constant: > 3.2 seconds
- Operation Modes: Manual / Auto
- Filtering Systems: AC Filter, EMG Filter, Drift Filter, Anti-Drift System
- Package Dimensions: 26cm x 21cm x 7cm
- Gross Weight: 3.5kg
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge veterinary diagnostic tools that combine precision, durability, and ease of use. Our Portable 3-Channel Veterinary ECG/EKG Machine is designed to meet the demands of modern veterinary practices, offering unparalleled performance in a compact, user-friendly package.
Whether you're managing a busy clinic, conducting field diagnostics, or providing in-home care, this device ensures reliable and accurate results every time.
Experience the GoldHealth Medical difference today.
