Portable 3Channel 24Hour Dynamic ECG Holter
Reference: 1600585846743Household Medical Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Dynamic ECG Systems
GoldHealth Medical introduces a cutting-edge Dynamic ECG System designed to elevate cardiac diagnostics. This advanced system adopts a 3-lead configuration, enabling continuous 24-hour ECG waveform recording and seamless analysis through sophisticated PC software. It is tailored for use in medical institutions, community healthcare settings, and beyond.
Key Features:
- 24-Hour Real-Time ECG Data Storage: Ensures uninterrupted recording of critical heart activity.
- Advanced Arrhythmia Analysis: Utilizes MCSSTM and TMCATM technologies to significantly reduce the workload on physicians.
- Comprehensive Template Library: Includes over 10 pre-defined templates (e.g., atrial premature beat, ventricular fibrillation) and customizable modules to identify virtually any pathological waveform.
- Flexible Analysis Channel Selection: Empowers users to designate any channel as the primary analysis channel.
- Precision Atrial Fibrillation Analysis: Offers both AUTO and manual segmentation options for enhanced accuracy.
- Powerful Pacemaker Analysis: Supports all pacemaker types, including AAI, VVI, and DDD, with specialized pacing templates like "Dual Chamber Pacing" and "Ventricular Asynchronous Pacing."
- Fast Review Functionality: Enables quick access to single or full-lead ECG data across any time segment.
- Heart Rate Variability Analysis: Provides insights into 5-minute, 1-hour, and 24-hour variability metrics.
- One-Touch Printing: Simplifies report generation with a single command.
- Robust Case Management: Streamlines patient data organization and retrieval.
- Sleep Apnea Risk Prediction: Features a unique "Sleep Breathing Pause Syndrome" analysis function to assess associated risks.
- Myocardial Infarction Risk Assessment: Employs "HRT" analysis to predict mortality risks in affected patients.
- T-Wave Alternation Detection: A critical indicator for forecasting malignant arrhythmias and sudden cardiac death.
Product Specifications:
- Number of Channels: 3 channels
- Sampling Accuracy: 12-bit
- Recording Time: 24 hours
- Power Supply: 2 AA-size batteries
- Interface: USB 2.0
- Scale Voltage: 1mV ± 5%
- Standard Sensitivity: 10mm/mV ± 5%
- Noise Level: ≤ 30µV
- Common Mode Rejection Ratio (CMRR): ≥ 60dB
- Low-Frequency Characteristics: Time constant > 3.2s
- Scan Speed: 25mm/s ± 5%
- Minimum Measurable Signal: 50µV p-p
- Product Safety Type: Type B (Internally Powered)
- Dimensions: 111mm (L) x 60mm (W) x 25mm (H)

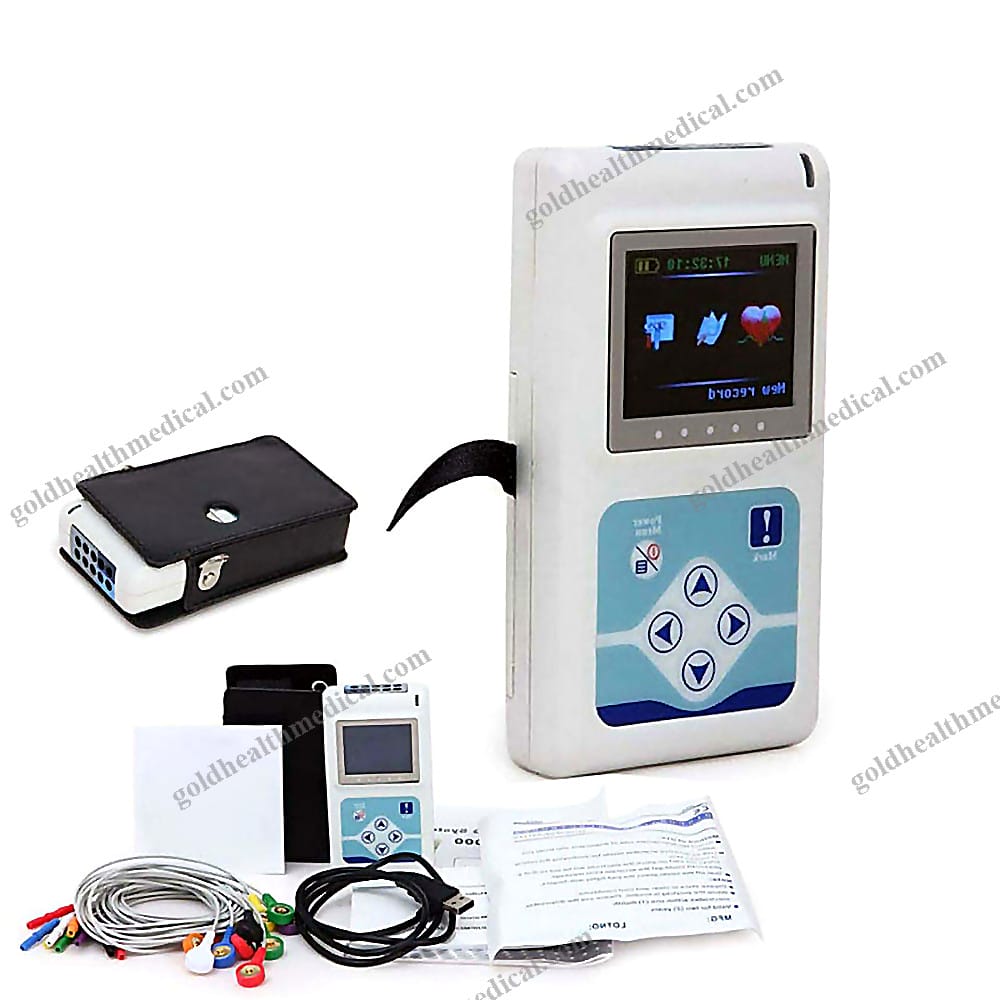

Package Includes:
- Dynamic ECG System Machine
- Lead Cable Set
- ECG Electrodes
- USB Cable
- Carrying Bag
- User Manual
GoldHealth Medical’s Dynamic ECG System is engineered to deliver unparalleled precision, flexibility, and reliability, making it an indispensable tool for modern cardiac care. Whether in hospitals, clinics, or home settings, this system sets a new benchmark for diagnostic excellence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the ECG Holter, a cutting-edge solution designed for precision, reliability, and ease of use in cardiac monitoring. Engineered to meet the demands of modern healthcare, this Class II medical instrument is ideal for hospitals, clinics, research institutions, and home users seeking accurate and continuous heart activity tracking.
Key Features
- Advanced 12-Lead Monitoring: Capture comprehensive cardiac data with 12 leads for a detailed analysis of heart activity.
- 24-Hour Recording: Ensure uninterrupted monitoring over an extended period, providing a complete picture of cardiac health.
- High Sampling Accuracy: Achieve exceptional precision with 12-bit sampling technology for reliable diagnostic insights.
- Portable and Lightweight Design: Compact and easy to carry, making it suitable for both clinical and home environments.
- User-Friendly Interface: Equipped with a USB 2.0 interface for seamless data transfer and analysis.
Technical Specifications
- Power Source: Operates on 2 AA size batteries, ensuring portability and convenience.
- Scale Voltage: Precise at 1mV ±5% for consistent and accurate readings.
- Material: Durable acrylic construction for long-lasting performance.
- Safety Standard: Compliant with GB2626-2006 for assured safety and reliability.
- Shelf Life: 1 year from the date of manufacture.
Packaging Details
Each unit includes:
- 1x ECG Holter System Machine
- 1x Set of Lead Cables
- 1x Bag of ECG Electrodes
- 1x USB Cable
- 1x Protective Bag
- 1x User Manual
Dimensions and Weight
- Package Size: 26 x 18 x 30 cm
- Gross Weight: 4.000 kg
Certifications and Compliance
- Quality Certification: CE certified for global standards of safety and performance.
Supply and Support
- Supply Ability: Up to 20,000 pieces per month to meet high-volume demands.
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Service: Access to online technical support for seamless operation and troubleshooting.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that empower healthcare professionals and patients alike. Our ECG Holter combines advanced technology with user-centric design, ensuring accurate diagnostics and exceptional usability. Trust GoldHealth Medical for reliable solutions that elevate cardiac care.
