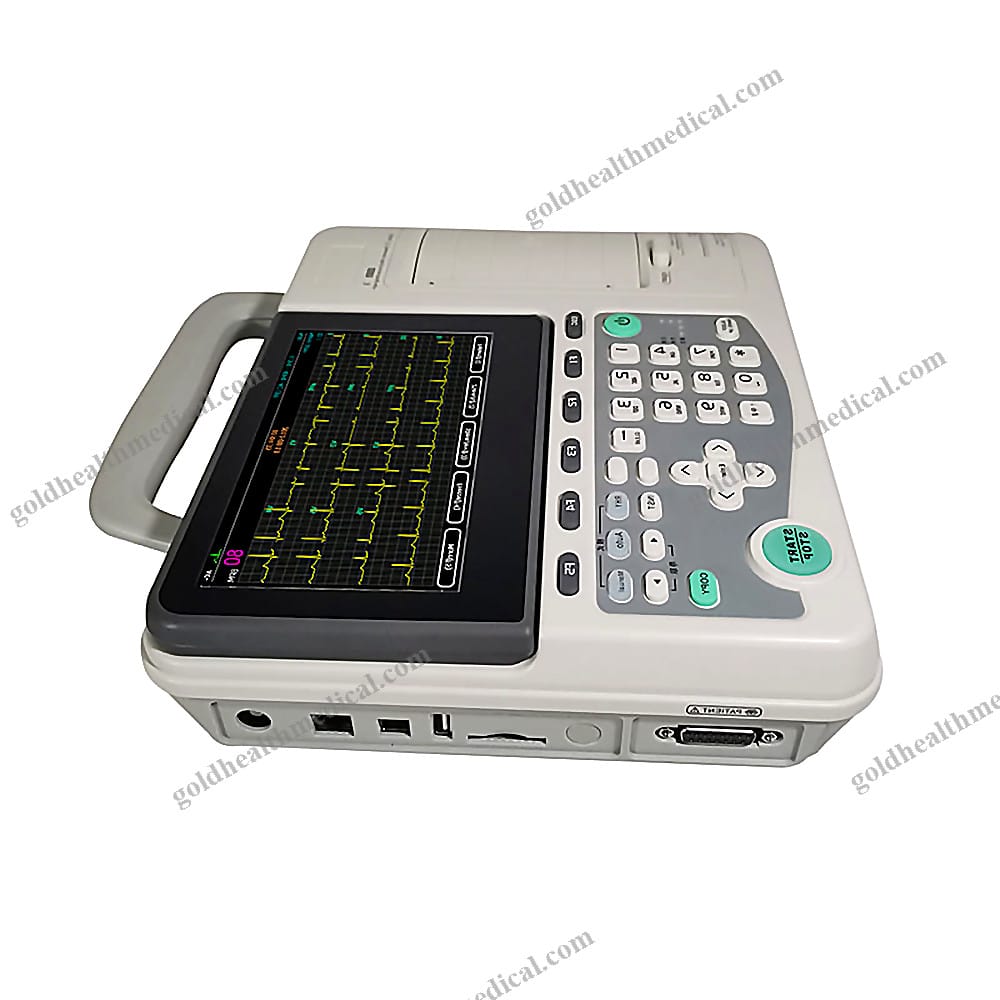

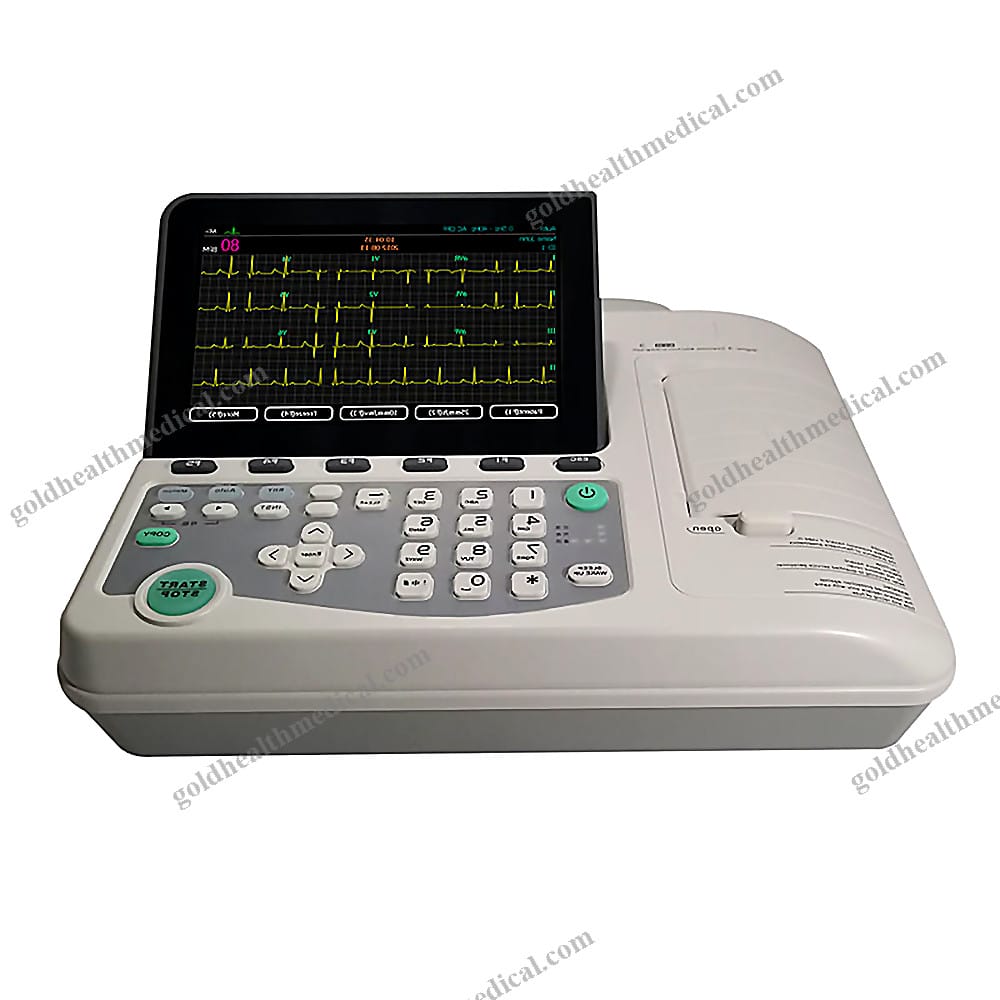

Portable 12Lead 3Channel Digital ECG Machine with
Reference: 1600332651128Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

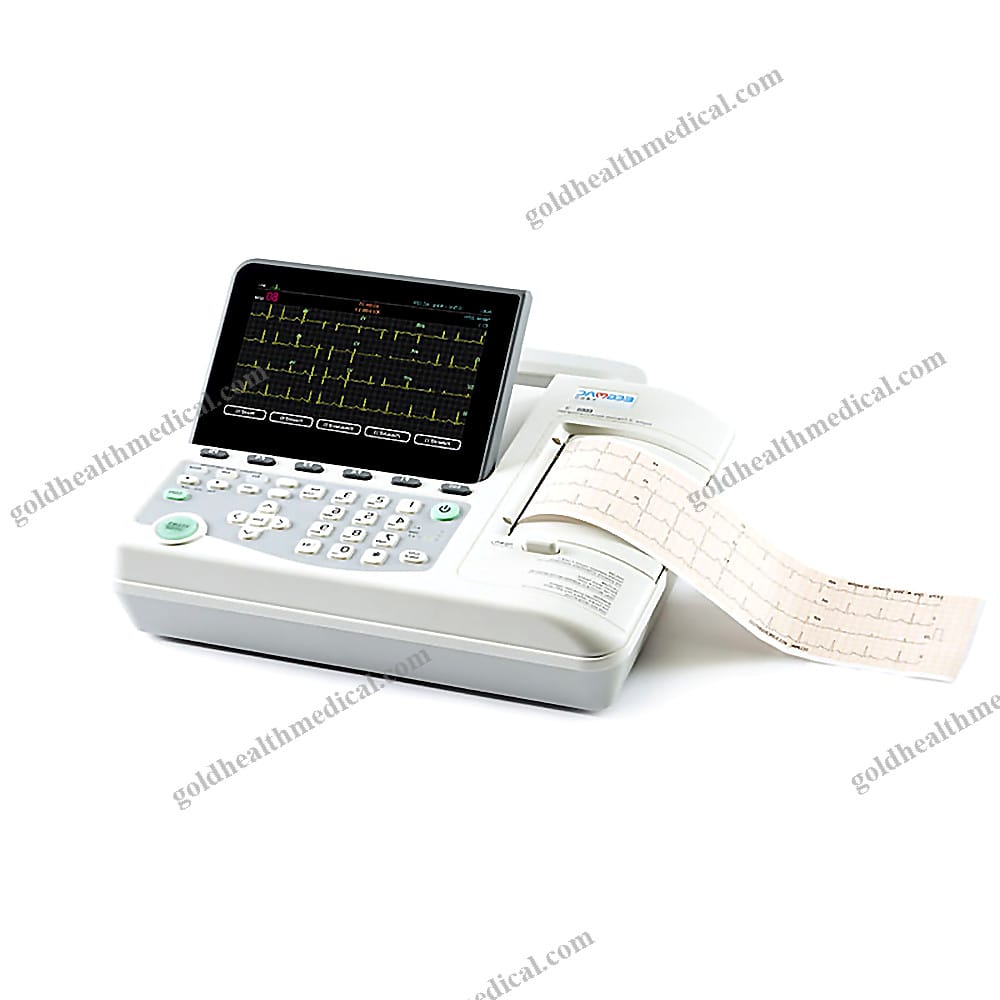

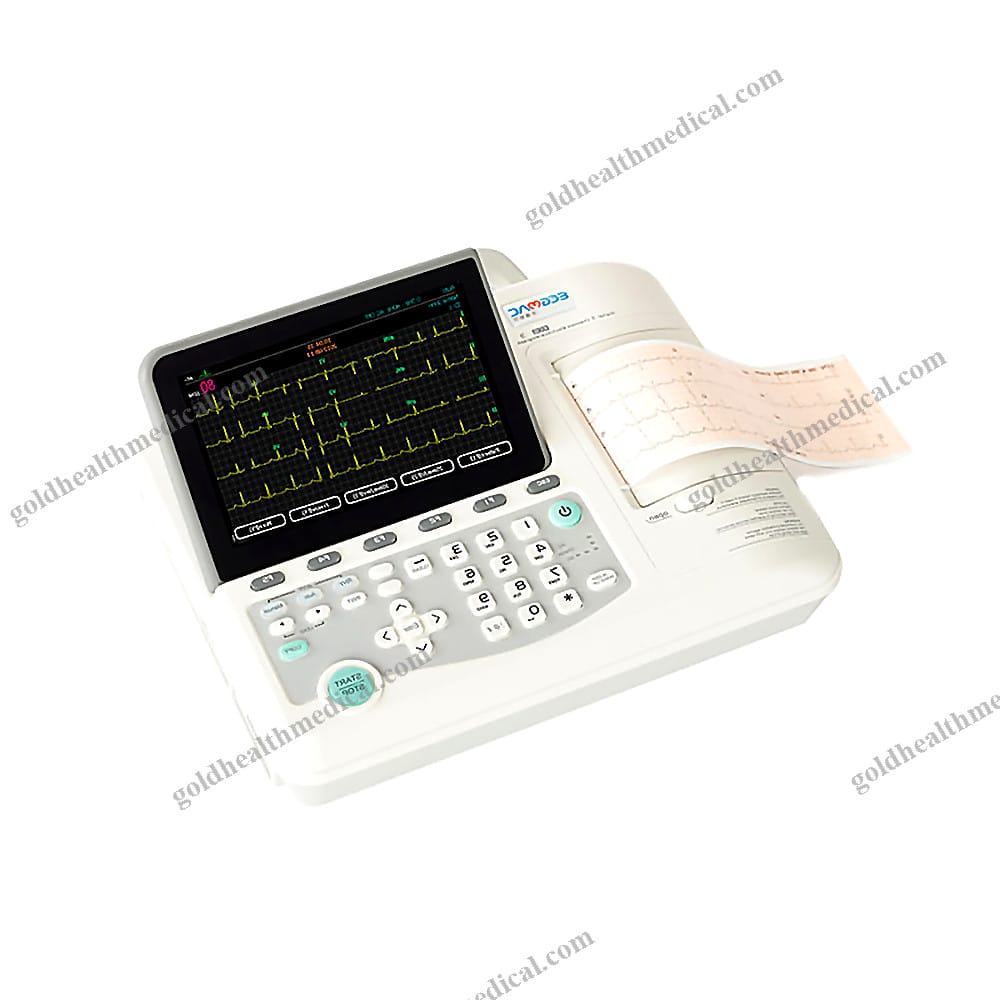

GoldHealth Medical ECG Device
GoldHealth Medical presents an advanced ECG device designed to deliver unparalleled precision and reliability for healthcare professionals. Engineered with cutting-edge technology, this device is ideal for hospitals, clinics, research institutions, and home care environments.
Key Features and Specifications:

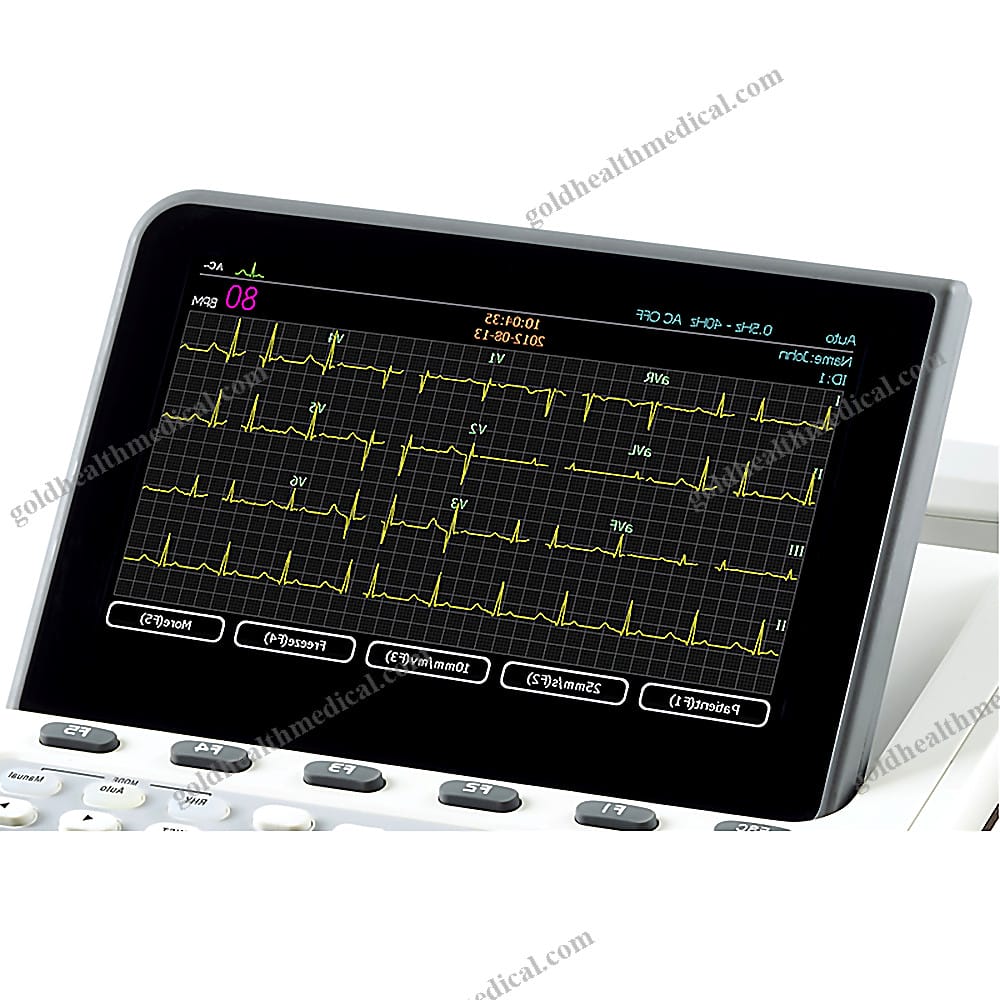

- Display: A vibrant 7-inch LED-backlit TFT-LCD screen ensures crystal-clear visualization of ECG waveforms, enhancing diagnostic accuracy.
- ECG Input: Simultaneous acquisition of 12-lead ECG waveforms provides comprehensive cardiac data in real-time.
- Paper Speed Options: Multiple speed settings include 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, and 50 mm/s, offering flexibility for various diagnostic needs.
- Sensitivity Settings: Adjustable sensitivity levels of 1.25, 2.5, 5, 10, 20, 40, 10/5, and 20/10 mm/mV, with AGC (Automatic Gain Control) for optimal waveform clarity.
- Print Capabilities: Equipped with a built-in thermal printer and compatibility with specific external USB printers for seamless documentation.
- File Formats: Supports versatile file formats such as PDF, JPG, DICOM, BMP, EM-XML, FDA-XML (optional), SCP (optional), and BKG (optional), ensuring compatibility with various systems.
- Peripheral Support: Expand functionality with SD cards, U-disks, keyboards, USB printers, and USB-WiFi network cards.
Why Choose GoldHealth Medical?
- Proven Expertise: With over a decade of experience in R&D, manufacturing, and service of ECG devices, GoldHealth Medical is a trusted name in the medical industry.
- Global Reach: Serving markets across the globe, including Western Europe, North America, and Southeast Asia, our products are recognized for their quality and reliability.
- Commitment to Quality: Every device undergoes rigorous pre-production sampling and final inspection to ensure it meets the highest standards.
- Comprehensive Product Range: From 12-channel ECGs to portable Holter monitors, GoldHealth Medical offers a complete suite of solutions tailored to diverse medical needs.
Applications:
- Hospitals and Clinics
- Research Laboratories
- Rehabilitation Centers
- Home Healthcare
GoldHealth Medical’s ECG device combines innovation, precision, and versatility to empower healthcare providers with the tools they need to deliver exceptional patient care. Experience the future of cardiac diagnostics with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: ECG Machine by GoldHealth Medical
Instrument Classification: Class II
Key Features and Benefits
- Advanced 12-Channel ECG Technology: Delivers precise and comprehensive cardiac diagnostics, ensuring reliable results for healthcare professionals.
- 7-Inch High-Resolution Display: Equipped with LED backlight TFT-LCD for clear, detailed visualization of ECG waveforms under any lighting condition.
- Versatile Recording Modes: Supports Auto, Manual, and Rhythm recording modes, offering flexibility to meet diverse clinical needs.
- Multiple Paper Speed Options: Adjustable speeds of 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, and 50 mm/s for optimal waveform analysis.
- Wide Sensitivity Range: Adjustable settings of 1.25, 2.5, 5, 10, 20, 40, 10/5, and 20/10 mm/mV, ensuring accurate signal amplification tailored to patient requirements.
- Built-In Thermal Printer: Provides instant, high-quality printouts, while compatibility with specific external USB printers ensures additional convenience.
Technical Specifications
- Power Source: Electric
- Shelf Life: 3 years
- File Formats Supported: PDF, JPG, DICOM, BMP, EM-XML, FDA-XML, SCP, BKG
- Peripheral Support: SD card, U-disk, Keyboard, USB printer, WiFi
- AGC Functionality: Ensures consistent waveform quality regardless of signal strength variations.
Certifications and Compliance
- Quality Certifications: CE, ISO
Warranty and After-Sales Support
- Warranty Period: 1 Year
- After-Sales Service: Online technical support available to ensure uninterrupted performance and address any queries or concerns.
Place of Origin
- Guangdong, China
GoldHealth Medical’s ECG Machine is designed to empower healthcare providers with cutting-edge technology, intuitive operation, and unwavering reliability. Whether in hospitals, clinics, or home care settings, this device sets a new standard for cardiac diagnostics.
