Portable 100mA 5KW Mobile Digital XRay Imaging System
Reference: 1601053553927Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

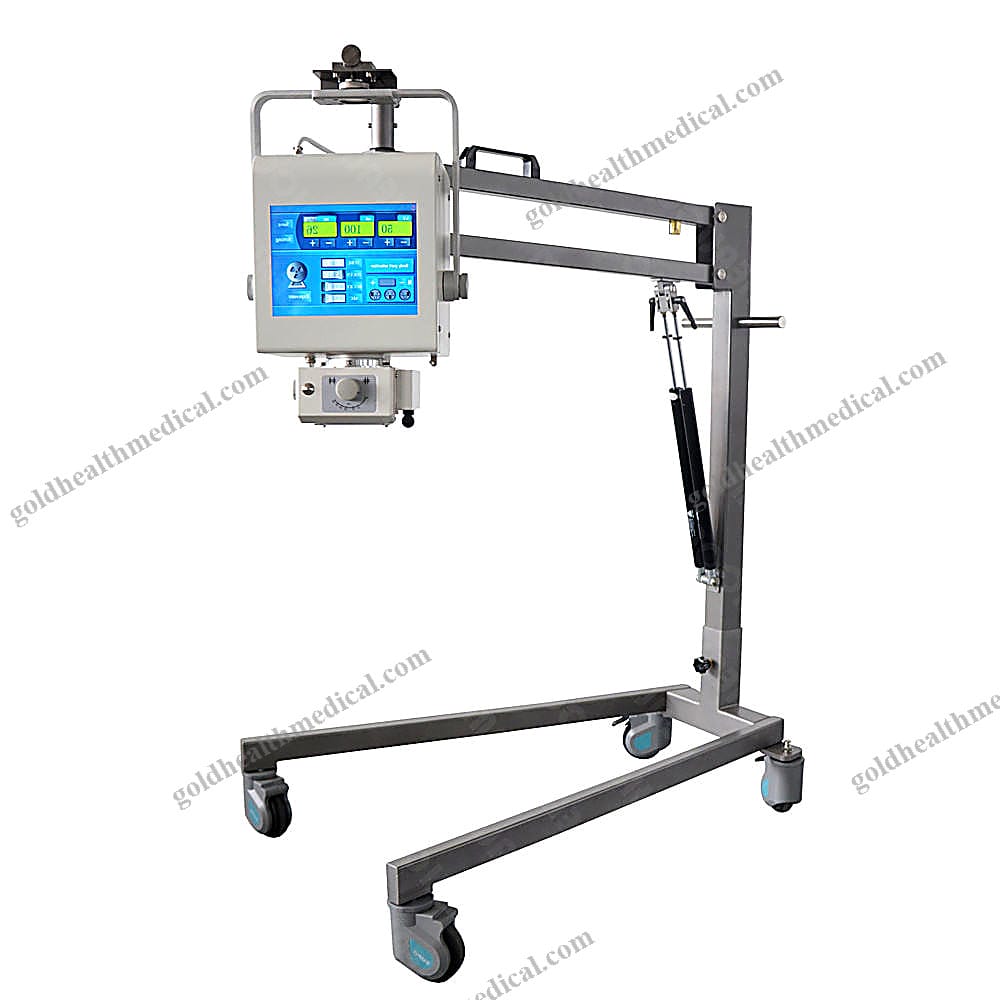

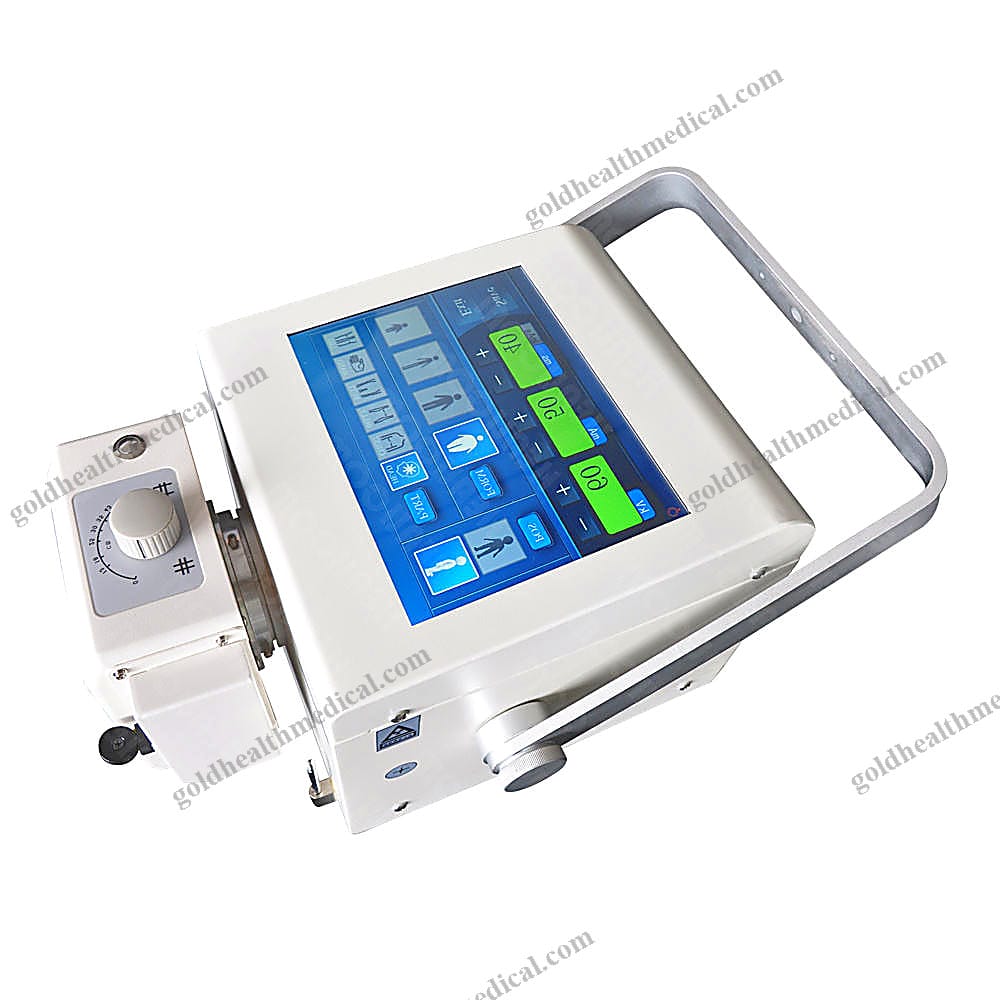

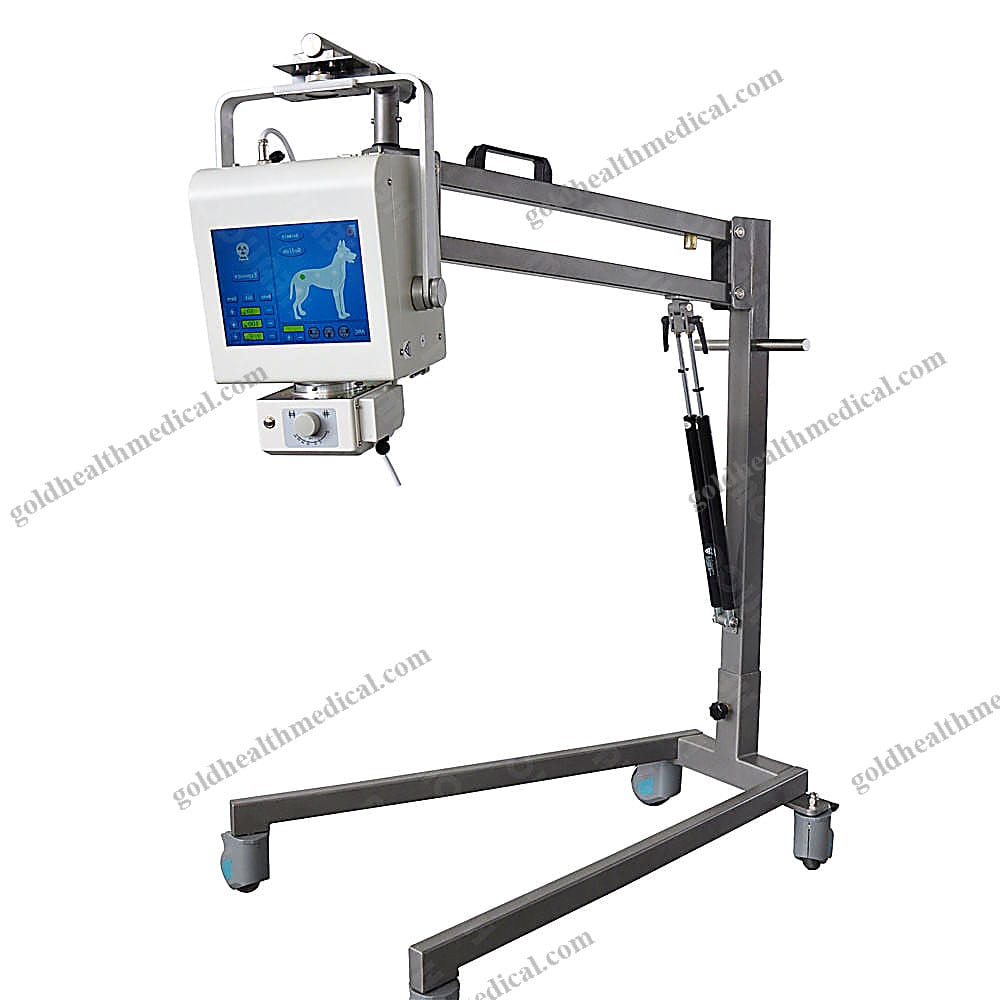

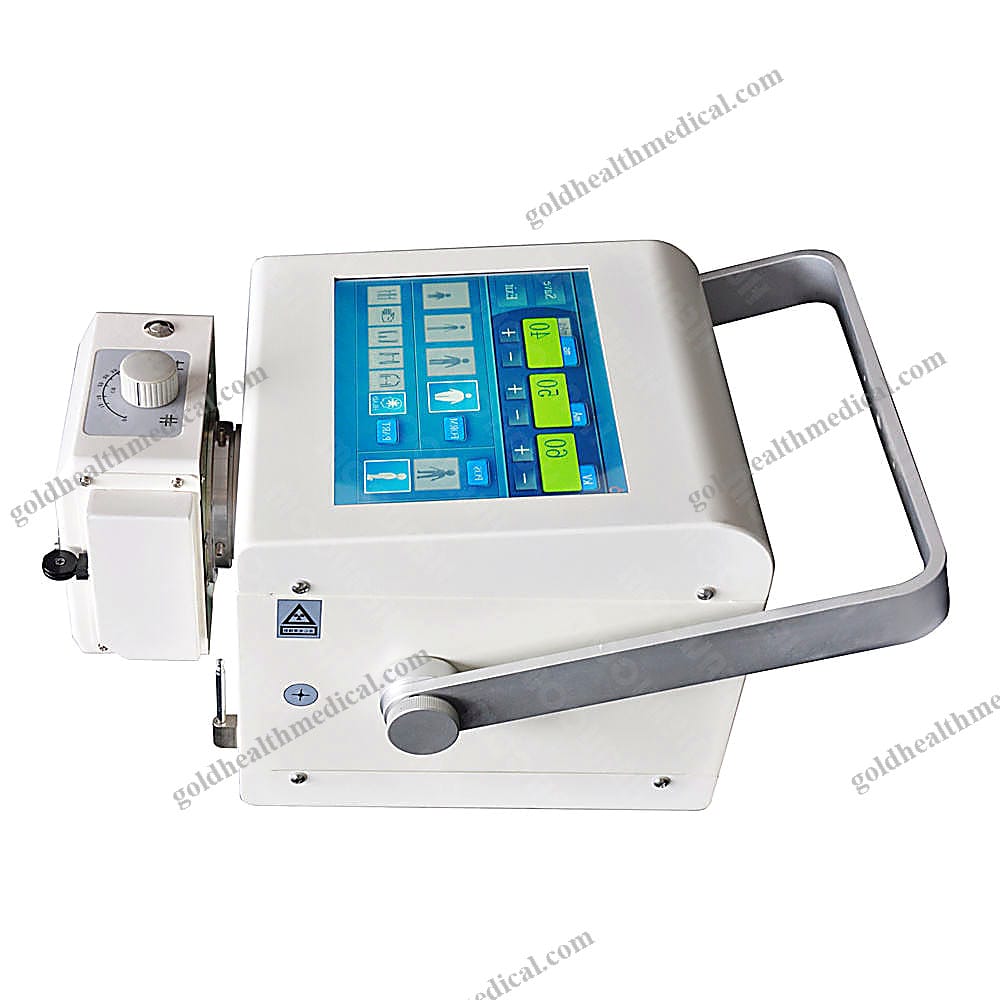

Revolutionary Portable High Frequency X-ray Machine by GoldHealth Medical
Product Overview
GoldHealth Medical introduces a cutting-edge Portable High Frequency X-ray Machine, designed for versatile medical diagnostic applications. This state-of-the-art device is ideal for examining human limbs and diagnosing conditions in challenging environments such as remote areas, battlefields, sports fields, veterinary clinics, and emergency rescue scenarios.
Key Features
- Compact and Streamlined Design: Engineered for portability and ease of use.
- Intuitive LCD Touch Screen: Simplifies operation with a user-friendly interface.
- 48 Preset Anatomical Memory Patterns: Ensures precision and efficiency in diagnosis.
- Advanced Control System: Combines analog and dual digital loops for unparalleled accuracy.
- High Precision Regulation: Delivers exact control over tube voltage and current.
- Self-Protection and Self-Diagnosis: Automatically detects and mitigates system failures.
Enhanced Capabilities

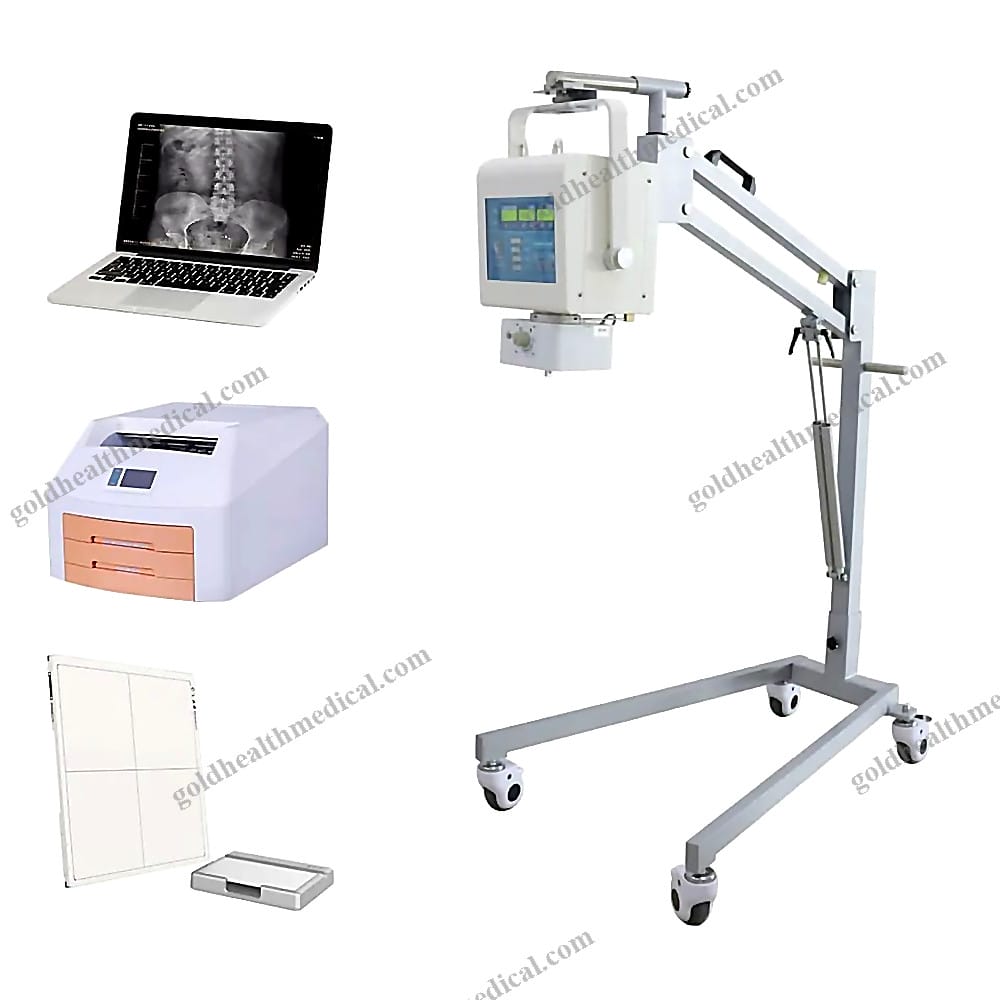

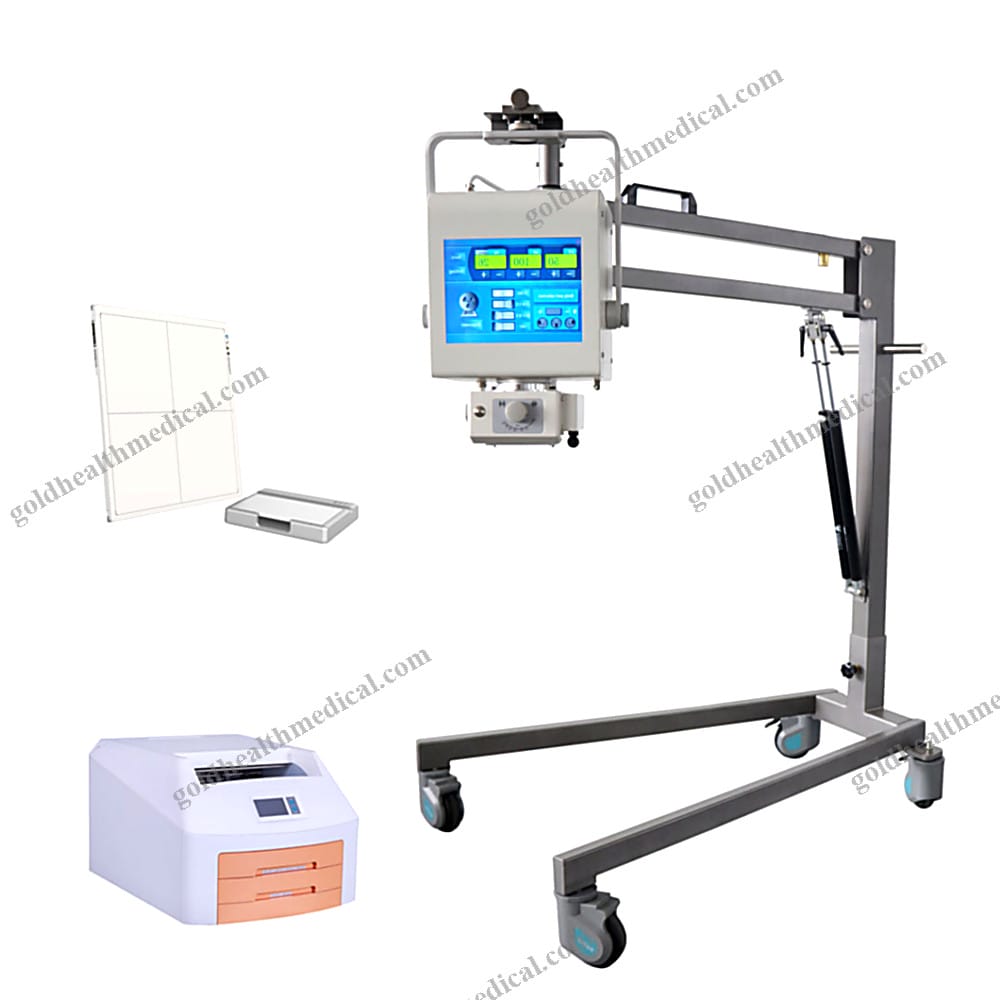

- Flat Panel Detector: Upgradable to a Digital X-ray System with options like the Mars1717V Wireless 17x17 Inch X-Ray Detector and Venu1717X Wired 17x17 Inch X-Ray Detector.
- X-ray Film Printer: Includes advanced printing solutions like the Mars1417V Wireless 14x17 Inch X-Ray Detector.
Technical Specifications
- Input Power: Voltage: AC220V±22V, Frequency: 50/60Hz±1Hz
- Power Capacity: ≥5kVA; Inner resistance ≤0.5Ω
- Maximum Output Power: P = 110kV × 50mA = 5kW
- Nominal Power: 50kV, 100mA, 0.1s, 5kW
- kV Adjusting Range: 40kV~110kV, step adjustment 1 kV
- mA Adjusting Range: 20mA~100mA
- mAs Adjusting Range: 0.2mAs-200mAs
- Exposure Time: 0.01S~4S
- X-ray Tube: Focus: 0.6/1.8mm; Anode heating capacity: 40KJ
- Dimensions: 290×260×230mm
- Weight: 18.8kg
- Optional Stand: Available for added convenience
Unique Selling Points
- Unmatched Portability: Designed for mobility without compromising on power or precision.
- Advanced Imaging Technology: Provides clear and detailed diagnostic images.
- Versatile Applications: Suitable for a wide range of medical and non-medical environments.
- Reliable Performance: Built with robust materials and advanced self-diagnostic features.
Clinical Images and Workshop Insights
Experience the precision and reliability of our X-ray machine through real-world clinical images and insights from our state-of-the-art workshop.
Related Products
- Professional Hospital Use High Frequency Portable Digital LED Display X-ray Machine
- Medical Diagnostic Equipment Portable Radiological Handheld Vet X-Ray Digital Fluoroscopy Machine
Why Choose GoldHealth Medical?
GoldHealth Medical has over two decades of expertise in delivering top-tier medical equipment. Our commitment to quality and competitive pricing has earned us a stellar reputation across Africa, the Middle East, Europe, Asia, and South America.
Frequently Asked Questions
- Price Level: Our prices are competitive, reflecting our dedication to quality and affordability.
- Quality Assurance: We provide a one-year warranty and offer free replacements for any issues.
- Delivery Time: Typically 15 days after order confirmation, with expedited options for small or sample orders.
- Payment Terms: Flexible options including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram.
GoldHealth Medical is your trusted partner in advanced medical diagnostics.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge Class II medical instrument designed to deliver exceptional performance and reliability for a wide range of medical imaging applications. Engineered with precision and powered by advanced technology, this device is ideal for hospitals, clinics, research institutions, and rehabilitation centers.
Key Features and Technical Specifications
- Power Source: Electric
- Maximum Output Power: 5kW
- Nominal Power: 50kV, 100mA, 0.1s (5kW)
- mA Adjusting Range: 20mA to 100mA
- mAs Adjusting Range: 0.2mAs to 200mAs (shifted adjustment)
- Exposure Time: 0.01 seconds to 4 seconds
- Shelf Life: 1 year
Quality Assurance
- Backed by CE certification, ensuring compliance with international safety and quality standards.
- Comprehensive 1-year warranty for peace of mind.
- Online technical support available to assist with any operational or technical queries.
Packaging Details
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions that empower healthcare professionals and enhance patient care. This product is meticulously crafted in Jiangsu, China, combining state-of-the-art engineering with user-centric design to meet the demands of modern medical environments.
Applications
Designed for versatility, this instrument is suitable for diagnostic imaging, laboratory research, rehabilitation, and more. Its robust performance and precise controls make it an indispensable tool for medical professionals worldwide.
Experience the GoldHealth Medical difference—where precision meets reliability.
