Plasma HighFrequency Surgical System for Urology Gynecology
Reference: 1601332815203Medical High-Frequency Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical High Frequency Surgical System (Plasma) for Urology and Gynecology
In an advanced electric field of 300 kHz, a plasma layer with a thickness of approximately 100µm is generated around the electrode through normal saline. This plasma layer consists of highly ionized particles with sufficient kinetic energy to break organic molecular bonds in target tissues without carbonization, ensuring minimal damage to surrounding tissues.
The bipolar-head design prevents electric current from passing through the human body, generating very little heat in tissues. This allows operation in a low-temperature environment of 40°C-70°C, resulting in minimal thermal damage to human tissues and enabling precise tissue cutting and ablation.
Features
- Advanced Core Algorithm: Maintains temperatures as low as 42°C.
- Optimized Power Output: Enhances coagulation and ensures continuous low-temperature operation.
- Intelligent Closed-Loop Control System: Ensures efficient and stable performance.
- SP/PK Arcing: Achieves rapid arcing within 1-2 seconds in normal saline, with a high plasma excitation rate, reducing operation time.
- Perfect Temperature Control: Ensures efficient and stable operation with minimal thermal impact.
- Short Operation Time: Enhances procedural efficiency.
Indications
- Benign prostatic hyperplasia
- Bladder tumor
- Benign uterine myoma

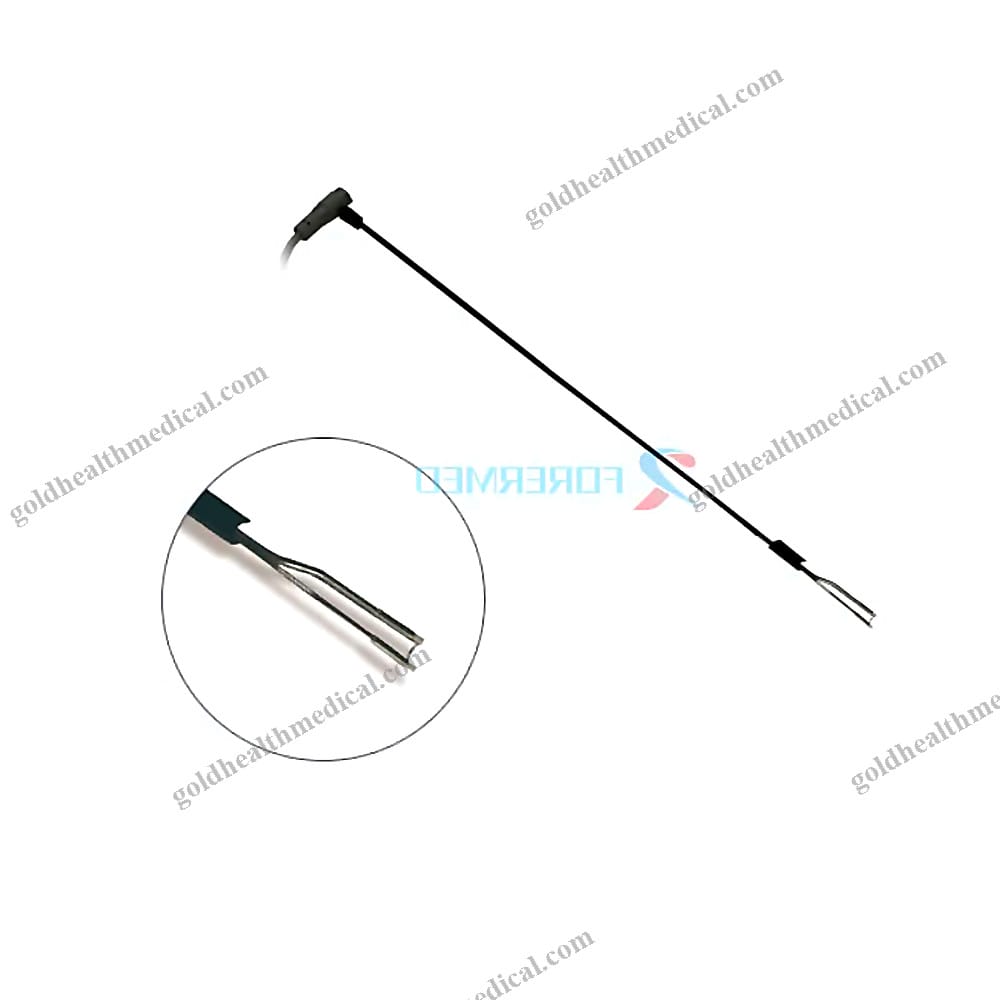

Plasma Electrodes
- Designed with both thick and thin rings for efficient thick-cutting and thin-cutting to meet diverse surgical needs.
- One-piece cable design prevents cross-infection.
- Imported ceramic and composite metal materials ensure continuous and stable plasma production.

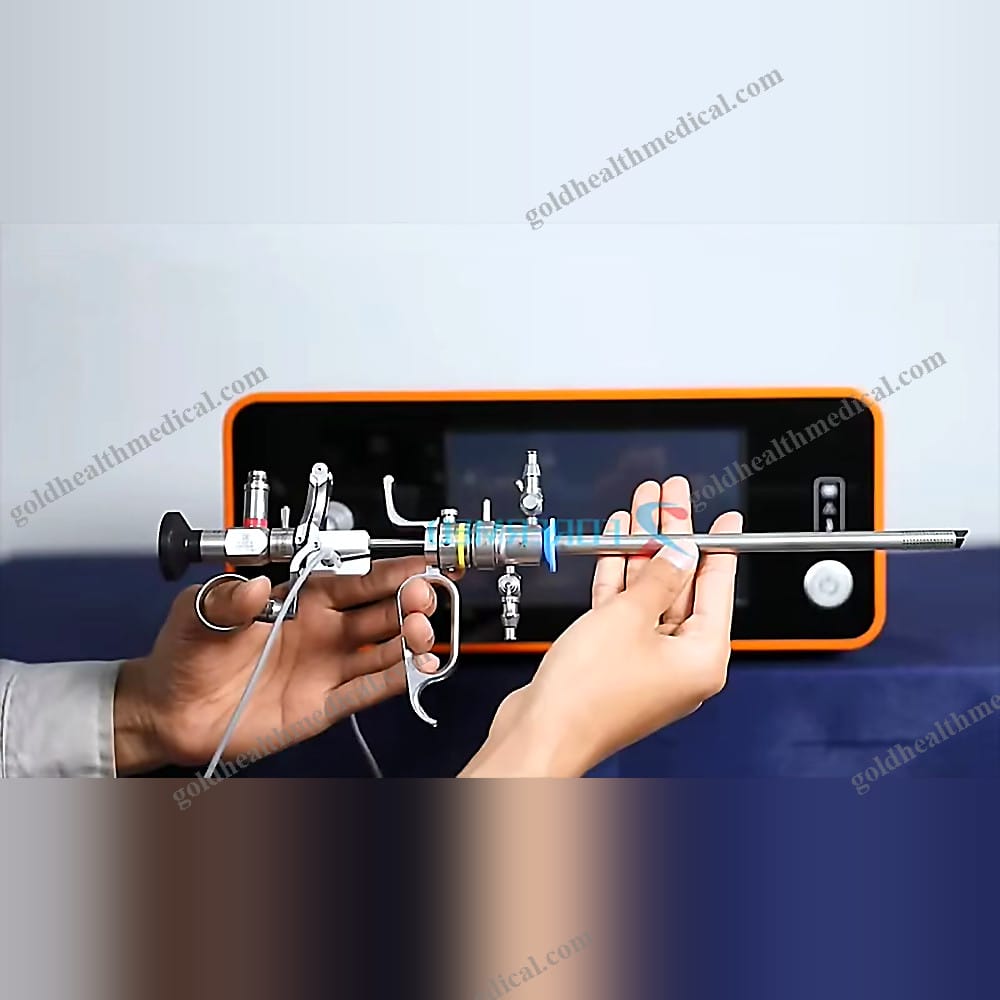

Handpieces
- Attractive Design: Offers excellent field of view and ease of operation.
- Dual Obturator Design: Available with 24Fr and 26Fr sheaths for enhanced patient comfort.
- Versatile Angles: 12° and 30° options expand gynecological applications.
- Coaxial Integrated Design: Ensures effortless operation.
Technical Specifications
- Working Frequency: 300 kHz
- Input Power Voltage: 220 volts, 50 Hz
- Output Power: Cutting 1-350W; Coagulation 1-150W
- Outer Sheath: 24/26Fr
Comparison of Cool Plasma and Vaporized Electroshear
- Plasma:
- Superior cutting and hemostatic effect with faster speed.
- Minimal heat damage between 0.2-0.3mm.
- Temperature range: 40-70 degrees.
- Saline used as a safe medium.
- No negative plate required.
- Reduces obturator nerve reflex.
- Vaporization Cutting:
- Faster speed but significant heat damage between 2-4mm.
- Temperature exceeds 400 degrees.
- Uses steaming water or glucose as a medium, posing a risk of water poisoning.
- Requires a negative plate, potentially harmful to the body.
- More severe obturator nerve reflex can lead to capsule rupture.
Why Choose GoldHealth Medical
GoldHealth Medical is dedicated to delivering cutting-edge medical solutions that prioritize patient safety and procedural efficiency. Our innovative technologies and meticulous design ensure superior performance and reliability in every product.
Choose GoldHealth Medical for advanced, reliable, and patient-centric medical devices.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: High-Frequency Plasma Electrosurgical Unit (ESU) by GoldHealth Medical
Key Features and Benefits:
- Advanced Precision: Designed with a working frequency of 300KHz, ensuring unparalleled accuracy and efficiency in surgical procedures.
- Versatile Power Output: Offers cutting power ranging from 1-350W and coagulation power from 1-150W, catering to diverse surgical needs.
- Optimized Vision: Equipped with optional 12° and 30° vision angles, providing enhanced clarity and adaptability for intricate procedures. Expandable configurations available for gynecological applications.
- Ergonomic Design: Features a coaxial integrated work stick for seamless handling and ease of operation, reducing fatigue during extended use.
- Dual Sheath System: Includes a double obturator design with 24FR and 26FR outer sheaths, ensuring stability and precision during procedures.
Technical Specifications:
- Power Source: Operates on 220 volts, 50Hz electricity.
- Operating Environment: Designed to perform reliably in temperatures ranging from 40°C to 70°C.
- Electric Field Frequency: 300KHz for consistent and safe energy delivery.
Quality Assurance:
- Certification: Meets stringent CE quality standards, guaranteeing safety and reliability.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
- After-Sales Support: Access to online technical support ensures uninterrupted performance and quick resolution of queries.
Applications:
Ideal for hospitals, clinics, research institutions, and specialized facilities such as rehabilitation centers and laboratories. Its adaptability also makes it suitable for home healthcare environments under professional supervision.
Instrument Classification: Class II medical device, engineered for precision and safety in critical applications.
GoldHealth Medical’s High-Frequency Plasma Electrosurgical Unit (ESU) redefines surgical excellence with its innovative design, advanced functionality, and unwavering reliability. Elevate your practice with a device that combines cutting-edge technology with user-centric features.
