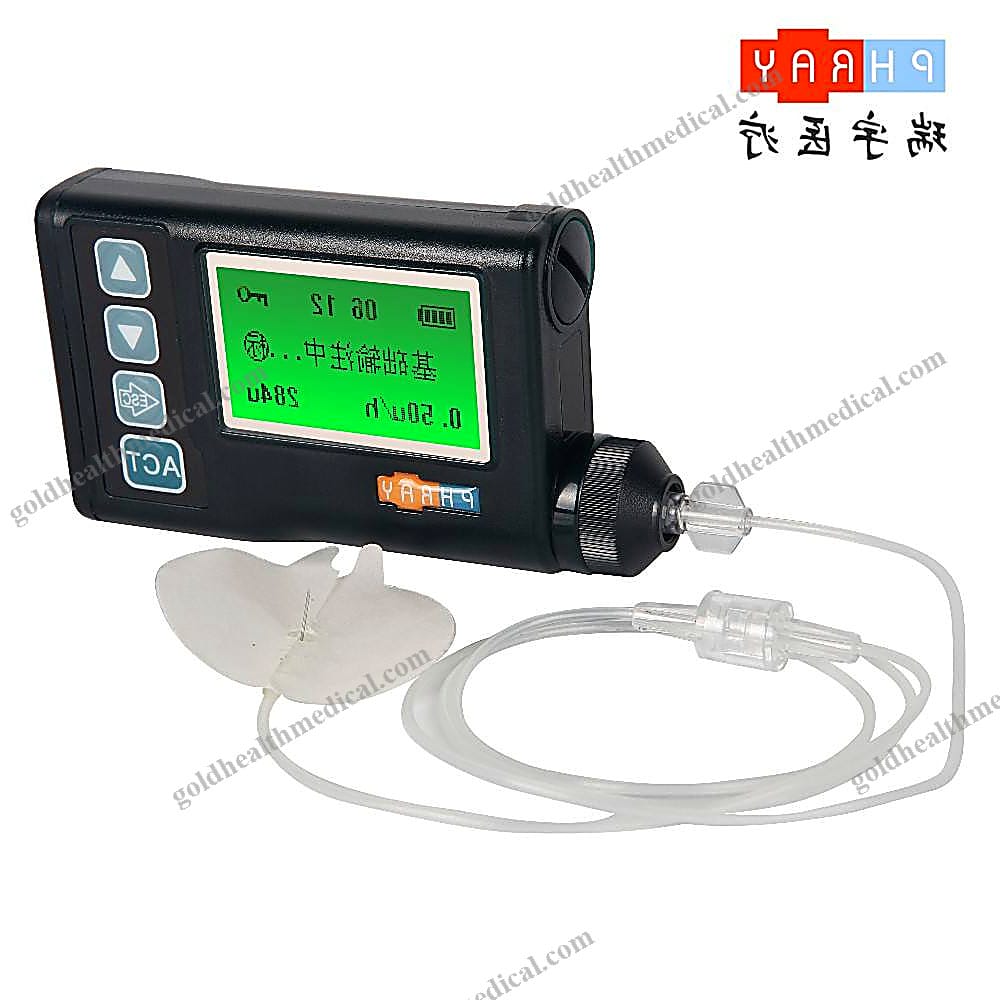

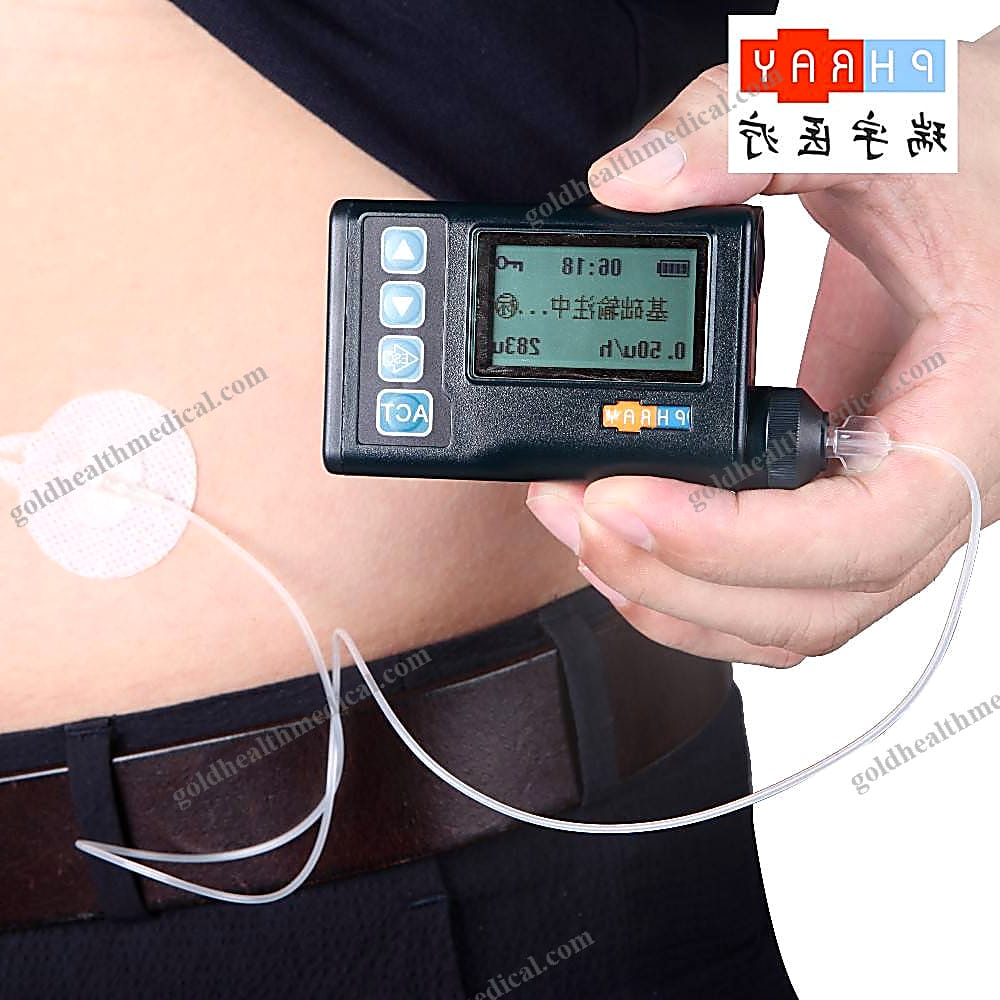

PH300 Insulin Pump for Diabetes Management
Reference: 1464525904Disposable Infusion Pump
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Insulin Pump for Diabetes Management
Product Highlights
Experience precision and reliability with the GoldHealth Medical insulin infusion pump, designed to empower patients and healthcare providers with advanced diabetes management technology. Featuring an intelligent system, safety-driven design, and user-friendly interface, this device is engineered to enhance treatment efficacy and simplify daily use.
Key Features and Parameters
- Versatile Basal Rate Options
- Select from 24 or 48 total basal rates to customize insulin delivery.
- Basal rate adjustable in fixed increments of 0.1u, with a minimum rate of 0.05u/hour.
General range: 0~2u/hour; Doctor mode extends to 0~5u/hour.
Intelligent Bolus Management
- Auto-calculate insulin filling for precise dosing.
- Memory system retains bolus settings from the last morning, noon, and afternoon.
Adjustable waiting time before bolus delivery (preset options: 10/20/30 minutes).
Advanced Safety Mechanisms
- Dual microprocessors ensure continuous cross-checking for enhanced safety.
- Comprehensive safety alerts: Maximum bolus, low reservoir, line occlusion, low battery, and more.
Auto-lock screen prevents accidental operation.
Swiss Engineering for Precision
- Equipped with a Swiss micro DC motor for consistent and reliable performance.
Auto-reset feature for the motor-driven screw ensures seamless operation.
User-Friendly Design
- Large LCD screen with backlight (128*64 dot resolution) for clear visibility.
- Displays remaining insulin, battery life, operation status, time, and basal rate.
Simple list-driven menu for intuitive navigation.
Customizable Settings
- Temporary basal rates adjustable up to +/- 200% in 10% increments for 24 hours.
- Daily total insulin delivery adjustable up to 200u in Doctor mode.
Infusion frequency ranges from 1 to 60 times per hour.
Compact and Lightweight
- Dimensions: 785220mm.
Net weight: 55 grams for ultimate portability.
Energy Efficiency
- Powered by a single AAA alkaline battery, ensuring low operational costs.
Energy-saving sleep mode for extended battery life.
Universal Compatibility
- Standard Luer interface supports all brands of infusion sets.
Insulin reservoir capacity: 305u.
Durability and Reliability
- Water-resistant design rated IPX7 for added protection.
- Operational temperature range: 5°C to 40°C.
Storage/transportation temperature range: -20°C to 50°C.
Comprehensive Memory and History Tracking
- Records last 50 boluses with time and date stamps.
- Tracks last 50 daily insulin totals with timestamps.
Logs prime and alarm events for enhanced monitoring.
Additional Features
- Pulse infusion technology improves efficacy for both basal and bolus delivery.
- Available in black and deep green color options.
- Language support: Chinese or English (preset per device).
GoldHealth Medical’s insulin pump combines cutting-edge technology with user-centric design to deliver unparalleled performance and peace of mind. Whether for clinical, research, or personal use, this device sets a new standard in diabetes care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Introduction:
The GoldHealth Medical insulin pump is a cutting-edge device designed to provide precise, reliable, and user-friendly diabetes management. Engineered with dual CPU technology for unparalleled accuracy, this compact and lightweight pump ensures optimal insulin delivery while maintaining the highest safety standards. Its sleek black and deep green design combines elegance with functionality, making it suitable for both professional healthcare environments and personal use.
Key Features:
- Advanced Insulin Delivery: Offers basal rates of 24 and 48 units, with an infusion frequency range of 2 to 60 times per hour, ensuring personalized and precise insulin management.
- Large Reservoir Capacity: Equipped with a 305U reservoir, reducing the need for frequent refills and enhancing convenience for users.
- Dual CPU System: Ensures maximum reliability and safety by cross-verifying all operations for error-free performance.
- Standard Luer Lock Connector: Compatible with a wide range of infusion sets, providing secure and leak-free connections.
- Exceptional Durability: Features an IPX8 waterproof rating, allowing the device to withstand immersion in water, making it ideal for active lifestyles.
Technical Specifications:
- Power Supply: Operates on a single AAA alkaline battery, ensuring long-lasting performance with easy replacement.
- Weight: Lightweight at just 55g, offering portability and comfort for extended wear.
- Dimensions: Compact design with a volume of 78 x 52 x 20mm, ensuring discretion and ease of use.
Applications:
This insulin pump is designed for a wide range of users, including hospitals, clinics, research institutions, rehabilitation centers, and home care settings. Its versatility and precision make it an essential tool for medical professionals and individuals managing diabetes.
Packaging Details:
Each unit is securely packaged in a protective carton, ensuring safe transportation and storage.
Supply Capacity:
GoldHealth Medical guarantees a robust supply chain, with a monthly production capacity of 1,000 units to meet the demands of healthcare providers and distributors worldwide.
Experience the next generation of diabetes care with GoldHealth Medical’s insulin pump—where innovation meets reliability.
