Orthopedic Fracture Splint Brace
Reference: 1600540434209Medical X-Ray Protective Products
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Orthopedic Thermoplastic Splint Material
GoldHealth Medical introduces a revolutionary range of low-temperature thermoplastic materials (LTTPs) designed to redefine orthotic fabrication. These materials are activated at relatively low temperatures (60-70°C or 140°-170°F), making them safe and efficient for direct application on patients. Unlike traditional high-temperature thermoplastics, our LTTPs eliminate the need for molds, allowing therapists to craft custom orthoses directly on the patient’s body.
Our thermoplastic splint material is engineered to deliver unparalleled performance, combining strength, flexibility, and patient comfort. It is lightweight, breathable, and highly malleable, ensuring a precise fit for every individual. Enhanced with advanced features such as X-ray transparency, anti-bacterial properties, and far-infrared functionality, our material supports improved microcirculation and promotes faster recovery.
Key Features and Benefits
- Lightweight and Comfortable: Only 1/8 the weight of traditional medical plaster, ensuring ease of use and a sleek appearance.
- Exceptional Plasticity: Softens in 2-3 minutes at 65-70°C, allowing effortless shaping to fit any anatomical contour. Once cooled, it retains its shape without rebounding, enabling true one-of-a-kind designs.
- Superior Tensile Strength: Can stretch up to 5-7 times its original size, offering unmatched flexibility during application.
- 100% Memory Function: If adjustments are needed, simply reheat the material to restore it to its original state, reducing waste and costs.
- Eco-Friendly: Biodegradable within 12 months under natural conditions, eliminating medical waste concerns.
- Non-Sticky Surface: A breakthrough innovation that ensures easy application and removal, enhancing patient comfort.
Technical Specifications
- Activation Temperature: 65-70°C (149-158°F)
- Softening Time: 2-3 minutes in hot water
- Shaping Window: Approximately 3 minutes after removal from water
- Stretchability: Up to 1.5 times its original size without compromising resilience
- Memory Recovery: Fully restores shape within 5 minutes when reheated to 65-70°C
- Storage: Room temperature is sufficient
Application Guidelines
- Prepare the material and tools, ensuring the water bath is set to 65-70°C.

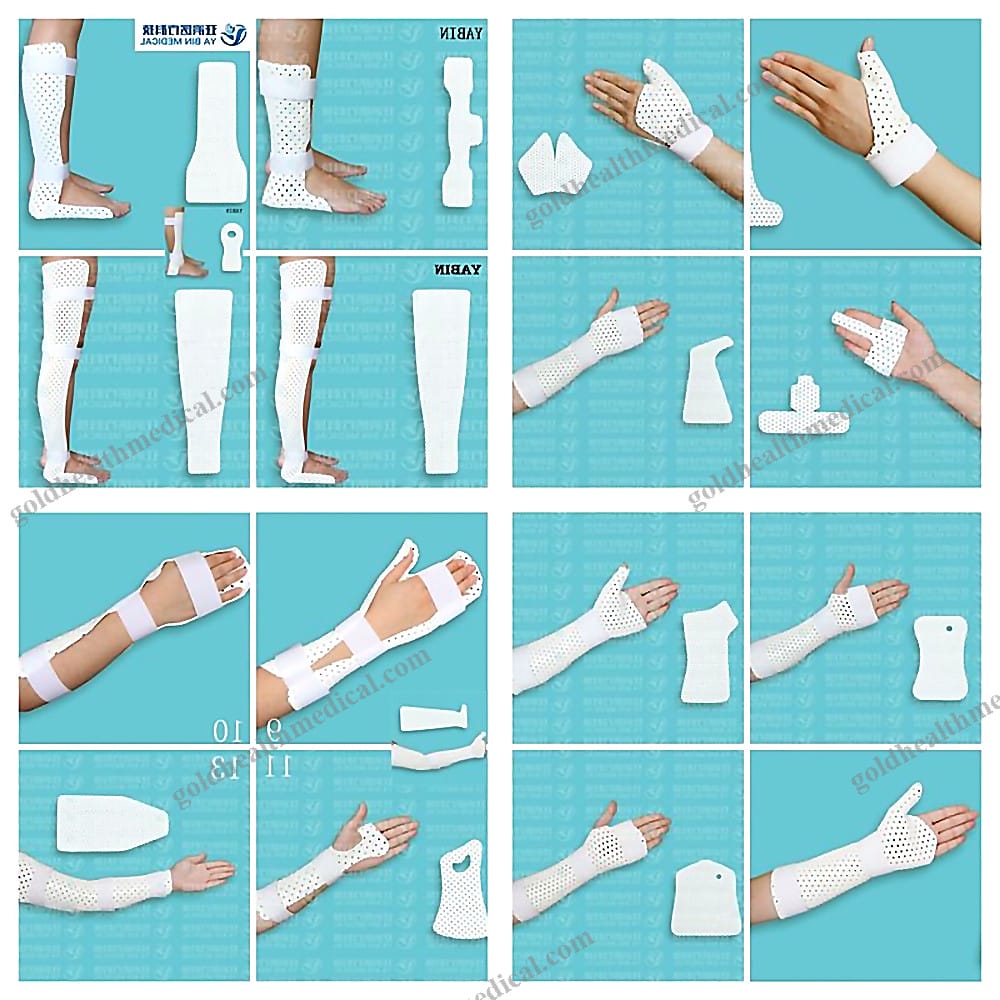

- Select the appropriate sheet thickness based on the body part:
- 1.6mm for nasal splints
- 2.4mm for finger/hand splints
- 3.2mm for arm, wrist, elbow, scoliosis, and neck splints
- 4.0mm for foot and leg splints

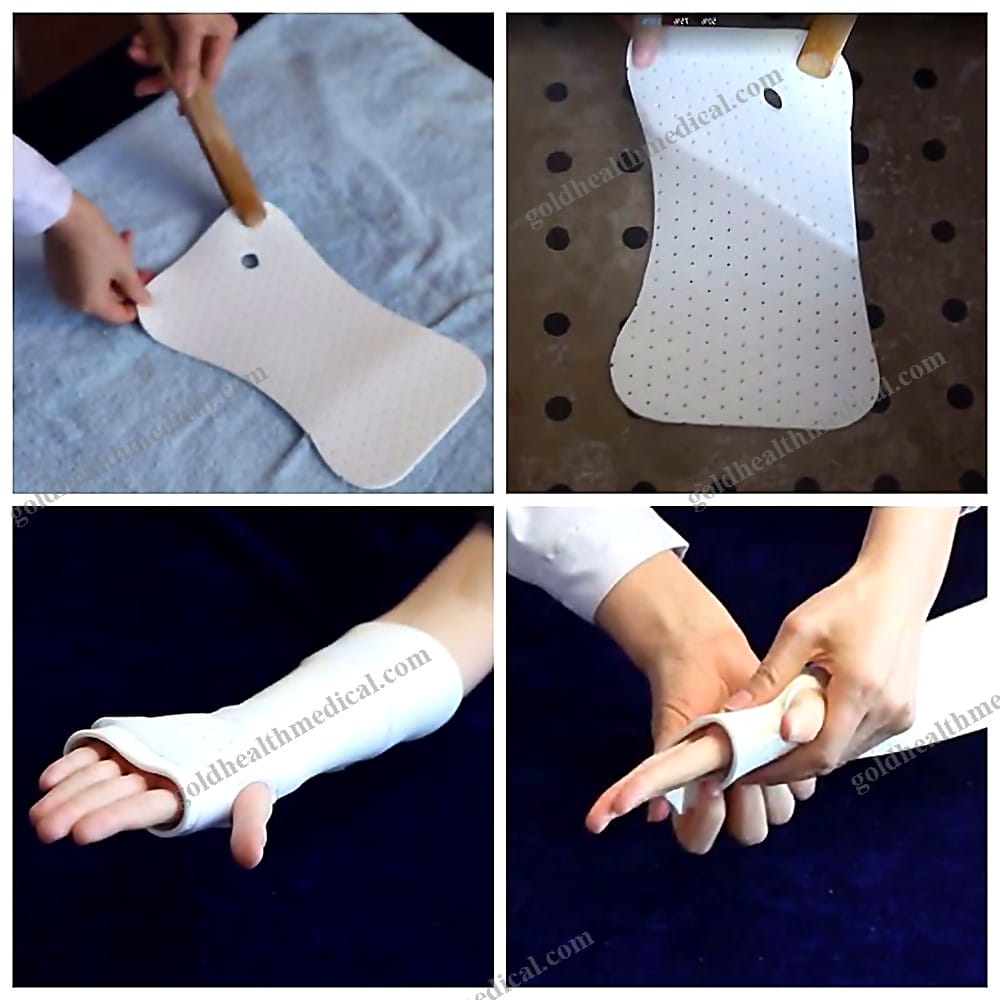

- Design a pre-cut template on paper and cut the thermoplastic sheet accordingly.
- Submerge the sheet in the water bath for 3-5 minutes until soft and pliable.
- Remove the sheet, pat dry with a soft cloth, and apply it to the patient’s body part.
- Gently mold the material with your fingers, following the natural contours of the bone structure.
- Allow the material to cool and harden, ensuring a secure fit.
- Personalize the splint with wrapping straps for added comfort and aesthetics.
- Reheat and reshape as needed throughout treatment, ensuring cost efficiency.
Operational Tips
- Avoid water temperatures exceeding 80°C to prevent deformation.
- Limit immersion time to 2-3 minutes to maintain material integrity.
- Ensure proper room temperature during application:
- Above 20°C: Molding time is 1.5-3 minutes.
- Below 10°C: Molding time extends to 30-50 minutes.
- Avoid excessive stretching to preserve reshaping resilience.
- Store at room temperature for optimal longevity.
Why Choose GoldHealth Medical?
GoldHealth Medical stands at the forefront of orthopedic innovation, delivering materials that combine cutting-edge technology with patient-centric design. Our LTTPs are trusted by healthcare professionals worldwide for their reliability, versatility, and eco-conscious properties. With a commitment to quality and continuous improvement, we empower clinicians to deliver superior care while enhancing patient outcomes.
Experience the future of orthotic fabrication with GoldHealth Medical—where precision meets comfort.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Revolutionizing Orthopedic Care with Advanced Thermoplastic Splint Sheets
- Product Name: Medical Orthopedic Thermoplastic Splint Sheet
- Material: Premium polyurethane plastic, engineered for superior performance and durability

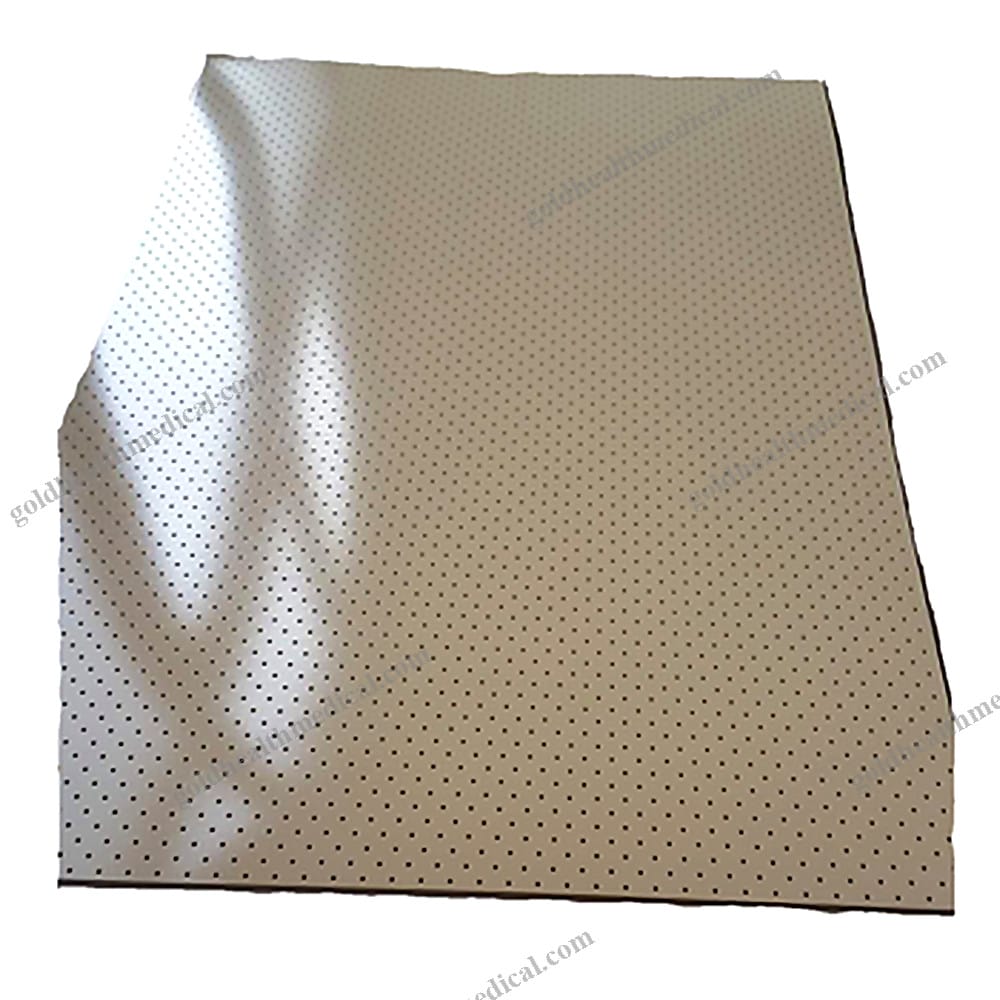

- Size: 320 x 175 x 3.2mm, designed for precise and versatile applications
- Weight: Lightweight at just 156.2g, ensuring ease of use and patient comfort

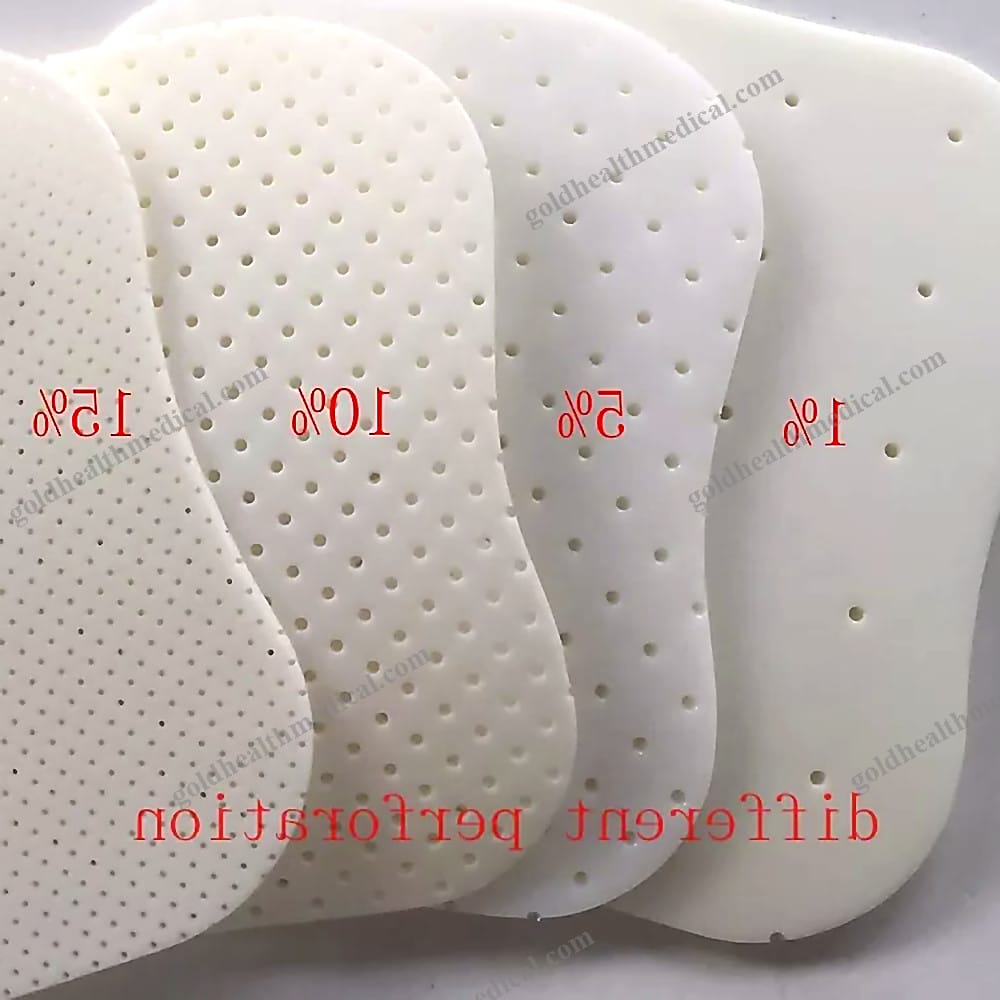

- Perforation Options: Available in 0%, 1%, 5%, 10%, and 15% perforations to suit diverse clinical needs

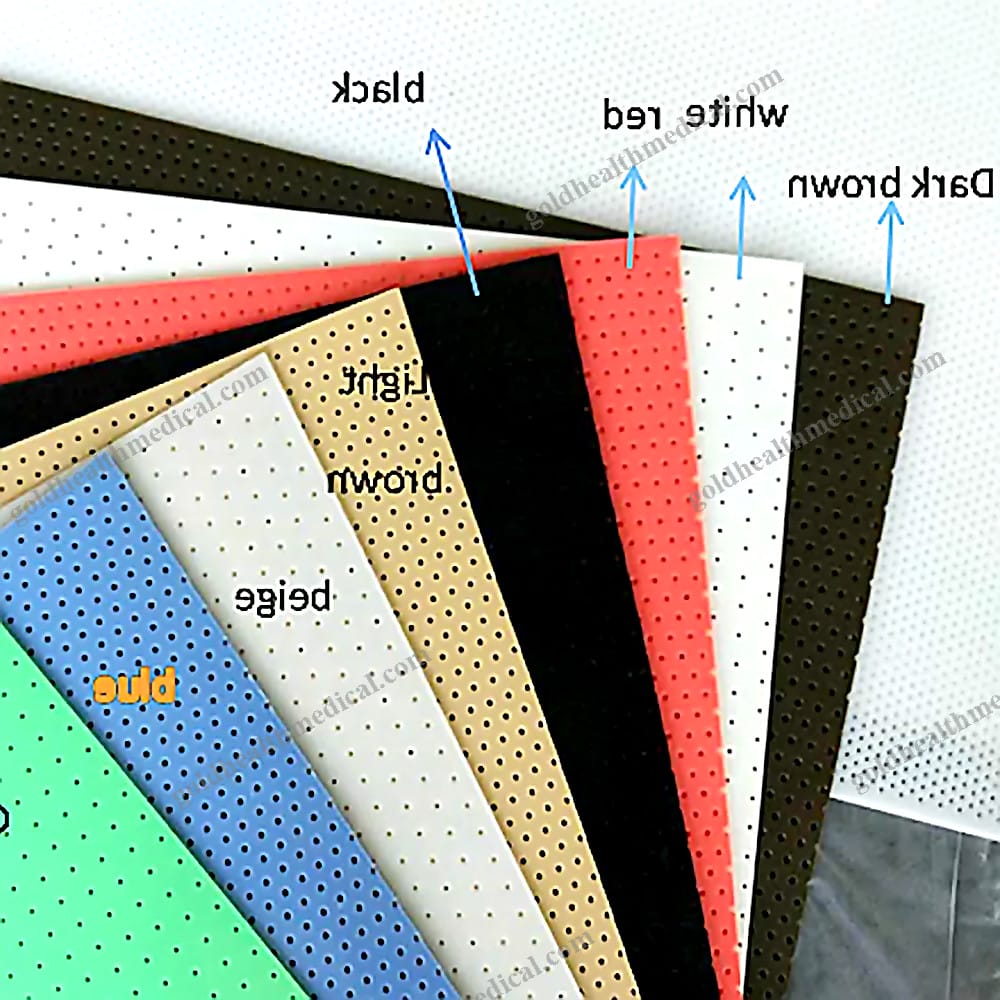

- Color Options: White, Red, Green, Blue, Brown – customizable to match professional or patient preferences
Key Features
- Breathable: Ensures patient comfort during extended wear
- Comfortable: Soft yet durable material minimizes irritation
- Waterproof: Ideal for use in various environments, including water-based therapies
- Excellent Memory: Retains shape after molding, ensuring consistent support
- Superior Malleability: Easy to shape and adjust for a perfect fit
Applications
- Designed for clinic orthopedic fracture splinting, offering reliable support and stability
- Suitable for hospitals, clinics, rehabilitation centers, and home care
Certifications
- Compliant with CE, ISO13485, ISO9001, and ISO14001 standards, ensuring safety, quality, and environmental responsibility
Technical Specifications
- Instrument Classification: Class I medical device
- Power Source: Manual operation for simplicity and reliability
- Shelf Life: 3 years, maintaining optimal performance over time
Packaging Details
- Each sheet is individually sealed in a protective plastic bag
- 10 pieces are packed in a single box, with multiple boxes securely placed in a carton
- Customized packaging and branding options available to meet specific requirements
Supply and Delivery
- Supply Ability: 200 pieces per week, ensuring consistent availability
- Port of Origin: Qingdao, with flexibility for other ports upon request
- Single Package Size: 64 x 48.5 x 2.5 cm
- Single Gross Weight: 1.500 kg
Warranty and Support
- Warranty: 3-year coverage for peace of mind
- After-Sale Service: Dedicated online technical support to assist with any inquiries or challenges
GoldHealth Medical’s thermoplastic splint sheets combine cutting-edge materials with meticulous design, delivering unmatched performance for orthopedic care. Whether in clinical settings or home environments, our products are engineered to provide comfort, durability, and precision.
