Orthopedic 15T MRI Scanner for Radiology Departments
Reference: 1601297252865Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical MRI System
Magnet System
- Magnet Type: Permanent Magnet with an automatic constant temperature system for consistent performance.
- Field Strength: 0.3T, ensuring reliable imaging quality.

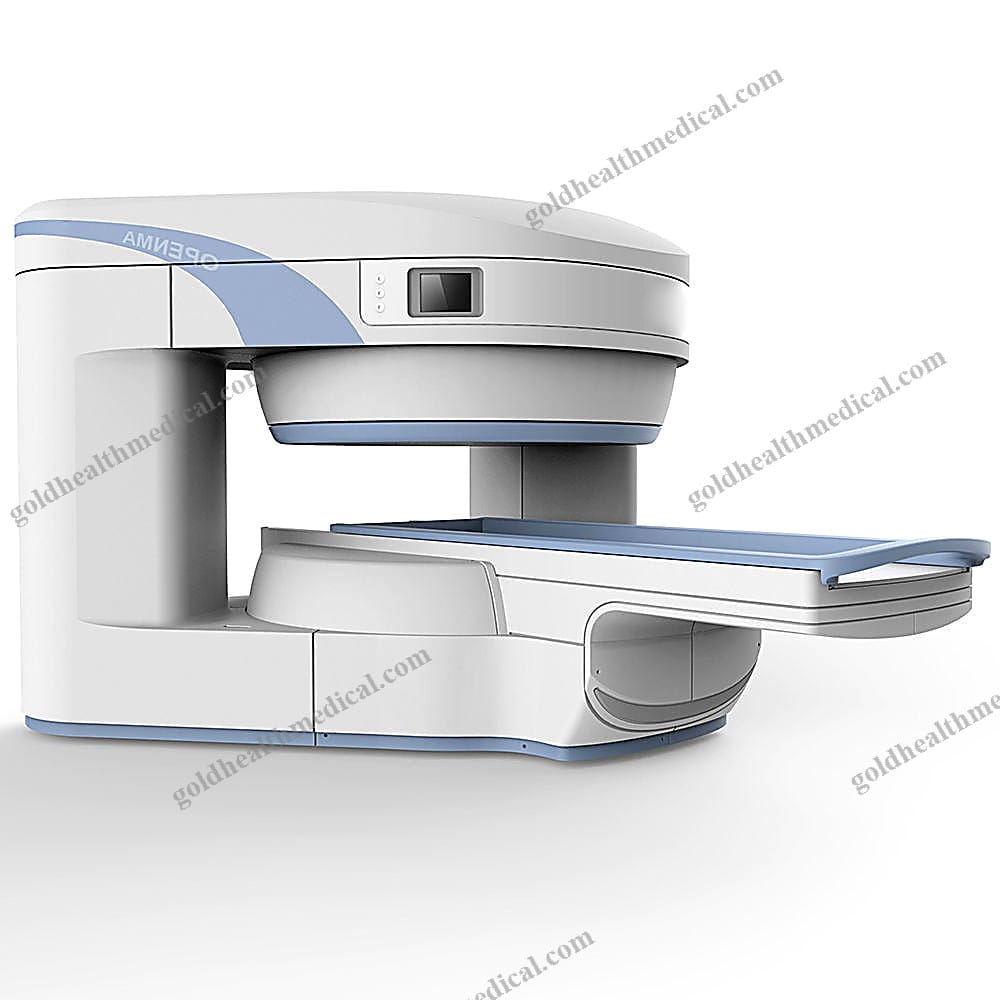

- Magnet Shape: C-shape design for enhanced accessibility and patient comfort.
- Homogeneity (40cm DSV, VRMS): ≤2.0ppm, delivering precise and uniform imaging results.
- Shim Method: Active/Passive shimming for optimal field correction.
- Magnet Vertical Gap (Cover): 40cm, providing ample space for patient positioning.
- Accessibility (Horizontal Opening Angle): 320°, offering exceptional ease of access for patients and clinicians.
- 5 Gauss Fringe Field:
- X-axis (horizontal): ≤2.5m
- Y-axis (vertical): ≤2.5m
- Z-axis (horizontal): ≤2.5m
Patient Couch and Communication

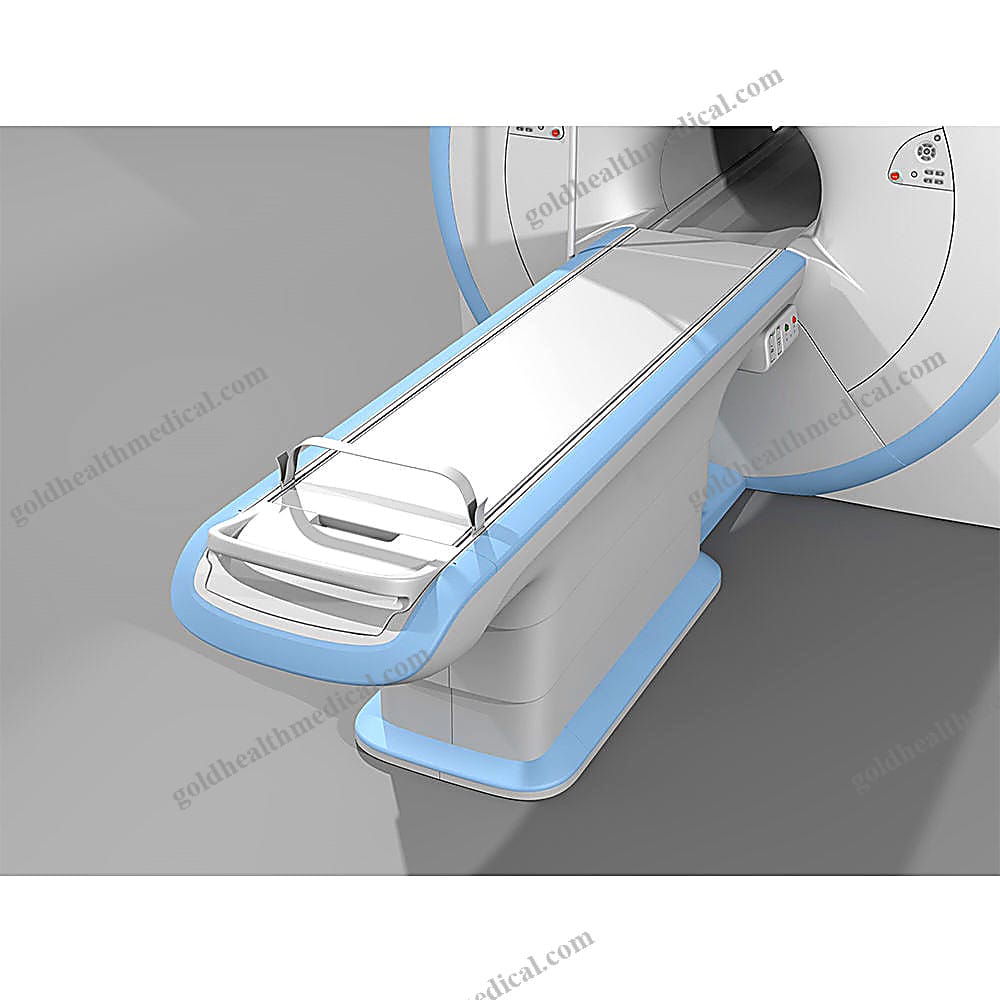

- Patient Couch Driven Mode: Motor-driven for smooth and precise movement.
- Max. Patient Weight: Supports up to ≥200kg (440lbs), accommodating a wide range of patients.
- Patient Positioning Tools: Equipped with a laser light localizer and motor-driven transfer to ensure accurate alignment within the imaging volume.
- Position Accuracy: ±1mm, guaranteeing pinpoint precision during scans.
- Emergency Call Key: Integrated for immediate assistance in critical situations.
- Intercom System: Facilitates clear communication between the operator and patient.
Gradient System
- Gradient Field Strength (Single Axis): ≥28mT/m, enabling high-resolution imaging.
- Gradient Slew Rate (Single Axis): ≥93mT/m/ms, ensuring rapid gradient switching.
- Rise Time: ≤0.3ms, minimizing delays for faster imaging sequences.
- Gradient Cooling System: Air-cooled design for efficient thermal management of gradient coils and power electronics.
RF System
- RF System Type: Digital Transmit and Receive for superior signal clarity.
- Number of RF Channels: 4 channels, supporting advanced imaging techniques.
- Transmitter Amplifier Peak Power: 6kW, delivering robust performance.
- RF Bandwidth of Receiver: ≥1MHz, capturing detailed imaging data.
- Available Coils:
- Head Coil
- Neck Coil
- Body/Spine Coil (17 inch)
- Body/Spine Coil (20 inch)
- Knee Coil
- Shoulder Coil
Computer System
- Host Computer: High-performance professional-grade system optimized for MRI applications.
- System Software: Windows 7 platform for familiarity and ease of use.
- Operation Software: APEX software, designed for intuitive operation and advanced functionality.
- CPU Clock Rate: 3.6GHz, ensuring rapid processing speeds.
- Main Memory: 2GB RAM for efficient multitasking.
- Color LCD Monitor: 19-inch display for clear visualization of imaging data.
- Keyboard and Mouse: Standard peripherals for seamless interaction.
- Image Reconstruction Speed (256 x 256 Matrix): 1500 FPS, enabling real-time image processing.
- Hard Disk: 500GB storage capacity for extensive data retention.
- Image Storage Capacity (256 x 256 Matrix): Capable of storing up to 2,650,000 images.
- Media Driver: DVD RW for convenient data transfer and backup.
GoldHealth Medical’s MRI system combines cutting-edge technology with user-centric design, offering unparalleled precision, accessibility, and reliability for diverse medical environments. Whether in hospitals, clinics, or research facilities, this system is engineered to meet the highest standards of modern healthcare.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced MRI Machine designed to redefine precision and reliability in medical imaging. Engineered with cutting-edge technology, this device delivers exceptional performance for a wide range of diagnostic applications.
Key Features and Benefits:
- Magnet Type: Utilizes a Permanent Magnet with an Automatic Constant Temperature System, ensuring consistent performance and long-term stability.
- Magnet Shape: Features a C-shape design, offering enhanced accessibility and patient comfort during scans.
- Field Strength: Delivers a robust 0.3T magnetic field, providing high-quality imaging for accurate diagnostics.
- Homogeneity: Achieves an impressive ≤2.0ppm homogeneity within a 40cm DSV (Diameter Spherical Volume), ensuring clarity and precision in every scan.
- Accessibility: Boasts a 320° horizontal opening angle and a 40cm vertical gap, allowing for easy positioning and accommodating patients of all sizes.
- Shim Method: Employs both Active and Passive shimming techniques to optimize magnetic field uniformity.
Technical Specifications:
- Instrument Classification: Class II medical device, ensuring safety and compliance with global standards.
- Power Source: Fully electric-powered, designed for seamless integration into modern healthcare facilities.
- Shelf Life: Maintains peak performance for up to 3 years under proper conditions.
- Quality Certifications: Backed by CE, ISO, and TUV certifications, guaranteeing adherence to the highest industry standards.
Support and Service:
- Warranty: Comprehensive coverage for 3 years on the system and 2 years on specific components, ensuring peace of mind.
- After-Sales Service: Includes onsite training to ensure your team is fully equipped to maximize the machine's capabilities.
Additional Details:
- Place of Origin: Proudly manufactured in Guangdong, China, combining innovation with precision engineering.
- Packaging: Each unit is carefully packaged with dimensions of XX cm and a gross weight of XX kg, ensuring safe and secure delivery.
Experience the future of medical imaging with GoldHealth Medical’s MRI Machine – where precision meets innovation.
