ONETECH EG14 Handheld ECG Monitor Portable Electrocardi
Reference: 1601228000849Household Medical Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

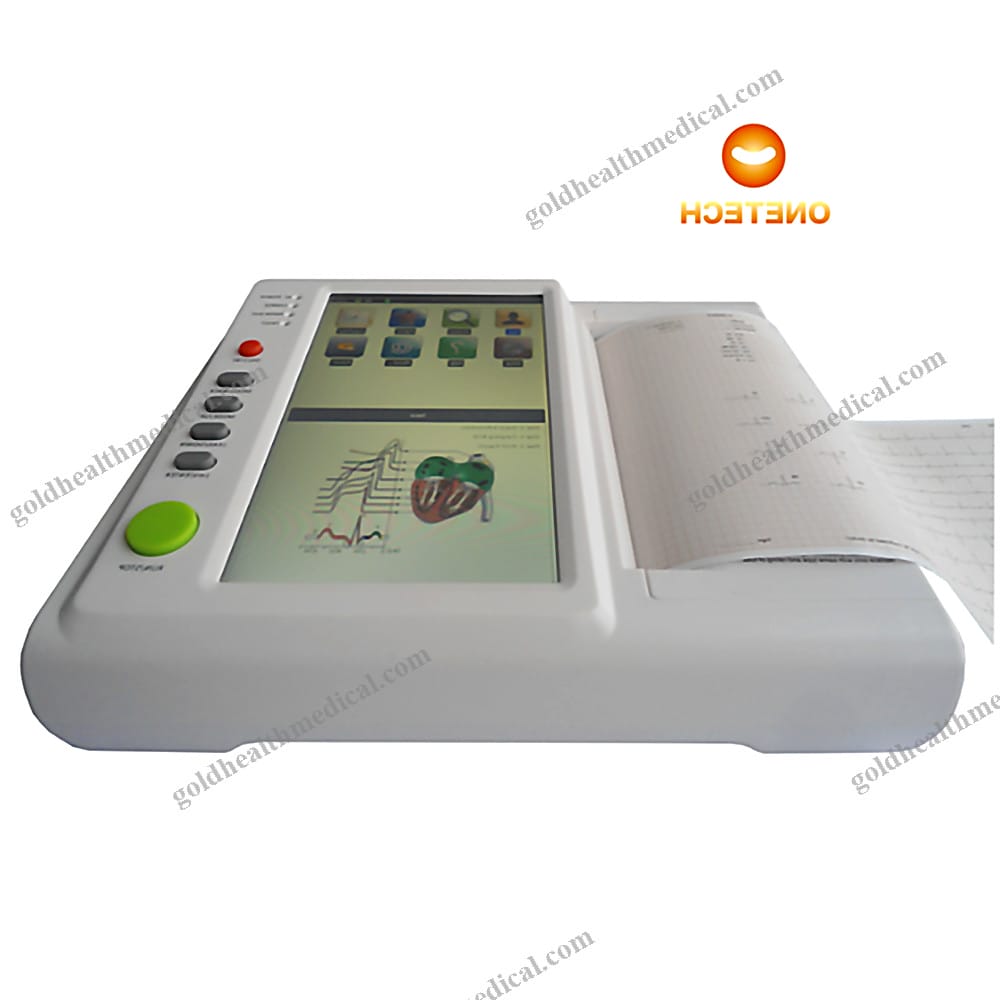

Advanced Portable ECG Machine by GoldHealth Medical
Product Overview
GoldHealth Medical introduces an advanced 12-lead ECG machine designed for hospital, clinical, and medical center use. This portable device combines cutting-edge technology with a sleek, modern design to deliver unparalleled performance in cardiac diagnostics.
Key Features
- 12-Lead Simultaneous Acquisition: Captures full-screen 12-channel ECG waveforms with precision.
- 10.2-Inch Color Touch Screen: Dual-mode operation with both touch and button controls for seamless interaction.
- Advanced Filtering: Equipped with sensitive ADS, HUM, and EMG filters to ensure clear and accurate readings.
- Automated Analysis: Automatic measurement, calculation, analysis, and waveform freezing reduce the burden on medical professionals and enhance efficiency.
- Optimal Baseline Adjustment: Ensures the best possible recording quality.
- High-Resolution Thermal Printer: Synchronizes prints with a resolution of 8 dots/mm and requires no adjustments, supporting up to 150Hz frequency response.
- Lead and Paper Detection: Alerts users to lead disconnections and paper shortages.
- Rechargeable Battery: Built-in lithium-ion battery (14.8V/4400mAh) with AC/DC power conversion, adaptable to 100-240V, 50/60Hz AC power supply.
- Data Management: Stores over 500 ECG reports internally and supports USB flash disk and SD memory for data transfer and analysis via PC software.

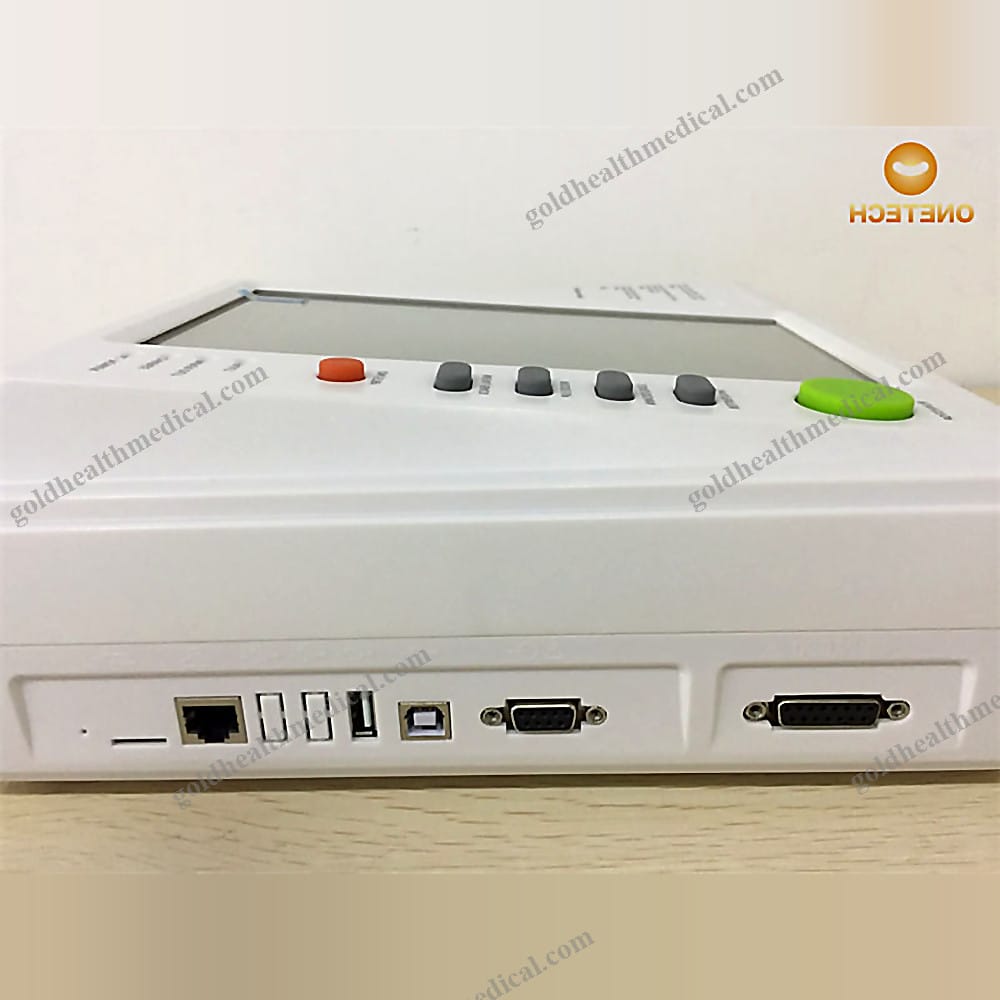

- Communication Interfaces: Standard RS232 and USB interfaces for connection with ECG workstation software.
- Energy-Saving Mode: Sleep mode extends LCD life and conserves energy.
- Continuous Waveform Recording: Records real-time, clear, and exact 12-channel ECG waveforms with detailed remarks including lead sign, sensitivity, paper speed, and filter state.

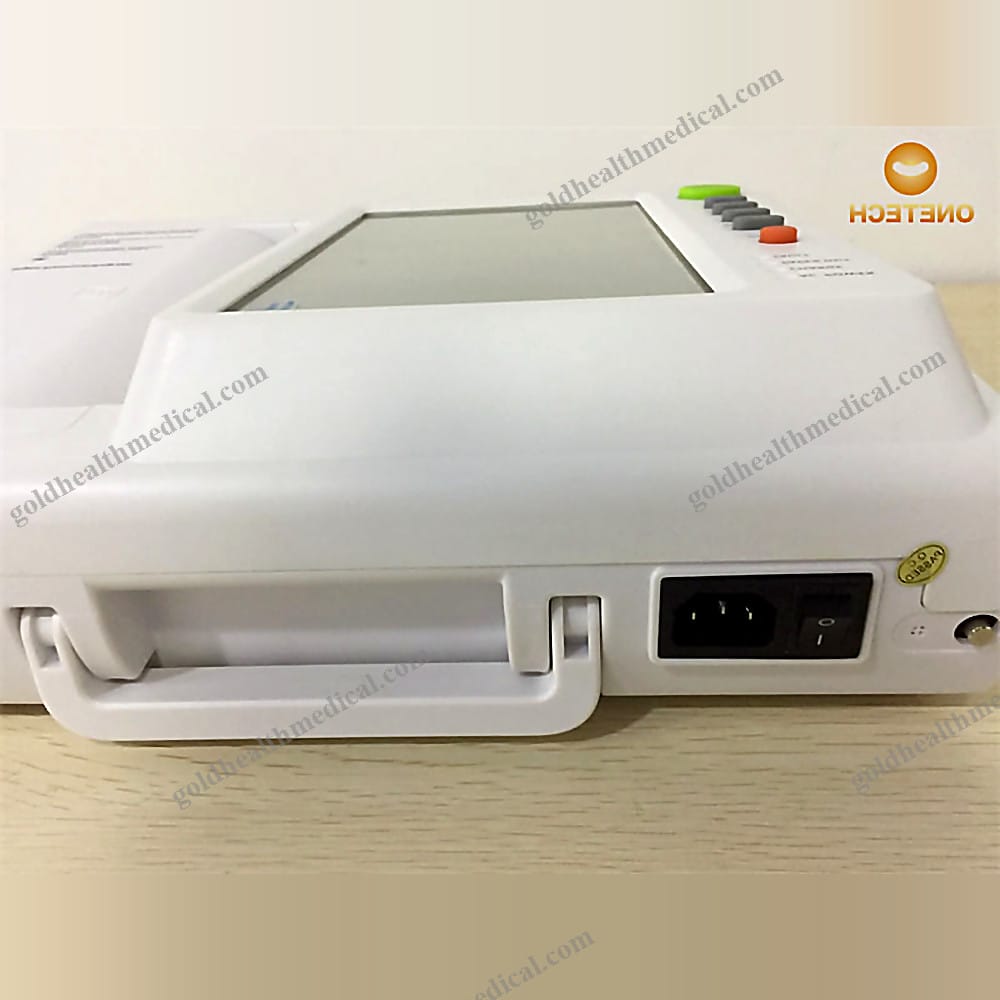

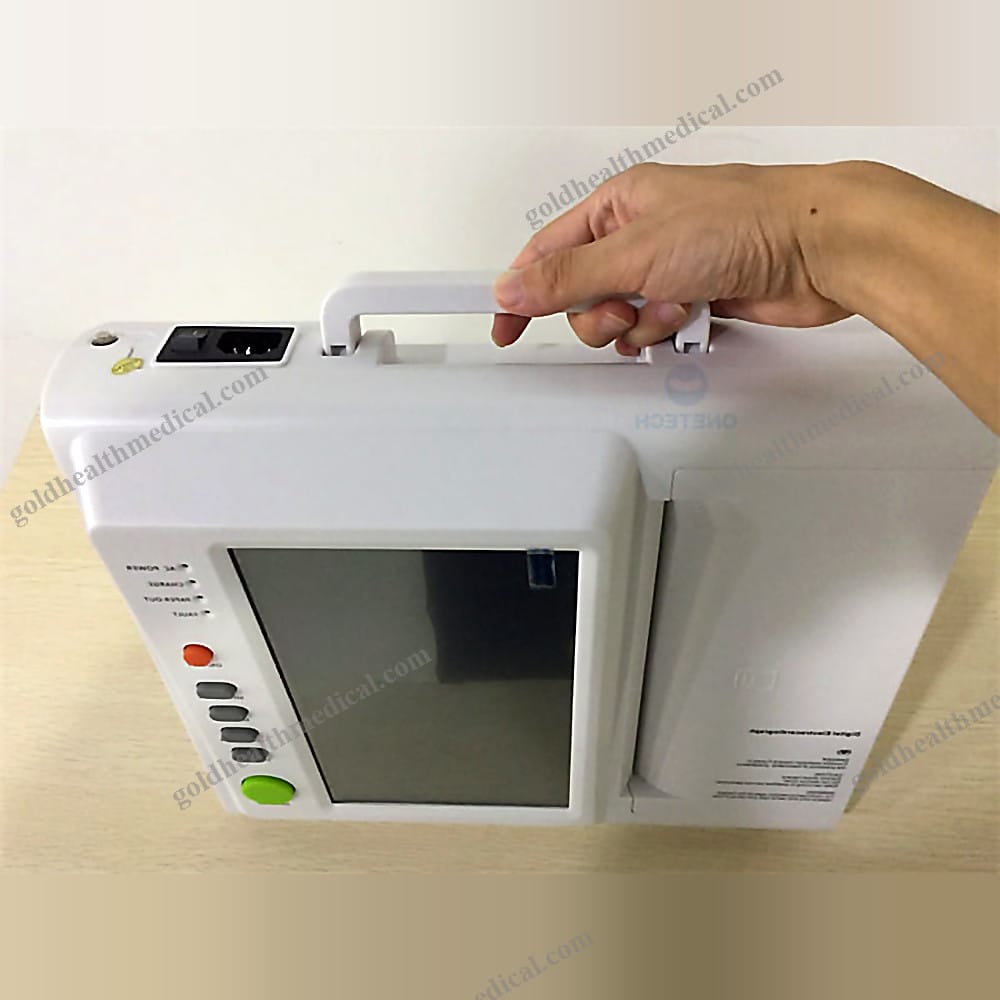

- Portable Design: Compact and lightweight with a hidden handle for easy transport.
- Customizable Print Thickness: Offers seven levels of print thickness.
Why Choose Our ECG Monitor?
The data from STROKESTOP published by Swedish Circulation in 2015 highlights the importance of regular ECG monitoring. Daily self-tests increase risk detection rates fourfold and effectively identify 70% of new-onset diseases, significantly reducing the risk of sudden heart attacks.
Usage
Designed for ease of use, this ECG monitor allows doctors to start monitoring in multiple languages, immediately identifying any abnormal signals. Our development focuses on simplifying the ECG monitoring process for users.
Specifications
- Application: Hospital, clinic, medical centers
- Screen: 10.2-inch color touch screen
- Waveform Display: Full-screen 12-channel ECG waveforms
- Filters: ADS, HUM, EMG
- Printer: High-resolution thermal printer with 216mm print paper
- Battery: Built-in rechargeable lithium-ion battery (14.8V/4400mAh)
- Power Supply: 100-240V, 50/60Hz AC
- Data Storage: Over 500 ECG reports in built-in flash
- Interfaces: RS232 and USB communication
- Certifications: ISO 13485 and CE
After-Sales Service
GoldHealth Medical provides timely and organized after-sales support to ensure customer satisfaction.
Frequently Asked Questions
- Delivery Options: DHL, FedEx, UPS, TNT, EMS, air cargo, sea shipment, or customer's freight forwarder.
- Delivery Time: 2-10 days depending on order quantity.
- Payment Terms: Various options including T/T in advance and Western Union.
- Product Testing: All goods are thoroughly tested before shipping.
- Certifications: ISO 13485 and CE.
- Warranty: 18/36 months.
GoldHealth Medical is dedicated to providing top-tier medical devices that enhance patient care and streamline diagnostic processes.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the 12-Channel ECG Machine, a state-of-the-art diagnostic tool designed for precision, reliability, and ease of use. Engineered to meet the needs of modern healthcare, this advanced electrocardiograph is ideal for hospitals, clinics, research institutions, and home healthcare settings. With its intuitive design and cutting-edge technology, it ensures accurate pathological analysis and early detection of cardiac conditions.
Key Features and Specifications
- Display: A vibrant 10.2-inch color touchscreen for clear visualization and effortless navigation.
- Functionality: Equipped for comprehensive diagnostics, including early detection of heart abnormalities and daily health monitoring.
- Power Source: Built-in rechargeable battery ensures uninterrupted performance, with the flexibility of electrical power backup.
- Material: Durable, high-quality plastic construction for long-lasting use.
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Safety Standard: Compliant with GB2626-2006 standards for optimal user protection.
- Color: Sleek white and blue design for a professional and modern aesthetic.
Applications
- Hospitals and clinics for routine diagnostics.
- Home healthcare for convenient daily monitoring.
- Research institutions and laboratories for advanced cardiac studies.
- Rehabilitation centers and elderly care facilities for continuous health tracking.
Certifications and Quality Assurance
- Certified by CE, TUV, and ISO for global quality standards.
- Backed by a 2-year warranty and comprehensive quality assurance.
After-Sales Support
- Access to online technical support for seamless troubleshooting and assistance.
- Customizable solutions with OEM/ODM services available to meet specific requirements.
Packaging Details
- Selling Units: Single item.
- Package Dimensions: 50 x 45 x 35 cm.
- Gross Weight: 1.300 kg.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-performance medical devices that empower healthcare professionals and enhance patient outcomes. The 12-Channel ECG Machine exemplifies our dedication to precision engineering, user-centric design, and uncompromising quality. Elevate your diagnostic capabilities with a device that combines advanced technology with practical functionality.
Shelf Life: 2 years.
Experience the future of cardiac diagnostics with GoldHealth Medical – where innovation meets excellence.
