NeuroMap Portable EEG Analyzer
Reference: 1601288141371Reflector Apparatus
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

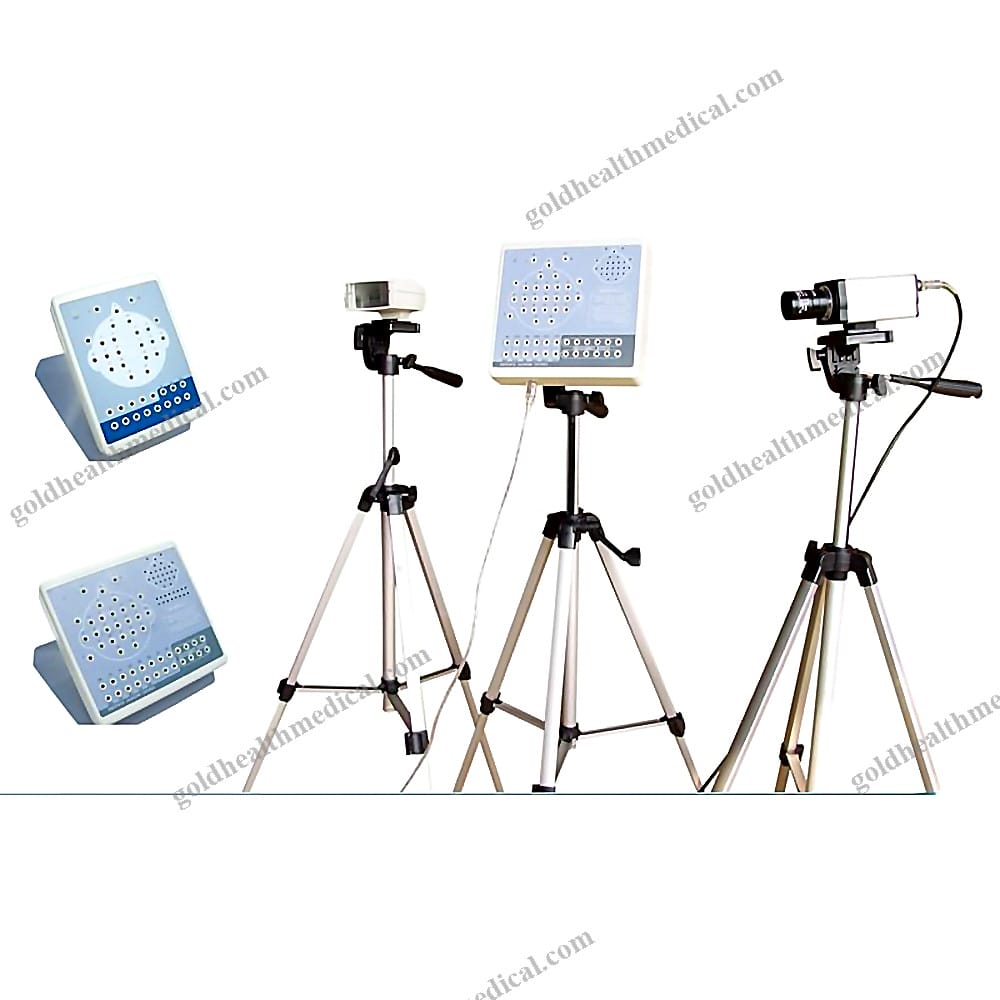

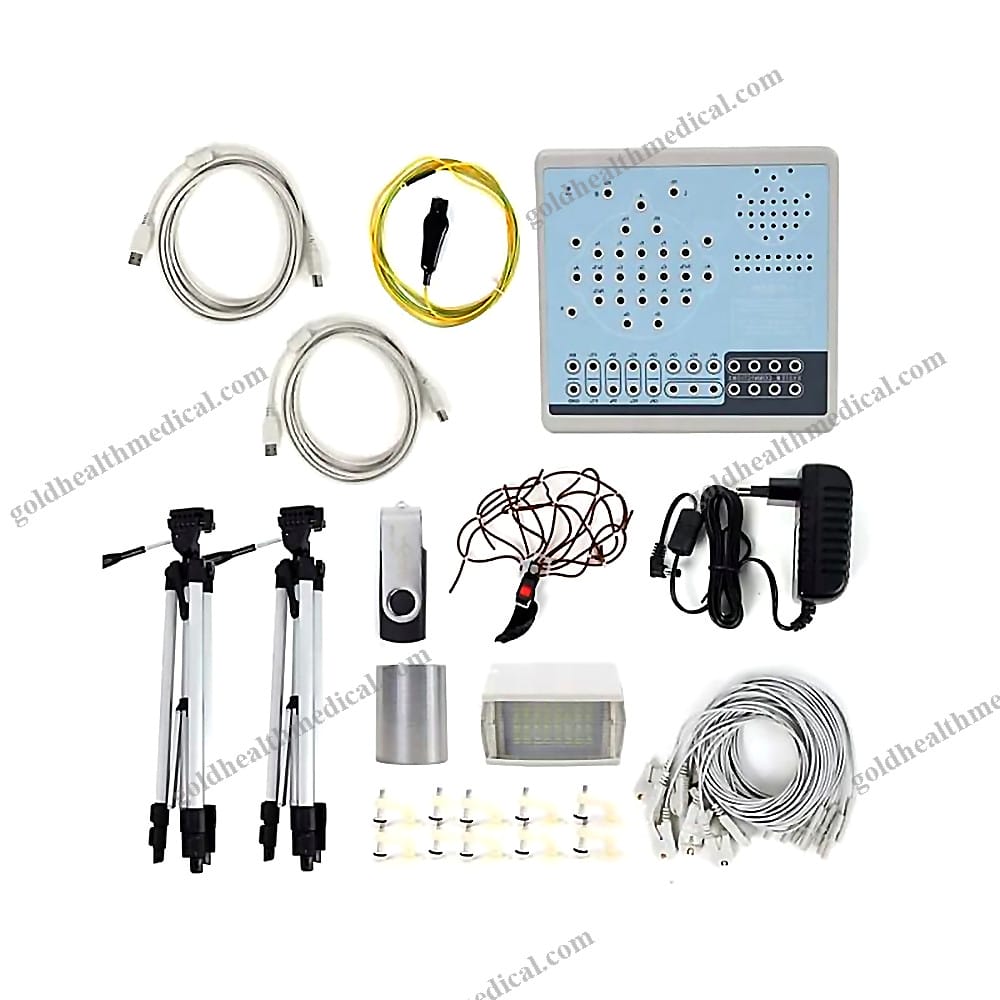

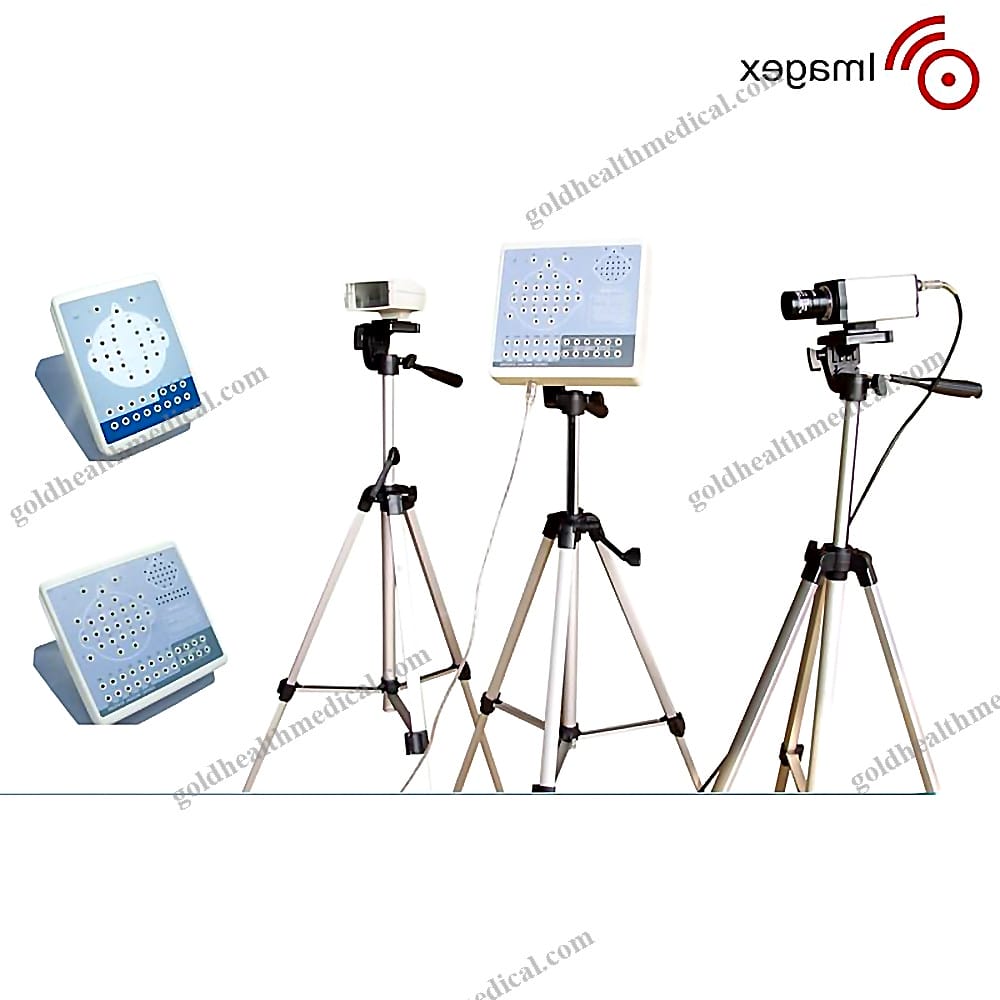

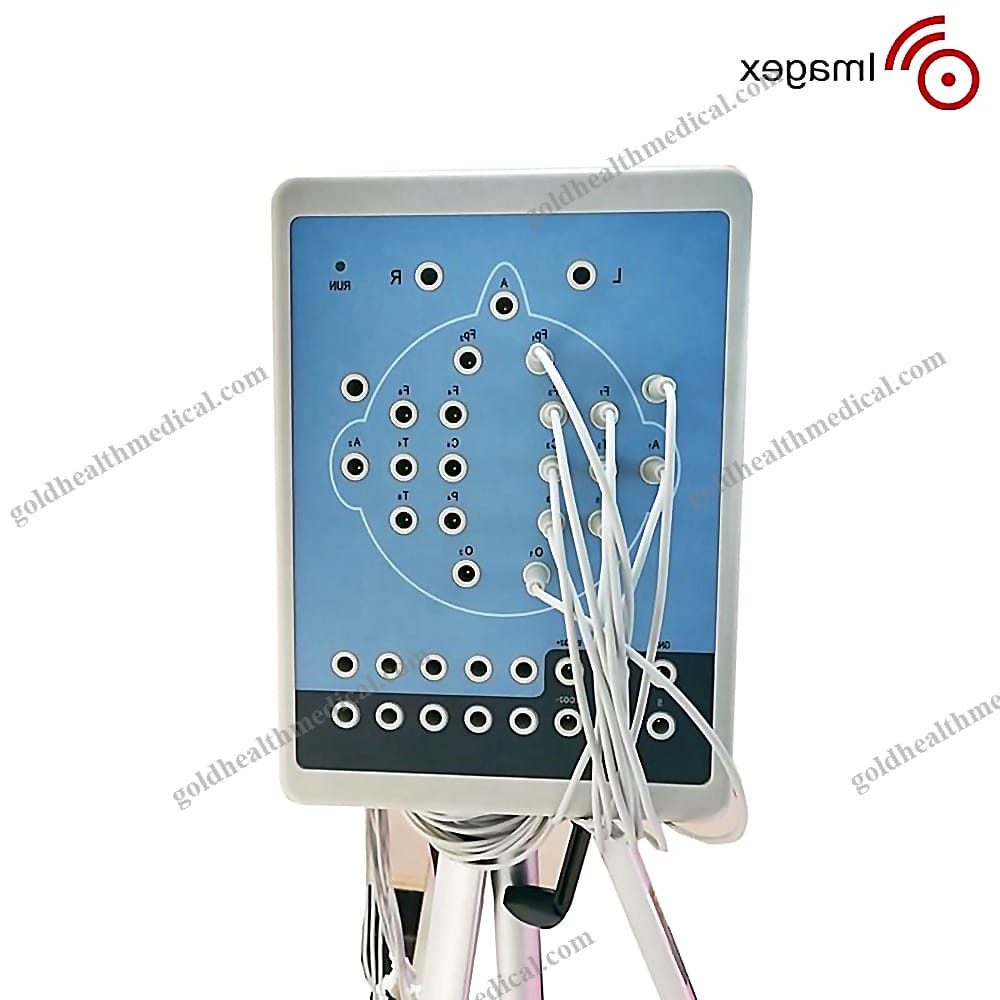

Digital Brain Electric Activity Mapping System (EEG Machine)
Product Overview
The Digital Brain Electric Activity Mapping System by GoldHealth Medical is a state-of-the-art EEG (Electroencephalogram) machine engineered for precise, real-time monitoring of brain electrical activity. Leveraging advanced digital technology, this system delivers unparalleled accuracy in diagnosing neurological conditions and supporting cutting-edge research. With its 24-channel configuration, it ensures high-quality, reliable brain mapping, making it indispensable in hospitals, research labs, and clinical environments.
Key Specifications
- Number of Channels:
- 24 channels for comprehensive brainwave monitoring (18 and 32 channels optional)
- Sampling Speed:
- 200 Hz/sec for high-frequency signal capture and rapid data acquisition
- Sampling Precision:
- 12-bit precision for enhanced signal clarity and accuracy
- Input Impedance:
- ≥10MΩ, ensuring minimal noise interference and excellent signal quality
- Patient Leak Current:
- <10uA, ensuring patient safety during operation
- Level of Noise:
- ≤5uV Vp-p, ensuring a high signal-to-noise ratio for precise readings
- Common-Mode Rejection Ratio (CMRR):
- ≥90dB, effectively eliminating interference from external sources for clean EEG data
- Magnifying Multiple:
- 10,000x magnification for detailed signal analysis
- Filtering Constant:
- Fully digital and customizable signal filtering for accurate brainwave signal representation
- Display Speed (Paper Speed):
- Options: 5, 10, 15, 30, 60, 120 mm/s for varying levels of detail in signal presentation
- Display Gain:
- Adjustable: 1, 2, 5, 10, 12, 15, 20 mm/50µV for customizable signal amplification
- Review Speed:
- Adjustable: 1, 2, 3, 10, 20, 40, 60 for efficient data review and analysis
- 50Hz Interference Suppression Ratio:
- ≥30dB, ensuring minimal interference from electrical sources
Features
- Comprehensive Data Collection:
- The 24-channel configuration ensures detailed and precise brain activity mapping, enabling thorough assessment of electrical activity across different brain regions.
- Advanced Signal Processing:
- A high sampling rate (200 Hz/sec) and 12-bit precision capture even the smallest changes in brain activity, ensuring diagnostic accuracy and robust research outcomes.
- Superior Display and Customization:
- Multiple options for paper speed and display gain provide complete control over brainwave data visualization, offering both detailed insights and broader overviews.
- Noise Reduction & Interference Suppression:
- A ≥90dB CMRR and ≥30dB 50Hz interference suppression ratio minimize unwanted noise and electrical interference, ensuring clean, reliable data.
- Digital Filtering:
- The fully digital filtering system offers high flexibility for signal processing, allowing users to customize settings to meet specific requirements.
- Patient Safety:
- With a low patient leak current (<10uA) and high input impedance, this EEG machine ensures safe operation, ideal for long-term monitoring in clinical settings.
- Efficient Review & Analysis:
- Adjustable review speeds (up to 60 times faster than normal) enable swift analysis of EEG data, making it suitable for both emergency diagnostics and long-term studies.
Applications
- Neurological Diagnostics:
- Ideal for diagnosing epilepsy, sleep disorders, brain tumors, and other neurological conditions by analyzing brain electrical activity.
- Clinical Research:
- Suitable for research applications, providing valuable insights into brain function, cognitive processes, and neurophysiological studies.
- Intraoperative Monitoring:
- Real-time brain activity monitoring during surgeries ensures patient safety.
- Neurofeedback Therapy:
- Used for brain training and therapy to enhance cognitive function, reduce stress, or treat neurological conditions.
- Pediatric Neurology:
- Designed with safety features and high precision for diagnosing conditions like epilepsy in children.
Why Choose Our Digital EEG Machine?
- Precision & Accuracy:
- 12-bit precision ensures clearer brainwave signals and more accurate diagnoses.
- Customization:
- Adjustable display speed, gain, and review speeds allow tailored usage based on patient condition or research needs.
- User-Friendly:
- Simplified operation with a digital interface ensures ease of use for
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: EEG Mapping Machine by GoldHealth Medical
Key Features and Benefits:
- Advanced EEG Mapping Technology: Designed to deliver precise and reliable brain activity mapping, empowering healthcare professionals with actionable insights.
- Durable and Lightweight Construction: Crafted from high-quality, medical-grade plastic for enhanced durability and portability.
- Electric-Powered Performance: Ensures consistent and efficient operation, making it ideal for both clinical and home environments.
- Two-Year Shelf Life: Maintains optimal functionality and reliability over an extended period, ensuring long-term usability.
Technical Specifications:
- Instrument Classification: Class I medical device, ensuring safety and compliance with essential health standards.
- Quality Certification: CE-certified, guaranteeing adherence to international quality and safety benchmarks.
- Place of Origin: Proudly manufactured in China with global standards in mind.
Support and Assurance:
- One-Year Warranty: Provides peace of mind with comprehensive coverage for the first year of use.
- Free Spare Parts: Complimentary spare parts included as part of our commitment to customer satisfaction.
Ideal For:
Hospitals, clinics, research institutions, rehabilitation centers, and home healthcare settings seeking a dependable EEG solution.
GoldHealth Medical’s EEG Mapping Machine combines cutting-edge technology with user-centric design, setting a new standard for brain activity monitoring and analysis.
