Neonatal ECG Monitor Pro
Reference: 1600055498332Medical Incubator
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Neonatal Cardiac Care
GoldHealth Medical proudly introduces a groundbreaking Portable Electrocardiogram (ECG) designed specifically for newborns and infants. This state-of-the-art device is engineered to support early detection of life-threatening arrhythmogenic disorders, enabling timely preventive therapy. As part of cardiovascular screening programs, some European countries are already considering the integration of neonatal ECGs into their National Health Services. Our solution, crafted by expert engineers, meets the rigorous demands of identifying abnormal neonatal cardiomyopathy with precision and reliability.
Why Choose GoldHealth Medical’s Portable Neonatal ECG?
Key Advantages
- Intuitive Operation: Seamlessly switch between automatic and manual modes.
- Real-Time Monitoring: Capture, display, and analyze ECG waveforms instantly.
- Enhanced Usability: Equipped with a responsive touch screen and playback functionality.
- Precision Analysis: Automatically measures time and voltage while analyzing ECG data.
Standout Features

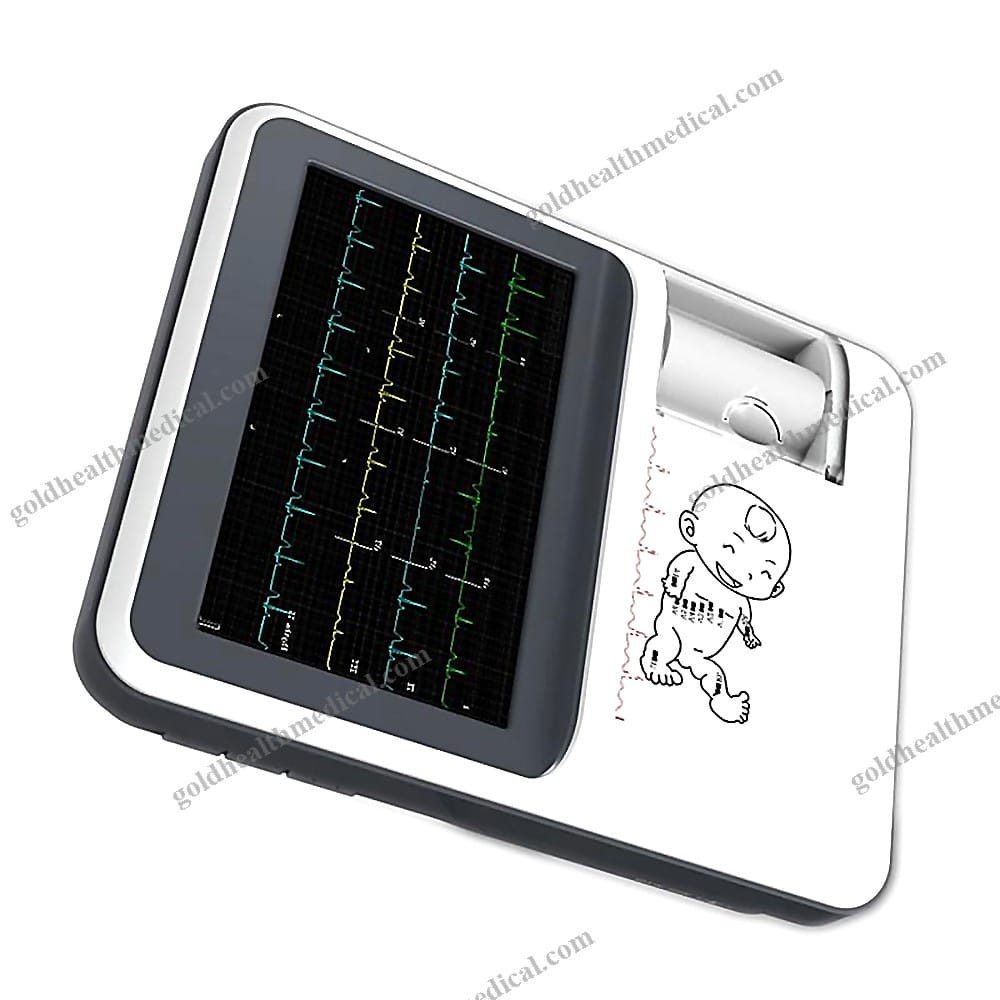

- 7-Inch Touchscreen: A vibrant, high-resolution color display for clear visualization.
- 12-Channel ECG: Powered by an advanced digital signal processor for unparalleled accuracy.
- Synchronous Data Acquisition: Standard 12-lead ECG with rapid signal capture in just 8 seconds.
- Ample Storage: Designed to store large volumes of ECG records for comprehensive patient history.
- Efficient Workflow: Real-time ECG data display ensures swift decision-making.
Technical Specifications
- Input Circuit:
- 12-lead ECG with synchronous data acquisition (6–8 seconds).
- Floating input with anti-defibrillation and guard circuit protection.
- Sample rate: ≥10,000.
- Input impedance: ≥10MΩ.
- Polarization voltage: ≥±300mV.
- Common Mode Rejection Ratio (CMRR): ≥100dB.
- Signal Range: 0.05Hz to 250Hz.
- Time Constant: ≥3.2 seconds.
- Filter Options:
- Low Pass Filter (LPF): 40Hz/100Hz/150Hz/250Hz.
- Electromyography (EMG): 25Hz/35Hz/45Hz.
- Alternating Current: 50Hz/60Hz.
- Baseline Suppression: 0.1Hz/0.25Hz/0.5Hz.
- Sensitivity: 5mm/mV, 10mm/mV, 20mm/mV.
- Patient Safety:
- Leakage current: <10µA.
- Anti-shock: Class II with internal battery.
- Protection grade: Type CF.
- Compact Design:
- Weight: 1.2kg.
- Dimensions: 196mm x 246mm x 54mm.

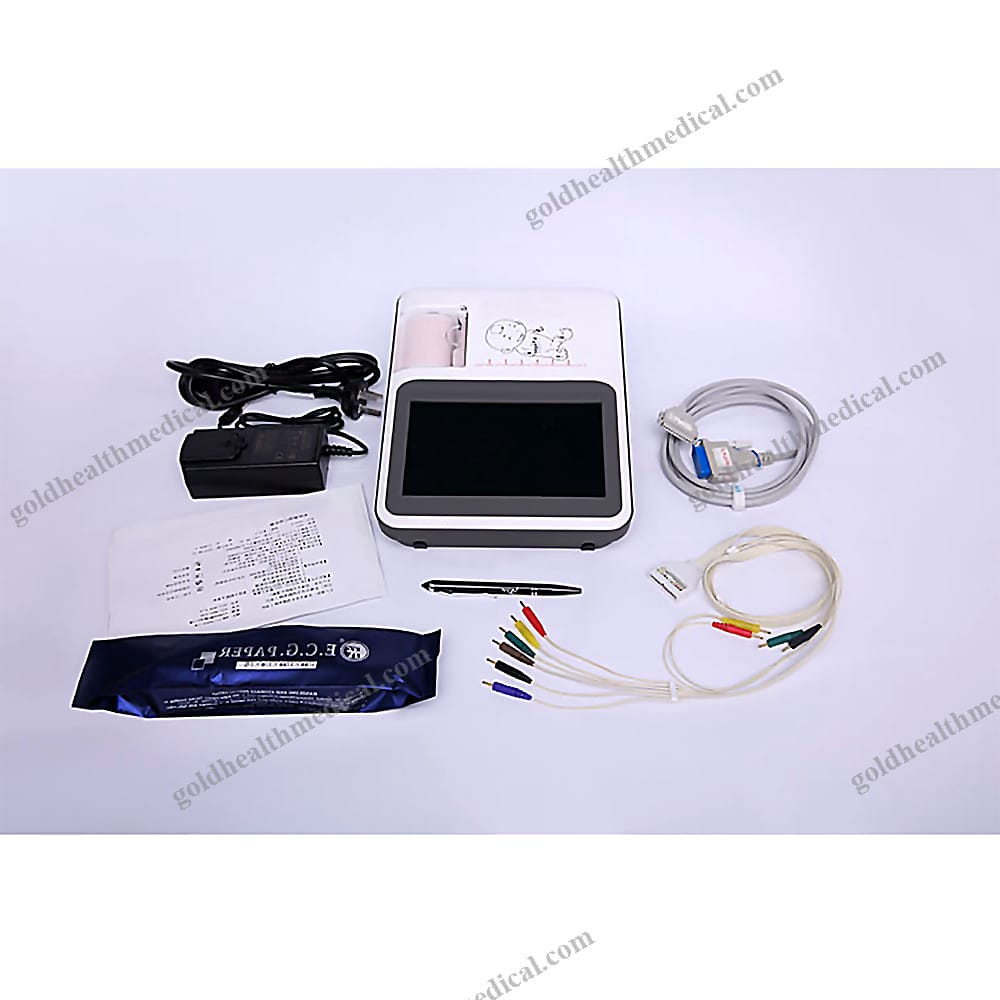

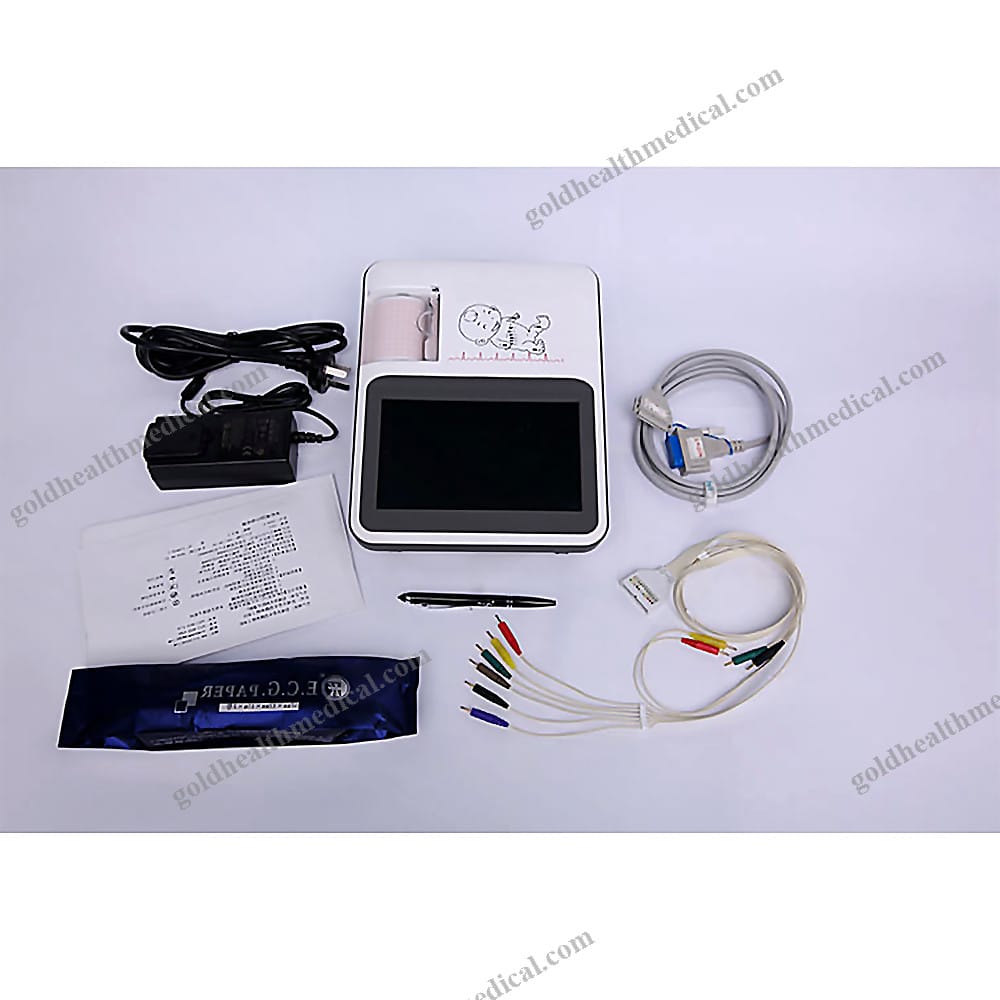

- Main Accessories:
- Specialized neonatal ECG cables.
- Skin-friendly neonatal electrode slices.
Intelligent Alarms and Recording
- Alarm Functions:
- Alerts for electrode detachment.
- High-frequency noise detection.
- Low-paper warnings.
- Recording Options:
- External laser printing and built-in thermal crossbar printing.
- 12-lead recordable capability.
- Paper speeds: 25mm/s, 50mm/s.
- Record types: Internal printer and external A4 printer.
Advanced Storage and Connectivity
- Storage:
- 4GB SSD solid-state drive.
- Capacity to store at least 2,000 reports.
- Interfaces:
- WIFI, wired connections, and dual USB ports.
- Data Transmission:
- Seamless remote transmission via a Windows-based operation system.
Power Supply
- Versatile Power Options:
- AC-DC compatibility with DC charging supporting up to 4 hours of continuous use.
- Real-time battery status display with low-battery alerts.
Key Analytical Capabilities
- Standard Range and Deviation Display.
- Neonatal-Specific Analysis:
- Tailored for age groups: 0–3 days, 4–7 days, 7 days–1 month, 1 month–3 months.
- Remote ECG Workstation:
- Enables secure and efficient remote data transmission.
GoldHealth Medical’s Portable Neonatal ECG is more than a device—it’s a commitment to advancing infant cardiac care. With its precision engineering, user-friendly design, and cutting-edge features, this tool empowers healthcare professionals to deliver exceptional care. Choose GoldHealth Medical for innovation you can trust
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Revolutionizing Neonatal Cardiac Monitoring
- Product Name: Neonatal Electrocardiograph
- Unique Features:
- Designed specifically for neonatal cardiac monitoring, ensuring precision and reliability in the most delicate applications.
- Equipped with a 7-inch widescreen color touch display featuring LED backlighting, offering exceptional clarity and ease of use.
High-definition resolution of 1024x600 ensures every detail is visible, aiding accurate diagnosis and monitoring.
Technical Specifications:
- Screen Type: Color touch screen with LED illumination
- Resolution: 1024x600 pixels
Instrument Classification: Class II medical device
Why Choose GoldHealth Medical?
- Unmatched Precision: Tailored for neonatal care, this electrocardiograph delivers accurate readings critical for early detection and treatment.
- User-Centric Design: The intuitive touch interface and vibrant display make operation seamless for healthcare professionals.
Global Reach: Manufactured in Guangdong, China, and available for export worldwide through any Chinese port.
Support and Assurance:
- Warranty: Comprehensive 1-year warranty for peace of mind.
After-Sales Service: Access to online technical support, ensuring uninterrupted performance and assistance whenever needed.
Supply Capacity:
- Production Capability: Up to 100 sets per week, ensuring timely delivery for bulk orders.
- Packaging: Ships in standard export packaging, designed to protect the device during transit.
GoldHealth Medical is committed to delivering cutting-edge medical solutions that empower healthcare providers and improve patient outcomes. Our neonatal electrocardiograph is a testament to innovation, precision, and reliability in modern medical technology.
