MYW067 Veterinary MRI System 035T
Reference: 1600832359485Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

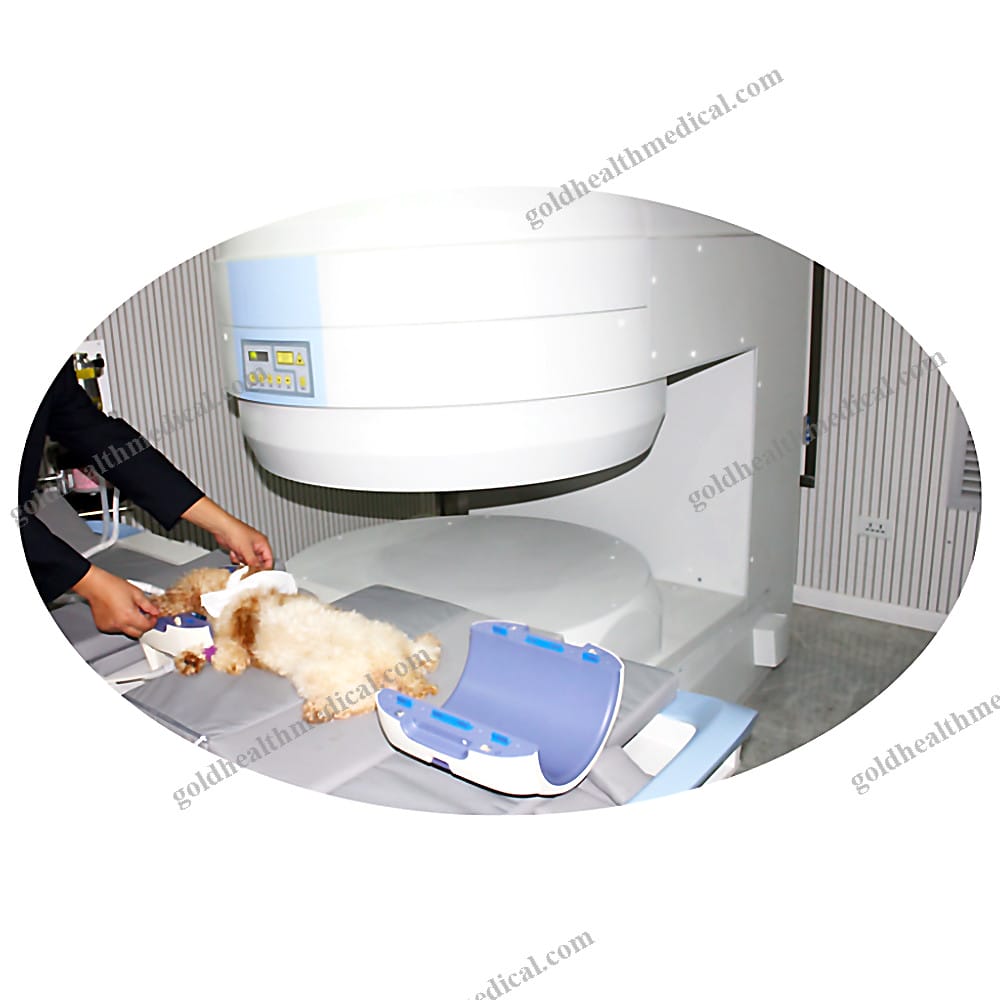

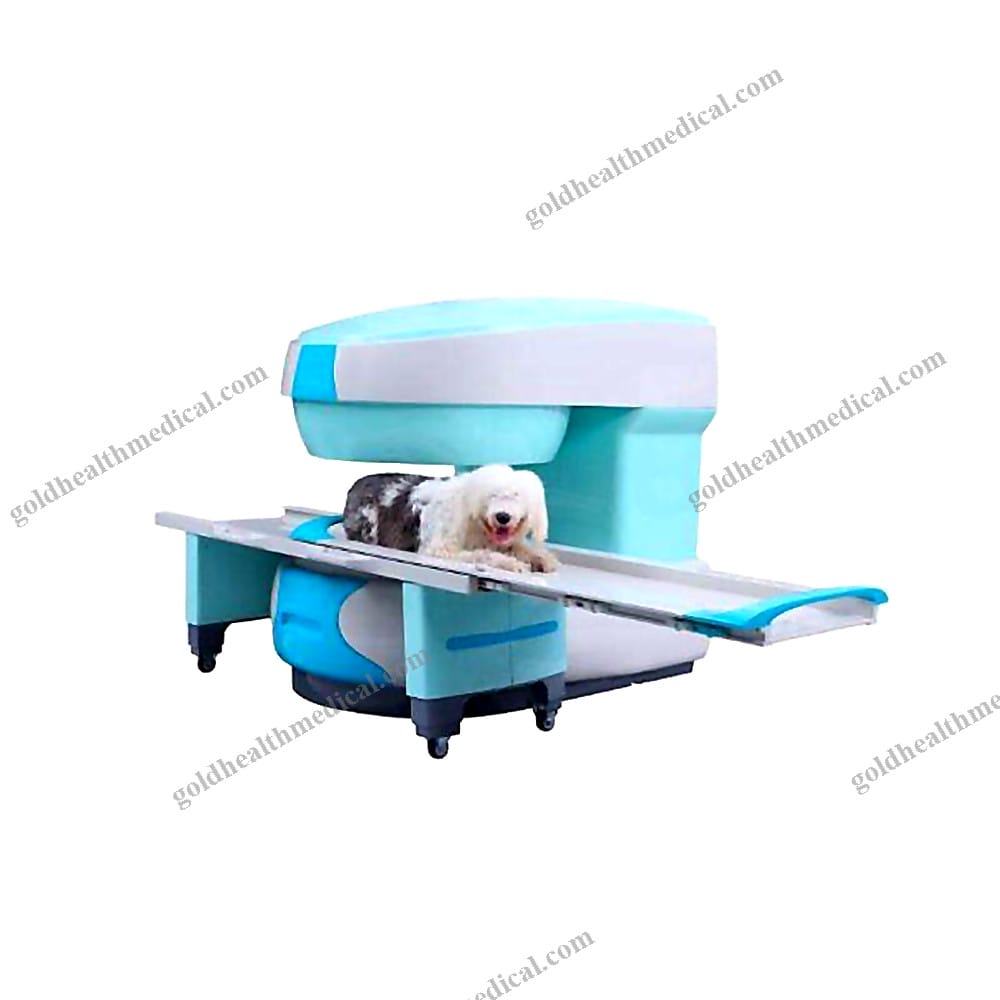

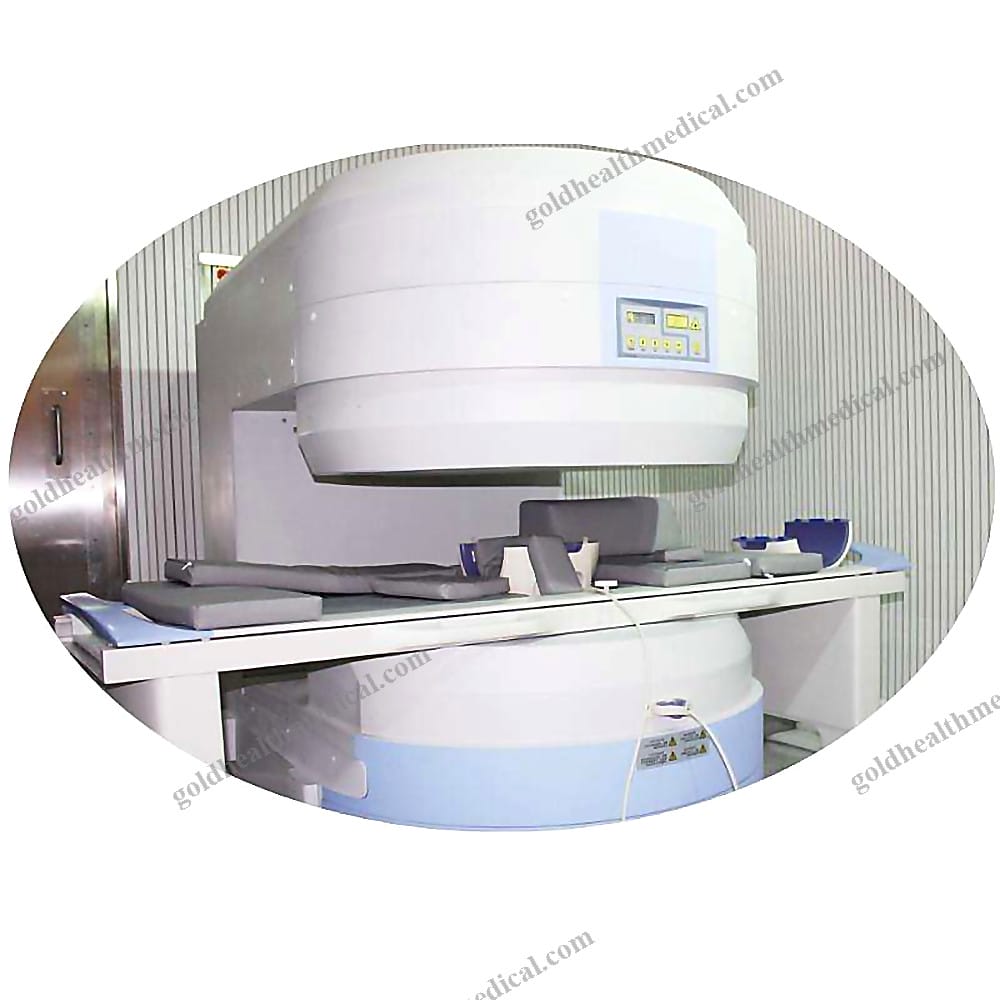

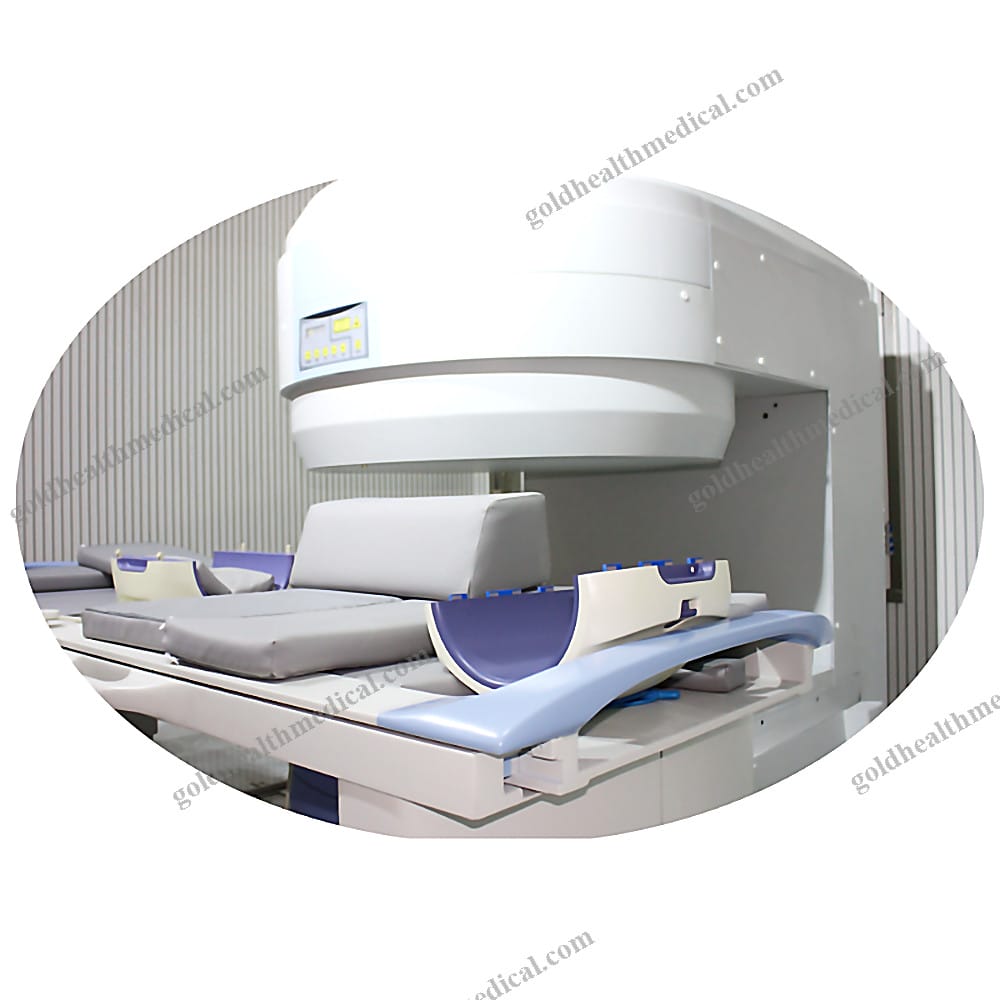

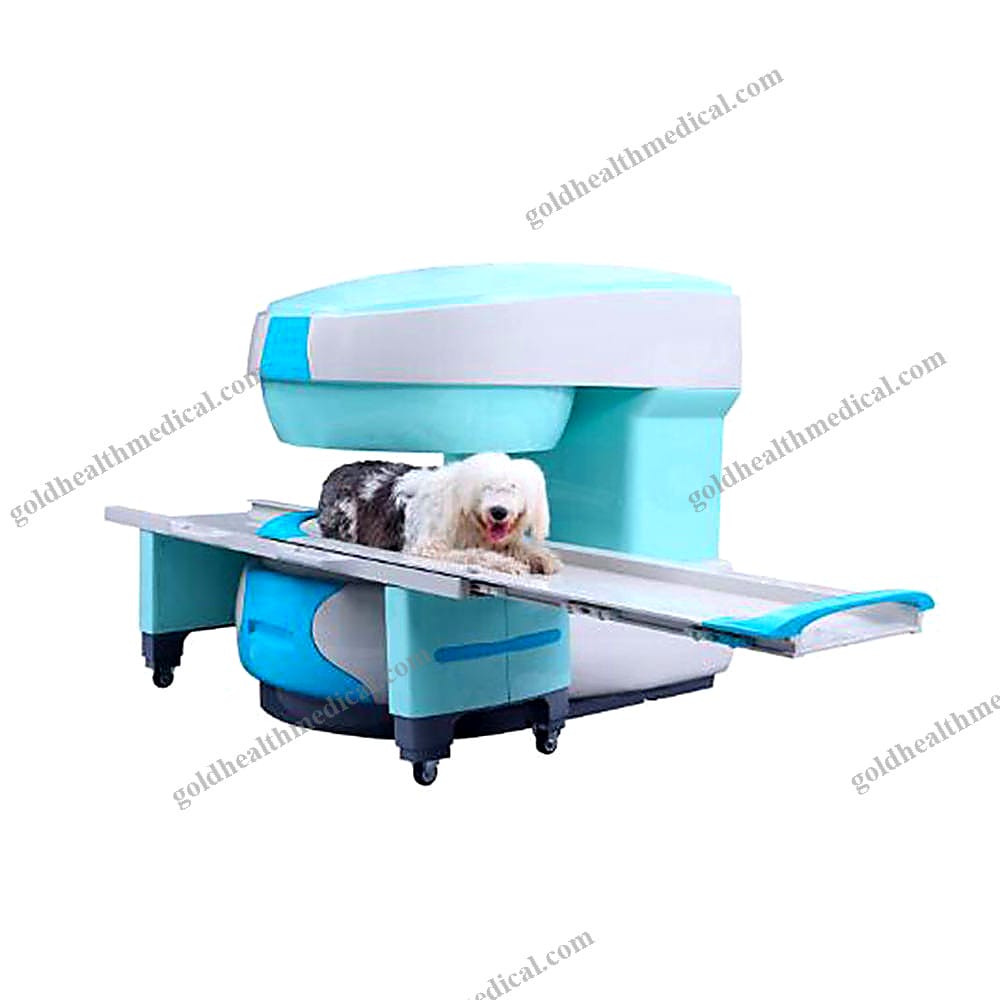

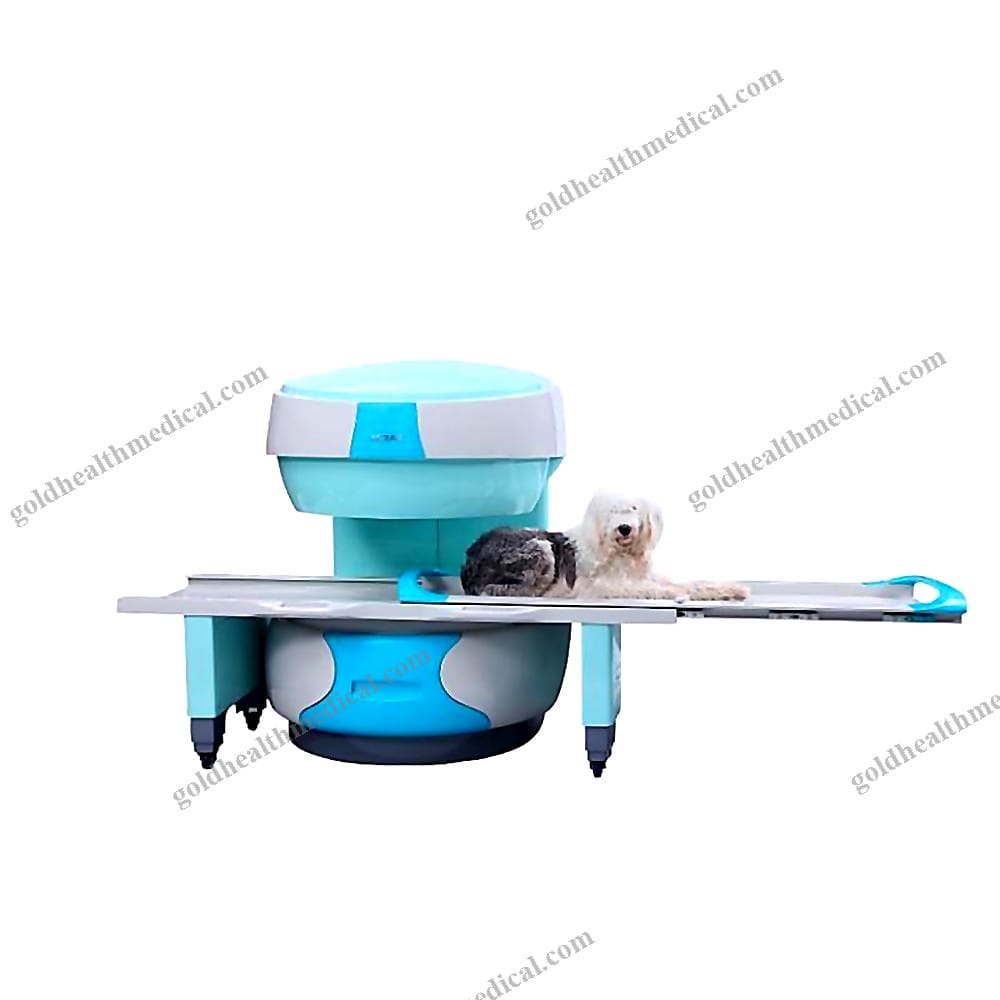

Revolutionary Veterinary MRI System by GoldHealth Medical
GoldHealth Medical introduces an advanced Intelligent Veterinary MRI System, designed to redefine imaging standards in animal healthcare. Combining cutting-edge technology with user-friendly accessibility, this system is tailored for veterinary clinics, research labs, and rehabilitation centers.
Key Features
- Unmatched Precision: Achieve detailed diagnostic insights with superior homogeneity and high-resolution imaging.
- Open Design: A spacious open-type magnet ensures maximum comfort for animals and ease of operation for veterinarians.
- Advanced Magnet Technology: Equipped with a permanent magnet featuring an automatic constant temperature system for consistent performance.
- Wide Accessibility: Horizontal opening angle of over 250° allows for flexible positioning and accommodates animals of various sizes.
Technical Specifications
- Magnet System
- Field Strength: 0.35T / 0.5T
- Magnet Shape: Open type
- Homogeneity (40cm DSV V rms): ≤ 2.5 ppm
- Shim Method: Active/Passive/Dynamic
- Vertical Gap: 40cm / 35cm
5 Gauss Fringe Field: 2.5m x 2.5m x 2.5m
Gradient System
- Gradient Field Strength (Single Axis): ≥ 18mT/m
- Gradient Slew Rate (Single Axis): ≥ 45mT/m/ms
- Rise Time: < 0.3ms
Cooling System: Air-cooled gradient coils and power electronics
RF System
- Spectrometer: Fully digital
- RF System Type: Digital Transmit and Receive
- Number of RF Channels: 4
- Transmitter Amplifier Peak Power: 5kW
- Receiver RF Bandwidth: > 400KHz per channel
- Dynamic Range: ≥ 80dB
- Noise Factor: 0.3dB
Coil Type: Phase array
Scan Environment
- Maximum Animal Weight: 135kg / 200kg
- Position Accuracy: ≤ 1mm
- High-Accuracy Position Assistance: Yes
- Localizer: Yes
- Position Accessories: Yes
- Emergency Stop: Yes
Communication System: Yes
Computer System
- Host Computer: Dual-core processor
- Operating System: Windows
- CPU Clock Rate: ≥ 2.8GHz (expandable)
- Main Memory: ≥ 2GB (expandable)
- Monitor: 24-inch Color LCD
- Keyboard and Mouse: Standard
- Hard Disk: ≥ 500GB (expandable)
- Media Drive: CRW / DVD
DICOM 3.0 / Ethernet Compatibility: Yes
Scanning Parameters
- Maximum FOV (Recommended): 300mm
- Minimum FOV (Recommended): 90mm
- Maximum Image Matrix: 512 x 512
Why Choose GoldHealth Medical?
- Innovative Design: The open magnet structure minimizes stress for animals while maximizing imaging clarity.
- Precision Engineering: Advanced gradient and RF systems deliver exceptional image quality with minimal noise.
- User-Centric Features: Intuitive controls, emergency stop functionality, and high-accuracy positioning ensure safety and efficiency.
- Versatile Applications: Suitable for a wide range of animals, from small pets to larger species, making it ideal for diverse veterinary practices.
GoldHealth Medical’s Veterinary MRI System is more than just equipment—it’s a commitment to advancing animal healthcare through innovation and precision. Elevate your practice with a solution that combines reliability, performance, and ease of use.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Revolutionizing Veterinary MRI with Precision and Care
- Product Name: Permanent Magnet 0.35T / 0.5T MRI Scanner for Veterinary Use
- Field Strength: High-performance 0.5T / 0.35T for superior imaging clarity
- Magnet Shape: Open-type design for enhanced accessibility and reduced patient anxiety
- Homogeneity (40cm DSV, Vrms): Exceptional uniformity ≤2.5ppm, ensuring accurate and reliable diagnostics
- Shim Method: Advanced Active/Passive/Dynamic shimming for optimal image quality
- Magnet Vertical Gap: Generous 40cm / 35cm clearance for accommodating larger animals comfortably
- Accessibility (Horizontal Opening Angle): Unrestricted >250-degree access, ideal for complex positioning and ease of use
- 5 Gauss Fringe Field: Compact 2.5m x 2.5m x 2.5m, minimizing space requirements while maintaining safety
Key Features and Benefits
- Precision Engineering: Delivers high-resolution imaging tailored for veterinary diagnostics, enabling early detection and treatment planning.
- Patient-Centric Design: Open magnet structure reduces stress for animals, improving workflow efficiency for veterinarians.
- Advanced Shim Technology: Ensures unparalleled image homogeneity, critical for accurate diagnosis in diverse clinical scenarios.
- Compact Footprint: Optimized fringe field containment allows installation in smaller spaces without compromising performance.
Technical Specifications
- Instrument Classification: Class II medical device, designed for safety and reliability
- Power Source: Electricity-driven for consistent operation
- Shelf Life: 1 year from production date
- Quality Certification: Compliant with CCC standards for assured performance
After-Sale Support
- Comprehensive 1-year warranty for peace of mind
- Dedicated online technical support to address any operational or technical queries
Applications
- Veterinary hospitals and clinics
- Research institutions conducting animal studies
- Rehabilitation centers and specialized care facilities
GoldHealth Medical’s Permanent Magnet MRI Scanner is engineered to set a new benchmark in veterinary imaging, combining cutting-edge technology with user-friendly design to deliver exceptional outcomes for both practitioners and their patients.
