MultiParameter ICU Patient Monitor with Touch Screen ECG SPO2
Reference: 1601375373462Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Multifunctional Patient Monitor
GoldHealth Medical’s advanced ICU Multifunctional Patient Monitor is meticulously engineered to meet the dynamic demands of critical care environments. Designed for adult, pediatric, and neonatal intensive care, as well as peri-operative, cardiac care, and operating room settings, this state-of-the-art monitor delivers precision, reliability, and versatility. With pacemaker detection and arrhythmia analysis, it ensures comprehensive patient monitoring for enhanced clinical decision-making.
Key Features
- 6 Critical Parameters Monitored Simultaneously: ECG, SpO2, NIBP, RESP, TEMP, PR/HR.

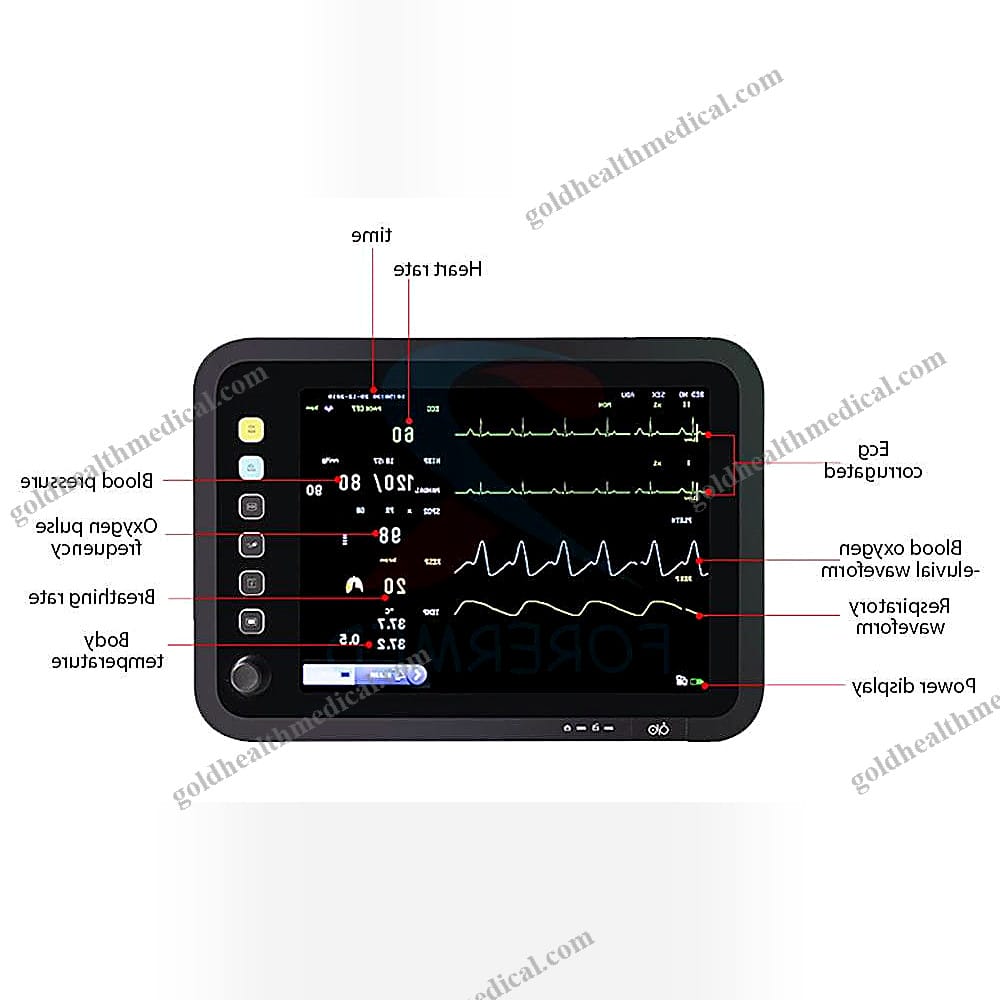

- Intuitive 12.1-inch Real Color TFT Display: High-resolution visuals for clear and accurate data representation.
- Advanced Arrhythmia and Pacemaker Detection: Ensures rapid identification of critical cardiac events.
- Customizable Settings: Tailored configurations for adult, pediatric, and neonatal care.
- Long-Lasting Battery Life: Up to 2 hours of continuous operation after a full charge, with a 5-minute reserve after low battery alerts.
Technical Specifications
Environmental Conditions
- Operating Environment:
- Temperature: 0~40°C
- Humidity: 15%~80%
- Pressure: 86.0 kPa~106.0 kPa
- Transport and Storage Environment:
- Temperature: -20~55°C
- Humidity: 10%~90%
- Pressure: 86.0 kPa~106.0 kPa
Power Requirements
- AC: 100~240V, 50Hz/60Hz
- DC: Built-in rechargeable Li-ion battery (11.1V, 24Wh)
Dimensions and Weight
- Equipment: 340mm x 245mm x 134mm; ~2.798kg
- Package: 380mm x 350mm x 300mm; ~4.598kg
Application Range
- Adult, Pediatric, Neonatal Care
- Medical and Surgical Environments
- Operating Rooms, ICUs, CCUs
Data Storage Capabilities
- Trend Diagram/Table: 720 hours
- NIBP Review: 10,000 events
- Wave Review: 12 hours
- Alarm Review: 200 alarm events
- Supports drug concentration titration analysis
Parameter Details
ECG
- Leads: 5 (RA, LA, LL, RL, V)
- Lead Modes: I, II, III, m, AVR, AVL, AVF, V
- Gain: x1.25 mm/mV, 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV (error ≤ 5%)
- Sweep Speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s (error ≤ ±10%)
- Bandwidth:
- Surgery: 1~25 Hz
- Monitor: 0.5~40 Hz
- Diagnostic: 0.05~130 Hz
- Sensitivity: >200 μV P-P
- CMRR: ≥ 112dB
- Input Impedance: >5M ohm
NIBP
- Method: Oscillometry
- Modes: Manual, Auto, STAT
- Auto Mode Intervals: 1~5/10/15/30/60/90/120/180/240/480 minutes
- STAT Mode Period: 5 minutes
- Pulse Rate Range: 40~240 bpm
- Measurement Ranges:
- Adult: SYS 40~280mmHg, DIA 10~220mmHg, MEAN 20~240mmHg
- Pediatric: SYS 40~220mmHg, DIA 10~160mmHg, MEAN 20~170mmHg
Neonatal: SYS 40~135mmHg, DIA 10~100mmHg, MEAN 20~100mmHg
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical Patient Monitor
A cutting-edge solution designed for precision, reliability, and versatility in patient care. Engineered to meet the demands of modern healthcare environments, this monitor is ideal for adult, pediatric, and neonatal applications.
Key Features
- High-Resolution Display: 12.1" real-color TFT screen for clear, detailed visualization of patient data.
- Advanced Parameter Monitoring: Tracks 6 standard parameters, ensuring comprehensive health insights.
- Long-Lasting Battery: Equipped with a lithium-ion battery for uninterrupted performance during critical moments.
- Extensive Memory Capacity: Stores trend diagrams and tables for up to 720 hours, enabling detailed analysis and record-keeping.
- Compact and Lightweight Design: Dimensions of 340mm x 245mm x 134mm and a weight of just 2.798kg for portability and ease of use.
Technical Specifications
- Power Source: Electric
- Operating Environment:
- Temperature: 0~40°C
- Humidity: 15%~80%
- Instrument Classification: Class II
- Quality Certification: CE
Packaging Details
- Package Size: 48cm x 45cm x 40cm
- Gross Weight: 12.000kg
Warranty and Support
- Warranty Period: 1 Year
- After-Sale Service: Online technical support to ensure seamless operation and address any concerns.
Applications
Designed for use in hospitals, clinics, research institutions, laboratories, rehabilitation centers, and home care settings. This monitor is a trusted companion for medical professionals and caregivers, delivering accurate and actionable data to support informed decision-making.
GoldHealth Medical is committed to redefining patient monitoring with innovative technology and exceptional quality. Choose precision. Choose reliability. Choose GoldHealth Medical.
