MT MEDICAL 64Slice CT Scanner HighResolution Medical Equipment
Reference: 1601161352044Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

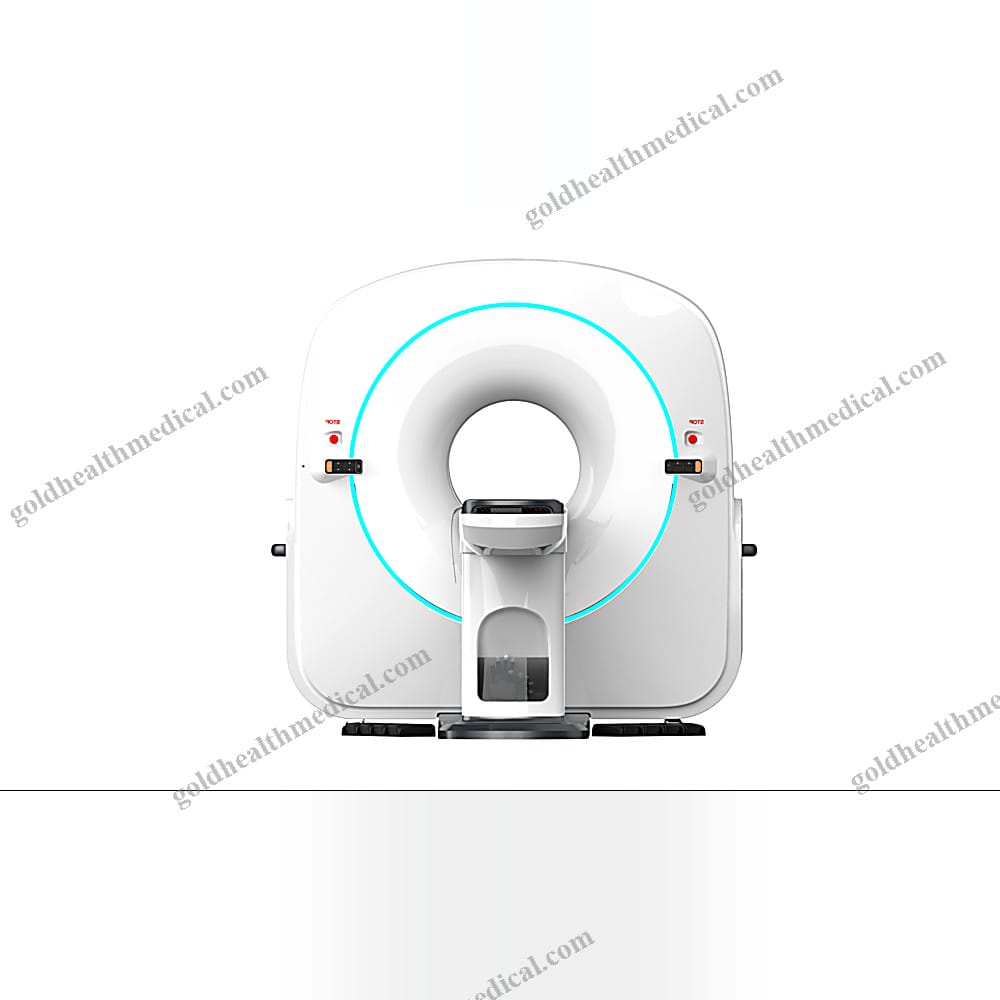

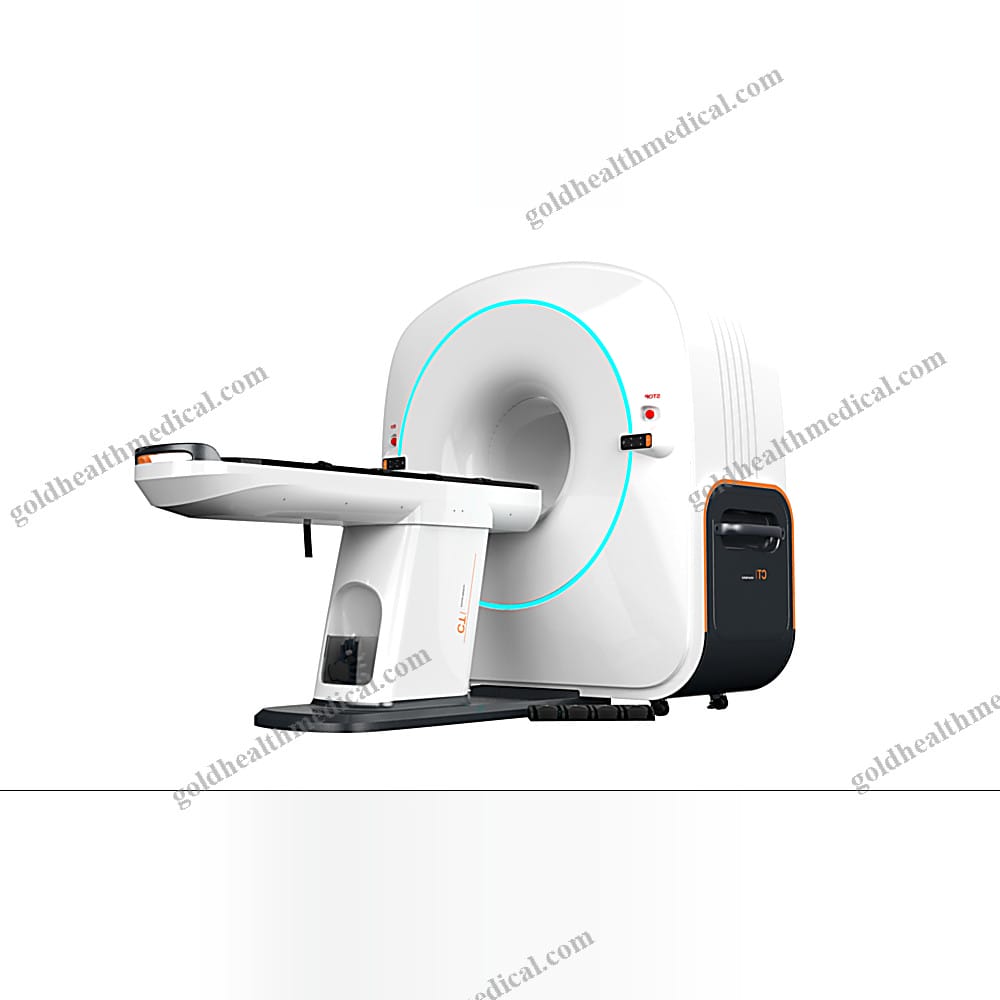

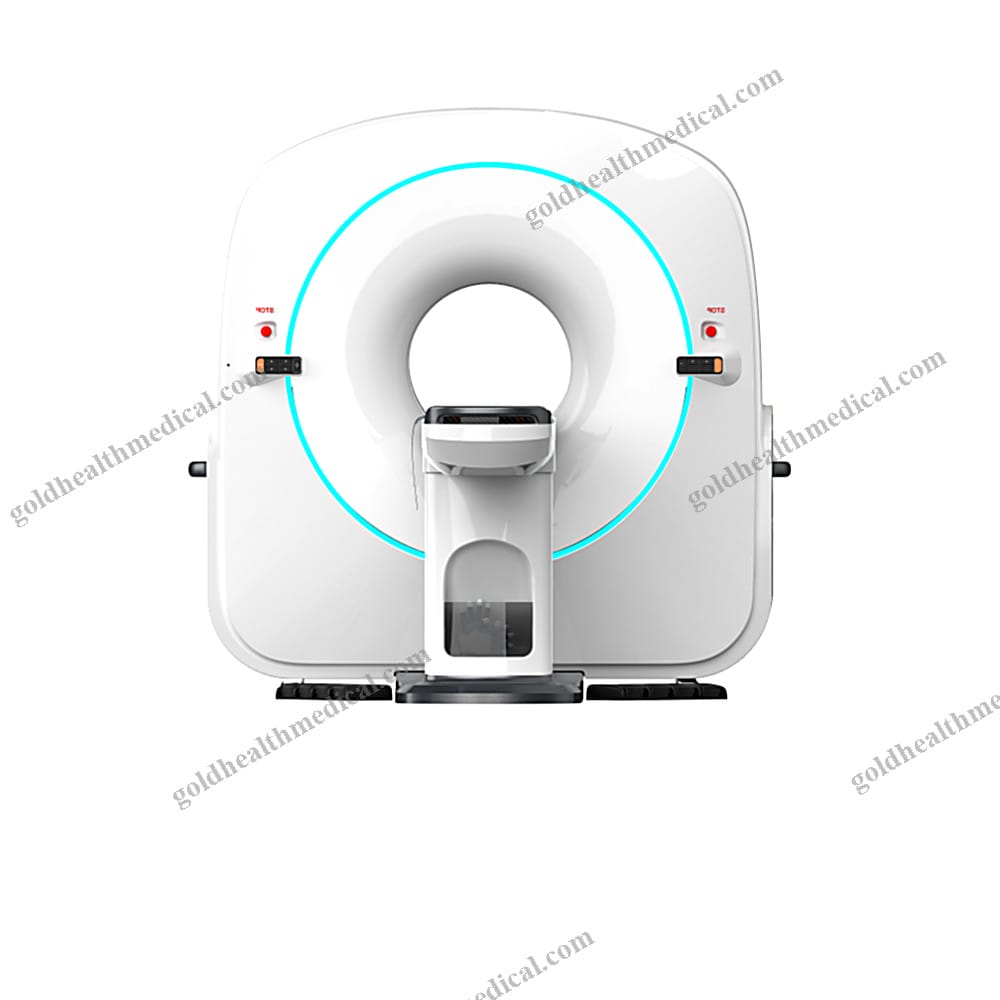

GoldHealth Medical - High-Resolution 64-Slice CT Scanner
Revolutionize diagnostic imaging with GoldHealth Medical’s cutting-edge 64-slice CT scanner, designed for unparalleled precision and versatility. Engineered to meet the needs of hospitals, veterinary clinics, and research facilities, this high-resolution CT scanner delivers exceptional image quality and operational efficiency.
Key Features
- Flexible Hardware Configurations: Choose between two advanced hardware setups to align with your budget and clinical requirements.
- Optimized Workflow: A robust hardware platform enhances patient throughput and boosts operational efficiency, ensuring seamless daily performance.
- Intuitive User Interface: Simplified workflows with guided operations and automated positioning presets, supporting procedures ranging from routine head, chest, and abdomen scans to intricate cardiac imaging.
- Superior Image Quality: Achieve unmatched clarity with a high-resolution output of 22lp/cm@0%MTF and 1024x1024 resolution, empowering confident diagnoses.
- Expanded Clinical Applications: A 76cm gantry design enables tumor biopsy and simulation, broadening the scope of potential clinical applications.
Technical Specifications
Power Requirements
- Input Voltage: Single-phase AC220V
- Supply Frequency: 50Hz
- Power Capacity: Not less than 3.5 kVA
Mechanical Specifications
- Bed Dimensions: Length: 1850mm, Width: 550mm, Height: 730mm (±5% deviation)
- Scanning Frame Dimensions: Length: 1670mm, Width: 810mm, Height: 1600mm (±5% deviation)
- Bed Translation Range: 0–800mm (±5% deviation)
- Bed Lifting Range: 0–150mm (±5% deviation)
- Weight Capacity: 50kg
Electrical Performance
- Maximum Pulse Fluoroscopic Output: 1.875kW (15mA, 125kV, 10s)
- Maximum Continuous Fluoroscopic Output: 1.5kW (12mA, 125kV, 20s)
- Standard Pulse Fluoroscopy Output: 1.6kW (16mA, 100kV, 10s)
- Tube Voltage Range: 50kV–125kV (adjustable in 1kV increments, ±10% deviation)
- Tube Current Range: 1mA–16mA (adjustable in 1mA increments, ±1mA accuracy)
Imaging Capabilities
- Imaging Size: 307.2mm × 245.7mm
- Spatial Resolution: ≥1.7lp/mm
- Imaging Time: ≤40 seconds
Environmental Requirements
- Operating Conditions:
- Temperature: 10°C–40°C
- Relative Humidity: 30%–75%
- Atmospheric Pressure: 70kPa–106kPa
- Storage/Transport Conditions:
- Temperature: -20°C–55°C
- Relative Humidity: 30%–93%
- Atmospheric Pressure: 70kPa–106kPa
Advanced Clinical Applications
- Coronary CTA Imaging: Achieve precise imaging even with challenging cases such as irregular heartbeats. Example: Heart rate 70bpm with premature beats, 120kVp, 620mAs, 0.39s rotation speed, 125mm scan range, 11s scan time, 0.625mm slice thickness.
- Skeletal Reconstruction: Deliver 3D visualizations of bone structures, offering invaluable insights for orthopedic and plastic surgeries, particularly in complex anatomical scenarios.
- Curved Planar Reformation (CPR): Generate panoramic 2D images from 3D volumetric data, ideal for dental evaluations and visualizing curved anatomical structures.
GoldHealth Medical’s 64-slice CT scanner is designed to elevate diagnostic accuracy, streamline workflows, and expand clinical possibilities. Transform your facility’s imaging capabilities with a solution built for precision and reliability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
Introducing the GoldHealth Medical 64-Slice CT Scanner, a state-of-the-art imaging solution designed to deliver unparalleled precision and efficiency for modern healthcare environments. Engineered with cutting-edge technology, this CT scanner is ideal for hospitals, clinics, research institutions, and rehabilitation centers seeking exceptional diagnostic capabilities.
Key Features and Specifications
- Imaging Excellence: Achieve remarkable clarity with a slice thickness of 0.625mm, ensuring highly detailed and accurate diagnostic results.
- Advanced Performance: Equipped with an 8.0MHU tube and 80kW generator power, this scanner delivers consistent, high-quality imaging even during demanding procedures.
- Speed and Precision: A rotation speed of 0.39 seconds and a scan time of 11 seconds enable rapid yet precise imaging, minimizing patient discomfort and improving workflow efficiency.
- Wide Scan Range: Cover a scan range of 125mm, making it versatile for a variety of clinical applications.
- Durable Design: Constructed with premium metal materials, this scanner is built to withstand the rigors of daily use while maintaining its modern aesthetic.
Quality and Compliance
- Certified Reliability: Backed by CE certification, ensuring compliance with international safety and quality standards.
- Instrument Classification: Class I medical device, guaranteeing safety and performance.
Practical Details
- Power Source: Electric, ensuring stable and efficient operation.
- Shelf Life: 3 years, providing long-term value and reliability.
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Support: Access to online technical support, ensuring seamless operation and quick resolution of any issues.
Packaging and Delivery
- Packaging Dimensions: 800x700x900 cm per unit.
- Gross Weight: 600 kg per unit.
- Minimum Order Quantity (MOQ): 1 piece, offering flexibility for diverse procurement needs.
Why Choose GoldHealth Medical?
The GoldHealth Medical 64-Slice CT Scanner combines innovative engineering, robust construction, and user-centric design to meet the evolving needs of healthcare professionals. Whether for advanced diagnostics, research, or patient care, this scanner sets a new benchmark for precision and reliability in medical imaging.
Choose GoldHealth Medical for a smarter, more efficient approach to healthcare technology.
