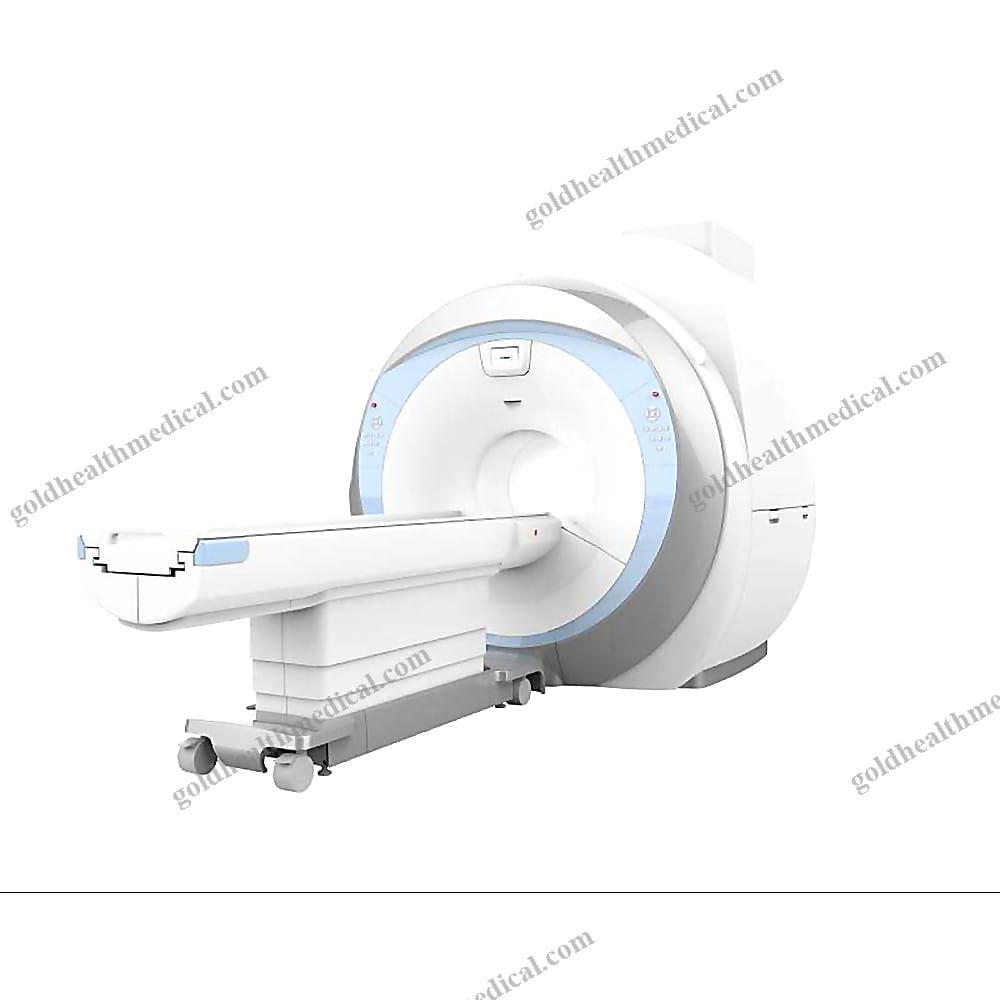

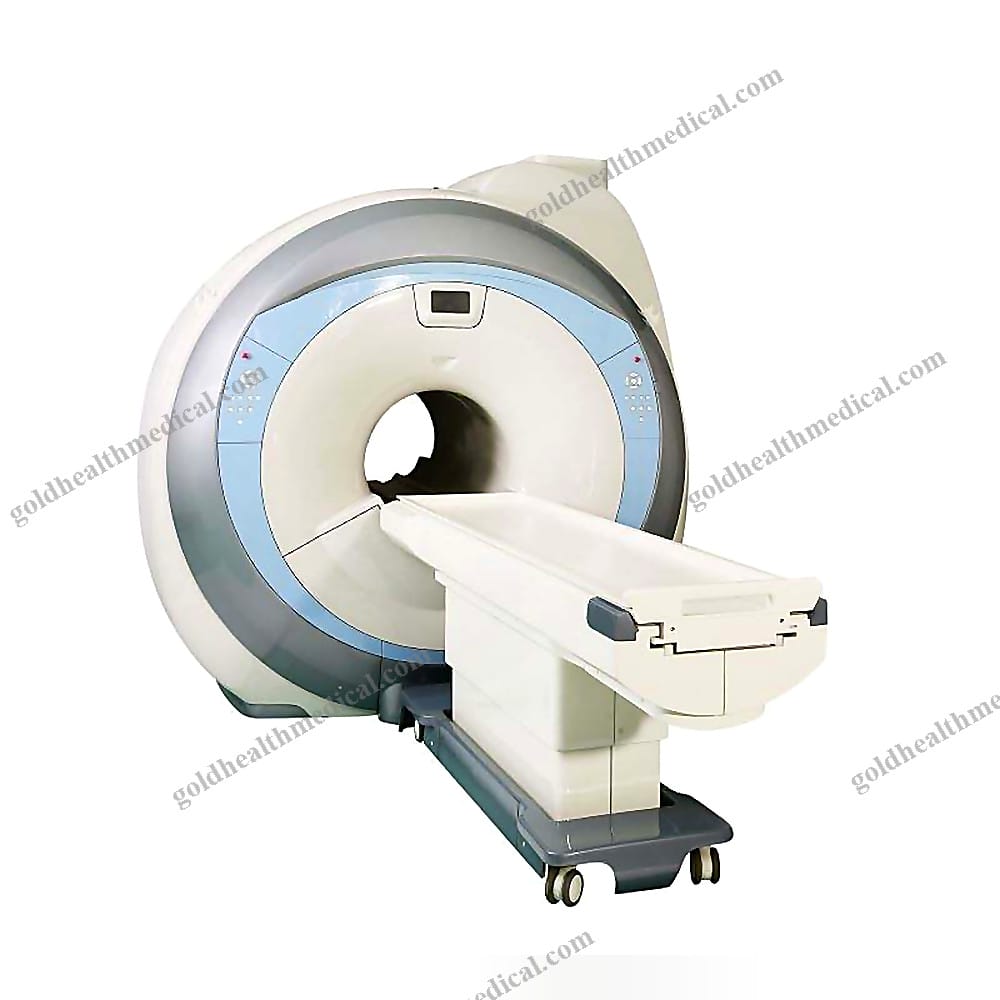

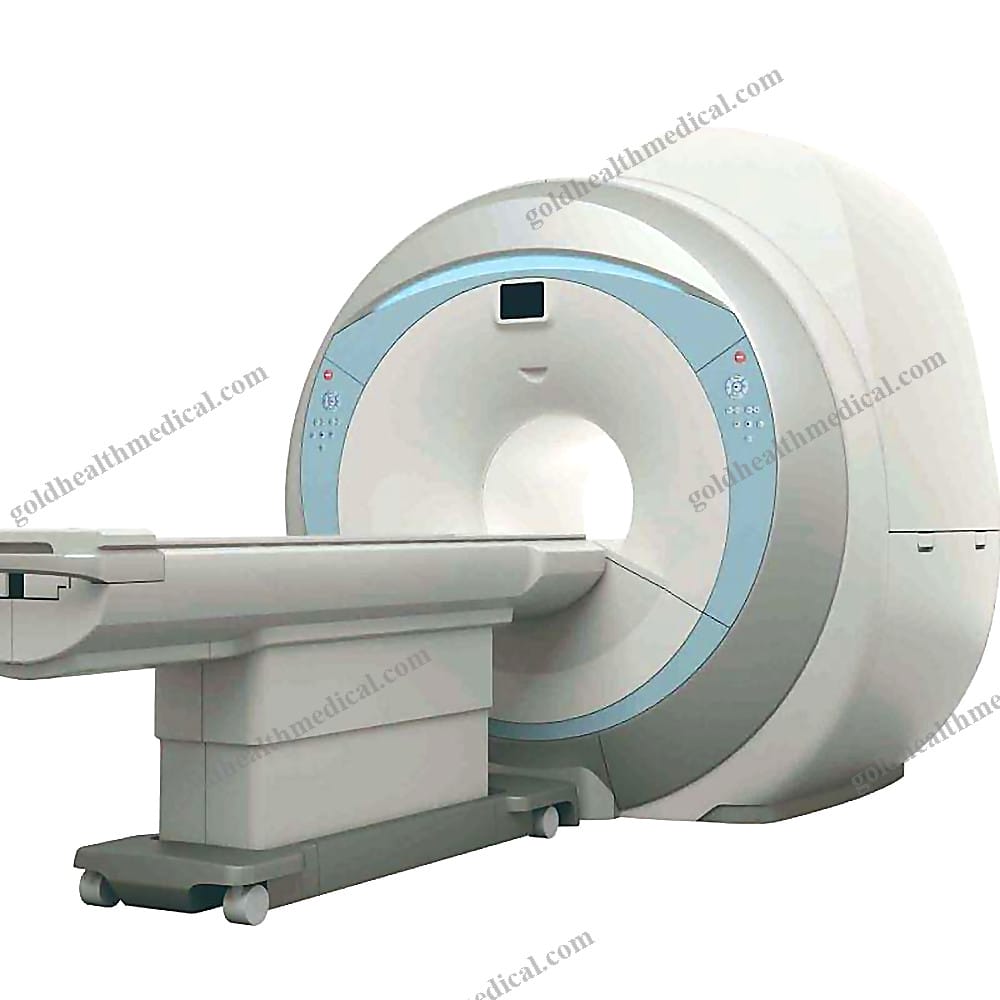

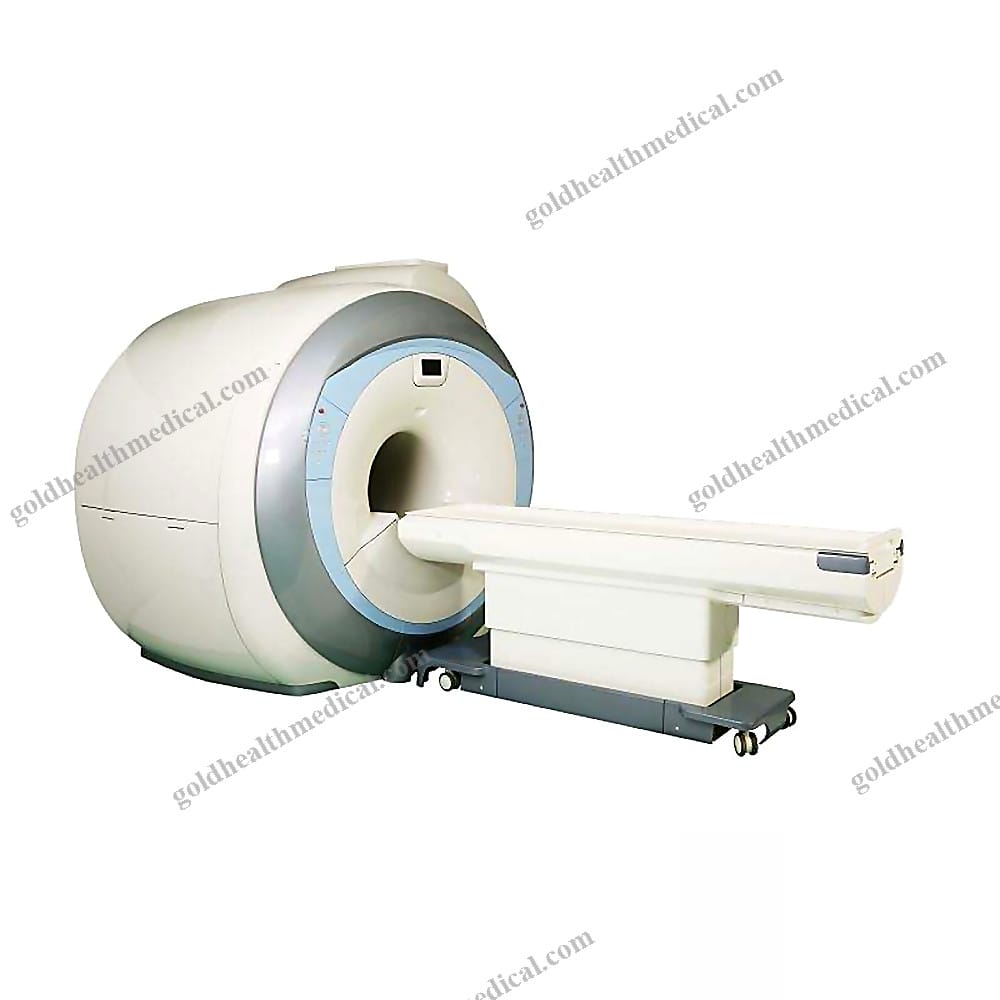

MSLMRI17 Advanced 15T MRI Scanner for
Reference: 1601290681339Medical MRI Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Medical Imaging with Precision and Innovation
Product Overview
GoldHealth Medical introduces a state-of-the-art magnetic resonance imaging (MRI) system designed to deliver unparalleled precision, speed, and versatility. Engineered for a wide range of medical applications, this MRI system combines cutting-edge technology with user-centric design to meet the demands of modern healthcare facilities.
Key Features and Technical Specifications
Magnet System
- Magnet Type: Permanent magnet with exceptional stability and reliability.
- Magnetic Field Strength: 0.3T ± 5%, ensuring consistent and high-quality imaging.
- Magnet Appearance: C-shape design for enhanced patient accessibility and comfort.
- Weight: 12.8T ± 1.5%, optimized for stability without compromising portability.
- Horizontal Opening Angle: 320°, providing a spacious and open environment for patients.
- 5-Gaussian Fringe Field: X, Y, Z directions ≤ 2.5m, minimizing interference with surrounding equipment.
- Shimming Methods: Passive Shimming + Active Shimming for superior magnetic field homogeneity.
- Magnetic Field Homogeneity: ≤ 2.0ppm (VRMS measurement method, 24 points, 24 sides) within a 40cm DSV, ensuring exceptional image clarity.
Gradient System
- Gradient Type: Ultrafast solid-state technology for rapid and precise imaging.
- Cooling Type: Air-cooled gradient amplifier and gradient coil for efficient thermal management.
- Gradient Performance:
- Max. Amplitude (Single Axis): 28mT/m.
- Max. Slew Rate (Single Axis): 93T/m/s.
- Min. Rise Time: 0.3ms, enabling ultrafast imaging sequences.
Resolution Parameters
- Max. Field of View (FOV): 400mm, ideal for full-body imaging.
- Min. Field of View (FOV): 10mm, perfect for detailed small-area scans.
- Min. Slice Thickness:
- 2D: 1.0mm.
- 3D: 0.1mm, delivering microscopic-level detail.
- Max. Acquisition Matrix: 1024×1024, ensuring high-resolution image reconstruction.
- Echo Times (TE) and Repetition Times (TR):
- Spin Echo: Min. TE = 5ms, Min. TR = 11ms.
- Gradient Echo: Min. TE = 2ms, Min. TR = 5ms.
- Max. b-value of DWI: 1000, enabling advanced diffusion-weighted imaging.
RF System
- Type: Fully digital transmitting and receiving system for superior signal fidelity.
- RF Amplifier Maximum Power: 6 kW, supporting high-performance imaging.
- Receiving Channels: 4 channels for enhanced data acquisition.
- Receiving Bandwidth: 1.25 MHz, ensuring accurate signal processing.
Standard Phased Array Coils
- Head Coil:
- Channels: 4.
- Dimensions: Inside - 260mm × 211mm × 234mm (L×W×H), Outside - 360mm × 340mm × 320mm (L×W×H).
- Weight: 5.1Kg.
- Applications: Head imaging, head MR angiography, TMJ imaging.
- Neck Coil:
- Channels: 2.
- Dimensions: Inside - 451mm × 169mm × 192mm (L×W×H), Outside - 451mm × 342mm × 312mm (L×W×H).
- Weight: 3.3Kg.
- Applications: Neck imaging, cervical spine imaging, neck MR angiography.
- Body Coil (Large):
- Channels: 4.
- Dimensions: Inside - 323mm × 508mm × 295mm (L×W×H), Outside - 323mm × 631mm × 337mm (L×W×H).
- Weight: 7.0Kg.
- Applications: Thorax, spine, abdomen, pelvis, and hip imaging.
Why Choose GoldHealth Medical?
GoldHealth Medical’s MRI system is designed to redefine diagnostic imaging with its innovative features and unmatched performance. Key advantages include: - Patient-Centric Design: The C-shape magnet and wide opening angle ensure
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents a cutting-edge magnetic resonance imaging solution designed to redefine precision and reliability in medical diagnostics. Engineered with advanced technology, this system delivers exceptional imaging quality and operational efficiency, making it an ideal choice for hospitals, clinics, research institutions, and rehabilitation centers.
Key Features and Specifications
- Magnet Design: Features a sleek C-shape magnet with a horizontal opening angle of 320°, ensuring patient comfort and accessibility during imaging procedures.
- Magnetic Field Strength: Provides a highly stable magnetic field of 1.5T ± 5%, ensuring consistent and accurate imaging results.
- Shimming Technology: Combines Passive Shimming and Active Shimming for optimal magnetic field homogeneity, enhancing image clarity and diagnostic confidence.
- Gradient Performance:
- Maximum amplitude (single axis): 28mT/m
- Maximum slew rate (single axis): 93T/m/s
- Ensures rapid and precise imaging with minimal distortion.
- Field of View (FOV): Offers a maximum FOV of 400mm, accommodating a wide range of clinical applications.
- RF Amplifier Power: Equipped with a robust RF amplifier delivering up to 6 kW of maximum power for superior signal quality.
- Receiving Bandwidth: Supports a receiving bandwidth of 1.25 MHz, enabling high-resolution imaging with excellent detail.
- 5-Gaussian Fringe Field: Controlled to ≤ 2.5m in X, Y, and Z directions, ensuring safety and compliance with stringent environmental standards.
Safety and Compliance
- Meets the GB15979-2002 safety standard, guaranteeing reliable performance in demanding medical environments.
- Certified with CE quality assurance, reflecting GoldHealth Medical’s commitment to global safety and regulatory compliance.
Instrument Classification: Class II medical device, designed for versatility and precision in diagnostic applications.
Material and Durability: Constructed with premium metal materials, ensuring long-lasting durability and resistance to wear and tear.
Shelf Life: 2 years from the date of manufacture, ensuring product integrity and performance.
After-Sale Support:
- Comprehensive 1-year warranty for peace of mind.
- Access to online technical support, ensuring seamless operation and quick resolution of any technical queries.
Packaging Details:
- Selling Units: Single item
- Single package size: XX cm
- Single gross weight: XX kg
GoldHealth Medical’s magnetic resonance imaging system is engineered to empower healthcare professionals with unparalleled diagnostic capabilities, setting a new benchmark for excellence in medical imaging.
