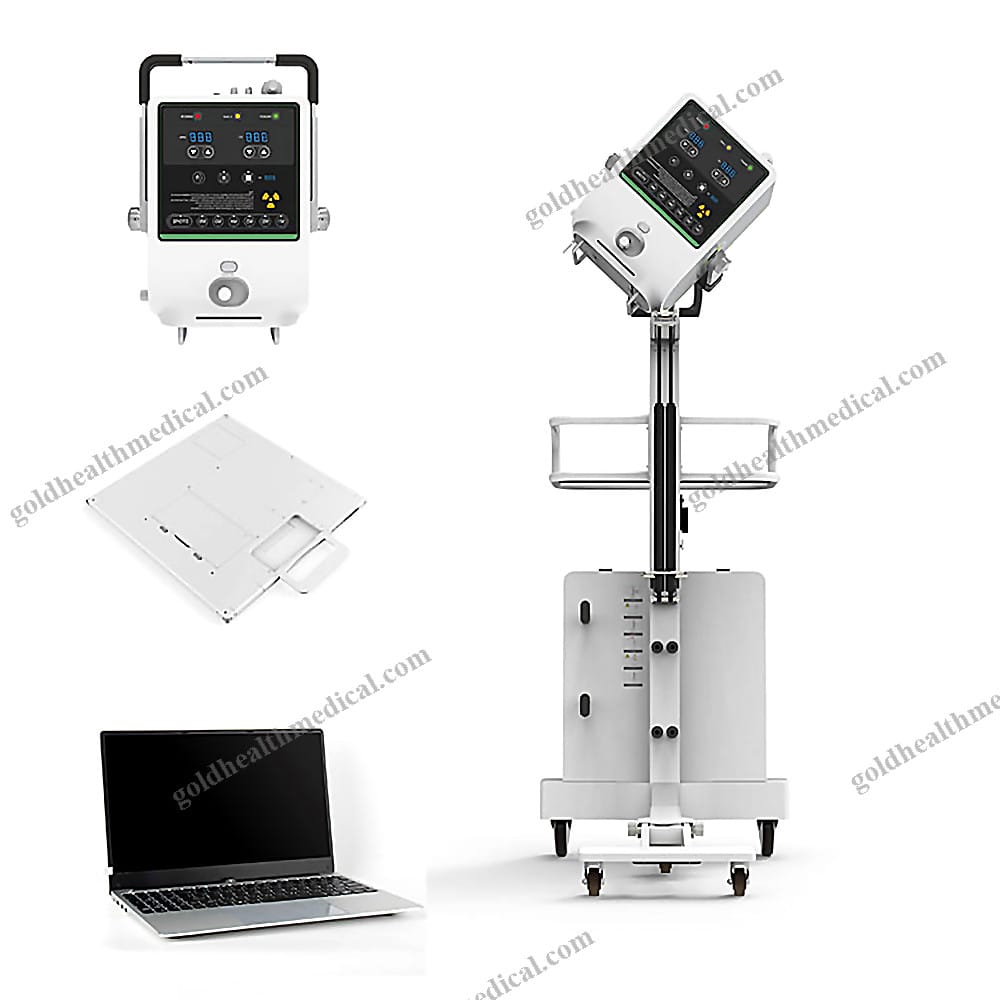

Mobile Digital Xray with Iray Wireless 14x17 Panel
Reference: 1600204772640Medical Nuclide Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Revolutionizing Portable X-ray Technology
Product Overview
GoldHealth Medical introduces a groundbreaking portable X-ray system designed for unparalleled performance and versatility. Engineered with precision, this lightweight and compact solution is ideal for hospitals, clinics, research labs, and even home healthcare environments. Its advanced features and user-friendly design redefine diagnostic imaging.
Key Features
- Compact and Lightweight Design: Weighing just 16kg, this portable X-ray system is easy to transport and deploy in any setting.
- High-Power Performance: Delivers up to 5kW of power, ensuring exceptional image quality even in challenging conditions.
- Wide KV and mAs Range: Adjustable KV range (40-125kV) and mAs range (0.1-100mAs) provide flexibility for diverse diagnostic needs.
- Dual Focal Spots: Precision-engineered focal spots (0.6mm / 1.88mm) ensure sharp, detailed imaging for both general and specialized applications.
Technical Specifications
- Power Output: 5kW
- KV Range: 40-125kV
- mAs Range: 0.1-100mAs
- Focal Spots: 0.6mm / 1.88mm
- Input Voltage: 220V / 110V AC
- X-ray Field: Max 43 × 43 cm² @100cm SID
- Bluetooth Connectivity: Seamless integration with modern diagnostic tools
- Angle Adjustment: 15° for optimal positioning
Flat Panel Detector Options
Standard Detector
- Dimensions: 460 × 460 × 15 cm³
- Pixel Matrix: 3072 × 3072
- Full Image Time: 5 seconds
- AD Conversion: 16-bit
- Scintillator: CsI, direct deposition
- Trigger Mode: AED
- Data Interface: WiFi
- Pixel Pitch: 139 μm
- Spatial Resolution: 3.6 lp/mm
Optional Detector
- Dimensions: 384 × 460 × 15 cm³
- Pixel Matrix: 2304 × 2800
- Full Image Time: 5 seconds
- AD Conversion: 16-bit
- Scintillator: CsI, direct deposition
- Trigger Mode: AED
- Data Interface: WiFi
- Pixel Pitch: 150 μm
- Spatial Resolution: 3.4 lp/mm
Why Choose GoldHealth Medical?
GoldHealth Medical’s portable X-ray system is designed to meet the evolving needs of modern healthcare. With its lightweight build, advanced imaging capabilities, and seamless connectivity, this system is perfect for professionals seeking efficiency and precision. Whether you’re in a hospital, clinic, or remote location, our technology ensures reliable, high-quality diagnostics every time.
Experience the future of portable X-ray technology with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents an advanced medical imaging solution designed to redefine precision and reliability in diagnostic procedures.
- Instrument Classification: Class II, ensuring safety and performance tailored for professional environments.
- Core Materials: Constructed with high-grade plastic and steel for enhanced durability and stability.
- Safety Standards: Compliant with MFDS regulations, guaranteeing adherence to the highest medical safety protocols.
- Place of Origin: Proudly manufactured in Guangdong, China, renowned for its cutting-edge medical device production capabilities.
- Power Source: Electric, with a versatile power supply of AC 220V/110V ±10% at 50/60Hz, adaptable to global electrical systems.
- Power Output: 5.3KW, delivering consistent and robust performance for demanding applications.
- Technical Specifications:
- kV Range: 40 - 125, offering flexibility for diverse imaging needs.
- mA Range: 10 - 100, ensuring precise current control.
- mAs Range: 0.1 - 100, enabling fine-tuned exposure settings.
- Ripple: < 5%, minimizing fluctuations for superior image quality.
- Focal Spot Sizes: 0.6mm / 1.8mm, providing exceptional clarity and detail.
- Target Angle: 15°, optimizing beam alignment for accurate diagnostics.
Dual-Laser System: Enhances precision during positioning and setup.
Shelf Life: 3 years, ensuring long-term usability and reliability.
- Warranty: Backed by a comprehensive 3-year warranty, reflecting our confidence in product durability.
- After-Sale Service: Access to online technical support, ensuring seamless operation and quick resolution of queries.
- Quality Certifications: CE and ISO certified, underscoring our commitment to international standards of excellence.
GoldHealth Medical’s imaging solution is engineered to deliver unparalleled precision, safety, and efficiency, empowering healthcare providers to achieve superior diagnostic outcomes.
