Mindray BC10 3Part Hematology Analyzer with Re
Reference: 1601244730360Blood Testing Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

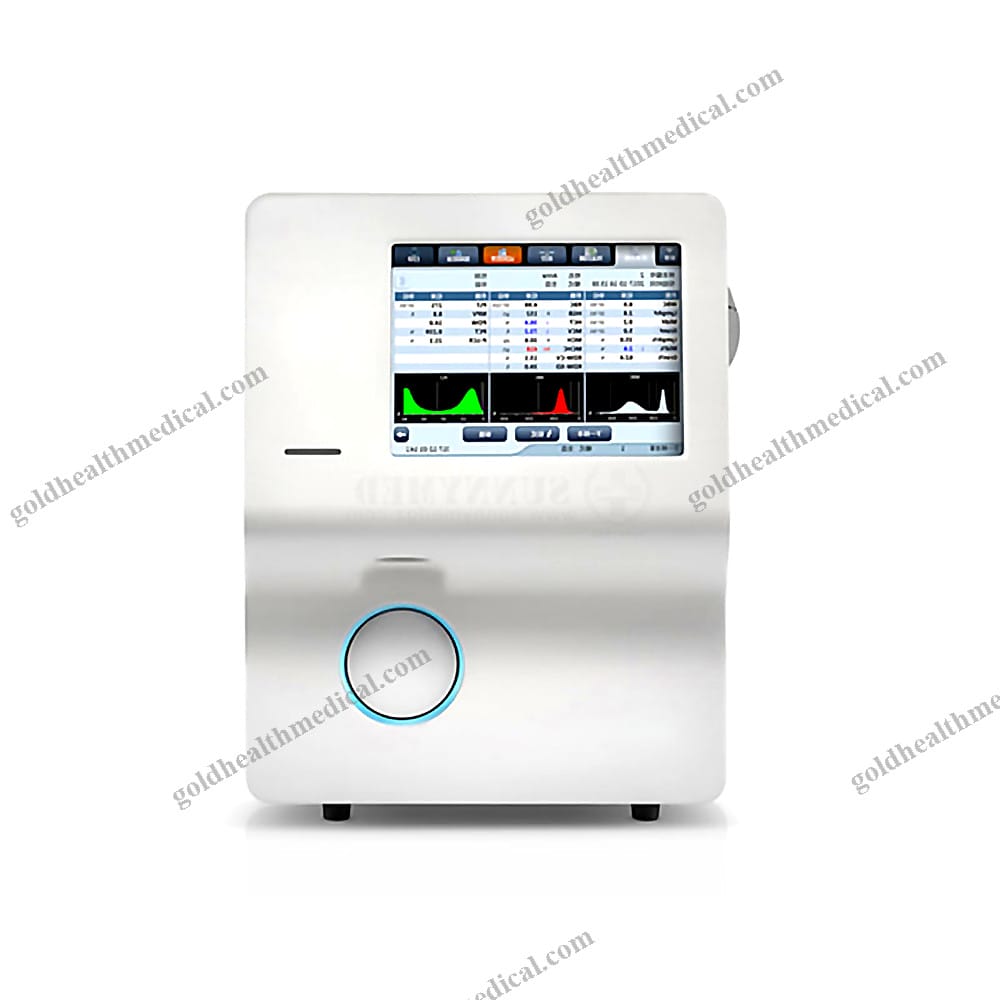

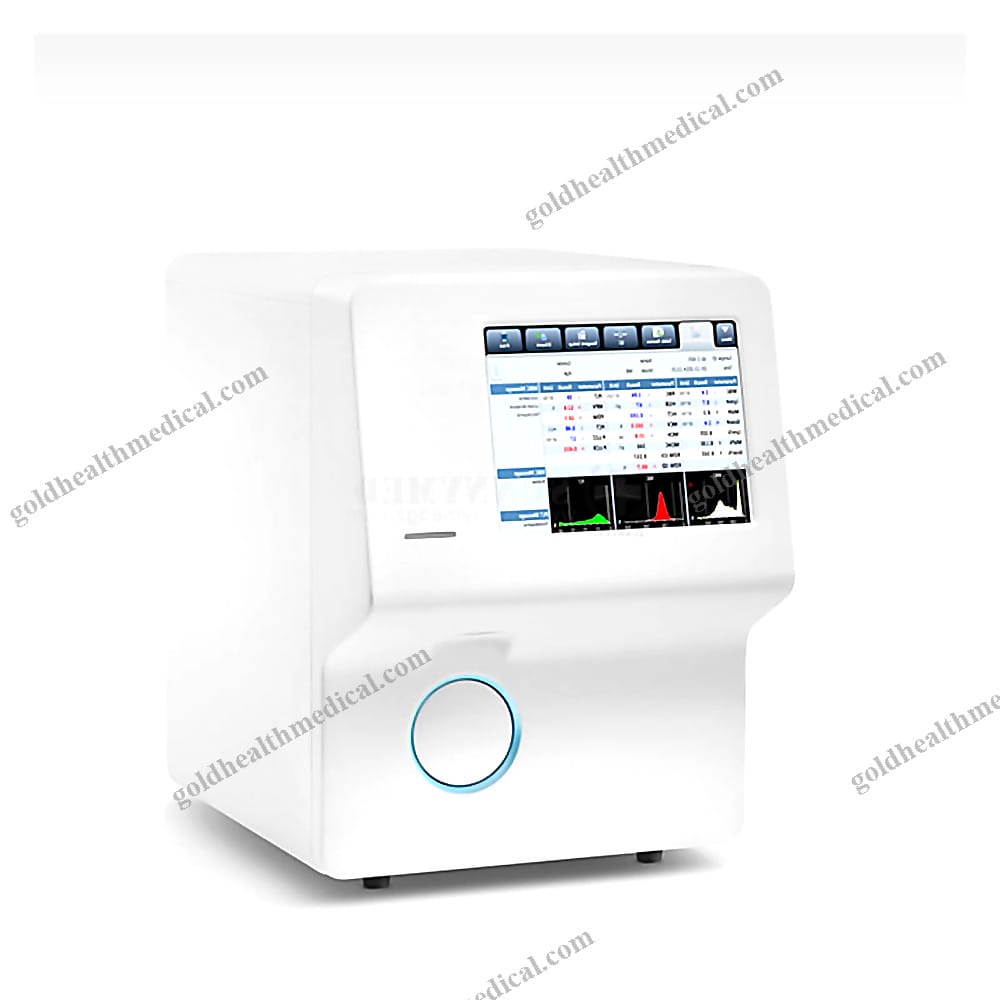

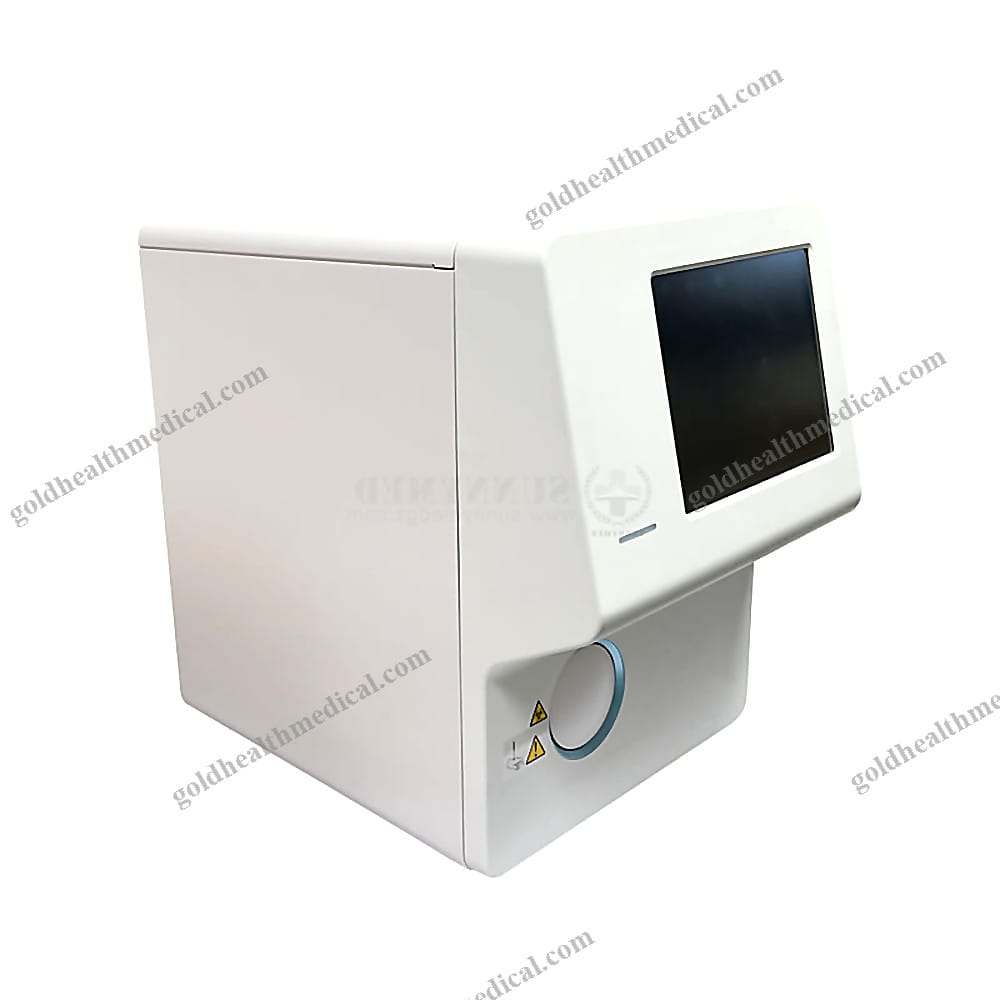

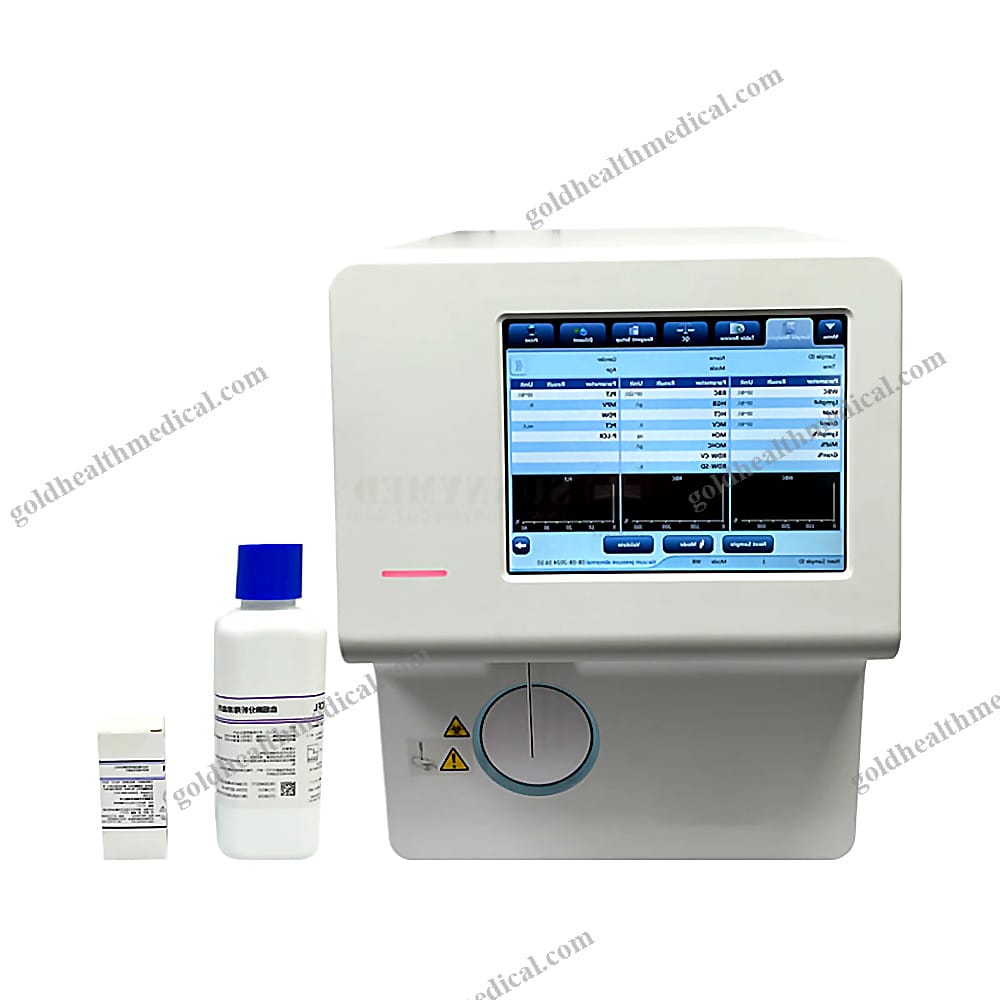

Revolutionizing Hematology Analysis with GoldHealth Medical
GoldHealth Medical presents an advanced hematology analyzer designed to deliver unparalleled precision and efficiency. Utilizing the impedance method for WBC, RBC, and PLT counting, this device ensures accurate results without the use of cyanide in hemoglobin testing, making it both safe and environmentally friendly.
Key Features
- Comprehensive Parameters: Measures 20 critical parameters including WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, and P-LCR.
- Detailed Histograms: Provides three distinct histograms for WBC, RBC, and PLT, offering deeper insights into blood composition.
- Minimal Sample Volume: Requires only ≤20μL for prediluted mode and ≤9 μL for whole blood mode, conserving precious samples.
Performance Metrics
- WBC (10^9/L): Linearity Range 0-100, Precision ≤3.5% (4.0-6.9), ≤2.0% (7.0-15.0), Carryover ≤0.5%
- RBC (10^12/L): Linearity Range 0-8.00, Precision ≤2.0% (3.50-6.5), Carryover ≤0.5%
- HGB (g/L): Linearity Range 0-280, Precision ≤2.0% (100-180), Carryover ≤0.5%
- MCV (fL): Precision ≤1.0% (70.0-110.0), Carryover ≤0.5%
- PLT (10^9/L): Linearity Range 0-1000, Precision ≤5.0% (100-500), Carryover ≤1.0%
Operational Efficiency
- Throughput: Processes up to 30 samples per hour, ensuring high productivity.
- User Interface: Equipped with an 8.4-inch TFT touch screen, supporting multiple languages including Chinese, English, Spanish, Portuguese, Russian, French, and Bahasa Indonesia.
- Data Storage: Stores up to 50,000 results, including numeric and graphical information.

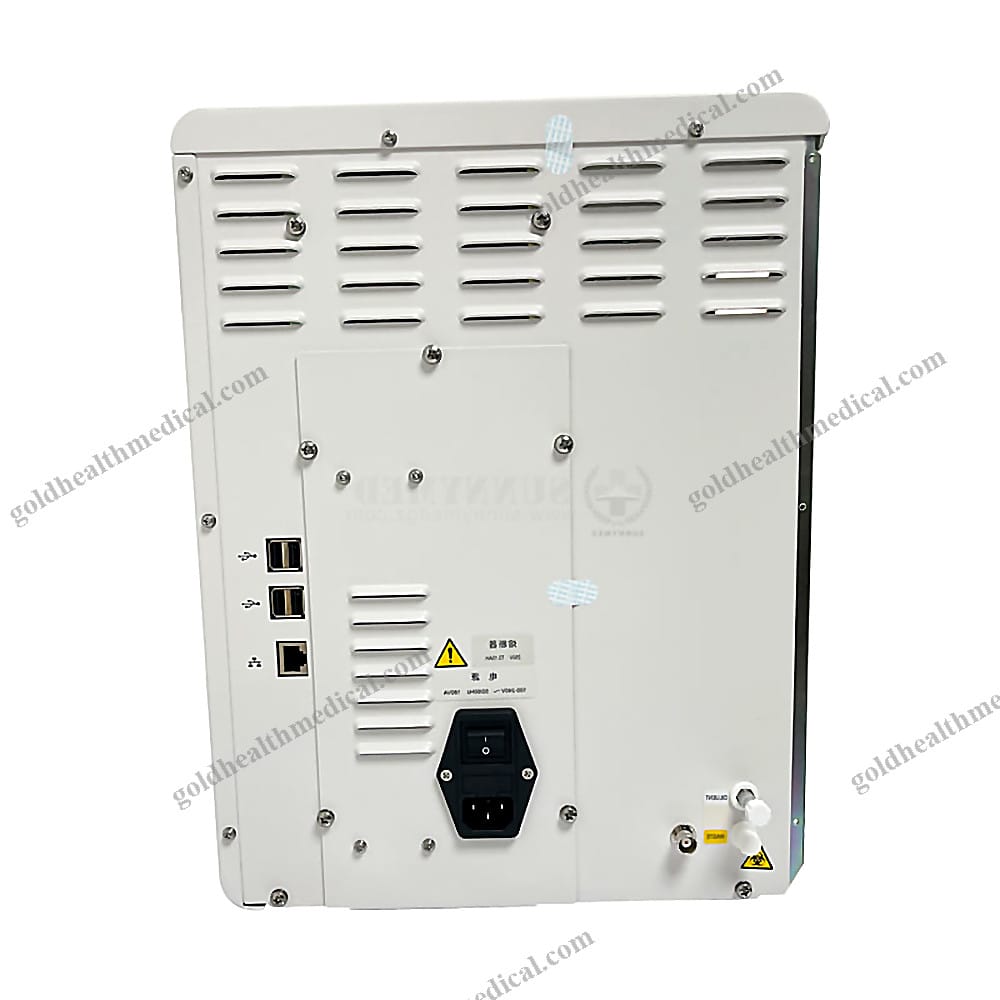

- Connectivity: Features a LAN port supporting HL7 protocol, bi-directional LIS interface, and 4 USB ports for external printer, software upgrade, barcode reader, external WIFI, keyboard, and mouse.
Output and Power
- Printout: Thermal recorder with 50 mm wide paper, offering various printout formats.
- Power Requirements: Operates within 15°C~30°C, humidity 10%~90%, air pressure 70kPa~106kPa, and power supply (100V-240V)±10%, ≤180VA, (50Hz/60Hz) ±1Hz.
Dimensions and Weight
- Compact Design: Depth 410 mm x Width 300 mm x Height 400 mm
- Lightweight: ≤20Kg
GoldHealth Medical's hematology analyzer stands out with its advanced technology, user-friendly interface, and robust performance metrics. It is an ideal choice for hospitals, clinics, research institutions, and more, ensuring reliable and efficient blood analysis.
Experience the future of hematology with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Auto Hematology Analyzer
Brand Name: GoldHealth Medical
Product Highlights
- Advanced Technology: Delivers precise and reliable results with CBC+3-DIFF functionality, offering 20 parameters and 3 histograms for comprehensive blood analysis.
- Efficient Performance: Achieves a test speed of 30 tests per hour, ensuring rapid turnaround times for busy medical environments.
- Simplified Workflow: Requires only 3 reagents, reducing operational complexity and costs.
- User-Friendly Interface: Features an 8.4-inch TFT touch screen, 4 USB ports, and an integrated keyboard for seamless operation and data management.
Technical Specifications
- Instrument Classification: Class II
- Safety Standard Compliance: GB15979-2002
- Power Source: Electric
- Dimensions: 410 x 300 x 400 mm
- Materials: Durable acrylic and metal construction for long-lasting performance
- Shelf Life: 1 year
Quality Assurance
- Certifications: CE
- Warranty: 1 year, ensuring peace of mind and reliability
- After-Sales Support: Comprehensive online technical support to address any queries or issues
Applications
Ideal for hospitals, clinics, research laboratories, rehabilitation centers, and home healthcare settings, this analyzer is designed to meet the diverse needs of medical professionals and caregivers.
Packaging Details
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
Experience unparalleled precision and efficiency with GoldHealth Medical’s Auto Hematology Analyzer, engineered to elevate your diagnostic capabilities.
