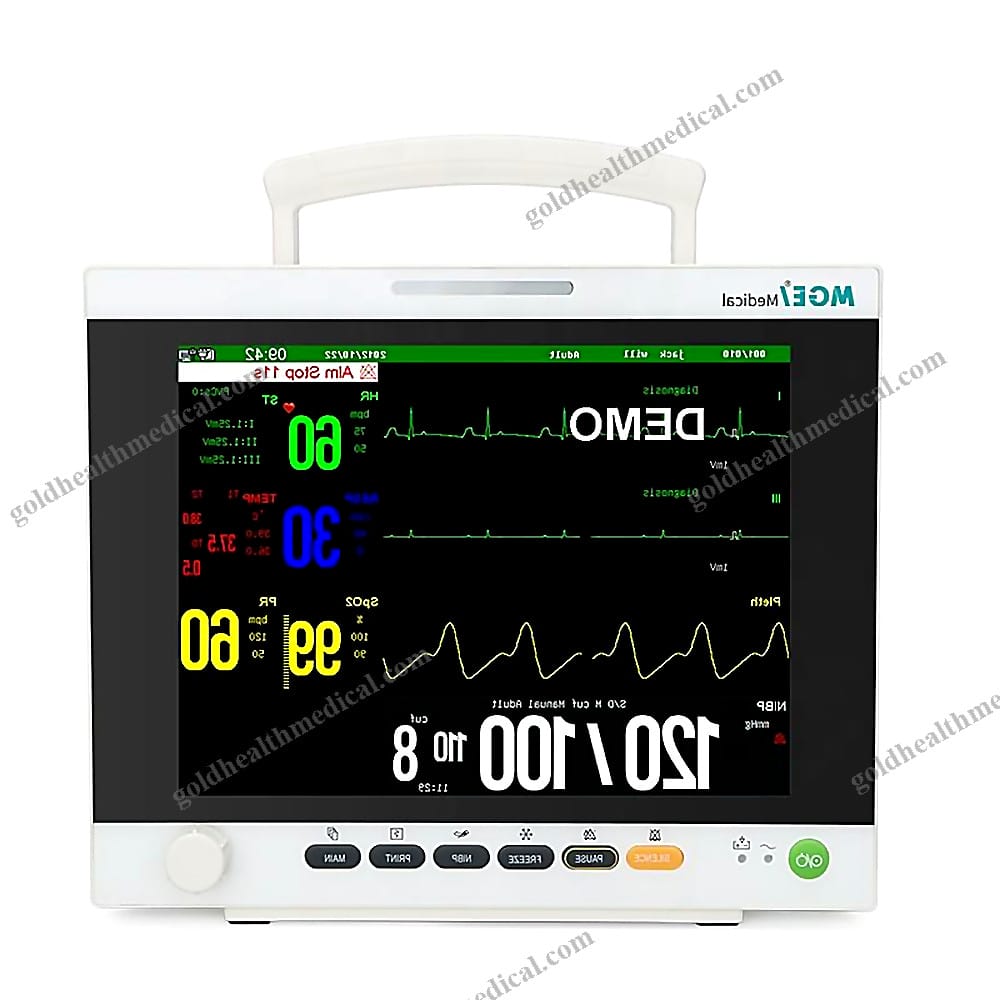

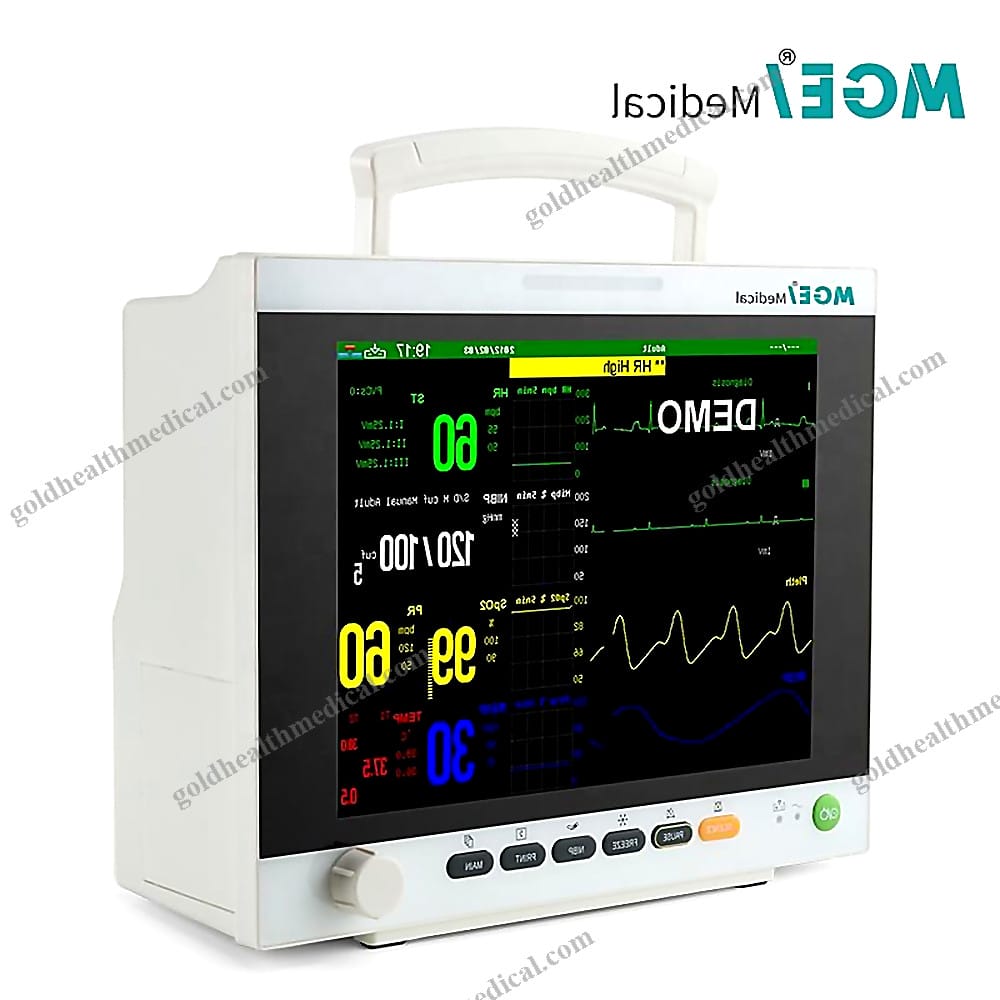

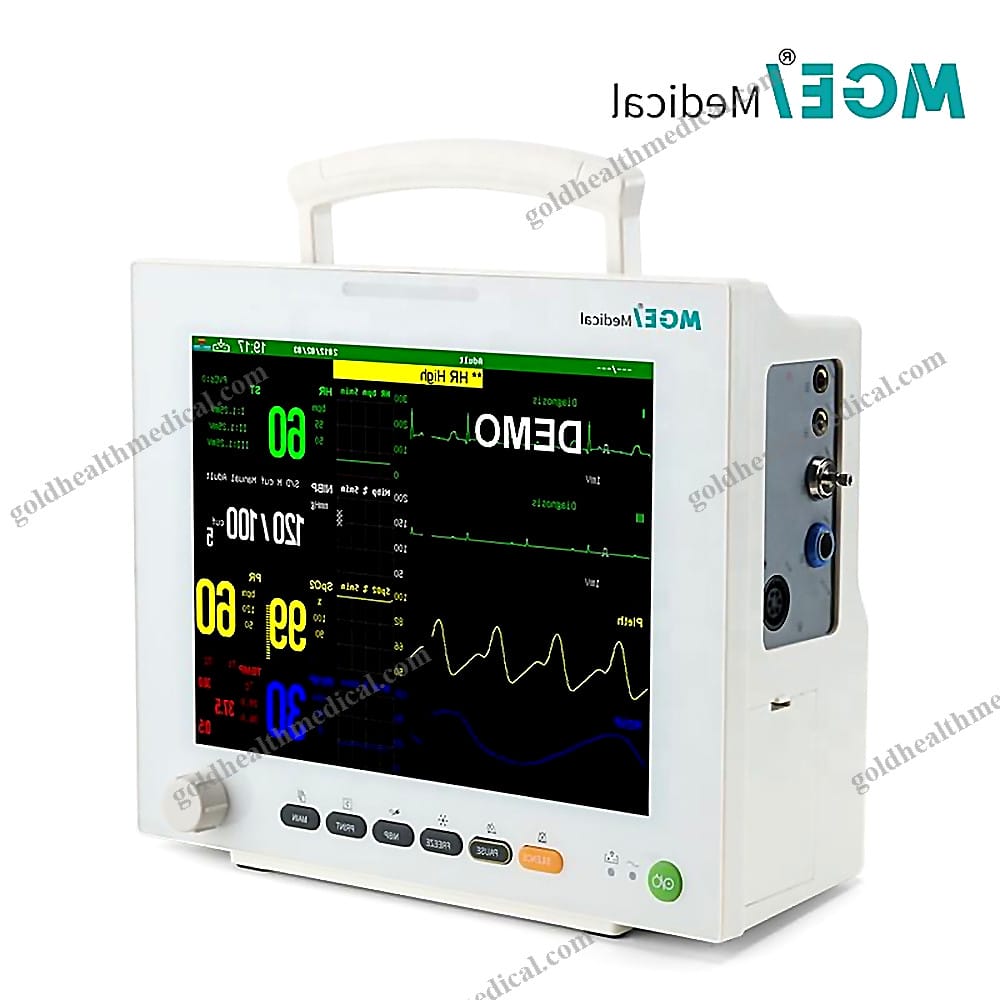

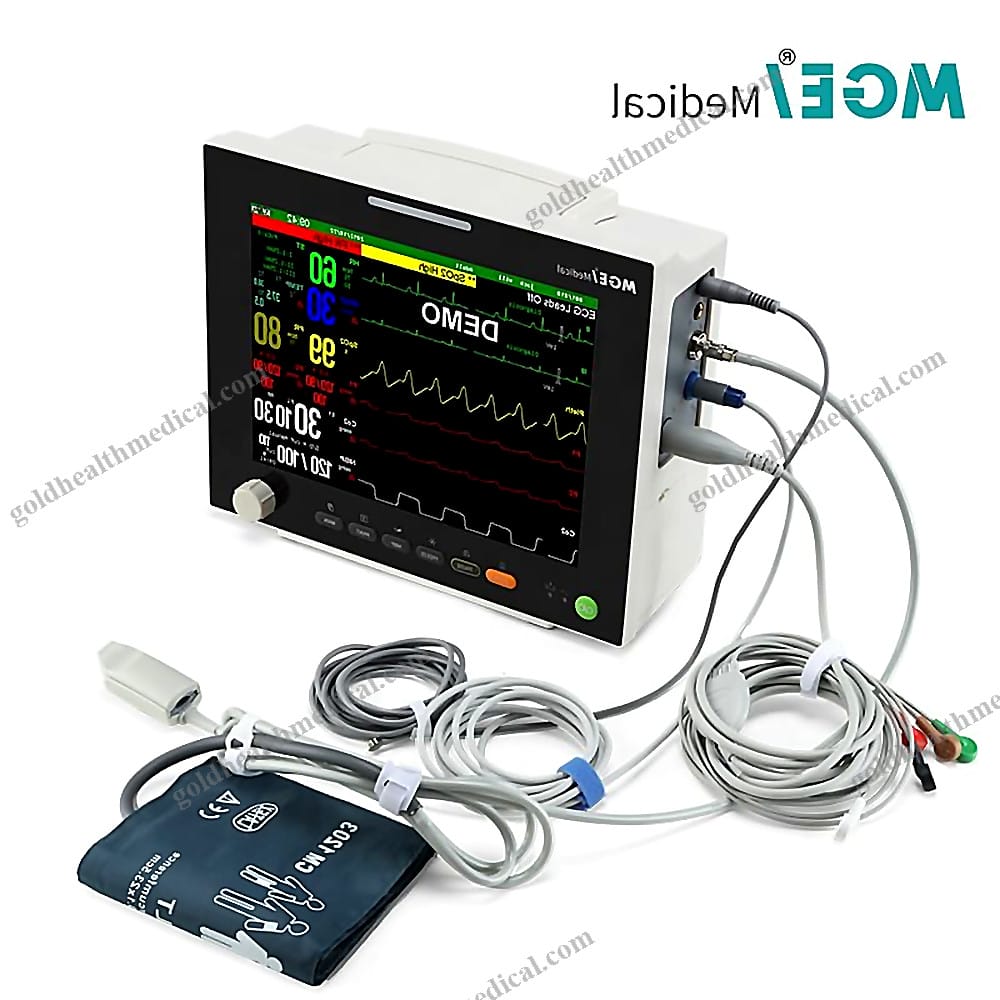

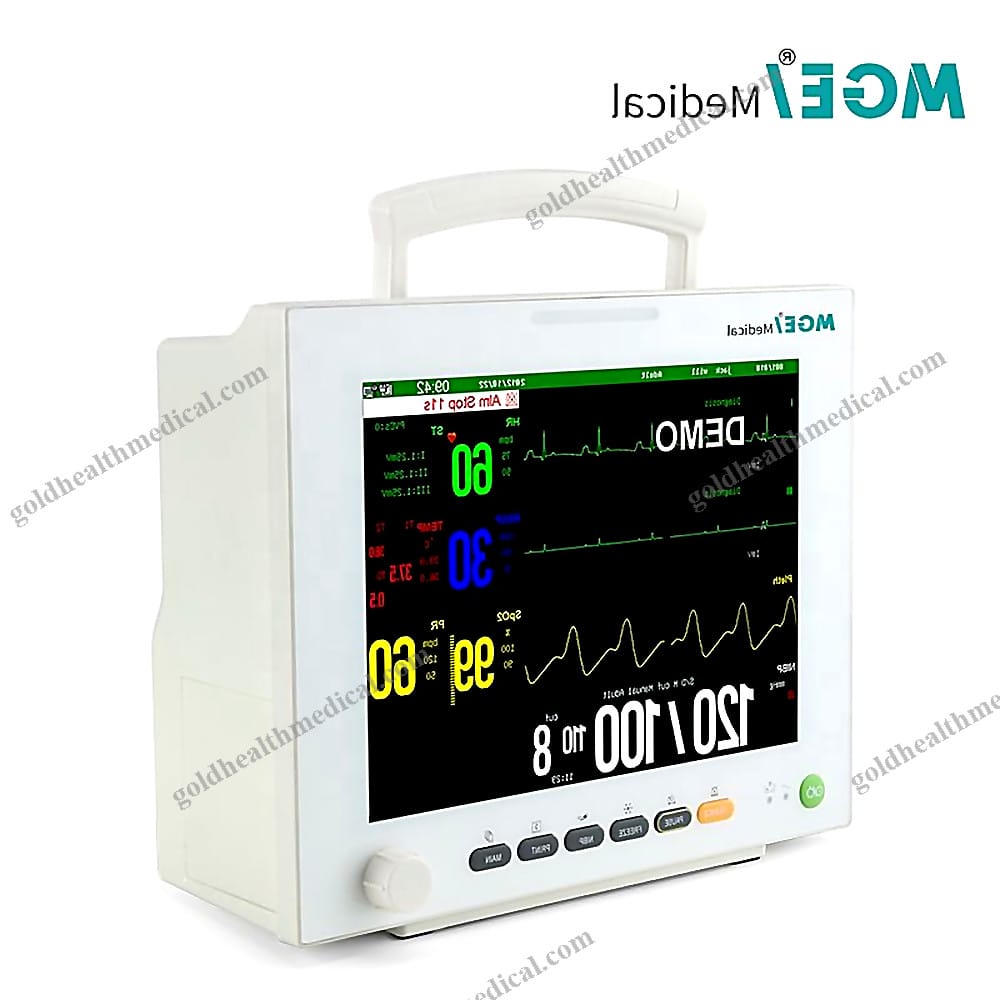

MGEIM1 Medige Cardiac Vital Signs Monitor
Reference: 1600501938121Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Patient Monitor
GoldHealth Medical introduces a cutting-edge patient monitor designed for versatility and precision in critical care environments. Engineered with advanced technology, this monitor delivers exceptional performance across various medical settings.
Key Features
- Display: Equipped with a vibrant color TFT screen available in multiple sizes (2.8", 3.5", 7", 8", 8.4", 12.1", 15.1") with a high resolution of 800×600 dpi for crystal-clear visuals.
- Parameters:
- Standard Monitoring: 5-lead ECG/HR, NIBP, SPO2, Temperature, Respiration, Pulse Rate.
- Optional Add-ons: Touch Screen, Printer, 3/12-lead ECG, single/double IBP, dual Temperature, Sun Tech NIBP, Masimo/Nellcor SpO2, ETCO2, BIS, CO.
- Patient Range: Suitable for Adult, Pediatric, and Neonatal patients.
- User Interface: Multi-display options including Standard, Large Font, Trend Coexistence, OxyCRG Dynamics, and 7 Full ECG Waveforms.
- Languages: Supports 8 built-in languages (English, Chinese, Turkish, Spanish, French, Russian, German, Italian).
- Data Review: Stores up to 720 hours of tabular and graphical trends, 1000 NIBP records, and 200 alarm events.
- Battery: Integrated rechargeable lithium battery offering 2 hours of operation (4 hours optional), with real-time battery level display.
- Network: TCP/IP networking platform compatible with central monitoring systems; optional Wi-Fi connectivity.
- Patient Management: Comprehensive patient details including gender, full name, ID, room/bed number, weight, height, blood type, pacemaker status, and notes.
- Parameter Board: Independent boards for each parameter (ECG, SPO2, NIBP) ensuring modular reliability.
- Customization: User-configurable color and layout for individual parameters; optional bed-to-bed view display.
- Cooling Technology: Fanless design for a quiet and efficient operating environment.
- Analysis: Real-time S-T segment analysis, 20 types of arrhythmia detection, SpO2 Pitch Tone Variation, Drug Dose Calculation, and Hemodynamic Calculations.
- Storage: Expandable memory via an external SD card slot (optional).
- Data Transfer: USB port for seamless patient data transfer to a PC (optional).
- Special SpO2 Technology: Offers accuracy comparable to Nellcor at a more affordable price (optional).
- Interference Resistance: Superior resistance to defibrillator and HF knife interference.
Technical Specifications
ECG
- Input: 3/5 wire ECG cable.
- Lead Selection: I, II, III, aVR, aVL, aVF, V.
- Gain Selection: 0.25, 0.5, 1, 1.2.
- Sweep Speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s.
- Heart Rate Range: 15-300 bpm.
- Calibration: ±1mv.
- Accuracy: ±1bpm or ±1% (whichever is greater).
NIBP
- Test Method: Oscillometric.
- Measurement Types: Systolic, Diastolic, Mean.
- Measurement Parameters: Automatic, Continuous, Manual.
- Accuracy: ±2 mmHg.
SPO2
- Display Type: Waveform and Data.
- Measurement Range: 0-100%.
- Accuracy: ±3% (between 70%-100%).
- Pulse Rate Range: 20-300 bpm.
- Accuracy: ±1bpm or ±2% (whichever is greater).
- Resolution: 1bpm.
Temperature (Rectal & Surface)
- Channels: 2 channels.
- Measurement Range: 0-50ºC.
- Accuracy: ±0.2ºC.
- Display: T1, T2, T.
- Unit: ºC/ºF selection.
- Resolution: 1s-2s.
Respiration (Impedance & Nasal Tube)
- Measurement Type: 0-150rpm.
- Accuracy: ±1bpm or ±5% (whichever is greater).
- Resolution: 1rpm.
Packing Information
- Packing Size: 37*3
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Redefining Patient Monitoring Excellence
- Product Name: Advanced ICU Patient Monitor
Overview:
Elevate patient care with GoldHealth Medical's cutting-edge ICU Patient Monitor, designed for precision, reliability, and seamless integration into modern healthcare environments. Engineered with over two decades of expertise in medical equipment manufacturing, this state-of-the-art device is tailored for hospitals, clinics, research labs, and home healthcare settings.Key Features:
- Intuitive Touchscreen Display: Optional touch functionality on a crisp 12-inch screen ensures effortless operation and clear visualization of critical patient data.
- Versatile Configurations: Customize your setup with optional VGA output, printer connectivity, ETCO2 monitoring, and dual IBP modules for enhanced versatility.
- Powerful Battery Backup: Equipped with a long-lasting lithium-ion battery, ensuring uninterrupted performance during critical procedures.
Dual Color Options: Choose between sleek white or professional black to match your facility’s aesthetic.
Technical Specifications:
- Power Source: Electrical with li-Battery backup
- Screen Size: 12-inch display
- Optional Features: VGA, Printer, ETCO2, Dual IBP
- Instrument Classification: Class II medical device
Certifications: EN60601, CE, ISO, MSDS compliance
Packaging Details:
- Securely packed in durable cartons or wooden cases for safe transportation.
- Single package dimensions: XX cm
Gross weight: XX kg
Warranty & Support:
- Comprehensive Warranty: Enjoy peace of mind with a 5-year warranty, underscoring our commitment to quality and durability.
Dedicated After-Sales Service: Access online technical support anytime, ensuring your operations run smoothly without interruption.
Why Choose GoldHealth Medical?
With over 20 years of experience as a trusted medical equipment manufacturer, GoldHealth Medical combines innovation, precision engineering, and user-centric design to deliver products that empower healthcare professionals worldwide.Optional Services:
- Sample units available for evaluation
- Comprehensive service manuals provided
- OEM customization to meet specific requirements
GoldHealth Medical’s ICU Patient Monitor is more than a device—it’s a reliable partner in delivering exceptional patient care.
