Medical Autoclave Steam Sterilizer Machine 35L1
Reference: 1601151013811Sterilization Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical: Advanced Sterilization Solutions
GoldHealth Medical presents a premium range of autoclaves designed for unparalleled performance in medical, laboratory, and research environments. Engineered with precision, these sterilizers deliver consistent results, ensuring safety and reliability for critical applications.
Key Features and Benefits:
- Advanced Automatic Operation: Simplifies workflows with fully automated cycles, reducing human error and enhancing efficiency.
- Precision Temperature Control: Adjustable from 105°C to 134°C, ensuring optimal sterilization for diverse materials.
- Uniform Heat Distribution: Heat variation ≤±1°C for consistent and reliable results.
- Versatile Timer Settings: Flexible options from 0–99 minutes or 0–99 hours 59 minutes to accommodate varying sterilization needs.
- Robust Construction: Durable design built to withstand demanding environments while maintaining performance.
Product Specifications:
- Chamber Volume Options:
- 35L / 9 gal (φ318×450mm / φ13×18 inches)
- 50L / 13 gal (φ340×550mm / φ13×22 inches)
- 75L / 20 gal (φ400×600mm / φ16×24 inches)
- 100L / 26 gal (φ440×650mm / φ17×26 inches)
- 120L / 32 gal (φ480×660mm / φ19×26 inches)
150L / 40 gal (φ510×740mm / φ20×29 inches)
Performance Parameters:
- Working Pressure: 0.22 MPa
- Maximum Working Pressure: 0.23 MPa
- Working Temperature: 134°C / 209°F
Power Ratings: 2.5 kW, 3 kW, 4.5 kW, 6 kW
Dimensions:
- Overall Dimensions:
- 470×450×840 mm (19×18×33 inches)
- 520×500×970 mm (20×20×38 inches)
- 550×530×990 mm (22×21×39 inches)
- 580×560×1060 mm (23×22×42 inches)
- 630×610×1130 mm (25×24×44 inches)
- 660×640×1130 mm (26×25×44 inches)
Transport Dimensions:
- 540×540×970 mm (21×21×38 inches)
- 580×580×1090 mm (23×23×43 inches)
- 610×610×1110 mm (24×24×44 inches)
- 640×640×1170 mm (25×25×46 inches)
- 690×690×1240 mm (27×27×49 inches)
- 730×730×1240 mm (29×29×49 inches)
Weight:
- Gross Weight / Net Weight:
- 61 kg / 46 kg (134 lbs / 101 lbs)
- 73 kg / 56 kg (161 lbs / 123 lbs)
- 87 kg / 67 kg (192 lbs / 148 lbs)
- 95 kg / 73 kg (209 lbs / 161 lbs)
- 116 kg / 101 kg (256 lbs / 223 lbs)
- 134 kg / 111 kg (295 lbs / 245 lbs)
Why Choose GoldHealth Medical?
- Unmatched Reliability: Built to meet the highest standards of safety and performance.
- Customizable Solutions: Multiple chamber sizes and configurations to suit specific needs.
- Energy Efficiency: Optimized power consumption for reduced operational costs.
- Global Trust: Designed
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical

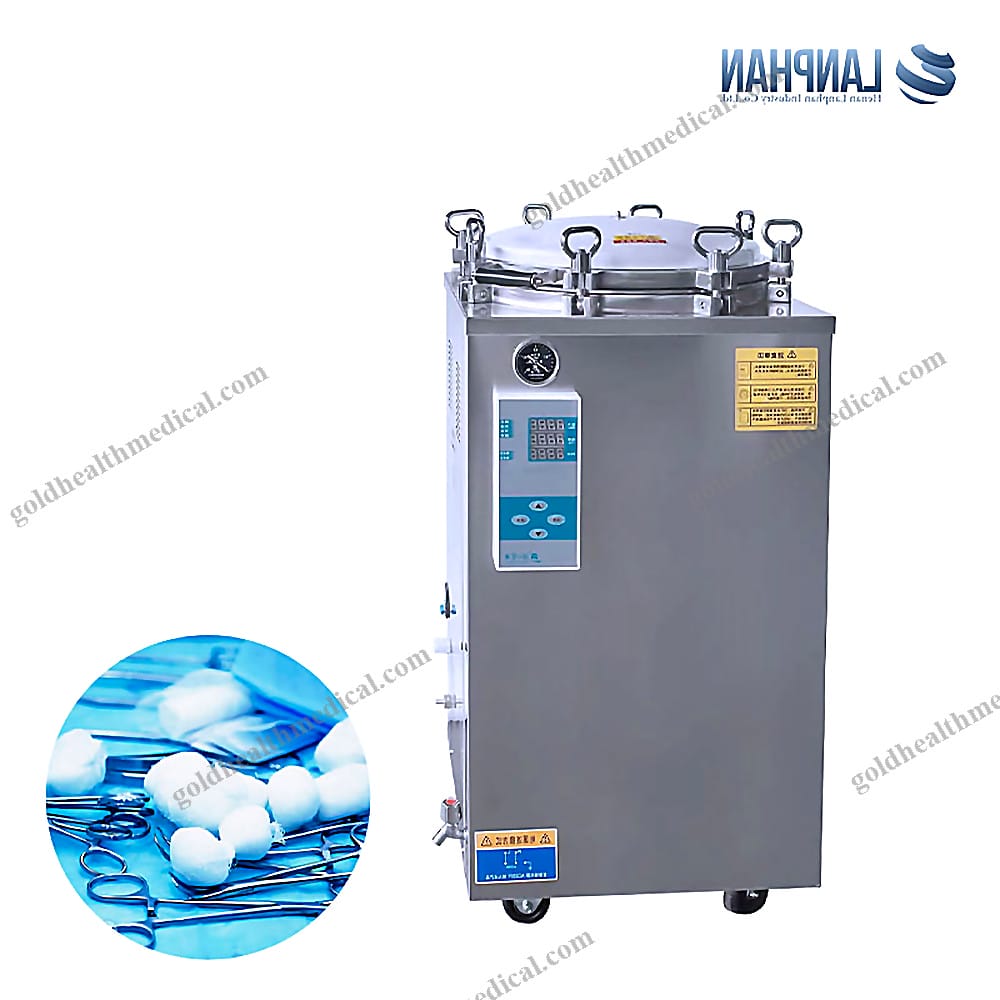

Product Name: Vertical Autoclave
Product Overview
The GoldHealth Medical Vertical Autoclave is a cutting-edge Class II medical device designed for precision and reliability in sterilization processes. Engineered for versatility, this pressure steam sterilization equipment is ideal for a wide range of applications, including mushroom growing, canned food production, and critical medical environments. With advanced temperature control, robust construction, and user-friendly operation, it ensures consistent, high-quality sterilization results every time.
Key Features
- Sterilizing Chamber Volume: 35L, offering ample capacity for diverse sterilization needs.
- Max. Working Pressure: 0.23MPa, ensuring efficient and safe operation under demanding conditions.
- Working Temperature: Up to 134°C, with an adjustable range of 105°C to 134°C for precise control.
- Time Range: Flexible sterilization cycles from 0~99 minutes or 0~99 hours 59 minutes, tailored to specific requirements.
- Temperature Uniformity: ≤±1°C, guaranteeing consistent heat distribution for reliable results.
- Power: 2.5KW-6KW, operating on 220V/50Hz for energy-efficient performance.

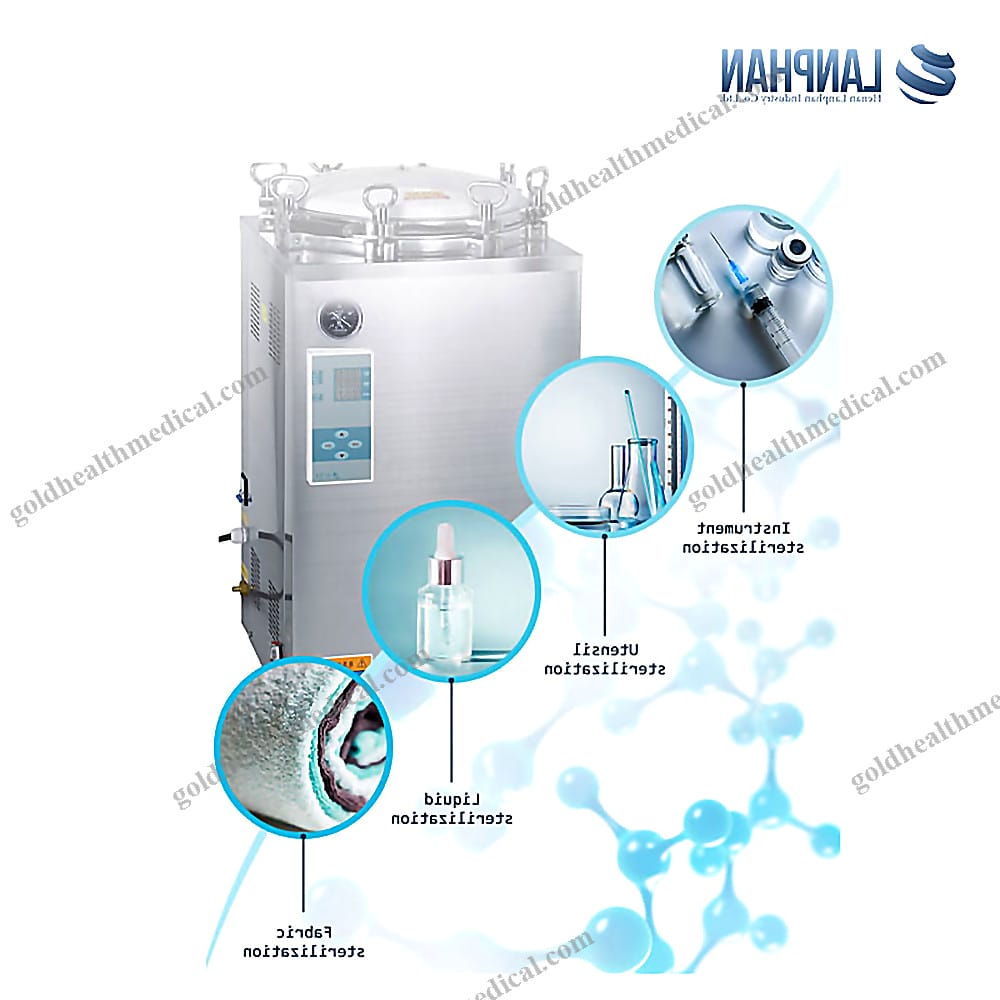

Applications
- Mushroom cultivation

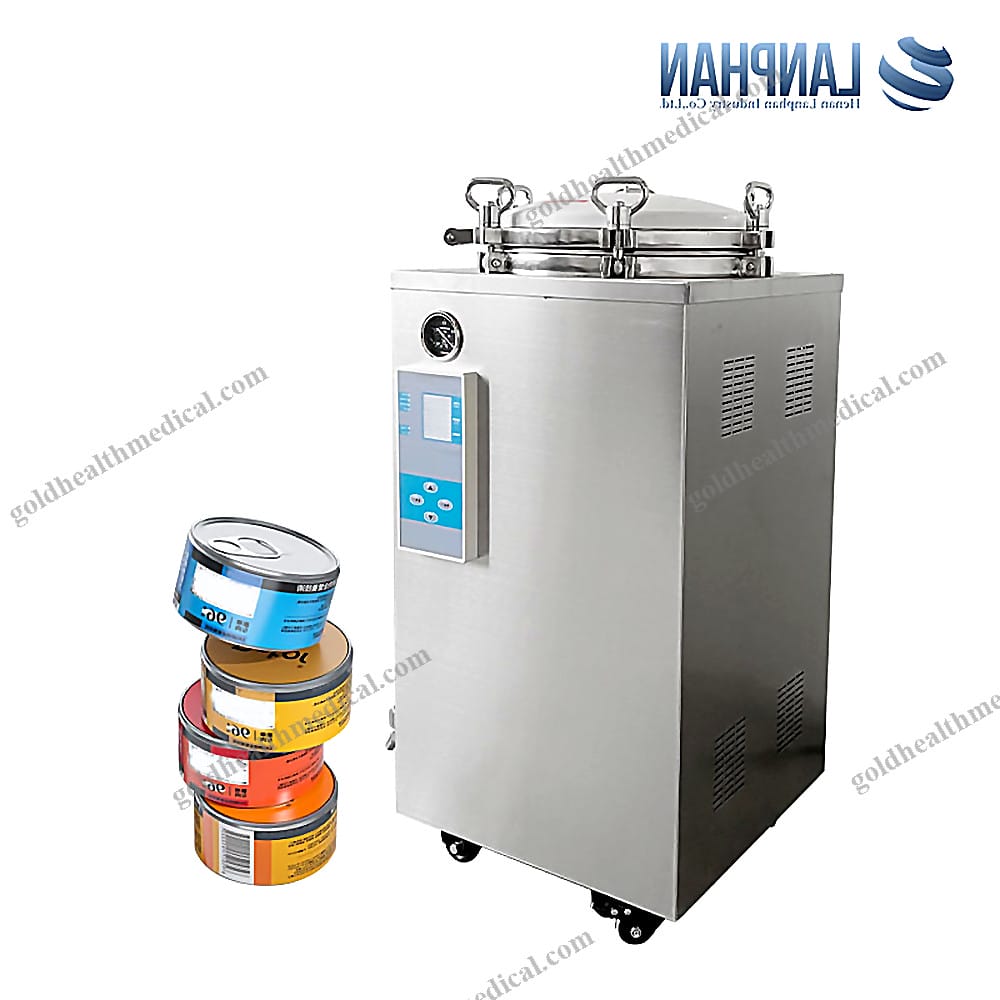

- Canned food processing
- Medical and laboratory sterilization
- Research and development environments
Packaging Details
- Single Package Size: 54 x 54 x 97 cm
- Single Gross Weight: 61.000 kg
Warranty & Support
- Warranty Period: 1 Year
- After-Sale Service: Comprehensive online technical support to ensure seamless operation and address any concerns.
GoldHealth Medical’s Vertical Autoclave combines innovation, durability, and precision to meet the rigorous demands of modern healthcare and industrial applications. Elevate your sterilization processes with a device designed to deliver unparalleled performance.
