Mars 1717V Wireless Flat Panel Detector for High
Reference: 1600987977925Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Product Overview
GoldHealth Medical presents a revolutionary range of medical imaging solutions designed to enhance diagnostic precision and streamline workflows. Our products are meticulously engineered to meet the demands of modern healthcare environments, offering unparalleled performance and reliability.
Smart Wireless FPD for Radiographic Imaging

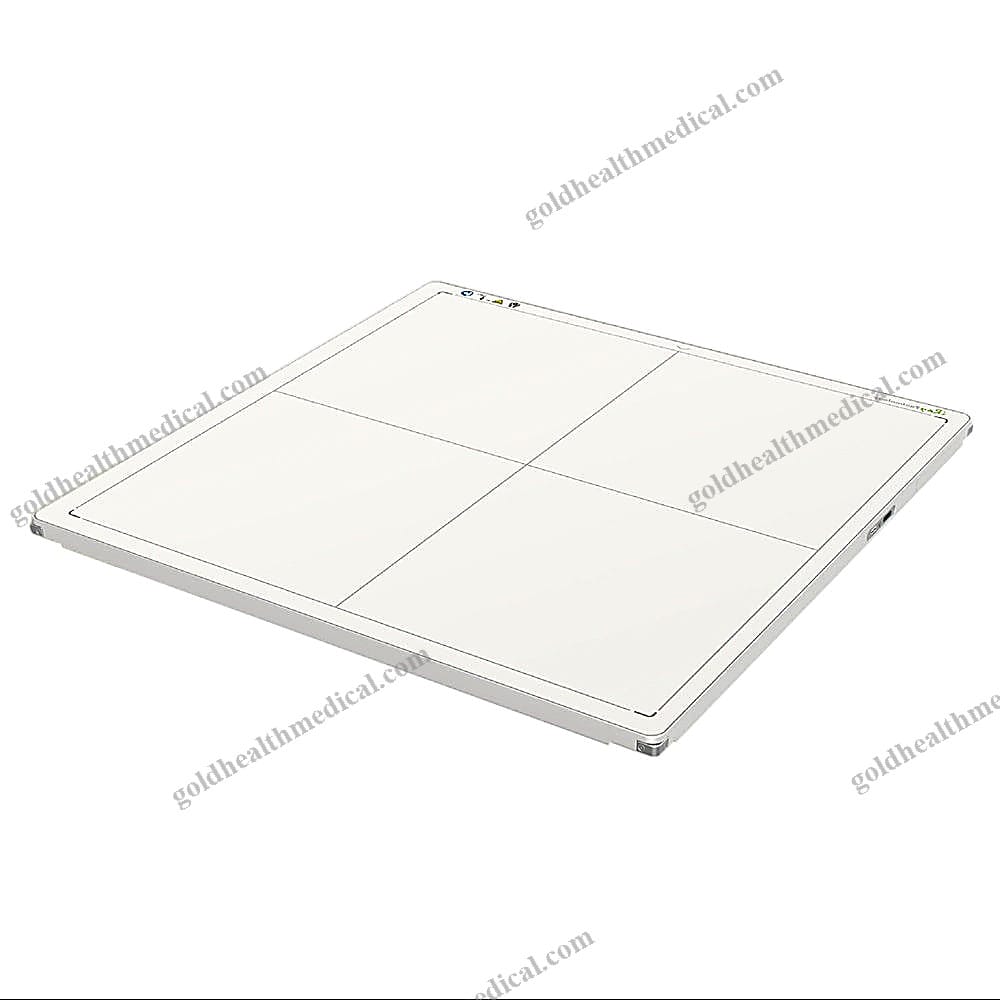

Introducing a cutting-edge 17×17 inch wireless Flat Panel Detector (FPD) tailored for radiographic imaging. This device combines advanced technology with user-centric features, making it an ideal choice for both retrofit and new Digital Radiography (DR) systems.
Key Features
- Wireless Design: Meets ISO 4090 standards, seamlessly integrates into existing bucky systems.
- Exceptional Image Detail: 139 μm pixel pitch and 16-bit ADC ensure superior image clarity.
- Enhanced Image Quality: Direct deposition CsI technology delivers high-quality images with reduced radiation dose.
- Reliable Performance: Stable iSync technology paired with Automatic Exposure Detection (AED) for consistent results.
- Dual-Band Wireless Connectivity: Supports both 2.4 GHz and 5 GHz bands for effortless data sharing.
- Extended Battery Life: Ensures uninterrupted operation with up to 8 hours of autonomy.
- Smart Workflow Integration: Optimized for fast and efficient imaging processes.
Technical Specifications
- Detector Technology: Amorphous Silicon
- Scintillator: CsI
- Active Area: 17 × 17 inches
- Pixel Matrix: 3072 × 3072
- Pixel Pitch: 139 μm
- Spatial Resolution: 3.6 lp/mm
- AD Conversion: 16-bit
- Battery Autonomy: 8 hours
- WIFI: 2.4G and 5G, IEEE802.11 a/b/g/n/ac
- Trigger Mode: AED (Optional)
- Full Image Time: 5 seconds
- Dimensions: 460 x 460 x 15 mm
- Weight: 4.6 kg
- Static Loading: 150 kg uniformly distributed
- Ingress Protection: IPX1
- Operating Temperature: 5~35°C
- Storage & Transport Temperature: -20 ~ 55°C
- Operating Humidity: 10 ~ 90% RH (Non-Condensing)
- Storage & Transport Humidity: 5 ~ 95% RH (Non-Condensing)
Additional Product Highlights
- Medical X-ray Protective Aprons: Premium radiation protection with CE certification, ensuring safety and durability.
- A3 Shooting Area Film Scanner: Equipped with a 16MP autofocus camera, designed for precise and efficient film digitization.
- Ceiling-Suspended Digital Radiography System: A state-of-the-art solution for advanced imaging needs, offering exceptional clarity and ease of use.
- X-ray Tube Cover: Reinforced with tungsten, providing reliable protection and enhanced performance.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering innovative medical equipment that meets the highest standards of quality and performance. Our comprehensive product portfolio caters to a wide range of healthcare settings, from hospitals and clinics to research institutions and home care environments. With a focus on cutting-edge technology and exceptional customer service, we strive to be your trusted partner in medical imaging solutions.
Partner with GoldHealth Medical to experience the perfect blend of innovation, reliability, and expertise.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: X-ray Flat Panel Detector FPD by GoldHealth Medical
Application: Designed for DR Digital Radiography Upgrade, this cutting-edge detector is ideal for hospitals, clinics, research institutions, and home healthcare settings.
Key Features:
- Advanced Technology: Utilizes state-of-the-art flat panel detector technology for unparalleled precision and clarity.
- High-Resolution Imaging: Achieves exceptional detail with a pixel pitch of 139μm, ensuring sharp and accurate diagnostic images.
- Lightweight & Portable: Weighing just 4.6kg with compact dimensions of 46046015mm, it offers unmatched portability without compromising performance.
- Rapid Imaging: Delivers full images in just 5 seconds, enabling faster diagnoses and streamlined workflows.
- Superior Conversion: Equipped with 16-bit AD conversion for enhanced image quality and data accuracy.
Technical Specifications:
- Material: Durable metal construction ensures longevity and reliability.
- Power Source: Electric, designed for consistent and efficient operation.
- Instrument Classification: Class II medical device, meeting rigorous safety and performance standards.
- Safety Standard Compliance: Certified to GB/T18830-2009 standards for peace of mind.
- Shelf Life: 1 year from the date of manufacture.
Quality Assurance:
- Backed by GoldHealth Medical’s commitment to excellence, this product is CE-certified, guaranteeing compliance with international quality and safety regulations.
After-Sale Support:
- Comprehensive online technical support ensures seamless integration and operation, empowering users with expert assistance whenever needed.
Warranty:
- A 1-year warranty underscores our confidence in the product’s durability and performance.
Place of Origin:
- Proudly manufactured in Jiangsu, China, known for its advanced medical device production capabilities.
Supply Ability:
- Monthly supply capacity of 30 sets ensures timely delivery to meet your needs.
Packaging Details:
- Each unit is securely packaged in a cassette-sized, wireless portable format, specifically designed for human use, ensuring safe and convenient transportation.
Unique Selling Points:
- Combines portability, precision, and speed to revolutionize digital radiography.
- Engineered for both professional and home environments, offering versatility and ease of use.
- Designed to upgrade existing systems, providing a cost-effective solution for enhanced imaging capabilities.
GoldHealth Medical is committed to delivering innovative, reliable, and high-performance medical equipment that empowers healthcare providers and improves patient outcomes.
