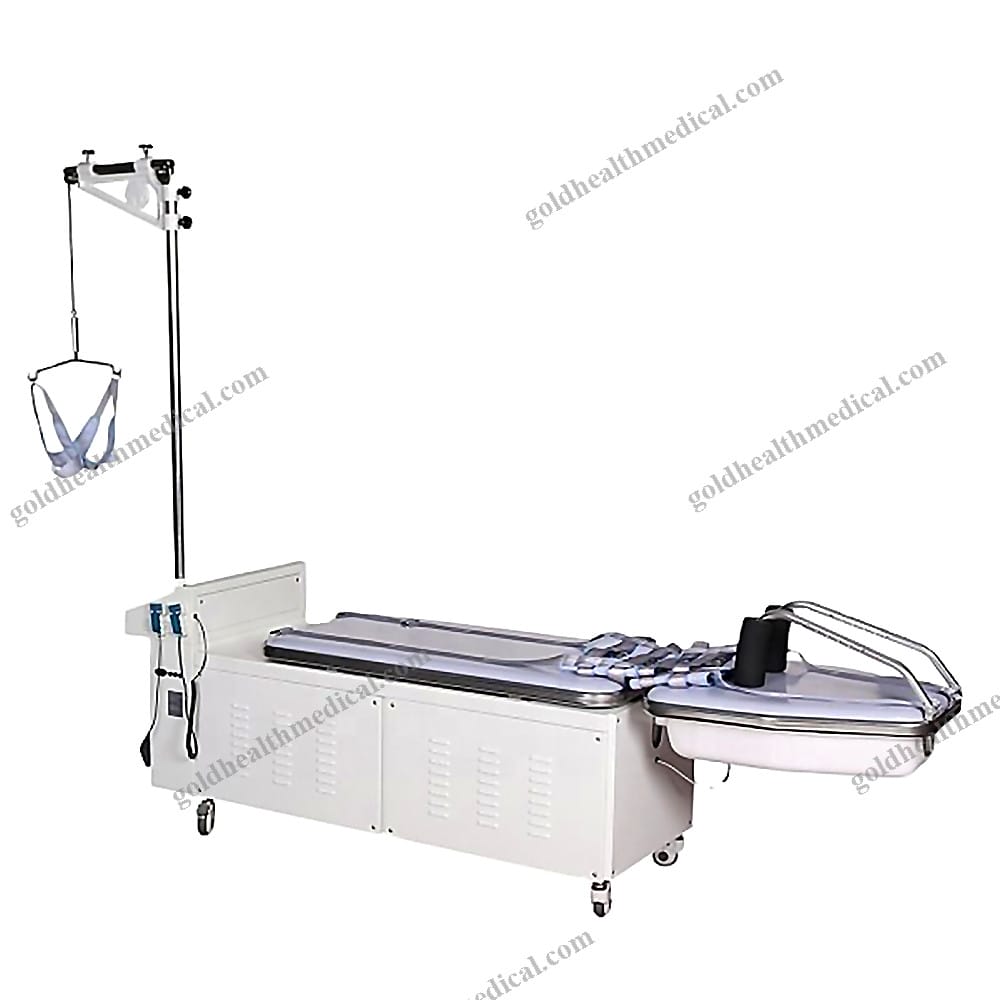

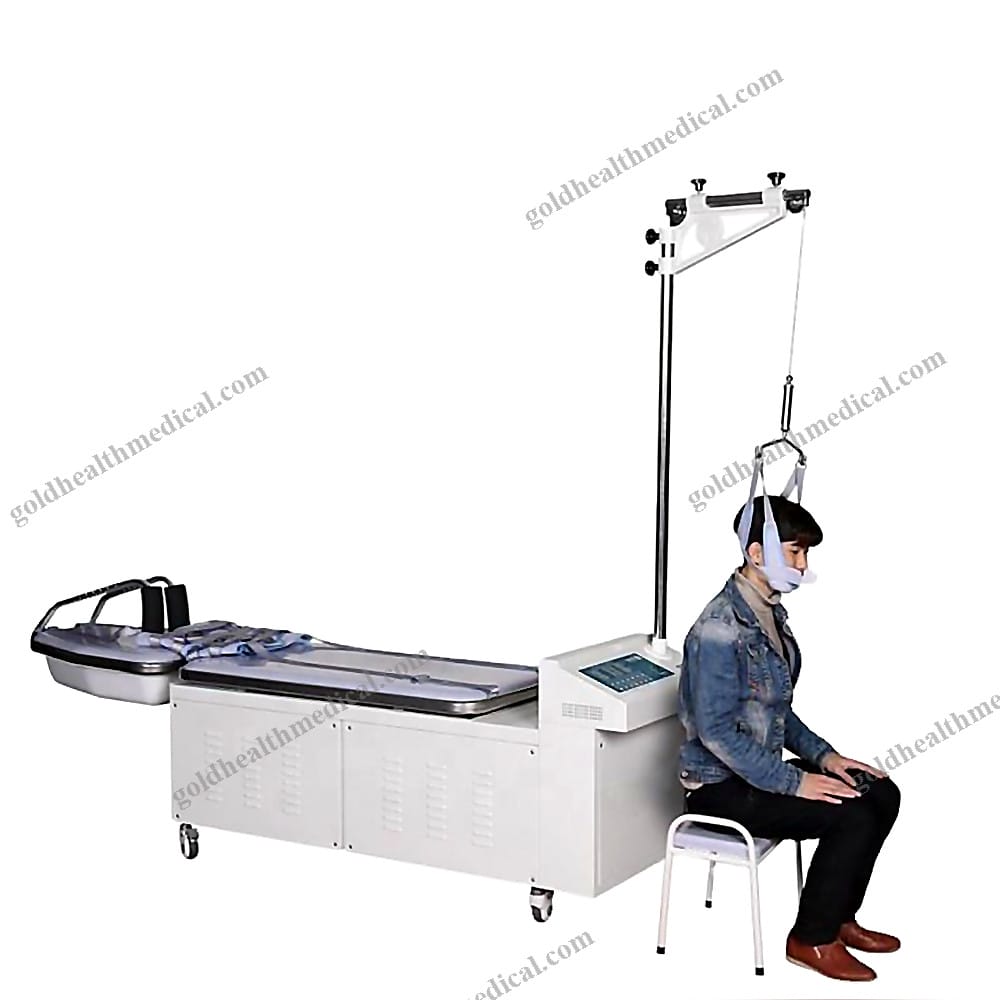

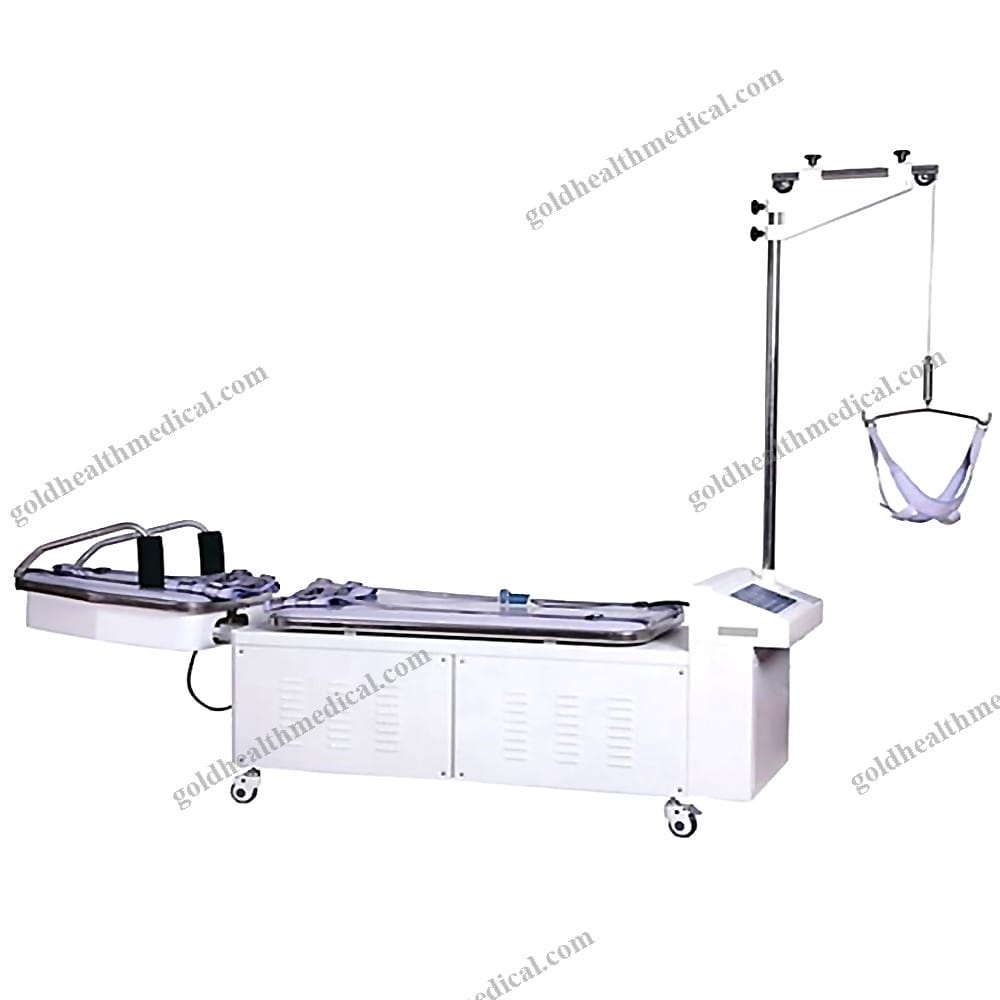

Lumbar Traction Bed Pro
Reference: 1600189575139Traction and Correction Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Advanced Lumbar and Cervical Traction Technology by GoldHealth Medical
GoldHealth Medical introduces a cutting-edge lumbar and cervical traction system designed to redefine rehabilitation therapy. Leveraging advanced stretching technology, this device applies controlled external forces—whether manual or mechanical—to elongate shortened or contracted tissues. This process enhances joint mobility, reduces muscle stiffness, and restores the natural range of motion in affected areas. The therapy is particularly effective for soft tissue extensibility around joints, promoting recovery and improving patient outcomes.
Key Therapeutic Applications:
- Lumbar intervertebral disc protrusion
- Lumbar spondylolisthesis
- Lumbar vertebral degeneration
- Lumbar small joint disturbances
- Early-stage ankylosing spondylitis
- Uncomplicated spinal compression fractures
Product Features and Technical Specifications
Core Features:
- Three-Dimensional Traction: Offers longitudinal, upper-angle, and lower-angle traction with automatic swing and lateral traction capabilities. These functions can be used independently or combined for a tailored therapeutic experience.
- 8 Traction Modes: Includes an automatic compensation feature for slow, controlled traction.
- 20 Pre-Programmed Therapeutic Schedules: Customizable and easily accessible for consistent treatment protocols.
- Medical Record Management: Integrated storage, retrieval, and printing functions for seamless patient history tracking.
- Cervical Traction Control: Fully automated with programmable duration and force settings. Equipped with an emergency reset button for patients and automatic protection against excessive lumbar traction.
- Advanced Safety Mechanisms: Maximum traction force capped at 990N, an emergency reset switch for patients, and an operation emergency key for medical staff.
Technical Parameters:
- Power Supply: 220V ± 22V, 50Hz ± 1Hz
- Rated Input Power: 100VA (±15% tolerance)
- Lumbar Traction Stroke: 0–200mm
- Lumbar Traction Total Time: 0–99 minutes (adjustable)
- Lumbar Traction Force: 0–990N (adjustable)
- Continuous Traction Time: 0–9 minutes (adjustable)
- Intermittent Traction Time: 0–9 minutes (adjustable)
- Cervical Traction Force: 0–300N (adjustable)
- Cervical Traction Stroke: 0–300mm
- Cervical Traction Total Time: 0–99 minutes (adjustable)
- Angular Range of Motion: -10° to +30°
- Rotation Range: Approximately 25° left and right (adjustable)
- Waist Hyperthermia Temperature: ≤50°C
- Display: LCD screen for real-time monitoring
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals and enhance patient care. Our lumbar and cervical traction system stands out with its precision engineering, user-friendly interface, and robust safety features. Designed for versatility, it caters to a wide range of medical settings, including hospitals, rehabilitation centers, research institutions, and home care environments.
Unique Selling Points:
- Precision and Automation: Combines advanced software control with intuitive operation for consistent, reliable therapy.
- Customizable Protocols: Pre-programmed schedules and adjustable parameters ensure personalized treatment plans.
- Comprehensive Safety: Multiple fail-safes protect both patients and operators, ensuring peace of mind during therapy.
- Durability and Reliability: Built to withstand rigorous use while maintaining optimal performance.
GoldHealth Medical’s traction system is more than just a device—it’s a transformative tool designed to improve patient outcomes and streamline rehabilitation workflows. Experience the future of medical traction technology today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Lumbar Traction Bed – a cutting-edge solution designed to redefine spinal care and rehabilitation. Engineered with precision and tailored for both clinical and home use, this device offers unparalleled versatility and performance.
Product Highlights
- Advanced Lumbar Traction Technology: Achieve optimal spinal decompression with adjustable lumbar traction force (0–990N) and a smooth traction stroke (0–200mm). Perfect for relieving pressure and promoting recovery.
- Customizable Therapy Sessions: Tailor treatments with adjustable parameters, including total traction time (0–99 minutes), continuous traction duration (0–9 minutes), and intermittent intervals (0–9 minutes).
- Dynamic Angular Adjustment: Operates within an angular range of -10° to +30°, accommodating various therapeutic needs and patient comfort levels.
- Integrated Hyperthermia Function: Provides soothing heat therapy with a controlled temperature of up to 50°C, enhancing relaxation and improving blood circulation.
Technical Specifications
- Power Supply: 220V ± 22V, 50Hz ± 1Hz
- Rated Input Power: 100VA (tolerance ± 15%)
- Instrument Classification: Class I
- Adjustable Parameters:
- Lumbar traction force: 0–990N
- Lumbar traction stroke: 0–200mm
- Total traction time: 0–99 minutes
- Continuous traction time: 0–9 minutes
- Intermittent time: 0–9 minutes
- Angular range: -10° to +30°
- Hyperthermia temperature: ≤ 50°C
Reliability and Support
- Comprehensive Warranty: Backed by a 5-year warranty, ensuring long-term reliability and peace of mind.
- Dedicated After-Sales Service: Access online technical support for seamless assistance whenever needed.
Packaging and Delivery
- Secure Packaging: Delivered in robust wooden packaging to ensure safe transit.
- Global Shipping: Dispatched from Guangzhou, ready to reach your facility or home efficiently.
GoldHealth Medical’s Lumbar Traction Bed is more than just a device – it’s a commitment to superior spinal health and patient care. Elevate your practice or personal wellness journey with this state-of-the-art solution.
