LTSE26 7 Touchscreen 12Channel Portable
Reference: 1600620083785Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

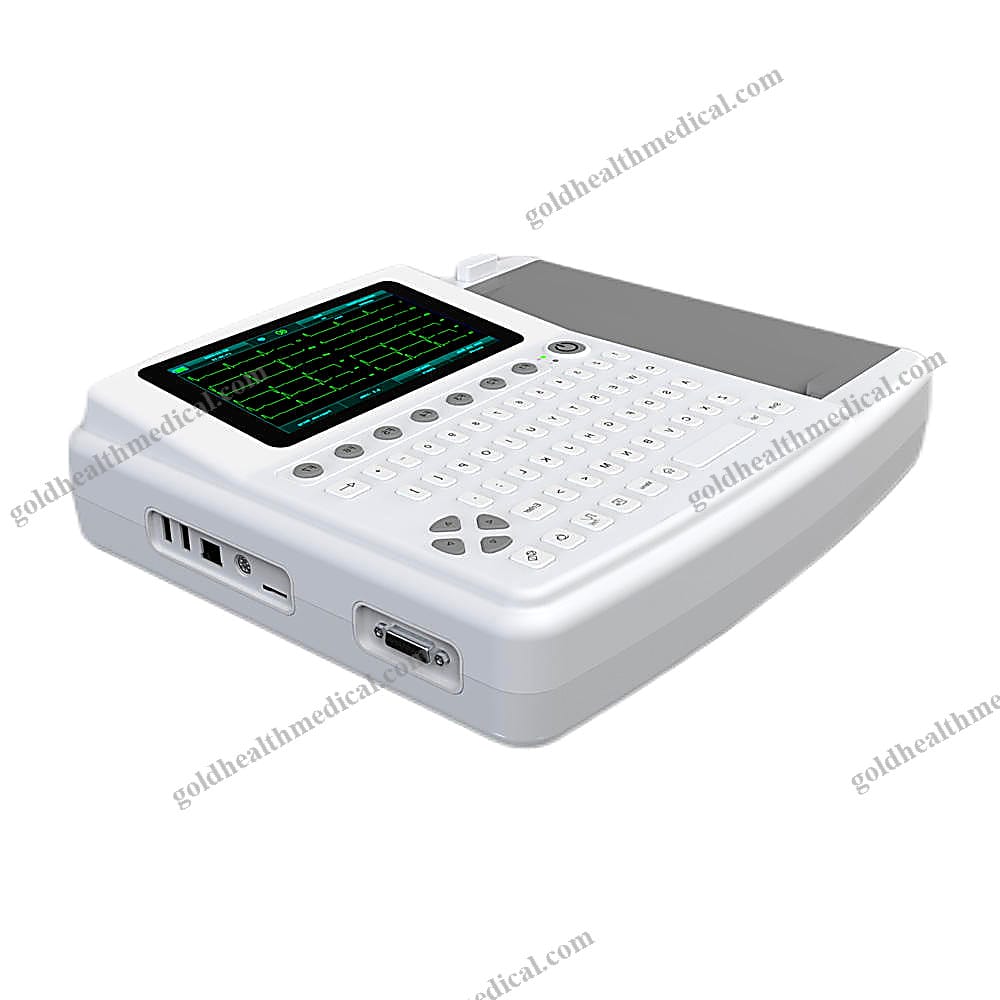

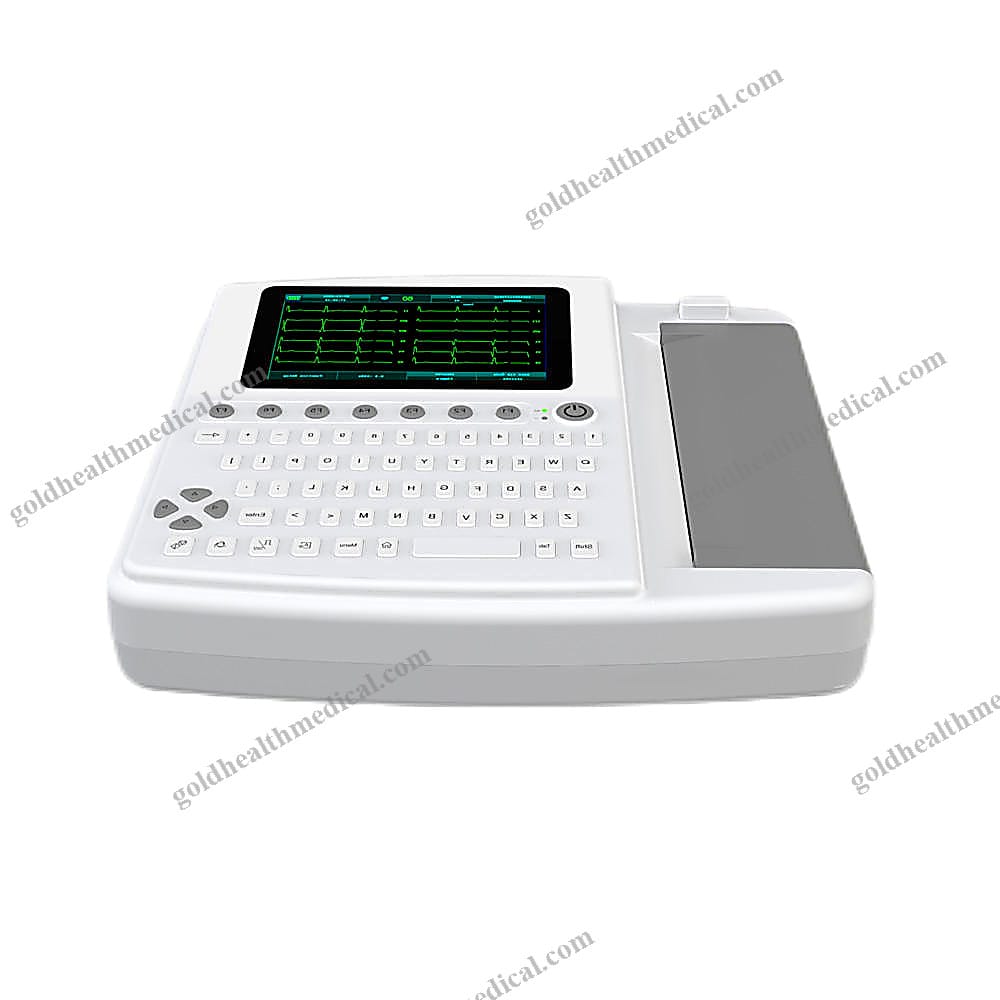

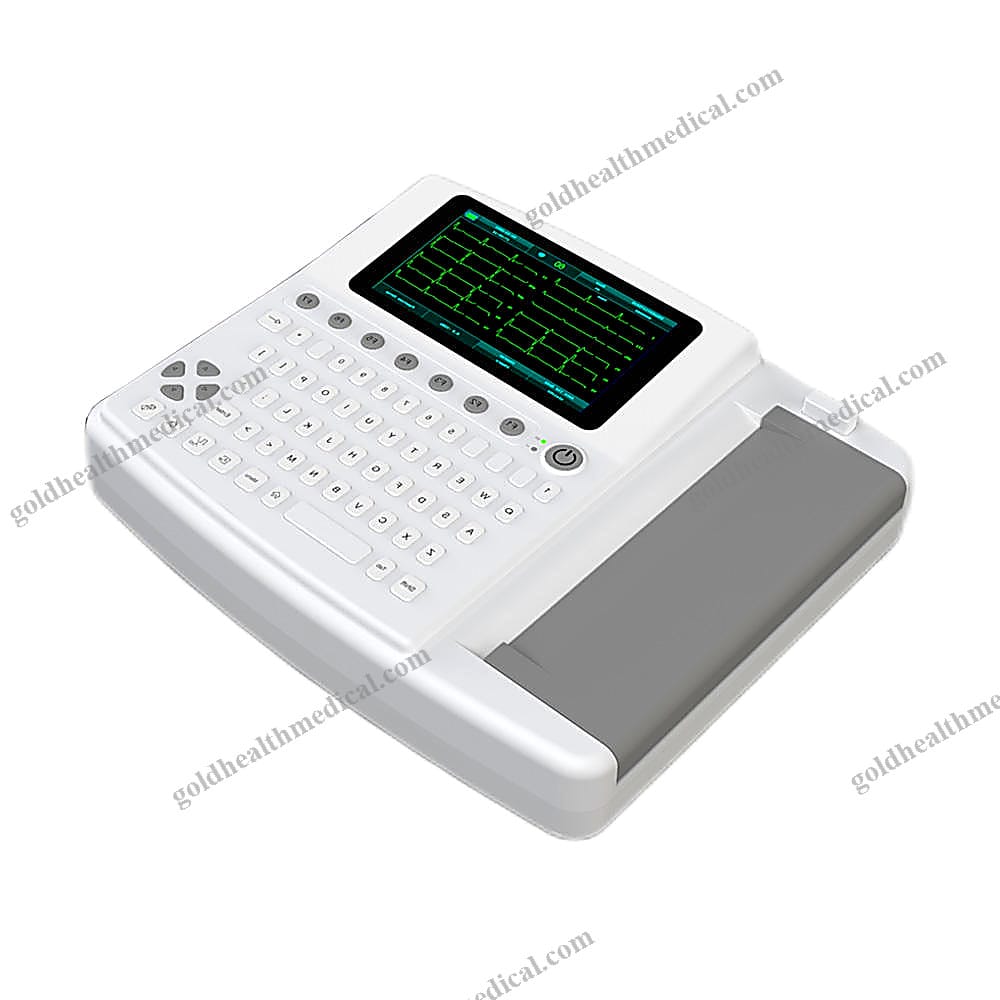

GoldHealth Medical ECG Machine
Product Overview
GoldHealth Medical introduces a cutting-edge 3-channel touch screen ECG machine designed for hospitals and medical facilities. This device combines advanced technology with user-friendly features to deliver precise and efficient cardiac diagnostics.
Key Features

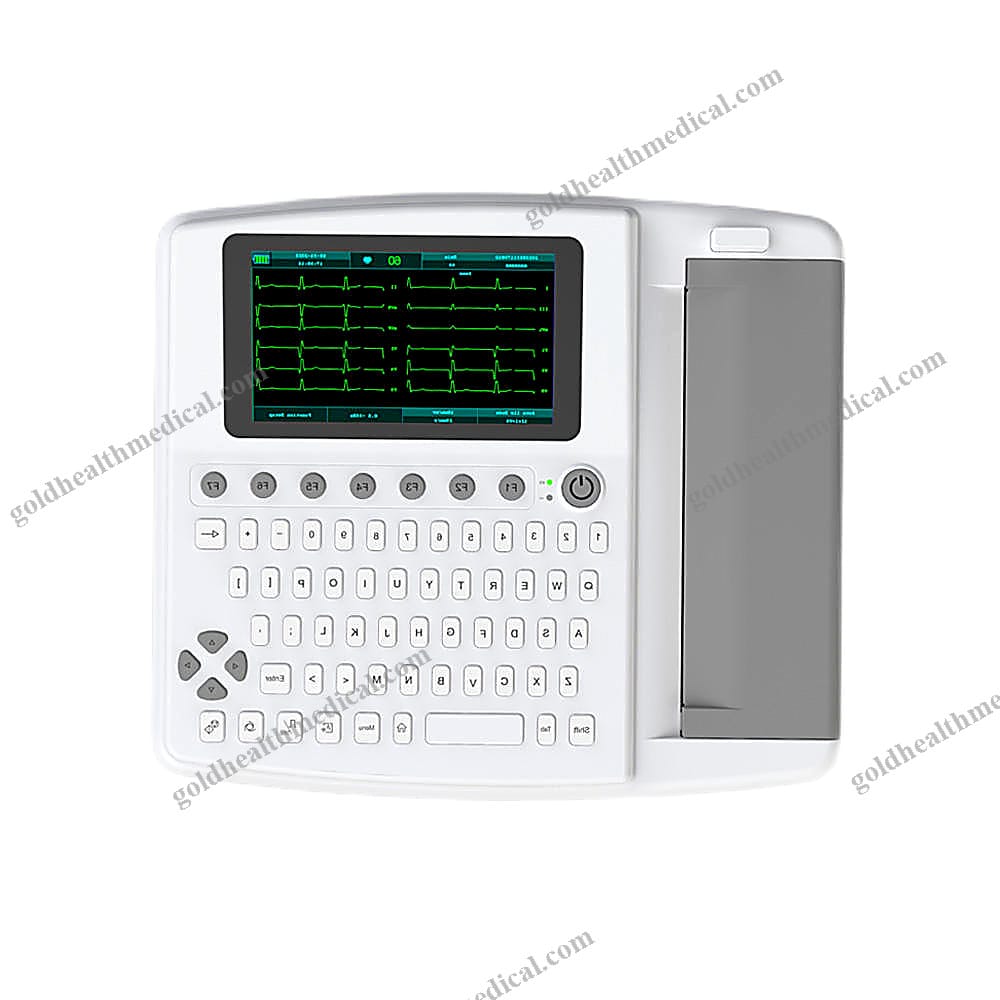

- 7-inch High-Resolution Color Touch Screen: Ensures clear visualization of ECG waveforms and data.
- Full Alphanumeric Keyboard with Shortcut Keys: Streamlines operations for enhanced efficiency.
- Simultaneous 12-Lead ECG Acquisition and Display: Provides comprehensive cardiac analysis in real-time.
- Automatic ECG Measurements and Interpretation: Delivers accurate diagnostic insights effortlessly.
- Internal Storage Capacity of 1000 Cases: Facilitates easy case review and statistical analysis.
- Built-in Rechargeable Lithium Battery: Offers extended operational time without frequent recharging.

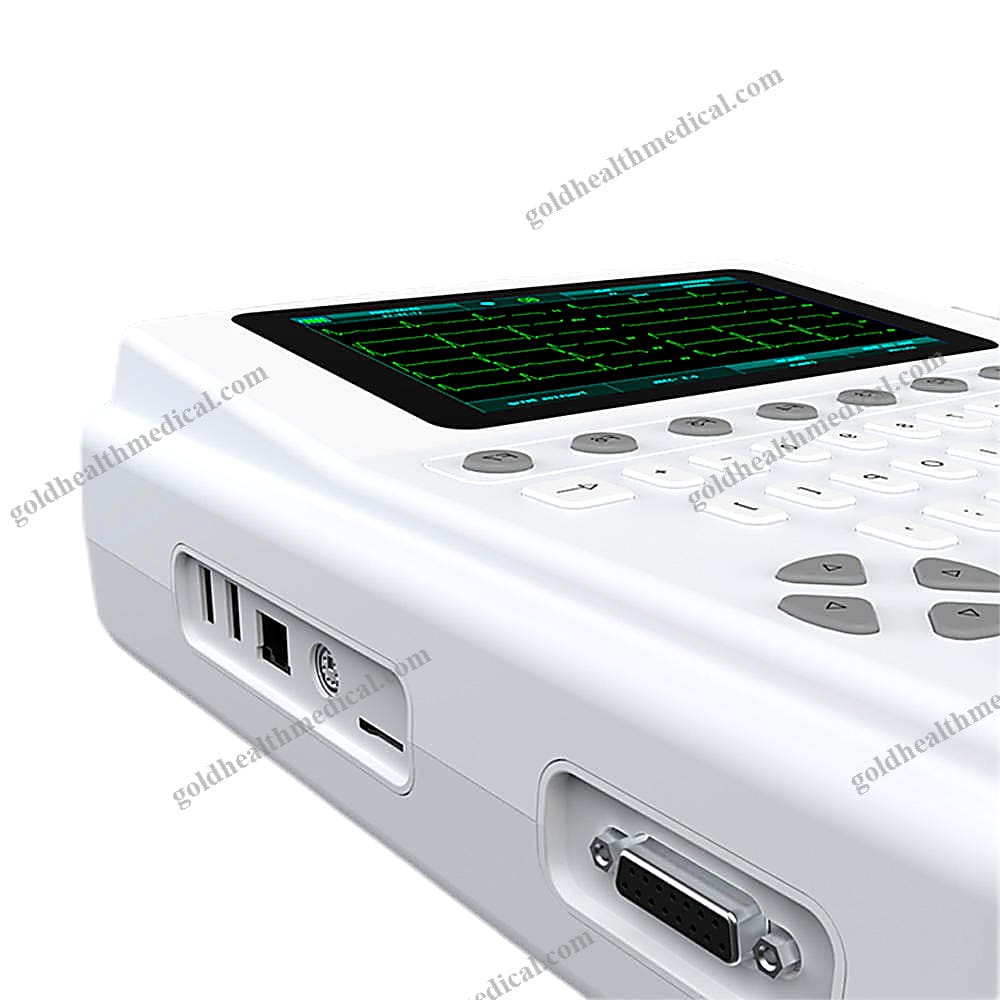

- ECG Data Transmission via USB: Enables seamless integration with PC-based ECG playback software for report management.
Technical Specifications
- Leads: Standard 12 leads
- Sampling Mode: Simultaneous 12-lead acquisition
- Sampling Rate: 1000Hz
- A/D Converter: 24 bits
- Frequency Response: 0.05～160Hz (-3db)
- Operation Modes: Manual, Auto, Rhythm, 1 channel 1 minute
- Filters:
- AC Filter: 50 Hz / 60Hz
- EMG Filter: 25 Hz / 35 Hz / 45Hz/75 Hz / 100 Hz / 150Hz
- DFT Filter: 0.05Hz/0.5Hz
- CMRR: ≥100dB (with AC filter)
- Input Mode: Floating and defibrillation protection
- Input Impedance: ≥50MΩ (10Hz)
- Input Circuit Current: ≤0.05μA
- Input Dynamic Range: ±10mVp-p
- Patient Leak Current: ＜10μA
- Calibration Voltage: 1mV±2％
- Polarizing Voltage: ≥±300mV
- Time Constant: ≥3.2s
- Paper Specification: 210mm (W)*30m(L)
- Recording Mode: Thermal printing system
- Noise Level: ＜15μ Vp-p
- Memory: 1000 cases
- Threshold: ≤20μV
- Wave Gain/Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV (standard: 10mm/mV)
- Wave/Paper Speed: 12.5mm/s, 25mm/s, 50mm/s (±3％)
- Machine Dimensions: 365.432385 mm
- Weight: 2600g (excluding paper)
- AC Power: 100V~240V (50/60Hz)
- DC Power: 14.4V, 2500mAh, 36.00Wh (built-in rechargeable Li-ion battery)
Included Accessories
- Main machine
- Patient cable
- Limb electrode set (4 pieces)
- Chest electrode set (6 pieces)
- Power cable
- 200mm*20M recording paper
- Paper axis
Why Choose GoldHealth Medical
GoldHealth Medical is dedicated to providing top-tier medical solutions with a focus on quality, reliability, and innovation. Our state-of-the-art manufacturing facilities ensure that each product meets the highest standards of performance and safety.
Related Products
- Portable 3-Channel 7-Inch Touch Screen 12-Lead ECG Machine
- Digital 7-Inch 6-Channel Mobile EKG/ECG Machines for OEM/ODM
- Portable 12-Channel ECG Machine with Interpretation
- Handheld Holter ECG Monitor for Home Use
Frequently Asked Questions
- Minimum Order Quantity (MOQ): Orders for even a single unit are welcome.
- OEM/Private Label: Custom branding options are available.
- Delivery Time: Typically 10 days for in-stock items, 15-20 days for out-of-stock items, depending on quantity.
- Shipping Options: Flexible shipping methods including sea, air, or express delivery.
- Payment Terms: Accepts T/T, LC, Western Union, PayPal, and more
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical ECG Machine - Precision Redefined
- Product Name: GoldHealth Medical 12-Channel ECG Machine
- Application: Designed for hospitals, clinics, and research institutions, ensuring accurate diagnostics in professional environments.
- Display: 7-inch high-resolution touch screen for intuitive operation and clear visualization of ECG waveforms.
- Channel: Advanced 12-channel configuration for comprehensive cardiac analysis.
- Leads: Standard 12 leads for precise and reliable readings.
- Weight: Lightweight at just 2600g (excluding paper), ensuring portability without compromising performance.
- Dimensions: Compact design with dimensions of 365.4 x 323 x 85 mm, making it ideal for both stationary and mobile use.
- Paper Specification: High-quality thermal paper, 210mm (W) x 30m (L), for uninterrupted and detailed printouts.
- Power Source: Electric-powered for consistent and reliable operation.
- Instrument Classification: Class II medical device, ensuring safety and precision.
- Quality Certifications: Compliant with CE and ISO standards, guaranteeing exceptional quality and reliability.
- Shelf Life: 1 year, ensuring long-term usability and performance.
- Warranty: Backed by a 1-year warranty for peace of mind.
- After-Sale Service: Dedicated online technical support to assist with any queries or troubleshooting.
Key Features and Benefits:
- Touchscreen Interface: Simplifies operation with a responsive 7-inch touch screen, reducing the learning curve for users.
- Compact and Portable: Lightweight and ergonomic design ensures seamless integration into any medical setting.
- High Precision: Delivers accurate 12-lead ECG readings, empowering healthcare professionals with reliable diagnostic data.
- Certified Quality: Meets stringent CE and ISO standards, ensuring safety and performance in critical applications.
- Versatile Application: Suitable for hospitals, clinics, research labs, rehabilitation centers, and home healthcare environments.
Packaging Details:
- Each unit is securely packed in a durable carton box, ensuring safe transportation.
- Single package size: 40 x 35 x 8.5 cm.
- Single gross weight: 2.600 kg.
Supply Ability:
- Weekly supply capacity of 100 sets, ensuring timely delivery to meet your needs.
GoldHealth Medical’s ECG Machine combines cutting-edge technology with user-centric design, setting a new benchmark for cardiac diagnostics. Choose precision, reliability, and innovation—choose GoldHealth Medical.
