LTSE23 7 Touch Screen Portable EKG Machine for Clin
Reference: 1600583908462Pathological Analysis Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

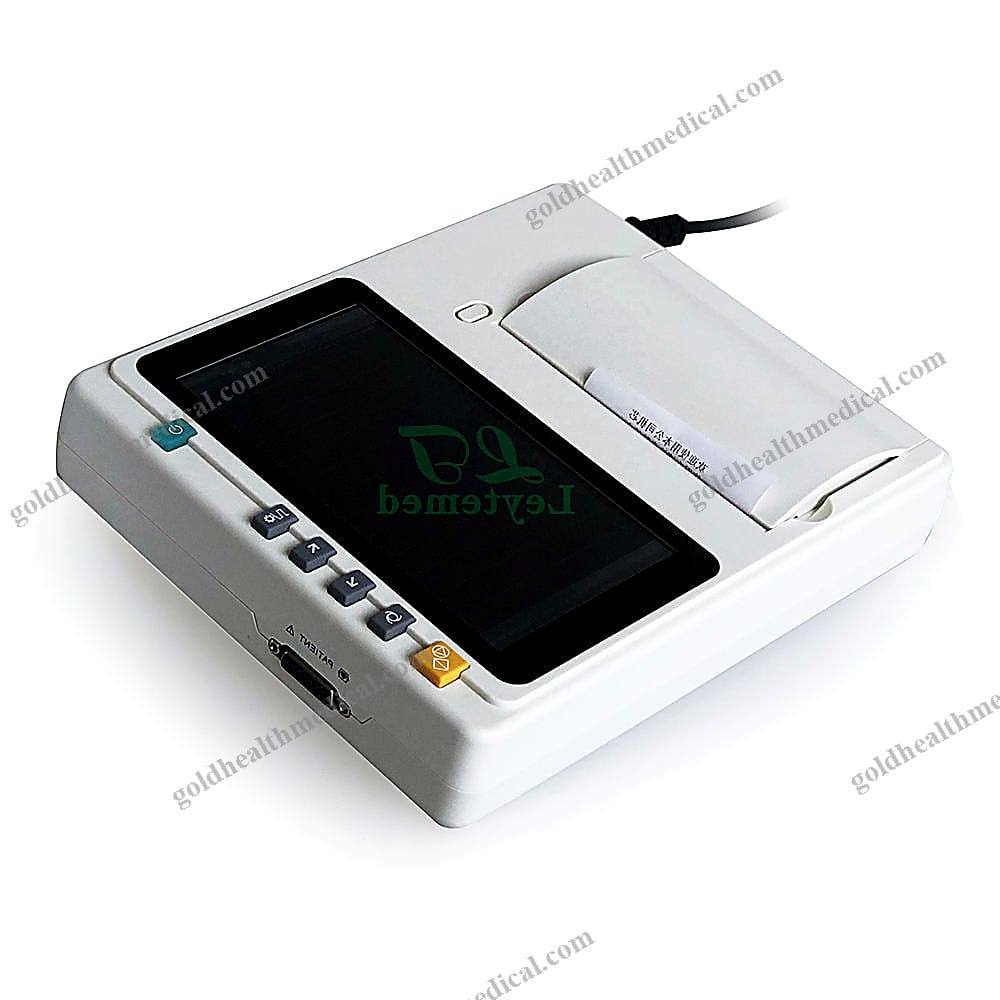

GoldHealth Medical ECG Machine
Product Overview
Experience precision and reliability with the GoldHealth Medical ECG Machine, designed to meet the needs of modern healthcare environments. Featuring a 7-inch high-resolution color touch screen, this compact and lightweight device offers advanced functionality in an intuitive package.
Key Features
- 7-inch High-Resolution Touch Screen: Crystal-clear display for effortless navigation and precise readings.
- 12-Lead Simultaneous Acquisition and Display: Capture comprehensive data with synchronized lead acquisition.
- ECG Automatic Measurement and Interpretation: Intelligent analysis ensures accurate diagnostics.
- Advanced Digital Filters: Resists baseline drift, AC, and EMG interference for clear, reliable results.
- Expandable Memory: Supports USB flash drives and micro memory cards for extended storage.
- Software Upgrade Capability: Easily update via USB or memory card to keep your device at the cutting edge.
- Built-in Rechargeable Li-ion Battery: Ensures uninterrupted performance during critical procedures.
Technical Specifications
- Display: 7-inch touch screen with ECG analysis capabilities.
- Leads: Standard 12 leads, synchronously acquired.
- Input Circuit: Floating design with protection against defibrillator effects.
- Input Impedance: ≥50MΩ.
- Input Circuit Current: ≤0.05μA.
- Recording Modes:
- Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2.
- Manual: 3CH, 2CH, 3CH+1R, 2CH+1R.
- Rhythm: Any lead selectable.
- Filters:
- EMG Filter: 25 Hz / 30 Hz / 40Hz / 75 Hz / 100 Hz / 150Hz.
- DFT Filter: 0.05 Hz / 0.15 Hz.
- AC Filter: 50 Hz / 60Hz.
- CMRR: >100dB.
- Patient Current Leakage: <10μA.
- Frequency Response: 0.05Hz~150Hz (-3dB).
- Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV.
- Anti-Baseline Drift: Automatic.
- Time Constant: ≥3.2s.
- Noise Level: <15μVp-p.
- Paper Speed: 12.5 mm/s, 25 mm/s, 50 mm/s.
- Recording System: Thermal printing system.
- Paper Specification: 80mm x 20m paper roll.
What Sets Us Apart
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions tailored to the needs of hospitals, clinics, and research institutions. Our products are engineered with precision and backed by rigorous testing to ensure exceptional performance and reliability.
Why Choose GoldHealth Medical?
- Global Expertise: A trusted manufacturer and distributor of medical equipment with a client-centered approach.
- Quality Assurance: State-of-the-art facilities and stringent quality control processes.
- Competitive Pricing: Premium products at accessible prices.
- Flexible Solutions: Customizable options to meet your unique requirements.
Frequently Asked Questions
- What is the minimum order quantity (MOQ)? Orders for even a single unit are warmly welcomed.
- Can you provide OEM/private label services? Yes, we offer tailored branding solutions to meet your needs.
- What is the delivery time? Typically 10 days for in-stock items and 15-20 days for out-of-stock items, depending on quantity.
- How are orders shipped? We accommodate shipping by sea, air, or express, ensuring the best cost and service.
- What payment methods are accepted? We accept T/T, LC, Western Union, PayPal, and more. Share your preferred method for seamless transactions.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the ECG Machine, a cutting-edge solution designed to deliver precision, reliability, and ease of use in cardiac diagnostics. Engineered for healthcare professionals and institutions, this device combines advanced technology with intuitive design to ensure accurate readings and seamless operation.
Key Features
- Touch Screen Interface: A responsive 7-inch color display provides crystal-clear visualization of ECG waveforms and data, enhancing diagnostic accuracy.
- 3-Channel Output: Delivers detailed and comprehensive cardiac analysis for professional-grade assessments.
- Compact and Portable: Lightweight design (only 3.000 kg) with a sleek form factor, making it ideal for hospitals, clinics, and home healthcare settings.
- Electric Power Source: Ensures consistent performance without interruptions.
Technical Specifications
- Display: 7-inch high-resolution color touch screen
- Channels: 3-channel ECG output
- Paper Specification: Compatible with 80mm x 20m thermal paper rolls
- Instrument Classification: Class II medical device
- Shelf Life: 1 year from the date of manufacture
- Package Dimensions: 32 x 25 x 17 cm (compact and secure carton packaging)
Certifications and Compliance
- Quality Certifications: CE, ISO
- Meets international standards for safety and performance, ensuring peace of mind for medical professionals and patients alike.
Applications
- Designed for use in hospitals, clinics, laboratories, rehabilitation centers, and home care environments.
- Ideal for cardiac monitoring, routine check-ups, and advanced diagnostics.
After-Sales Support
- 1-Year Warranty: Backed by GoldHealth Medical’s commitment to quality and reliability.
- Online Technical Support: Access expert assistance anytime to resolve queries or technical issues.
Why Choose GoldHealth Medical’s ECG Machine?
- Precision and Reliability: Advanced algorithms ensure accurate ECG readings every time.
- User-Friendly Design: Intuitive controls and a vibrant touch screen make operation effortless.
- Versatility: Suitable for a wide range of medical settings, from large hospitals to small clinics.
- Durability: Built to withstand the demands of daily use while maintaining exceptional performance.
GoldHealth Medical is dedicated to empowering healthcare providers with innovative tools that enhance patient care. Experience the future of cardiac diagnostics with our ECG Machine.
