LTSA10 Surgical Equipment Trolley Anesthesia Machine with Vaporizer
Reference: 1601365555656Anesthesia Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Anesthesia Machine
GoldHealth Medical presents a cutting-edge anesthesia machine designed to deliver precision, reliability, and versatility in medical environments. Engineered with advanced technology and user-centric features, this device is ideal for hospitals, clinics, research institutions, and home care settings.
Key Features
- Operating Modes: Pneumatically driven and electronically controlled, supporting closed, semi-closed, and semi-open configurations for maximum adaptability.
- Anesthesia Ventilator: Equipped with a high-visibility, wide-angle LED alphanumeric display for clear and comprehensive data monitoring.
- Respiratory Circuit: A fully metallic modular design ensures gas sealing integrity even under high-temperature disinfection, offering effortless cleaning and maintenance.

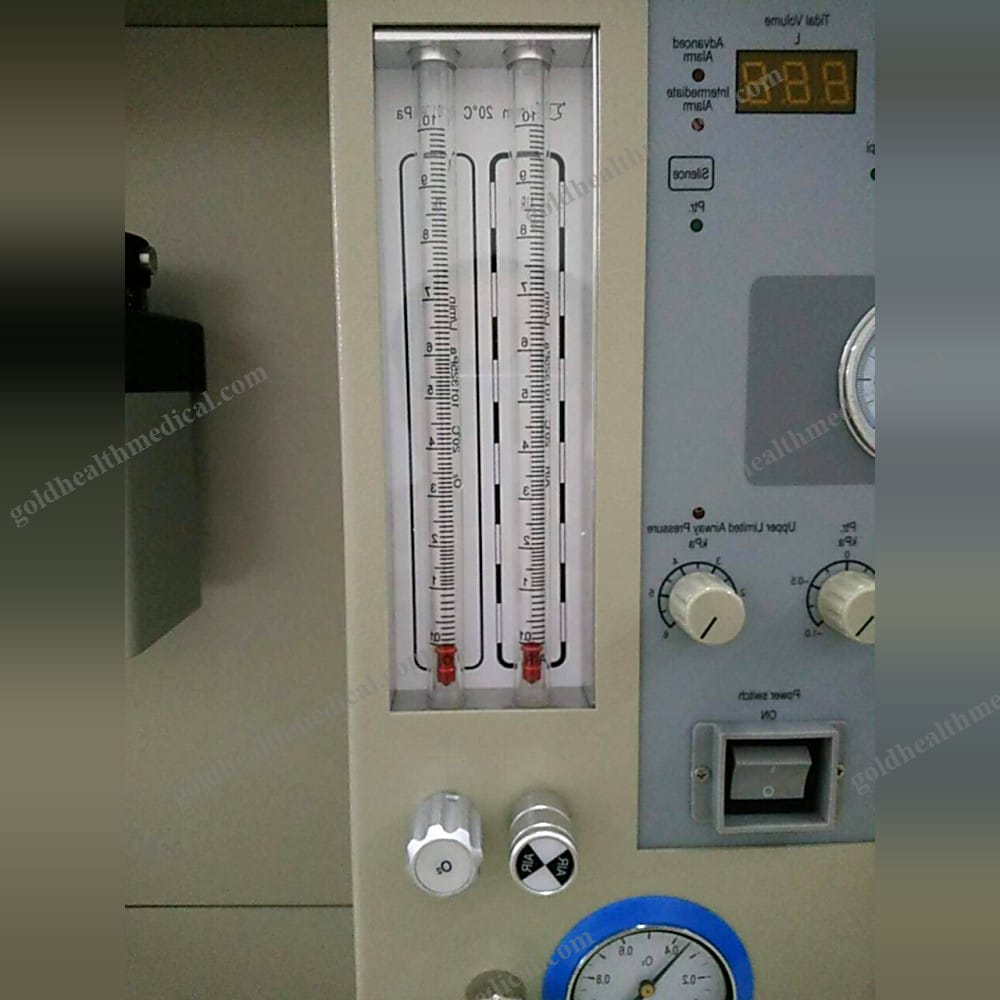

- Flowmeter Precision: A dual-tube flowmeter with interlocking oxygen-nitrous oxide supply guarantees oxygen output never drops below 21%, ensuring patient safety.
- Power Failure Support: Automatically switches to a backup power mode during AC outages, providing uninterrupted operation for up to 4 hours.
- Robust Construction: A fully metallic frame combines durability with an elegant design. Features include automated self-checking during startup and a self-calibrating sensor for consistent accuracy.
- Advanced Alarms: Audible and visual alerts for critical parameters such as tidal volume, airway pressure, power failure, and oxygen supply issues.
- Infrared Turbine Flow Sensor: Delivers precise gas flow measurements with exceptional stability and reliability.
- Vaporizer Excellence: Locally assembled with imported components, compatible with Enflurane, Isoflurane, and Sevoflurane (Halothane optional). Includes self-compensating functionality for enhanced performance.
- Rotating Na-lime Tank: Designed for ease of use with one-hand operation, crafted from imported PPSU material, and resistant to temperatures up to 134°C.
- Optional Advanced Model: Features a dual-tank vaporizer design, extending surgical durations and enabling interlocking tank capability for seamless operation.
Technical Specifications
- Flowmeter Range:
- Oxygen (O₂): 0.1–10 L/min
- Nitrous Oxide (N₂O): 0.1–10 L/min
- Ventilation Modes: IPPV, SIPPV, MANUAL
- Tidal Volume: Adjustable range: 50–1500 mL; Display range: 0–2000 mL
- Respiratory Rate: 4–40 bpm
- Inspiratory/Expiratory (I:E) Ratio: 1:1.5–1:3.0
- Inspiratory Pressure Trigger: -10 to 10 cmH₂O
- Vaporizer Concentration Ranges: 0–5%
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions tailored to meet the needs of healthcare professionals worldwide. Our anesthesia machine combines precision engineering with user-friendly design, ensuring optimal performance in critical medical scenarios.
Unmatched Benefits
- Reliability: Built to perform consistently in demanding environments.
- Safety: Advanced alarms and fail-safes ensure patient and operator protection.
- Ease of Use: Intuitive controls and modular components simplify operation and maintenance.
- Durability: Constructed with premium materials for long-lasting performance.
GoldHealth Medical’s anesthesia machine is more than a device—it’s a trusted partner in delivering exceptional patient care.
Optional Features
- Multi-parameter Patient Monitoring: Enhance your setup with advanced monitoring capabilities tailored to specific clinical needs.
GoldHealth Medical is dedicated to empowering healthcare providers with tools that redefine standards of care. Explore the possibilities today.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Hospital Surgery Surgical Equipment with Trolley Anesthesia, a cutting-edge solution designed for precision, reliability, and ease of use in medical environments. Engineered to meet the demands of modern healthcare, this Class II medical instrument is ideal for hospitals, clinics, laboratories, and home care settings.
Key Features and Specifications
- Advanced Ventilation Modes: Offers multiple ventilation options including IPPV, SIPPV, and MANUAL, ensuring adaptability to diverse patient needs.
- Precision Vaporizer Control: Vaporizer concentration ranges from 0-5%, providing accurate and consistent delivery of anesthetic agents.
- Intuitive LED Display: A clear and responsive LED screen ensures real-time monitoring of critical parameters.
- Compact and Portable Design:
- Main Unit Dimensions: 83 x 77 x 123 cm
- Trolley Dimensions: 66 x 62 x 35 cm
- Lightweight Construction: Weighs just 75 kg (main unit) and 16 kg (trolley).
- Respiratory Rate: Adjustable from 4-40 bpm, catering to both pediatric and adult patients.
- Single Vaporizer Slot: Streamlined design for efficient operation and minimal maintenance.
Quality Assurance
- Certifications: Compliant with CE and ISO standards, guaranteeing safety and performance.
- Shelf Life: 1 year, ensuring long-term usability and reliability.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
Support and Service
- After-Sale Support: Access to online technical support for seamless troubleshooting and assistance.
Why Choose GoldHealth Medical?
Our Hospital Surgery Surgical Equipment with Trolley Anesthesia is meticulously crafted to deliver unparalleled precision, durability, and user-friendly operation. Designed for healthcare professionals who demand excellence, this product redefines efficiency and safety in surgical and anesthesia applications.
Technical Specifications
- Power Source: Electric
- Instrument Classification: Class II
- Place of Origin: Guangdong, China
Experience the GoldHealth Medical difference – where innovation meets reliability.
