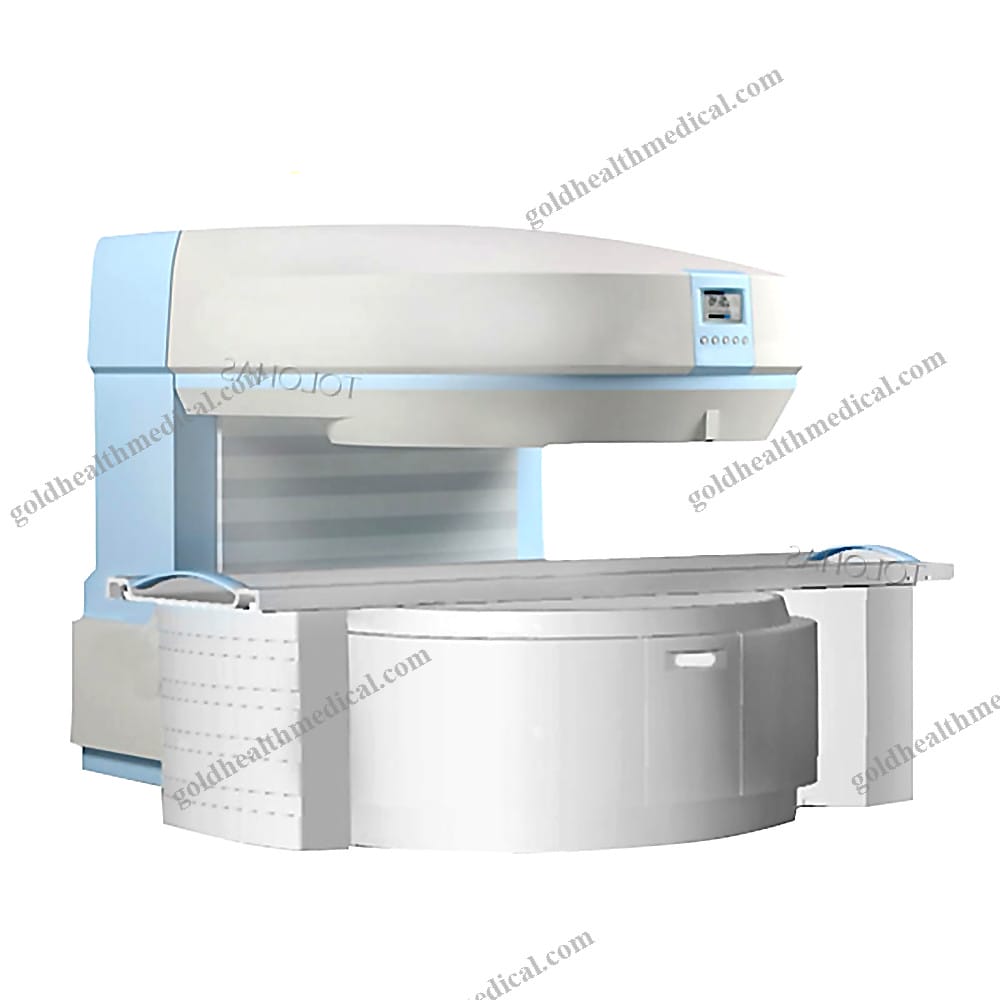

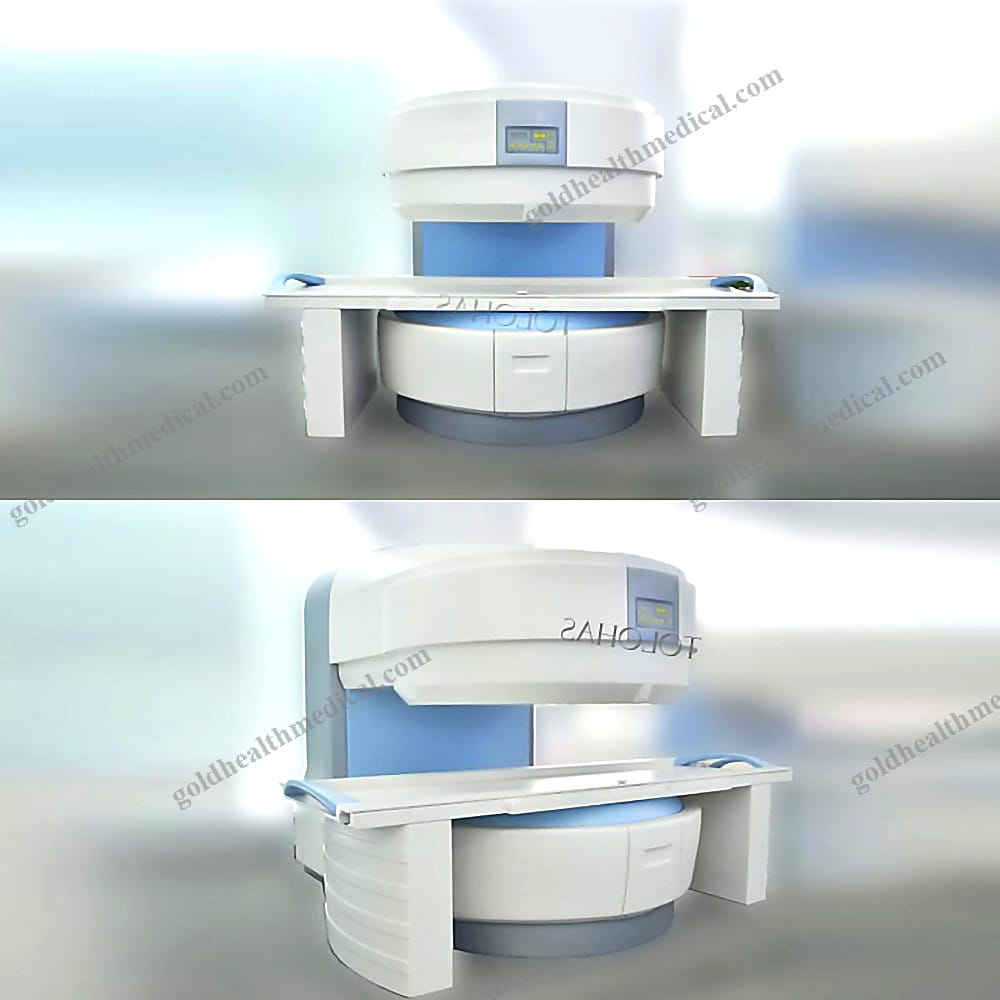

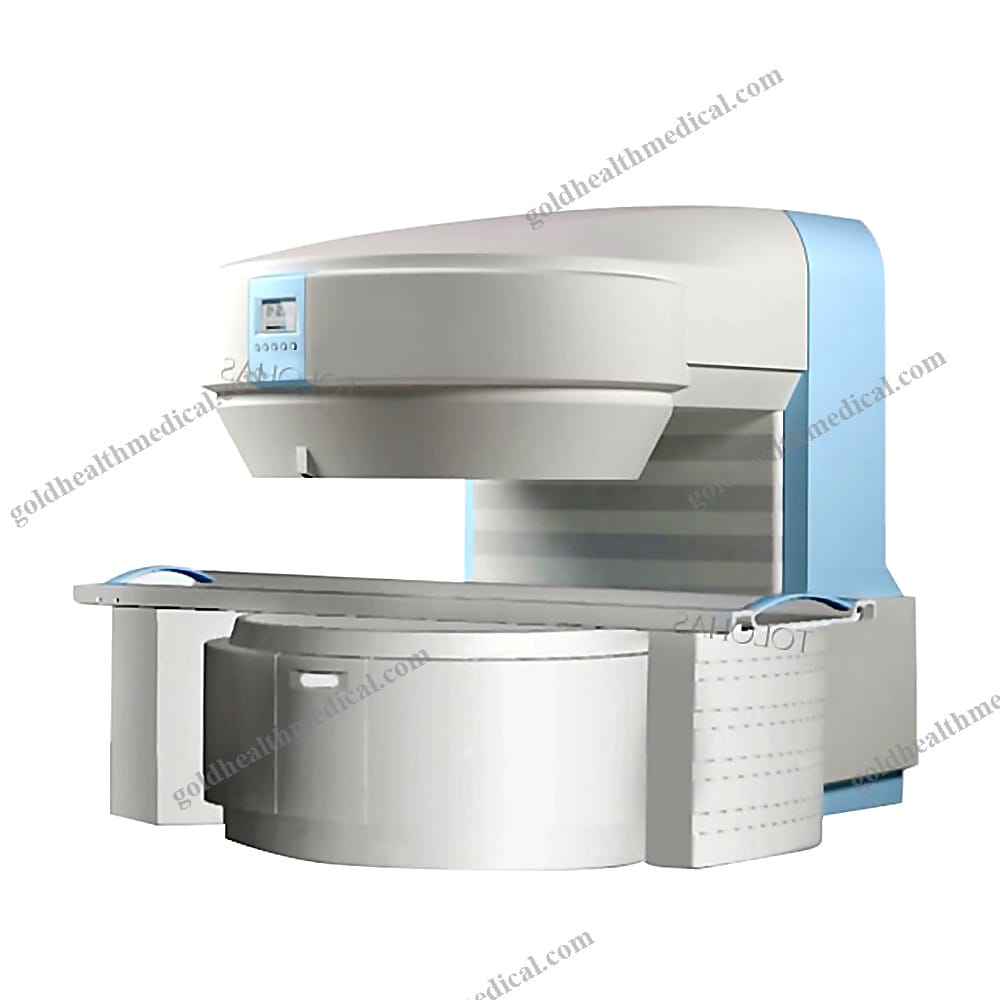

GoldHealth Medical MRI Scanner
Product Overview
GoldHealth Medical presents an advanced Magnetic Resonance Imaging (MRI) scanner designed to deliver exceptional performance and patient comfort. This MRI system is engineered for comprehensive diagnostic applications, offering a perfect blend of cutting-edge technology and user-friendly features.
Key Features
- Outstanding Value: Combines affordability with high performance.
- Comprehensive Software Suite: Equipped with powerful software as part of the standard configuration.
- Patient-Centric Design: Features a welcoming appearance and an open C-shaped magnet for minimal sitting requirements.
- Compact Installation: Requires less than 50 m² (538 sq.ft) of space.
- Cost-Effective Operation: Utilizes a permanent magnet, eliminating the need for helium.
- Increased Revenue Potential: Attracts more patients and referring physicians, ensuring excellent return on investment.
- Optimized Profitability: Reduces operational costs while maximizing efficiency.
- Dedicated Support: Backed by a professional service team available 24/7.
Technical Specifications
Magnet - Operating Field Strength: 0.35 Tesla (3500 Gauss) - Magnet Type: Full open C-shaped, 2-column - Magnetic Material: Permanent Nd-Fe-B magnet - Homogeneity: (400mm DSV) ≤ 2.0ppm (Vrms), (200mm DSV) ≤ ±1ppm (FWHH) - Shimming: Passive & active shimming - Patient Gap: 400mm (from cover to cover) - Net Weight: 17,500KGS - Dimensions: 1970mm x 1320mm x 1820mm
Gradient System - Gradient Strength: Max. 25mT/m (Gx/Gy/Gz) - Slew Rate: 75mT/M/ms (Gx/Gy/Gz)
RF System - Spectrometer: Digital (4 channels) - Transmitting Coil: Flat planar coil - Receiving Coils: Phase array coil (Neck coil, Head coil, Large body coil, Small body coil, Knee coil, Wrist coil, Shoulder coil) - Optional Coils: Spine coil, Breast coil, Ankle coil, etc. - Power of Transmitter Amplifier: 6KW
Computer System - Operating System: Windows 2000/NT/XP - CPU: 2.8GHz (Dual Core Processor) - Hard Disk: ≥250GB - RAM: 2048MB (2GB) - Display Device: ≥22’’ TFT - Network & Laser Printer Interface: DICOM3.0 - Software: BASDA BTI-035 Software, 5.0 Auto Pre-scan, 6.0 Pulse Sequence: Standard IR, Spin Echo (SE 2D/3D)
Why Choose GoldHealth Medical
- Commitment to Excellence: Quality, customer satisfaction, and reputation are our top priorities.
- Expert Guidance: Our professional team provides detailed recommendations and support.
- Custom Solutions: We offer a variety of types and functions tailored to your needs.
- OEM Services: Customize products with your logo.
- Experienced Engineers: Ensure optimal use of our MRI systems.
- Trusted Reputation: Over 85% repeat customers and a 95% positive feedback rate.
Additional Information
GoldHealth Medical ensures safe and swift delivery through trusted international shipping partners. Our products undergo rigorous testing and quality checks, with many holding CE certification. Enjoy comprehensive after-sales support from our dedicated team.
Feel free to reach out with any inquiries or for further details.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the next generation of MRI technology, designed to redefine precision and reliability in medical imaging.
Product Overview:
This state-of-the-art MRI system is engineered for unparalleled performance, offering advanced imaging capabilities tailored for hospitals, clinics, research institutions, and rehabilitation centers. With its innovative design and cutting-edge features, it ensures accurate diagnostics and enhanced patient comfort.Key Features and Specifications:
- Operating Field Strength: 0.35 Tesla (3500 Gauss), delivering high-resolution imaging for detailed diagnostics.
- Magnet Type: Full open C-shaped, 2-column design, providing an open and patient-friendly environment while maintaining exceptional image quality.
- Patient Gap: 400mm (from cover to cover), ensuring accessibility and comfort for patients of all sizes.
- Power Source: Electric, optimized for energy efficiency and consistent performance.
- Net Weight: 17,500 kg, built with robust materials including metal and plastic for durability and stability.
- Power of Transmitter Amplifier: 6KW, enabling superior signal transmission and clarity.
- Shimming: Passive & active shimming, ensuring uniform magnetic fields for precise imaging.
- Spectrometer: Digital (4 channels), supporting advanced data acquisition and processing.
- Transmitting Coil: Flat planar coil, designed for optimal signal generation.
- Receiving Coils: Phase array coil, enhancing sensitivity and image resolution.
- Instrument Classification: Class II, meeting rigorous safety and performance standards.
- Safety Standard: Compliant with international safety regulations.
Quality Certification: CE-certified, guaranteeing adherence to global quality benchmarks.
Warranty and Support:
- Warranty: 1-year comprehensive warranty for peace of mind.
After-Sale Service: Online technical support available to ensure seamless operation and troubleshooting.
Packaging and Delivery:
- Packaging Details: Standard export package designed to protect the MRI system during transit.
- Port of Origin: Shenzhen, Guangdong, China, ensuring efficient global distribution.
- Supply Ability: 2 sets per month, reflecting our commitment to meeting demand without compromising quality.
GoldHealth Medical’s MRI system is more than just a diagnostic tool—it’s a gateway to better healthcare outcomes. Designed with precision, durability, and patient comfort in mind, it stands as a testament to innovation in medical technology.
