Labtex LTPQ160 Portable QPCR System
Reference: 1601241890874Clinical Analytical Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

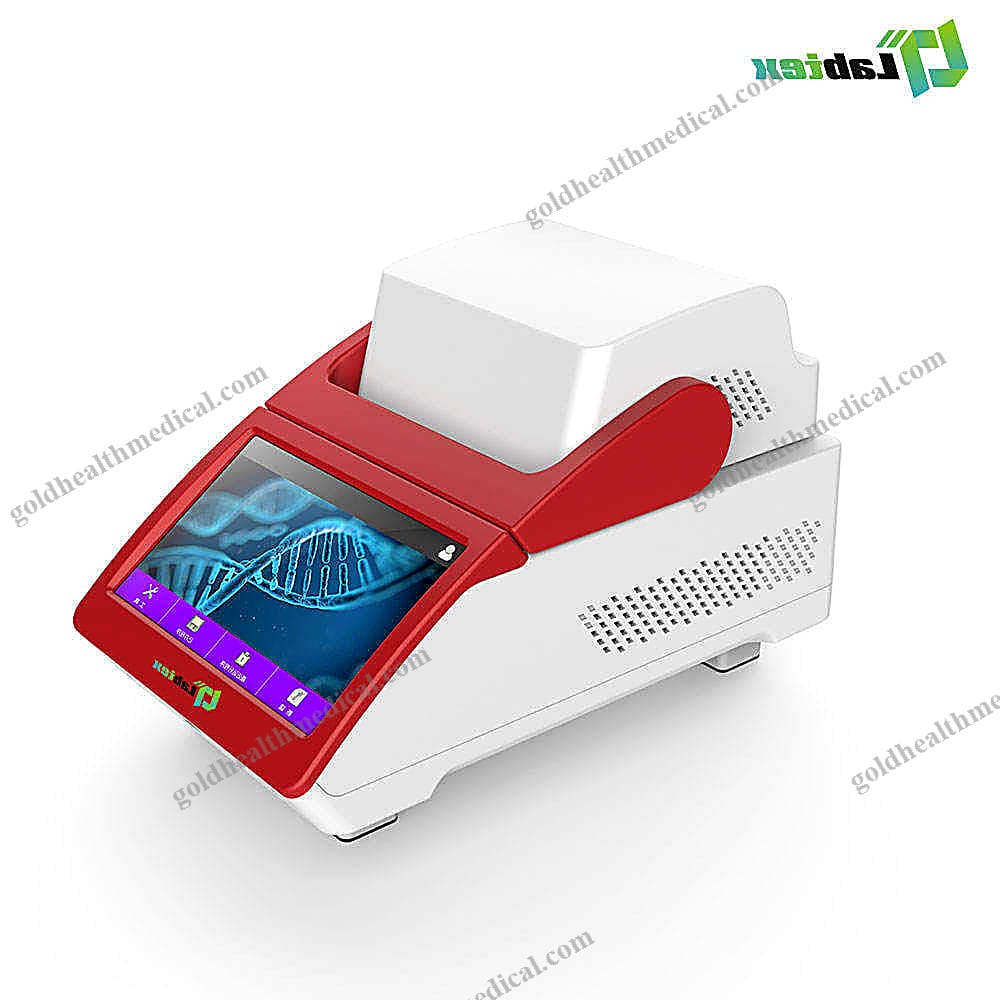

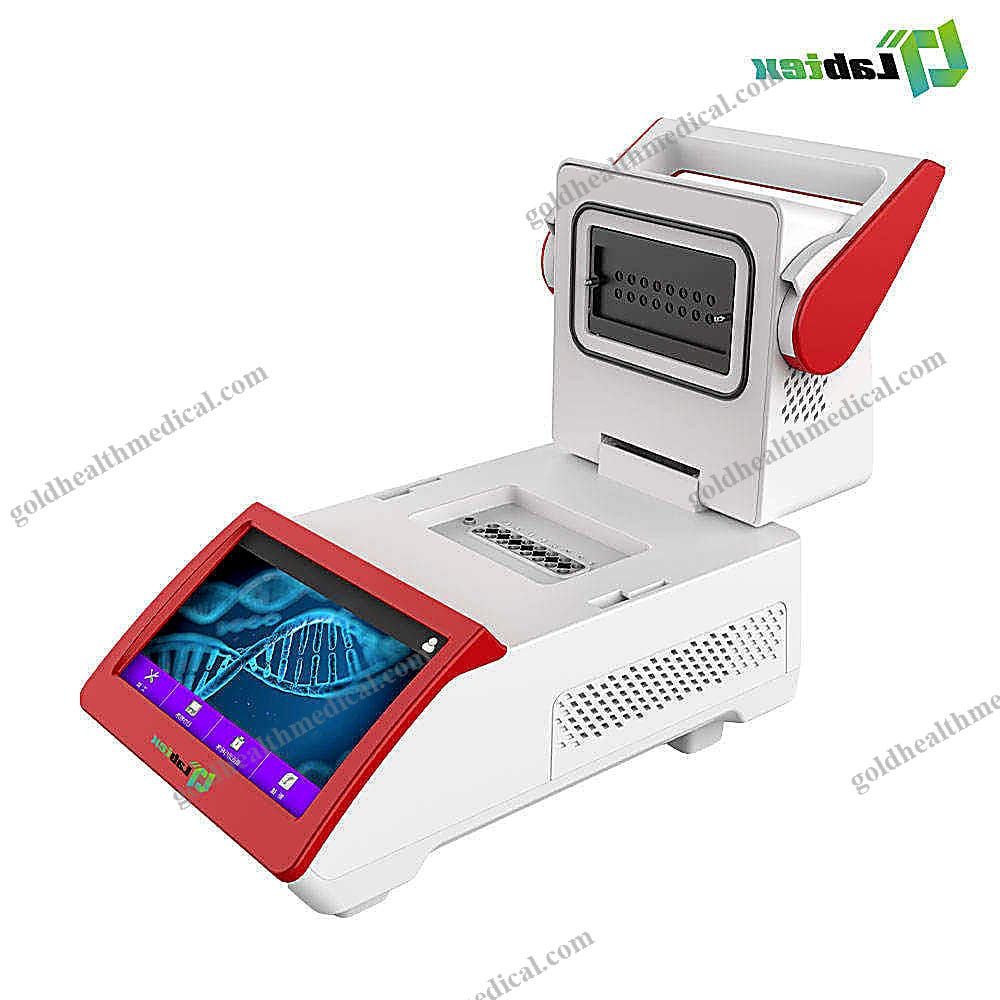

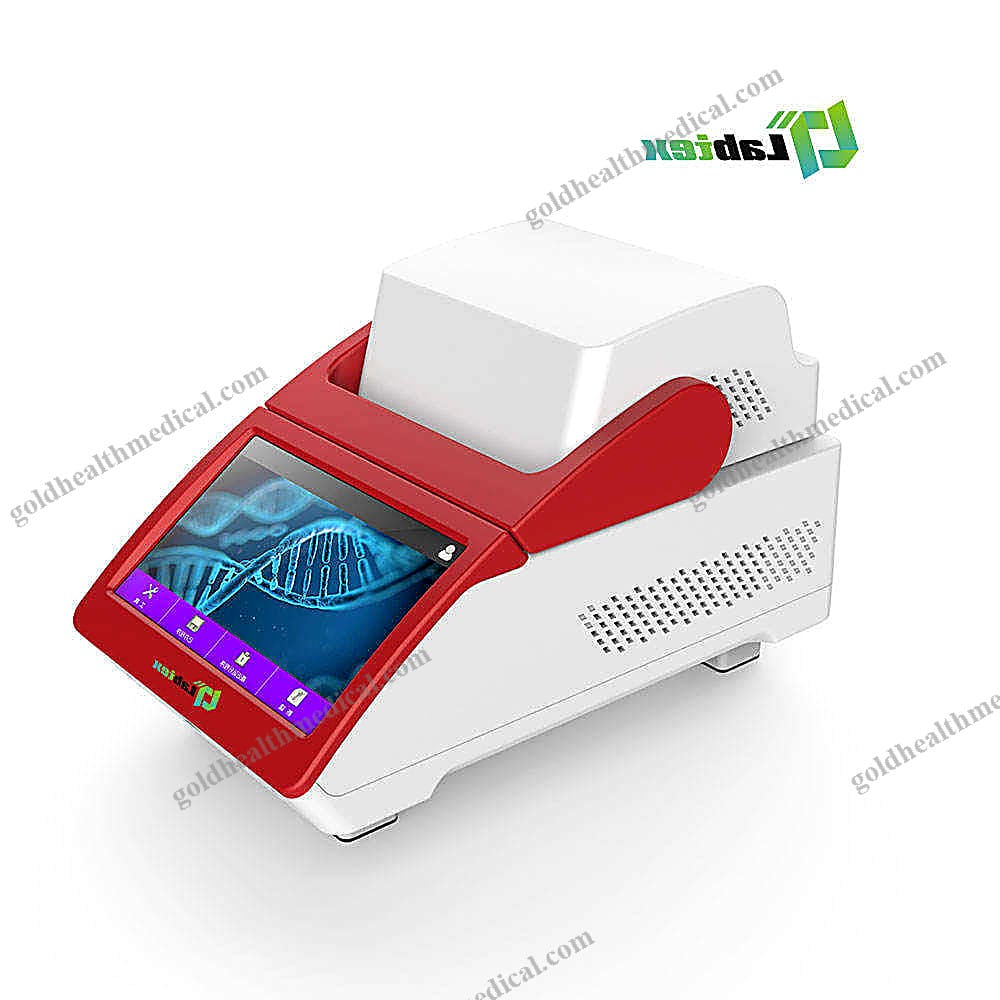

GoldHealth Medical Portable Real-Time qPCR System
Experience precision and portability with the GoldHealth Medical Portable Real-Time qPCR System. Designed for professionals across healthcare and research sectors, this system combines cutting-edge technology with user-friendly features to deliver exceptional performance.
Key Features
- Advanced Optical Detection: Equipped with T-Optical™ top detection technology, ensuring compatibility with white tubes for superior results.
- Intuitive Touchscreen Interface: A 7" full-color TFT touch screen allows seamless operation and analysis without the need for an external computer.
- Self-Lock Heat Lid: Prevents evaporation, ensuring sample integrity throughout the process.
- Compact Design: 16 wells with 2/4 channels, optimized for fast and reliable quantification.
Technical Specifications
- Sample Block Capacity:
- 16 wells * 0.1ml
- Reaction Volume: 10-100ul
Compatible Tubes: Low-profile white 0.1ml PCR tubes or 8-tube strips with optical flat caps
Temperature Control:
- Block Temperature Range: 4°C to 100°C
- Max Heating Rate: 5°C/sec
- Max Cooling Rate: 4°C/sec
- Temperature Uniformity: ±0.25°C at 90°C
- Temperature Accuracy: ≤±0.1°C (10 seconds after reaching 90°C)
Heat Lid Temperature Range: 30°C to 112°C
Optical System:
- Excitation: Long-life LEDs
- Detection: CCDs
- Dynamic Range: 1 - 10¹⁰
- Detection Sensitivity: Capable of detecting 1 copy
- Pre-installed Dyes: F1 (FAM/SYBR Green), F2 (VIC/HEX/JOE/CY3/TET) customizable
- Fluorescence Excitation Range: 300-800nm
Fluorescence Detection Range: 500-800nm
Data Management:
- Export Formats: TXT, PDF, WORD, EXCEL
Communication Ports: USB 2.0 & LAN
Power and Dimensions:
- Power Supply: 100-240V, 50-60Hz
- Power Consumption: 160W
- Dimensions (L×W×H): 305×179×186mm
- Net Weight: 3.6kg
Unique Advantages
- Durability: Utilizes next-generation Peltier technology, supporting up to 1,000,000 cycles for long-term reliability.
- Remote Connectivity: Optional PC control allows management of up to 30 units across a LAN network.
- Versatility: Ideal for hospitals, clinics, research labs, and home use, offering flexibility for diverse applications.
Why Choose GoldHealth Medical?
GoldHealth Medical is a trusted name in laboratory and medical equipment, delivering innovative solutions with over a decade of industry expertise. Our commitment to quality ensures every product meets rigorous standards, empowering professionals to achieve accurate and dependable results.
Applications
- Hospitals and Clinics
- Research Laboratories
- Diagnostic Centers
- Rehabilitation and Elder Care Facilities
- Home Healthcare
Elevate your molecular diagnostics with the GoldHealth Medical Portable Real-Time qPCR System – where precision meets portability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Mini Portable Real-Time qPCR System
Product Overview
The Mini Portable Real-Time qPCR System by GoldHealth Medical is a cutting-edge solution designed for precision, portability, and reliability in biochemical analysis. Engineered to meet the demands of modern laboratories, clinics, and field applications, this Class II medical instrument delivers exceptional performance in real-time polymerase chain reaction (qPCR) testing. Its compact design and advanced functionality make it ideal for a wide range of applications, from research and diagnostics to point-of-care testing.
Key Features
- Compact and Portable Design: Lightweight and easy to transport, enabling seamless integration into any workspace or field operation.
- High Precision and Reliability: Delivers accurate and reproducible results with a temperature range of 4°C to 100°C.
- Versatile Sample Capacity: Supports 16 wells with a reaction volume of 10-100 µl, accommodating diverse testing requirements.
- Advanced Temperature Control: Ensures optimal thermal performance for consistent and dependable analysis.
- Customizable Solutions: Tailored configurations available through OEM, ODM, and OBM services to meet specific operational needs.
Technical Specifications
- Sample Block Capacity: 16 wells * 0.1 ml
- Reaction Volume: 10-100 µl
- Block Temperature Range: 4°C to 100°C
- Instrument Classification: Class II
- Type: Biochemical Analysis System
Packaging and Delivery
- Single Package Size: 40 x 25 x 26 cm
- Single Gross Weight: 7.000 kg
Warranty and Support
- Warranty: 1 year
- After-Sale Service: Comprehensive online technical support to ensure uninterrupted performance and user satisfaction.
GoldHealth Medical’s Mini Portable Real-Time qPCR System is more than just a device—it’s a reliable partner in advancing scientific discovery and improving patient outcomes. With its innovative design and robust capabilities, it sets a new standard for portable qPCR systems worldwide.
