JQ067D Electric Carbon Fiber Orthopedic Spine
Reference: 1600461507449Operating Table
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

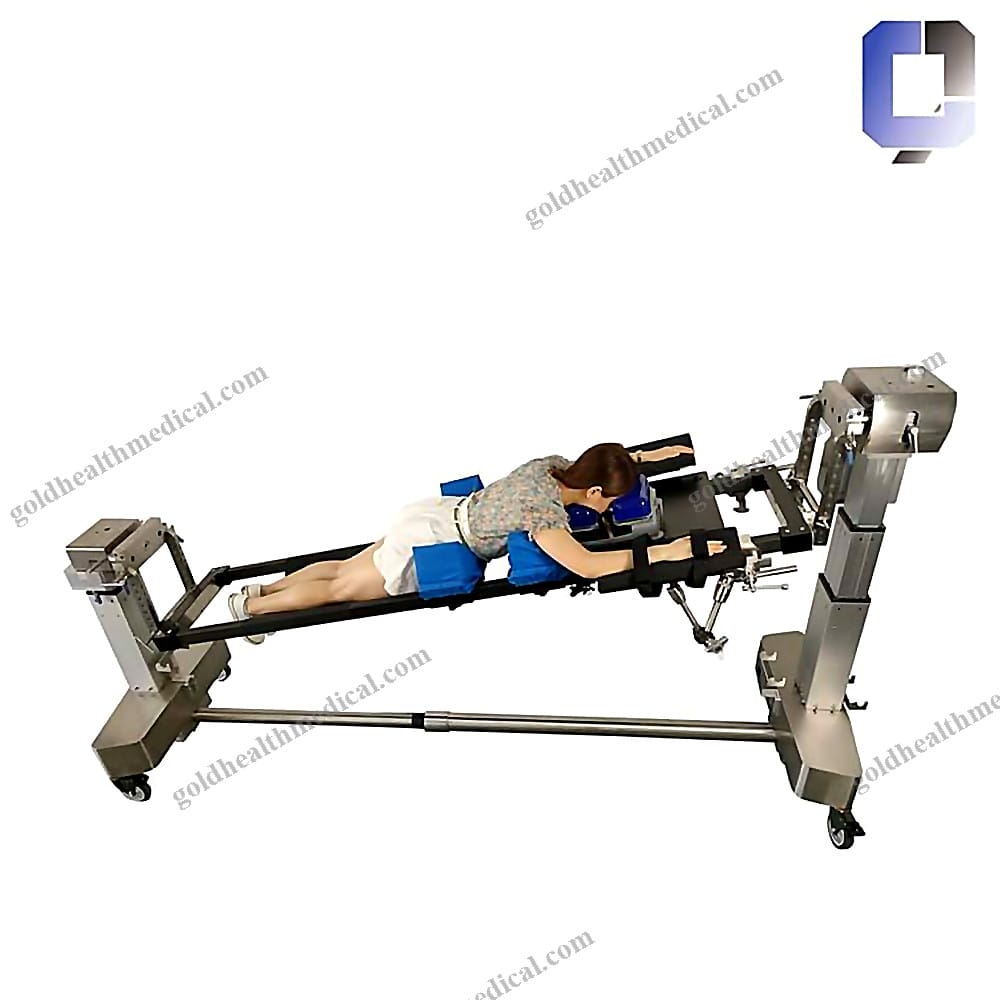

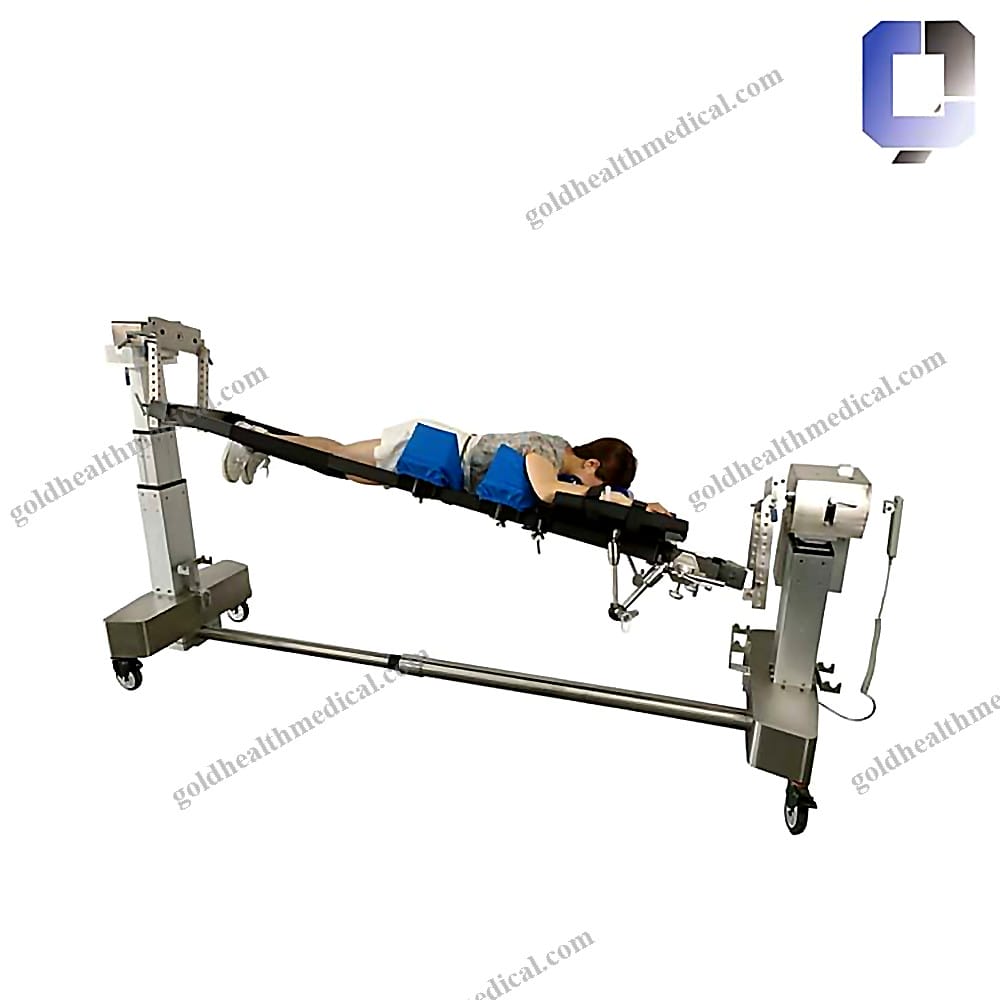

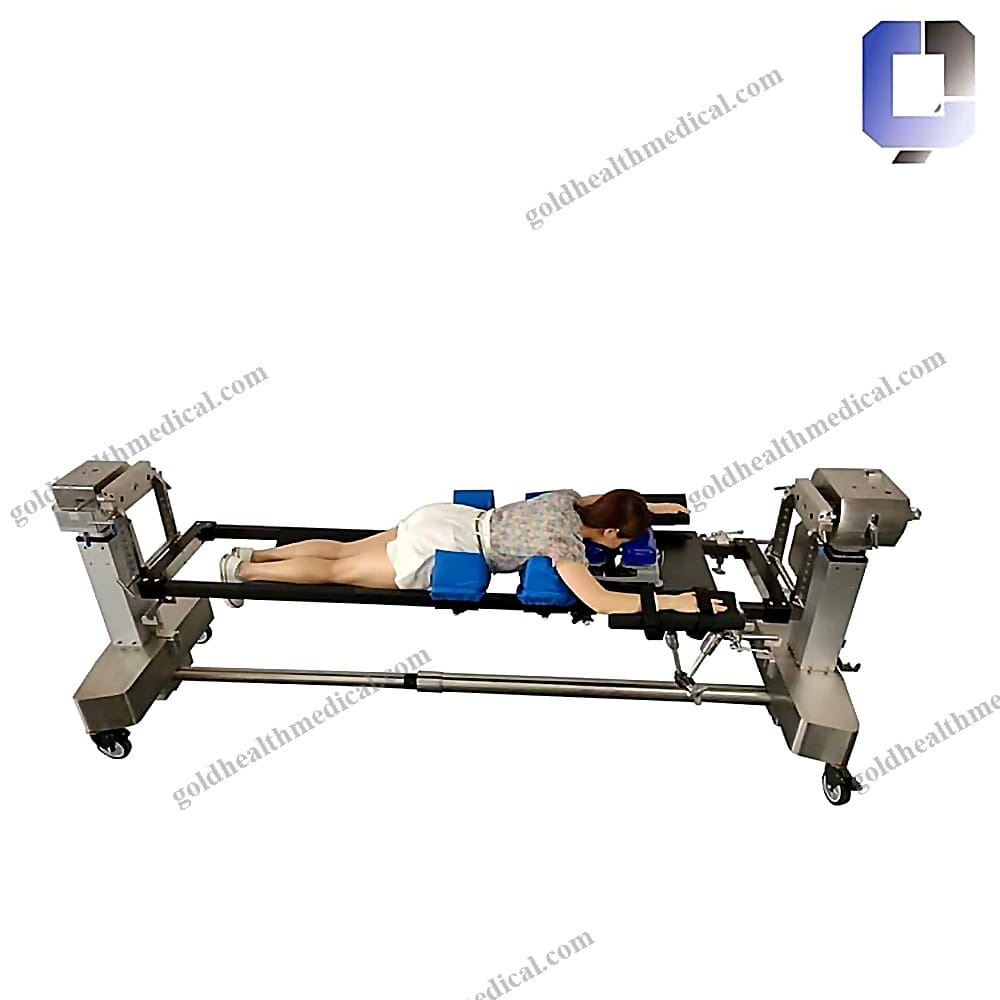

GoldHealth Medical Orthopedic Spine Surgery Table
Product Overview
GoldHealth Medical introduces a revolutionary Electric Carbon Fiber Orthopedic Spine Surgery Table, designed to redefine precision, stability, and versatility in surgical environments. Engineered with cutting-edge materials and advanced motor technology, this table is the ultimate solution for spine, orthopedic, and robotic-assisted surgeries.
Key Features
- Double-Column Design: Constructed with high-strength carbon fiber, the bed frame ensures unmatched stability and reliability, forming a robust foundation with dual support columns.
- Advanced Motor System: Equipped with an imported motor, the table delivers smooth, silent, and precise operation, ensuring safety and comfort during procedures.
- 360° Manual Rotation: Offers a full range of motion without blind spots, accommodating surgical positions from prone to supine with ease.
- Radiolucent Carbon Fiber Support: The four-point spine support is crafted from radiolucent material, eliminating metal interference and enabling seamless imaging with C-arm, G-arm, and O-arm systems.
- Extensive Adjustment Range:
- Front and rear adjustment: ≥ 1000mm
- Left and right adjustment: ≥ 250mm
- Suitable for both pediatric and adult patients.
- Optimized Dimensions and Mobility:
- Bed length: ≥ 2860mm
- Base width: ≥ 780mm
- Bed width: ≥ 500mm
- Lifting range: Minimum ≤ 680mm, Maximum ≥ 1130mm
- Mechanical height adjustment: 0-400mm
- Electric tilt angles: Front/rear ≥ 12°, Left/right ≥ 20°
- Adjustable Headrest:
- Height adjustment: 0-300mm
- 360° multidirectional rotation
- Integrated intubation channel and reflector for enhanced procedural accuracy.
- Four-Point Caster Brake System: Ensures maximum safety and stability during use.
- Detachable and Portable Design: The base can be retracted and stored, facilitating easy transportation and storage.
Applications
- Spine and Orthopedic Surgeries: Ideal for cervical, thoracic, and lumbar spine operations, as well as pelvic, upper limb, femoral neck, and lower limb osteotomy procedures.
- Robotic and Navigation Systems: Seamlessly integrates with robotic systems, orthopedic navigation systems, and advanced imaging equipment (C-arm, G-arm, O-arm, intraoperative CT).
- Versatile Surgical Needs: Meets the demands of robotic-guided trauma and spine surgeries with precision and adaptability.
Related Products
- One-Button Three-Joint Hand Plate: Multi-joint bracket suitable for cavity mirrors with universal adjustment.
- Stainless Steel and Carbon Fiber Curved Spine Frame: Four-point spine frame designed for prone position surgeries.
- Adult Carbon Fiber Four-Point Spine Frame: Includes a bottom board and straps for secure fixation on operating tables.
- Carbon Fiber Spine Frame System: Supports vertebral surgery, posture disc replacement, and cervical traction procedures.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical solutions tailored to meet the needs of hospitals, clinics, research institutions, and home care environments. Our products are designed to enhance surgical precision, improve patient outcomes, and streamline workflows for medical professionals.
Experience the future of surgical innovation with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the Electric Carbon Fiber Spine Surgery Jackson Table
A cutting-edge solution designed for precision, durability, and versatility in spine, cervical, and thoracic surgeries. Engineered with the highest standards of quality and safety, this table is the ultimate choice for medical professionals seeking excellence in patient care.
Product Highlights
- Material: Constructed from premium imported carbon fiber, ensuring exceptional strength, lightweight performance, and radiolucency for optimal imaging clarity.
- Application: Specifically designed for complex spine, cervical, and thoracic surgeries, offering unmatched adaptability and precision.
- Compatibility: Equipped with universal fixed clamps that seamlessly integrate with any brand of operating table.
Technical Specifications
- Table Dimensions: 2860mm (L) x 780mm (W) x 680-1130mm (H)
- Table Rotation: Full 360° rotation for enhanced surgical access and flexibility.
- Maximum Patient Weight: Supports up to 250kg, ensuring stability and safety for a wide range of patients.
- Power Source: Electric operation for smooth, precise adjustments and ease of use.
- Shelf Life: 1 year under proper maintenance conditions.
Certifications and Standards
- Safety Standard: Compliant with ISO standards for medical devices.
- Quality Certification: CE-certified, guaranteeing adherence to international quality and safety benchmarks.
- Instrument Classification: Class I medical device, ensuring reliability and precision in critical procedures.
Support and Service
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sale Service: Onsite training provided to ensure your team maximizes the potential of this advanced equipment.
- Minimum Order Quantity (MOQ): Flexible ordering with a minimum requirement of just 1 unit.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-performance medical solutions that empower healthcare providers to achieve superior outcomes. The Electric Carbon Fiber Spine Surgery Jackson Table exemplifies our dedication to precision engineering, patient safety, and operational efficiency.
Elevate your surgical capabilities with a product that combines advanced materials, intelligent design, and uncompromising quality.
