Product summary
GoldHealth Medical - Revolutionizing Medical Imaging
Product Overview

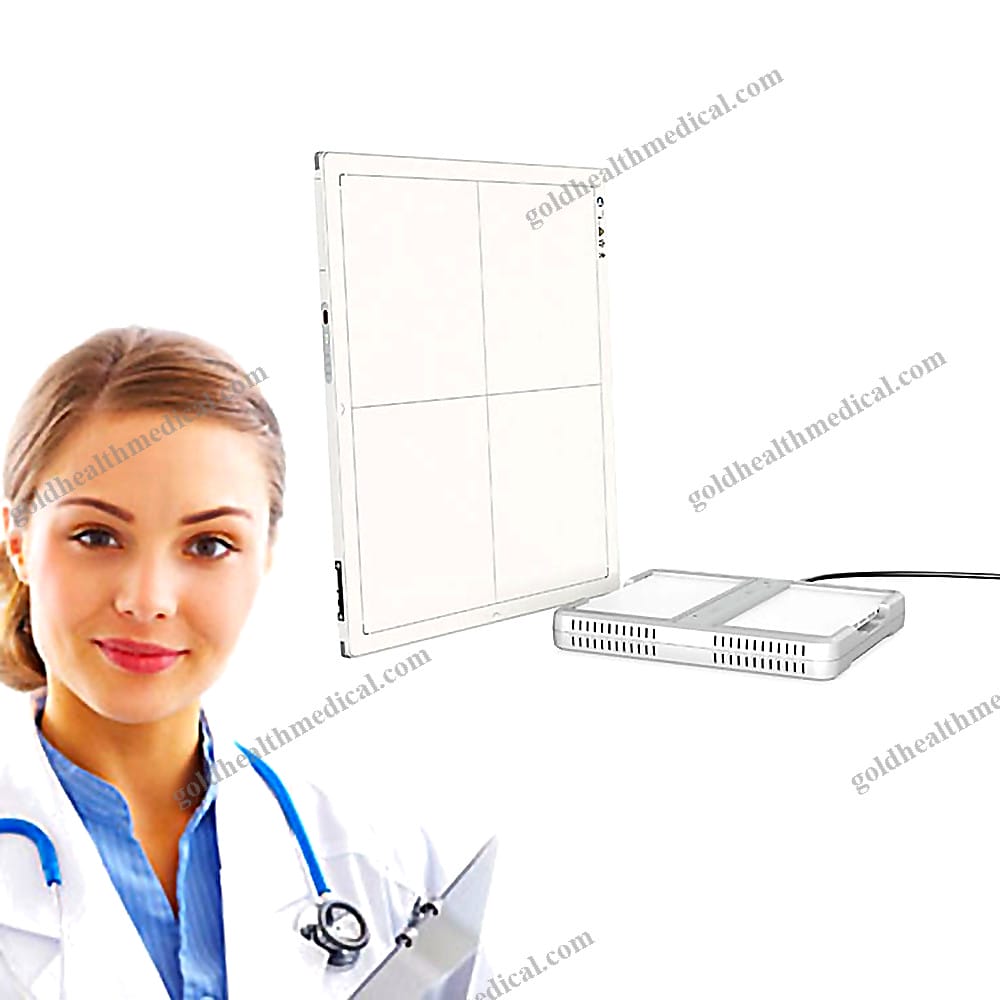

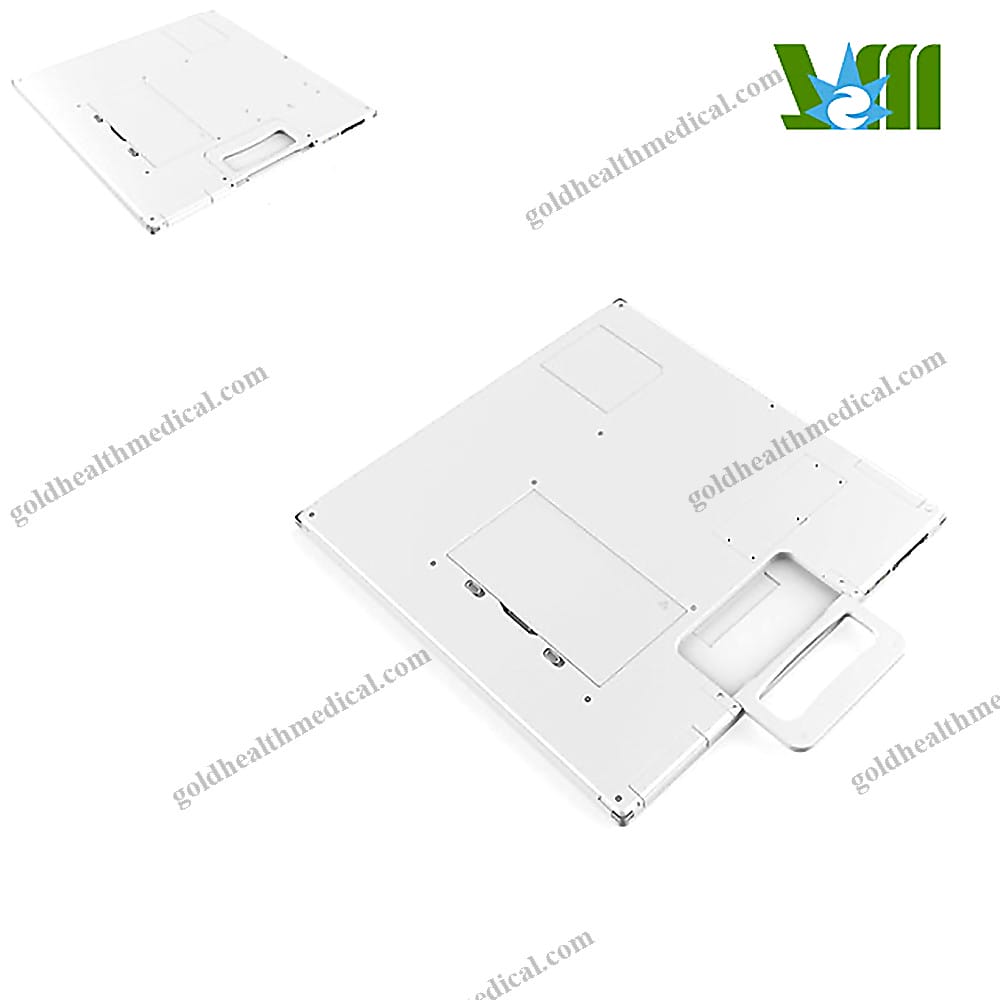

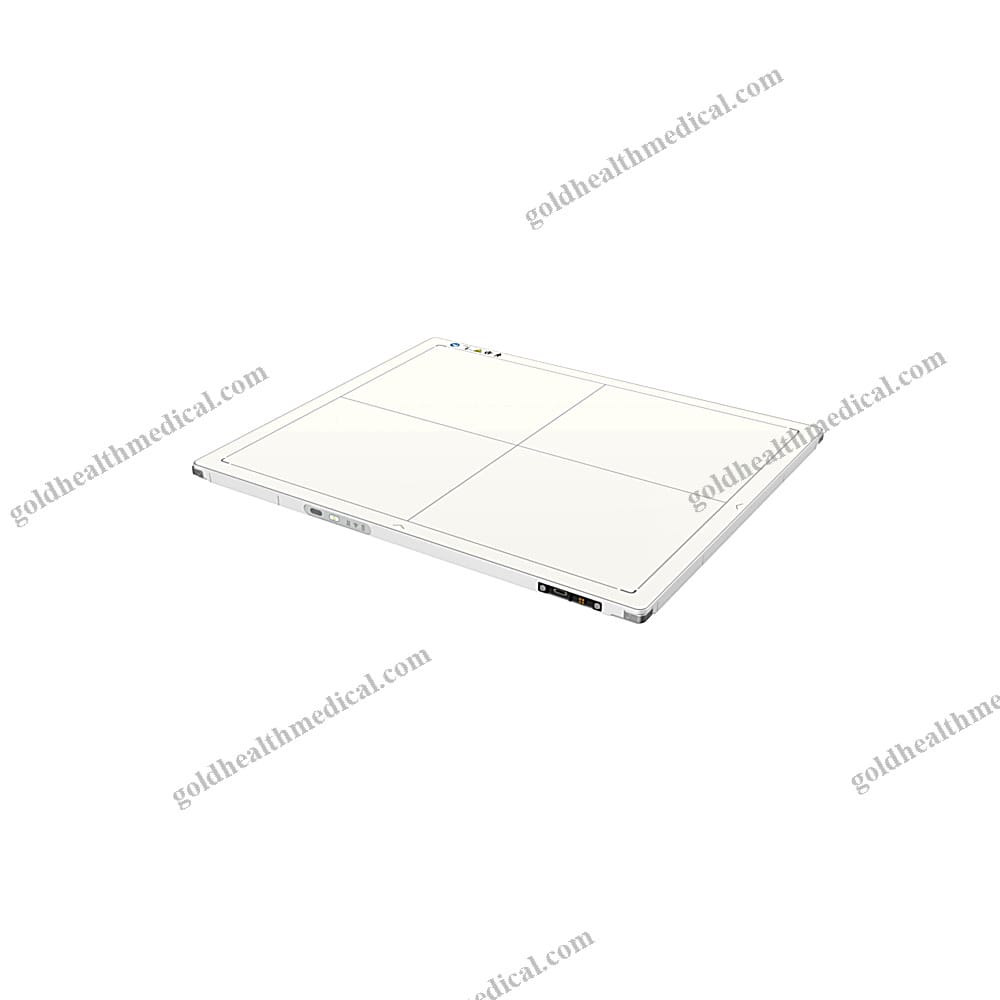

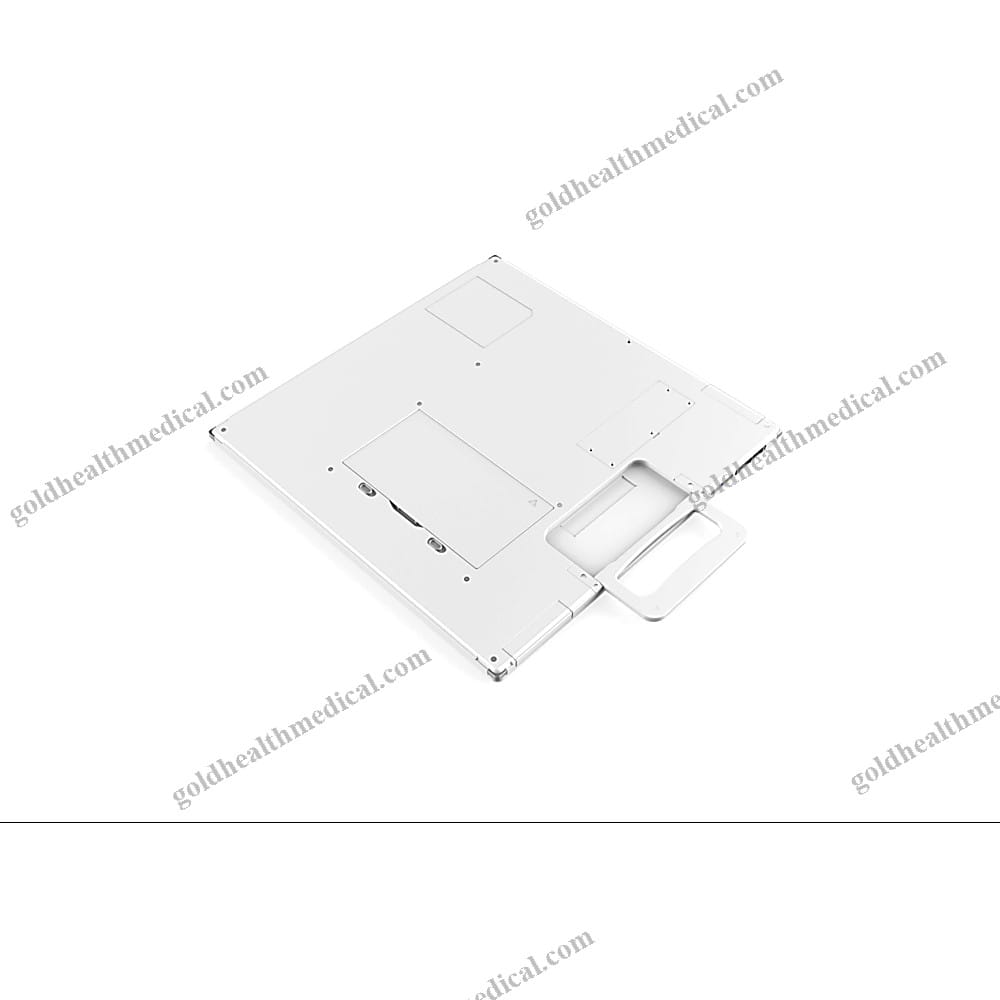

Introducing the cutting-edge wireless flat panel detector from GoldHealth Medical, designed to redefine medical imaging with exceptional precision and reliability. This 17x17 FPD combines advanced technology with user-centric features, offering an industry-leading 3-year warranty for peace of mind.
Key Features and Technical Specifications
- Detector Technology: Utilizes advanced Amorphous Silicon with Cesium Iodide (CsI) scintillator
- Active Imaging Area: 427mm x 427mm for comprehensive coverage
- Pixel Matrix: 3072 x 3072 resolution for unparalleled image clarity
- Pixel Pitch: 139 ΞΌm for exceptional detail capture
- Image Processing: 16-bit ADC ensures maximum image depth and detail
- Exposure Detection: Proprietary iSync+ AED system for precise automatic exposure detection
- Wireless Connectivity: Dual-band (2.4GHz and 5GHz) IEEE802.11 a/b/g/n/ac for seamless data transfer
- Image Acquisition: Full image capture in approximately 5 seconds
- Weight: Lightweight at just 4.6kg for enhanced portability
- Load Capacity: Supports up to 150kg uniform static loading
- Environmental Tolerance:
- Operating Temperature: 10Β°C to 40Β°C
- Operating Humidity: 10% to 90%
- Storage/Transport Humidity: 5% to 95%
- Resolution: 3.6 Ip/mm for superior image quality
- Battery Performance: Extended battery life optimized for efficient workflow
Unique Selling Points
- Direct Deposition CsI Technology: Delivers superior image quality while minimizing radiation dose

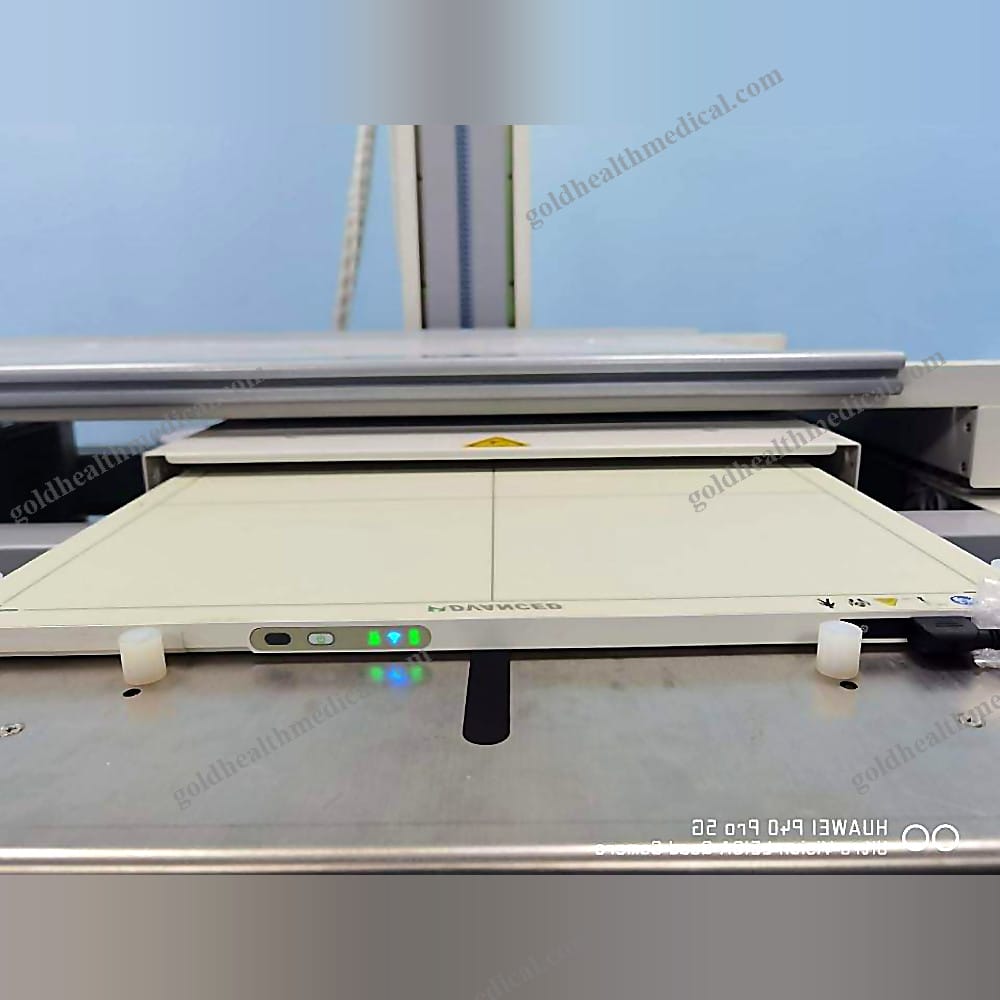

- Universal Compatibility: Meets ISO 4090 standards, ensuring perfect fit in existing bucky systems
- Smart Workflow Integration: Intelligent features enhance operational efficiency
- Robust Wireless Performance: Dual-band support ensures reliable connectivity in demanding environments
Related Product Range
- High-performance CsI Direct Deposition Fixed Mounted Detector
- Advanced Veterinary Flat Panel Detector with direct deposition technology
- Portable Digital X-ray Scanner weighing just 8kg
- Comprehensive Mobile Digital DR X-ray System
GoldHealth Medical's innovative solutions are trusted by healthcare professionals worldwide, delivering exceptional imaging quality and operational efficiency across various medical settings. Our products are engineered to meet the demanding requirements of modern medical facilities while maintaining the highest standards of safety and performance.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge medical imaging solution designed to deliver unparalleled precision and reliability. Engineered for a wide range of healthcare environments, this state-of-the-art device combines advanced detector technology with robust construction, ensuring exceptional performance in diagnostic and research applications.
Key Features and Specifications
- Detector Technology: Utilizes Amorphous Silicon with a Csl Scintillator for superior image clarity and sensitivity.
- Active Area: 427mm x 427mm, providing a broad imaging field for comprehensive diagnostics.
- Pixel Matrix: 3072 x 3072, delivering high-resolution images with intricate detail.
- Resolution: 3.6 Ip/mm, ensuring sharp and accurate imaging for precise analysis.
- WIFI Connectivity: Dual-band support (2.4G and 5G) with IEEE802.11 a/b/g/n/ac standards for seamless data transfer.
- Trigger Mode: Supports both AED and software-based triggering for versatile operation.
- Static Loading Capacity: Engineered to withstand up to 150kg uniformly distributed, ensuring durability in demanding environments.
- Ingress Protection: Rated IPX1, offering reliable protection against dripping water.
Design and Build
- Materials: Constructed with high-quality metal, plastic, and steel for enhanced durability and longevity.
- Instrument Classification: Class II medical device, meeting stringent safety and performance standards.
- Safety Compliance: Adheres to MOL safety regulations, ensuring user and patient safety.
Quality Assurance
- Warranty: Comprehensive 3-year warranty for peace of mind.
- Shelf Life: 3 years, maintaining optimal performance over time.
- Certifications: CE and ISO quality certifications, guaranteeing compliance with global healthcare standards.
After-Sale Support
- Technical Assistance: Access to online technical support for prompt resolution of queries and issues.
Origin and Supply
- Place of Origin: Guangdong, China, renowned for its advanced manufacturing capabilities.
- Supply Capacity: Up to 5000 sets per month, ensuring timely delivery to meet large-scale demands.
Packaging
- Details: Standard export packaging designed to safeguard the product during transit.
GoldHealth Medicalβs imaging solution is meticulously crafted to empower healthcare professionals with the tools they need to achieve accurate diagnoses and deliver exceptional patient care. Whether in hospitals, clinics, or research facilities, this device stands as a testament to innovation and reliability.
