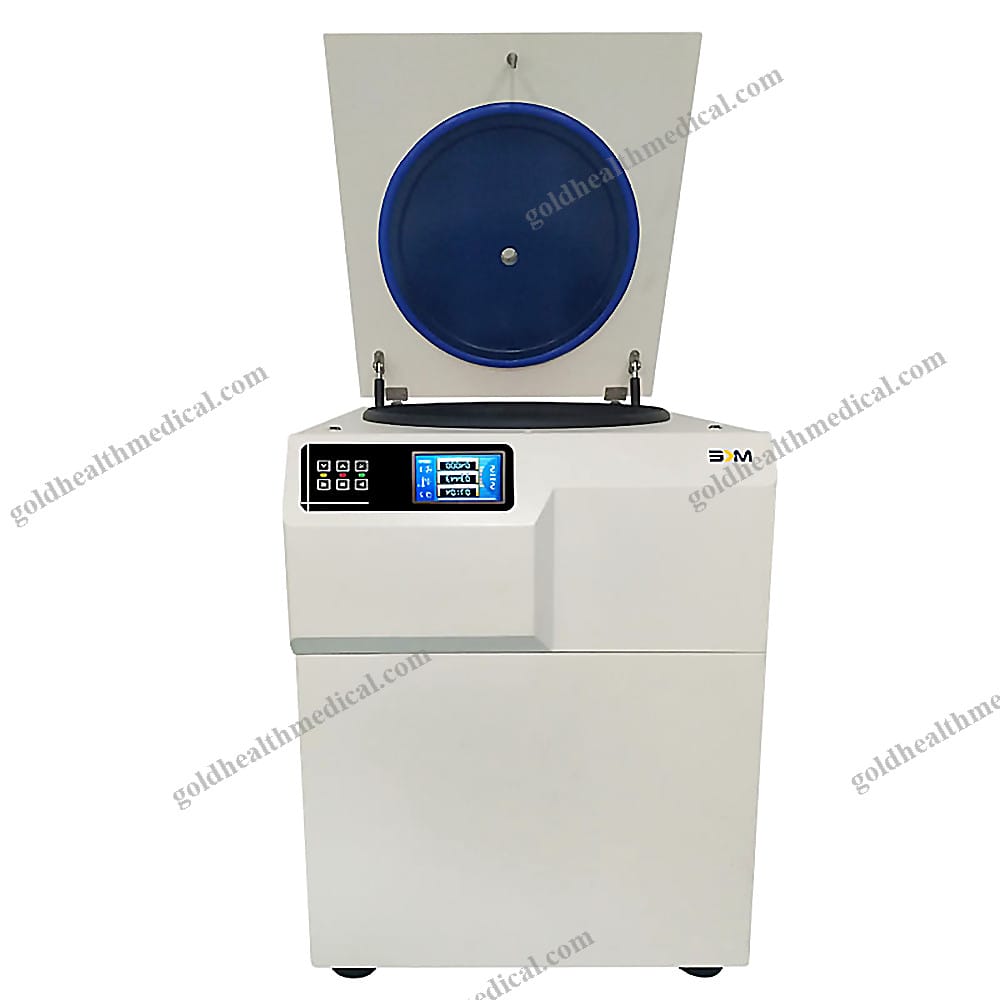

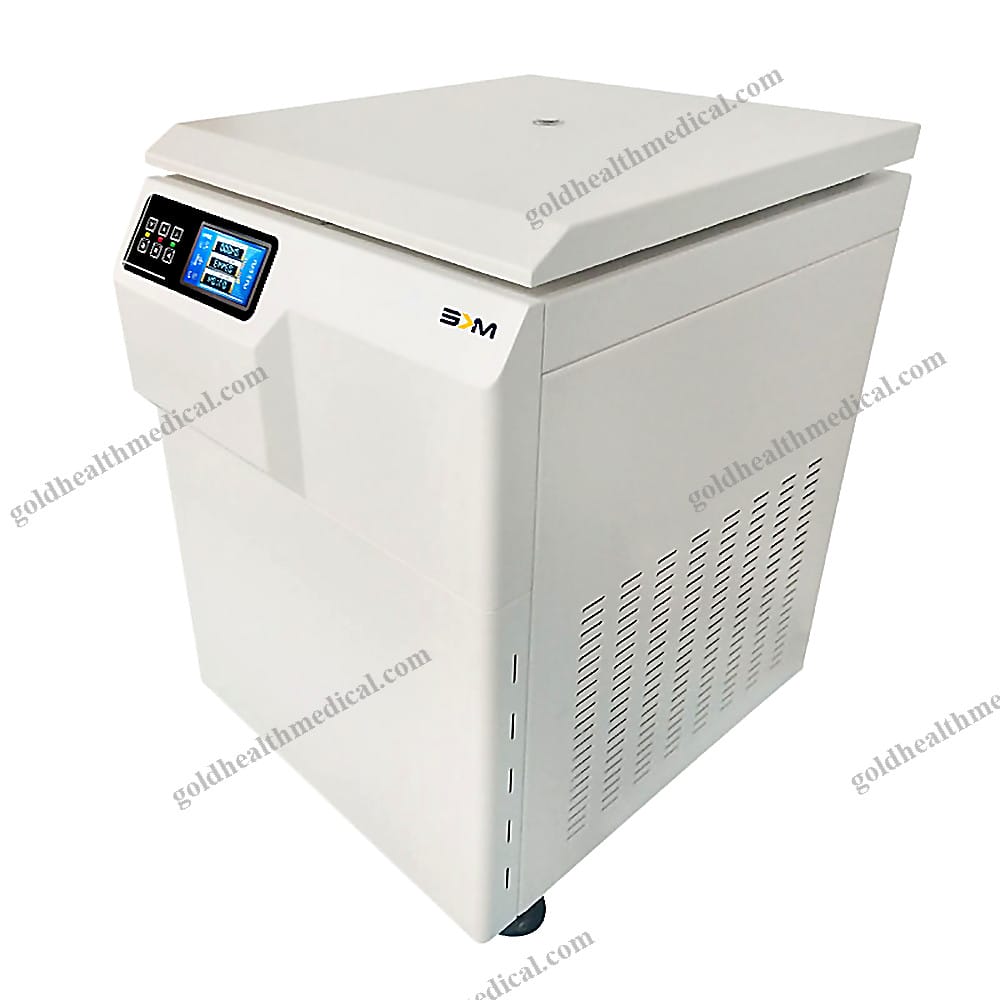

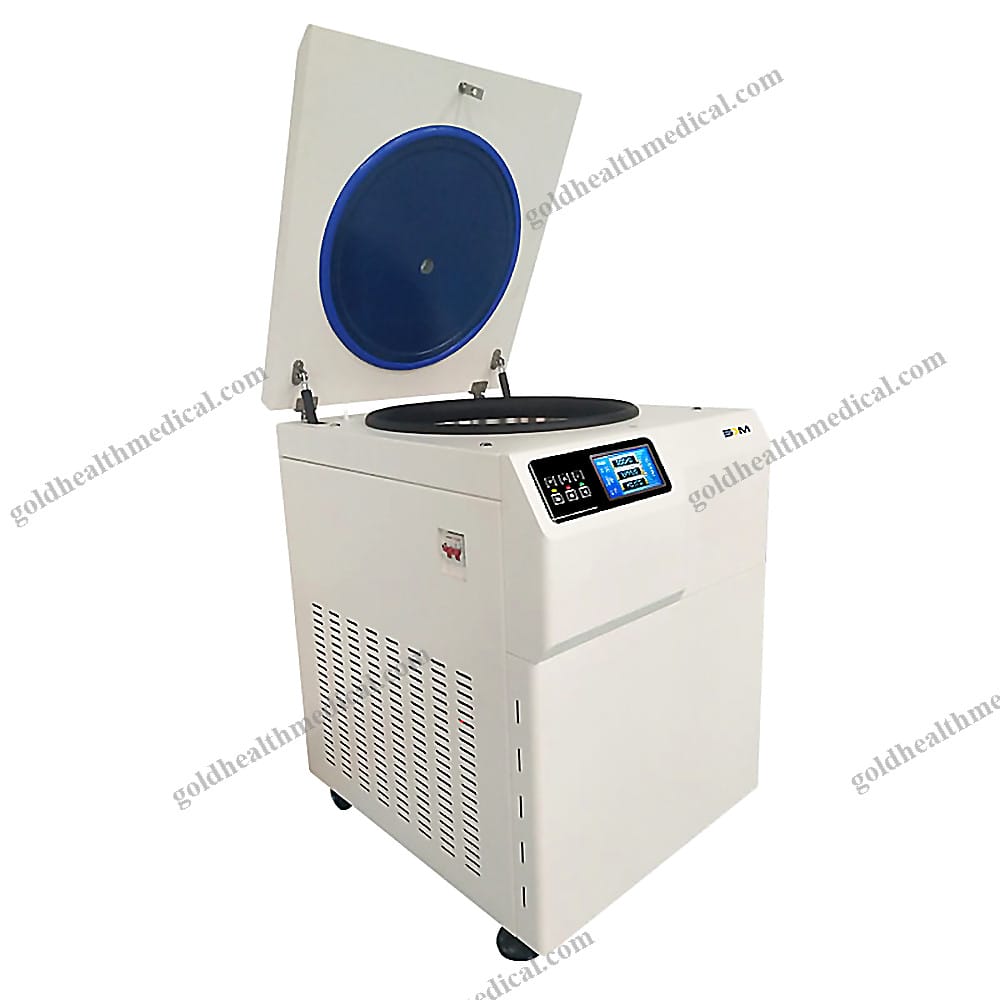

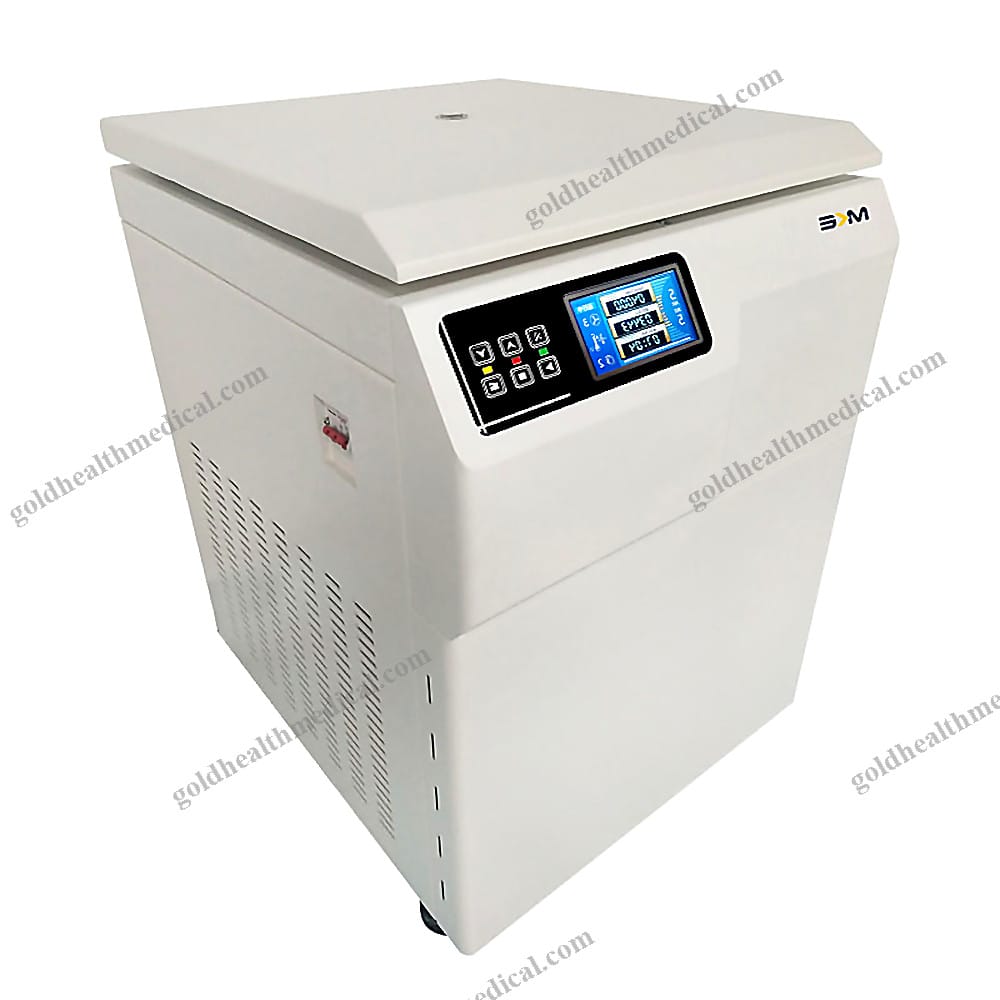

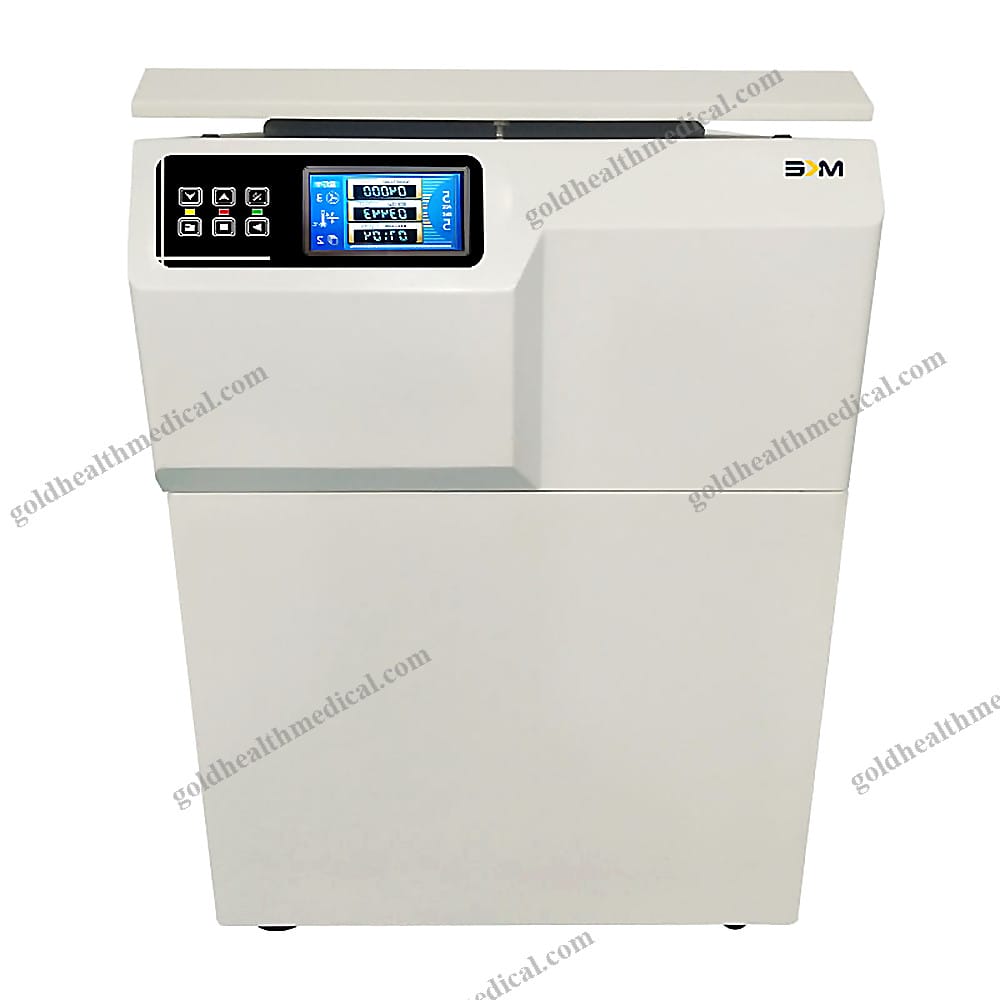

HighCapacity Refrigerated Lab Centrifuge with 4x7
Reference: 1600934055949Medical Centrifuge
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Experience the Power of GoldHealth Medical's High-Capacity Refrigerated Centrifuge
GoldHealth Medical introduces a cutting-edge High-Capacity Refrigerated Centrifuge, designed to deliver exceptional performance and versatility for a wide range of applications. With an extraordinary capacity of up to 4x750ml swing-out rotors and 4x250ml fixed-angle rotors, this centrifuge is engineered to meet the demands of modern laboratories.
Key Features and Benefits
- Unmatched Versatility: Compatible with a broad selection of fixed-angle and swing-out rotors, along with an extensive range of accessories, including bio-safety configurations. Tube capacities range from 0.2ml to 250ml in fixed-angle rotors and 2ml to 750ml in swing-out rotors. Microtiter and deepwell plates can also be centrifuged.
- Advanced Temperature Control: Precise temperature control ranging from -20°C to +40°C, ensuring optimal conditions for sensitive samples.
- Intuitive Interface: A 4.7-inch touchscreen display provides real-time monitoring of speed, timer, RCF, rotors, acceleration/deceleration rates, and error codes.
- Safety First: Designed to comply with international safety regulations (e.g., IEC 61010), featuring an electrical lid interlock, emergency lid-lock release, and protections against over-speed, overheating, and imbalance.
- Quiet Operation: Innovative "Mute" technology ensures noise levels remain below 58dB(A) at maximum speed, creating a more comfortable working environment.
- User-Friendly Design: Programmable memory for up to 1000 programs, automatic rotor identification, and password protection to prevent misoperation.
Technical Specifications
- Max Speed: 20,000rpm
- Max RCF: 26,832xg
- Max Capacity: 4x750ml
- Temperature Control Range: -20°C to +40°C
- Speed Accuracy: ±10r/min
- Time Range: 1 minute to 99 minutes 59 seconds
- Noise Level: ≤58dB(A)
- Net Weight (without rotor): 190kg
- Power Supply: AC220V, 50Hz, 16A, 2150W
- Dimensions: 700x600x820mm (LxWxH)
Rotor Options and Accessories
All rotors are autoclavable and customizable to suit specific needs:
- Angle Rotor:
- 10x5ml, Max Speed: 20,000rpm, Max RCF: 26,832xg
- 24x1.5/2.2ml, Max Speed: 16,000rpm, Max RCF: 24,041xg
- 12x10ml, Max Speed: 15,000rpm, Max RCF: 21,130xg
- 10x15ml, Max Speed: 15,000rpm, Max RCF: 26,161xg
- 6x50ml, Max Speed: 15,000rpm, Max RCF: 24,400xg
- 8x50ml, Max Speed: 12,000rpm, Max RCF: 17,226xg
- 6x100ml, Max Speed: 13,000rpm, Max RCF: 20,406xg
4x250ml, Max Speed: 10,000rpm, Max RCF: 14,758xg
Swing-Out Rotors:
- 4x600ml, Max Speed: 4,000rpm, Max RCF: 3,354xg
- 4x500ml, Max Speed: 4,000rpm, Max RCF: 3,354xg
4x750ml, Max Speed: 4,000rpm, Max RCF: 3,443xg
Microplate Rotor:
- 4x2x96 well plates, Max Speed: 4,
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Power Source: Electricity
Shelf Life: 1 Year
Quality Certification: ISO13485, CE, ISO9001, SFDA
Product Highlights
- Unmatched Precision and Versatility: Designed for a wide range of applications, including hospitals, veterinary clinics, food labs, universities, and research institutions.
- Advanced Performance Metrics: Achieve exceptional results with a maximum speed of 20,000 RPM and a maximum RCF of 26,832 xg.
- Generous Capacity: Supports up to 4 x 750ml, making it ideal for high-volume processing needs.
- Dual Rotor Compatibility: Equipped with both fixed-angle and swing-out rotors for ultimate flexibility in sample handling.
- Intuitive LCD Display: Provides clear, real-time monitoring of speed, time, and temperature settings.
Technical Specifications
- Speed Range: 0–20,000 RPM (fully adjustable)
- Time Range: 1 minute to 99 minutes 59 seconds (adjustable)
- Temperature Control Range: -20°C to +40°C
- Applications: Hospitals, veterinary clinics, food labs, universities, and research facilities
Safety and Standards
- Instrument Classification: Class I
- Compliance: Meets International Safety Standards, ensuring reliable and secure operation.
Packaging Details
- Single Package Size: 75 x 65 x 90 cm
- Single Gross Weight: 200.000 kg
After-Sale Support
- Warranty: 1 Year
- Service: Online technical support to ensure seamless operation and address any concerns.
GoldHealth Medical delivers cutting-edge centrifuge technology designed to elevate your laboratory’s efficiency and precision. With robust construction using premium materials like metal, plastic, and steel, this product is built to last and perform under demanding conditions. Whether for clinical diagnostics, academic research, or industrial applications, this centrifuge is your trusted partner in achieving consistent, high-quality results.
