High Frequency XRay Machine with Flat Panel Detector Double Column Dynamic Wireless
Reference: 1601373910453Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

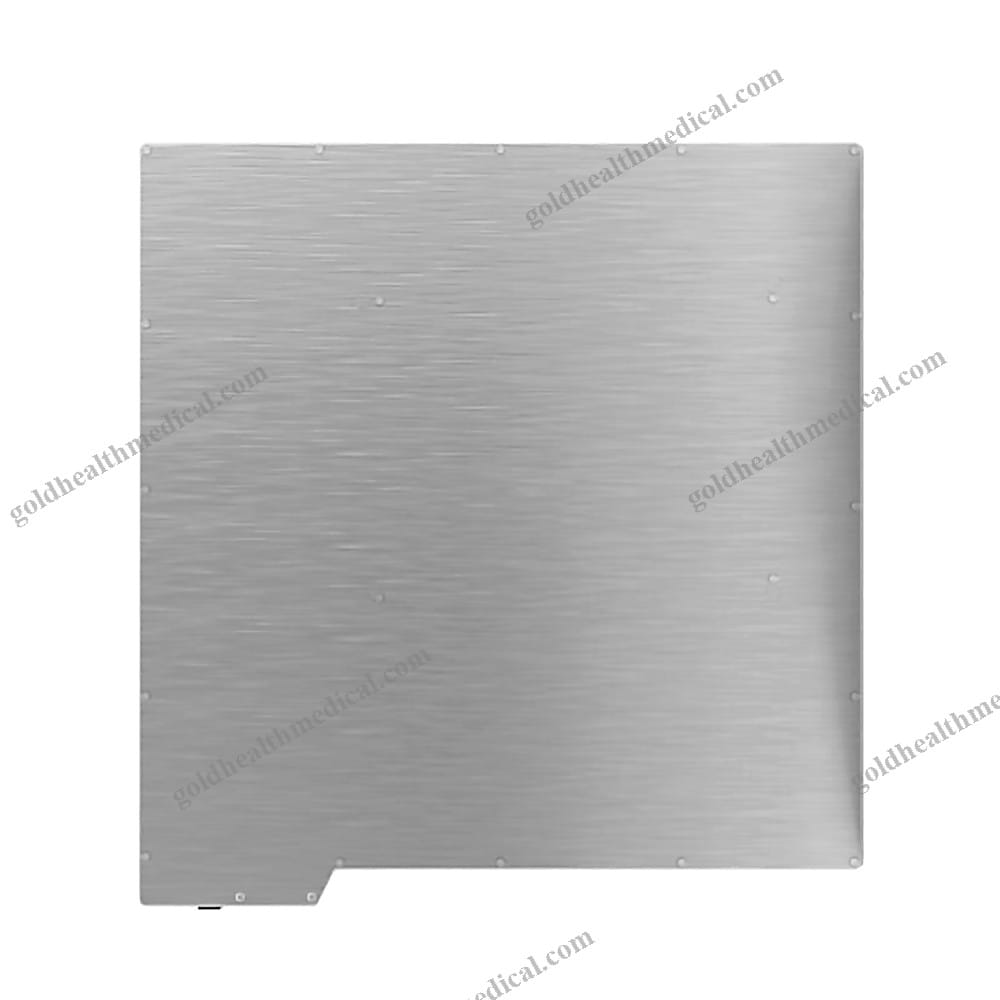

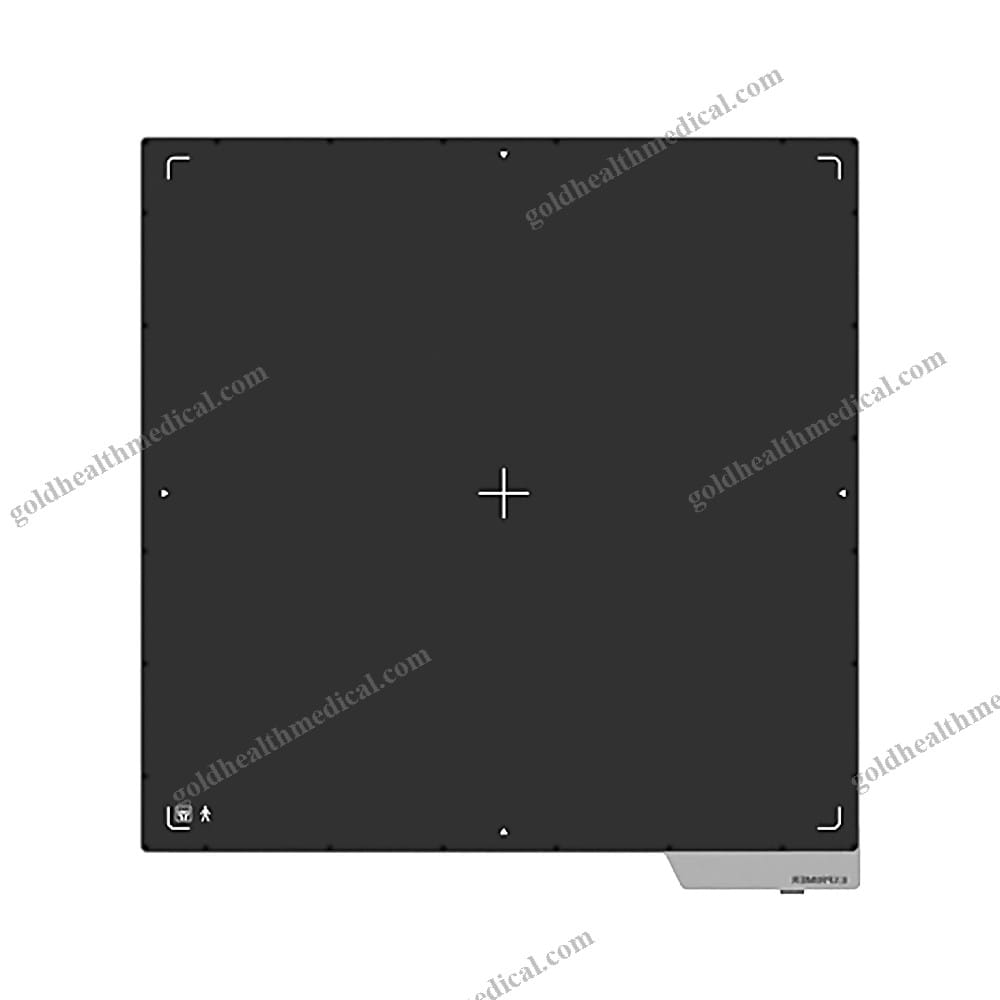

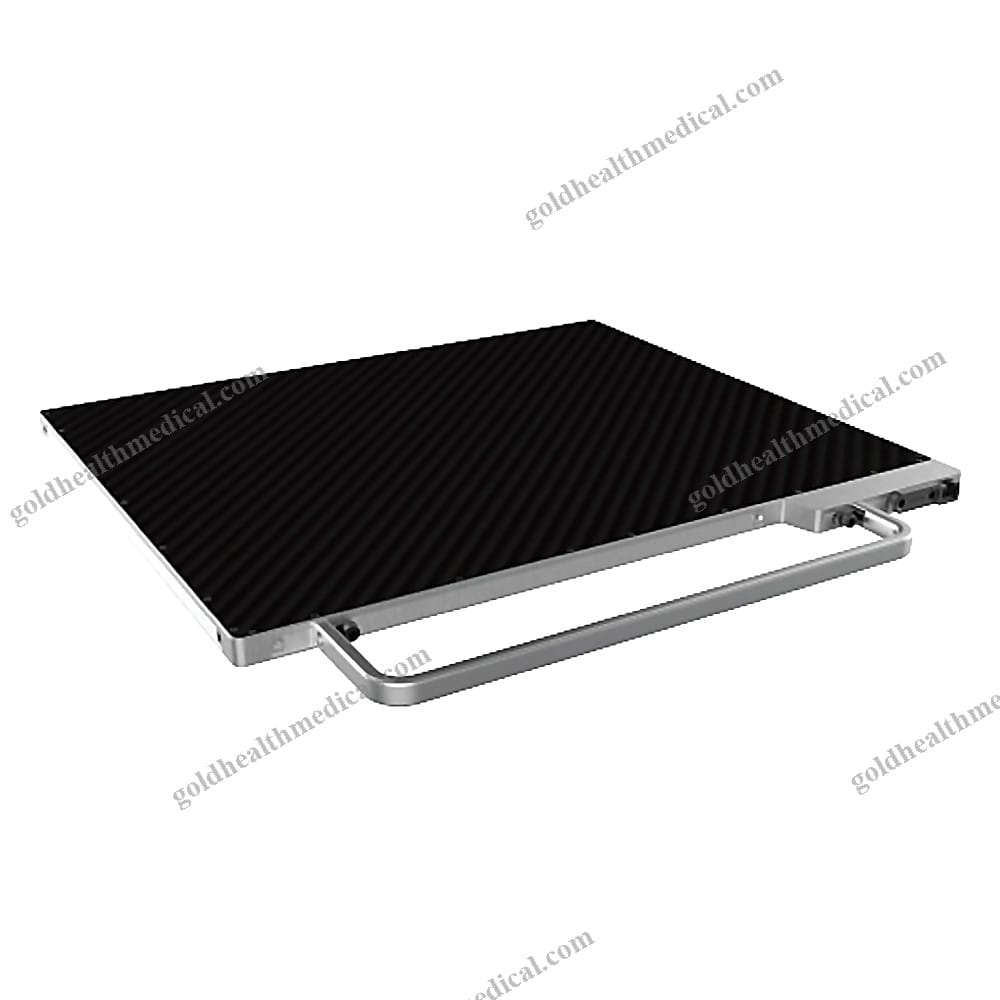

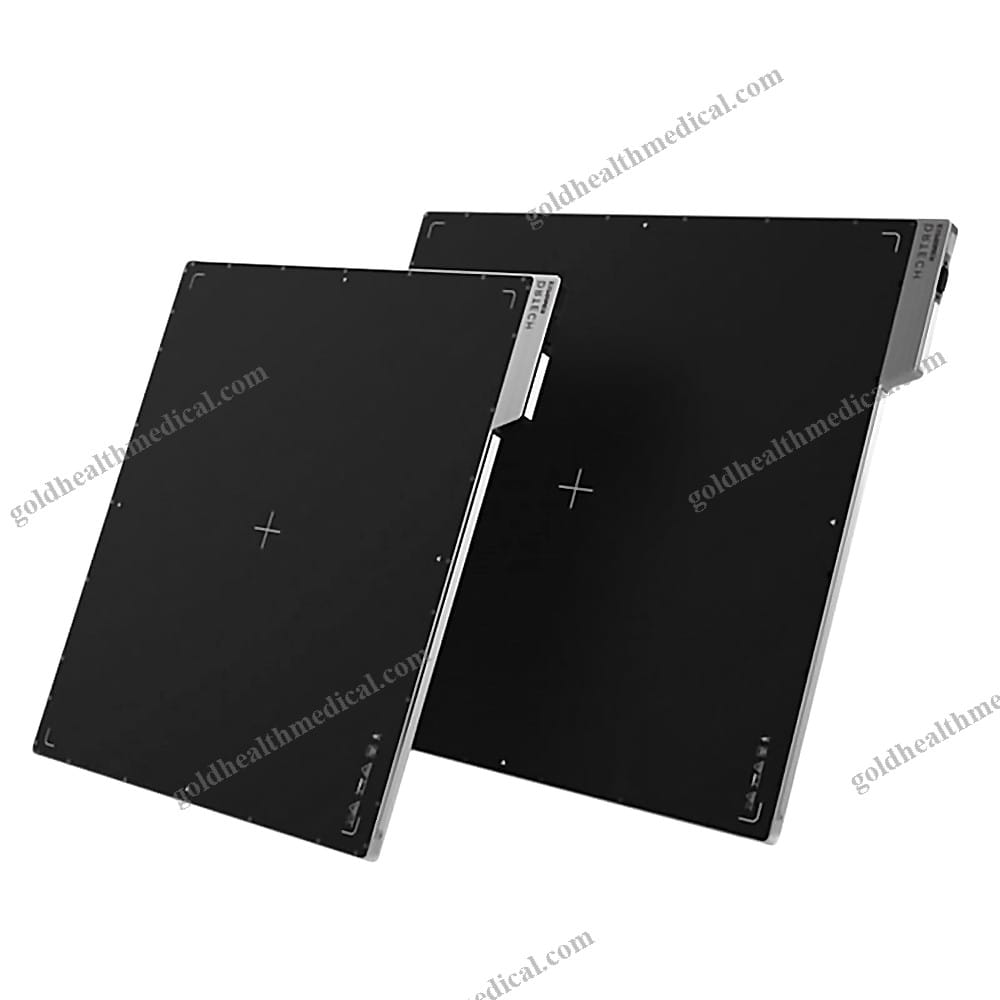

GoldHealth Medical Radiography Flat Panel Detector
The GoldHealth Medical Radiography Flat Panel Detector is a 17x17-inch highly reliable and flexible tethered solution, designed to seamlessly integrate into conventional X-ray systems for retrofitting and system upgrades. Engineered to fit perfectly into existing 17x17" standard bucky trays, this detector offers exceptional precision with its Lossless AED/AWC feature, enabling a fast and intelligent workflow with rapid image acquisition. It delivers unparalleled image quality and operational convenience, making it the ideal choice for medical imaging professionals.
This high-performance, cassette-sized flat panel detector boasts an extended battery life of up to 8 hours on standby. Supporting IEEE 802.11ac with transmission speeds of up to 1300Mbps, it captures outstanding images with high Detective Quantum Efficiency (DQE) and resolution. Equipped with a highly sensitive AED function, the detector effortlessly connects and synchronizes with any generator type.
Key Features:
- Enhanced Dose Efficiency and Image Quality: Powered by Q-Platform technology for superior results.
- Improved Patient Throughput: Optimized for fast workflows and seamless operations.
- High DQE / MTF Values: Ensures sharp, detailed images with minimal noise.
- TRUVIEW® ART: Advanced Reverse Filtering Technology for enhanced clarity.
- User-Friendly Design: Ergonomic and intuitive for ease of use.
Imaging Specifications:
- Technology: a-Si TFT with photodiode
- Scintillator: CsI:Tl / Gd2O2S:Tb
- Imaging Area Size: 430 x 430 mm
- Pixel Matrix (Resolution): 3,072 (V) × 3,072 (H)
- Pixel Pitch: 140 μm
- Limiting Resolution: > 3.6 lp/mm
- MTF: 81% @ 1lp/mm (TVA), 69% @ 1lp/mm (Raw)
- DQE: ≥ 60% @ 0.5lp/mm
- A/D Conversion: 16-bit
- Energy Range: 40-150 kVp
- Trigger Mode: Lossless AED/AWC
- Preview Image Time: ≤1.0 sec
- Cycle Time: ≤3.3 sec
- Input Voltage: DC +12V, 3A MAX
- Power Consumption: 20W (Max)
- Data Interface: Gigabit Ethernet (Single LAN cable)
- External Dimensions: 460 (W) × 483 (L) × 15.5 (D) mm [±0.5 mm]
- Weight: 4.3 kg (9.4 lb)
- Detector Housing Material: Aluminum
- Sensor Protection Material: Carbon fiber and aluminum plate
- Weight Limit: Uniform load 150kg, Point load (100kg Φ40mm)
- Ingress Protection: IP53
Operating Console:
- CPU: Intel i5-6500
- RAM: 8 GB
- Local Storage: Hard disk capacity: 1 TB, Image storage capacity: more than 15,000 images at full resolution
- Operating System: Windows 7 Pro 32 / Windows 8 / Windows 10
- Image Size: Up to 19 MB depending on the exam type, without compression
- Patient Data Input: Keyboard, HIS/RIS connection
- Cycle Time: ≤ 7 sec
- Connectable Sensors: Up to 3 digital detectors with semi-automatic selection based on procedure
- Image Zoom: Full expand 200%, Partially expand 400%
Exam Preparation and Image Acquisition Features:
- Automatic data input from RIS/HIS via DICOM Modality Worklist query
- Manual input of patient data via keyboard
- Automatic selection of exam procedure based on Worklist
- Projection guide for selected projection
- Dose per area product reading displayed on the workstation monitor and automatically burned into the DICOM header
- APR program and AEC settings with compatible generators
Image Processing Features:
- Optimized image processing parameters with APR-specific default values and manual adjustment options
- Image rotation in 90° steps
- Horizontal/Vertical mirroring
- Automatic and manual image cropping
- Digital markers and annotations
- Measurement tools including angle, distance, Cobb’s Angle, and veterinary-specific measurements
- Multi-image display options
- TRUVIEW® ART for improved MTF
Histogram and manual LUT adjustment
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Radiography Flat Panel Detector
Product Overview
The GoldHealth Medical Radiography Flat Panel Detector is a cutting-edge imaging solution designed for precision and reliability in medical diagnostics. Engineered with advanced a-Si TFT and photodiode technology, this detector delivers exceptional image quality for radiography departments, X-ray rooms, and research applications. Its robust design and high-performance capabilities make it an indispensable tool for modern healthcare facilities, laboratories, and rehabilitation centers.
Key Features
- Imaging Technology: Utilizes advanced a-Si TFT with photodiode for superior image clarity.
- Scintillator Options: Equipped with CsI:Tl or Gd2O2S:T scintillators for optimal energy conversion.
- Wide Energy Range: Supports 40-150 kVp, ensuring versatility across various diagnostic applications.
- High Resolution: Achieves a limiting resolution of >3.6 lp/mm with a pixel pitch of 140 μm.
- Compact and Lightweight: Weighs only 4.3 kg, making it easy to integrate into existing setups.
Technical Specifications
- Imaging Area Size: 430 x 430 mm
- Pixel Matrix (Resolution): 3,072 (V) x 3,072 (H)
- Pixel Pitch: 140 μm
- Limiting Resolution: >3.6 lp/mm
- Energy Range: 40-150 kVp
- Weight: 4.3 kg
- Shelf Life: 1 year
Packaging Details
- Single Package Size: 30 x 30 x 70 cm
- Single Gross Weight: 9.000 kg
Applications
- Medical diagnosis in radiography departments
- X-ray photography for detailed imaging
- Research and laboratory use
- Rehabilitation and geriatric care
After-Sale Support
- Warranty: 1 year comprehensive coverage
- Onsite Training: Dedicated support to ensure seamless integration and optimal usage
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, reliable, and high-performance medical imaging solutions. Our Radiography Flat Panel Detector combines precision engineering with user-centric design, empowering healthcare professionals to achieve accurate diagnoses and improve patient outcomes.
Place of Origin: Shanghai, China
Instrument Classification: Class II
