Hedy S7 LowSound Infusion Pump
Reference: 1600768289589Infusion, Nursing & Protective Instruments（old）
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

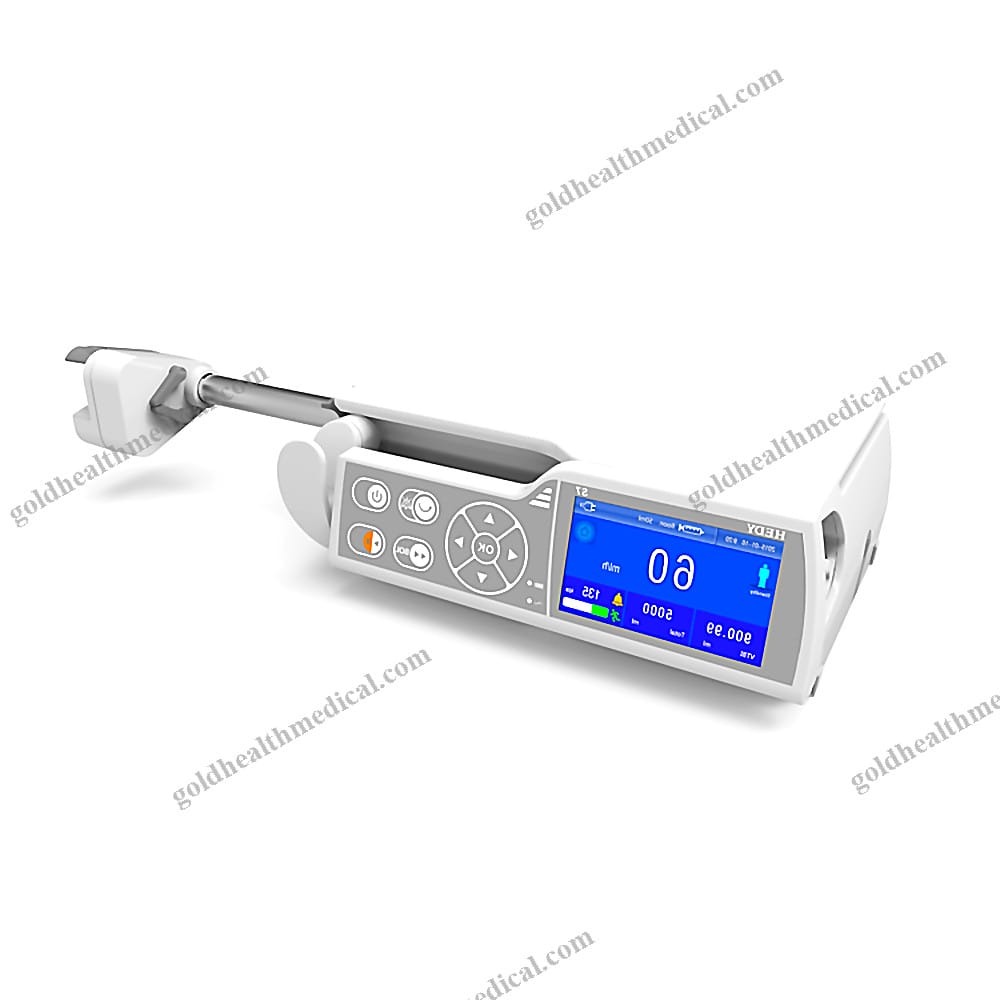

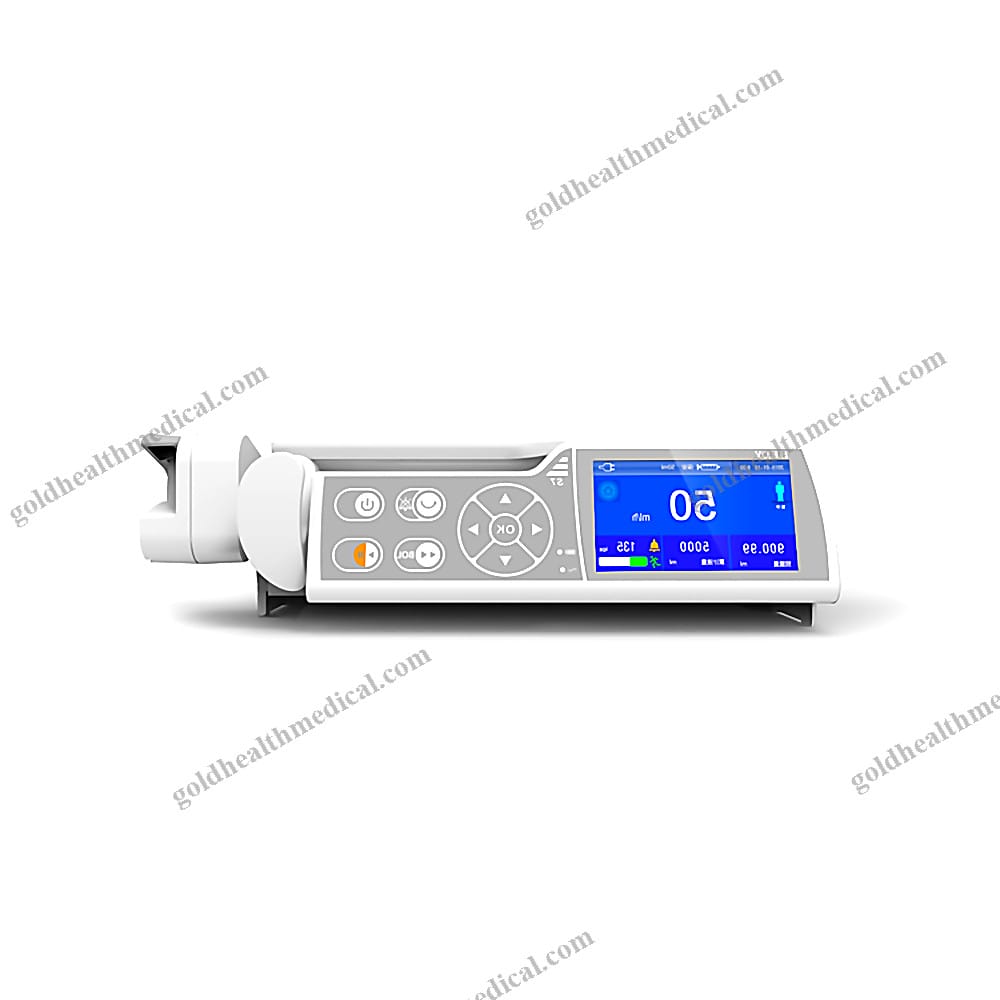

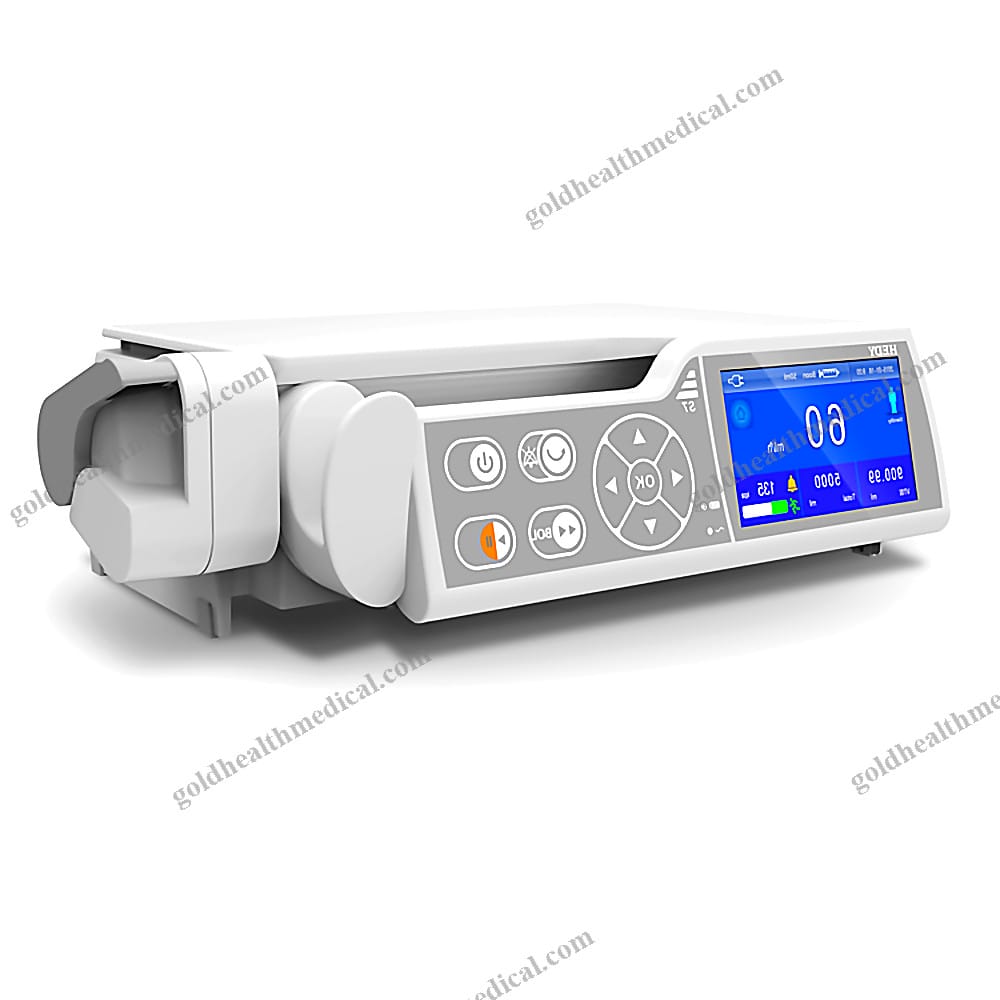

GoldHealth Medical Syringe Pump
GoldHealth Medical proudly introduces its state-of-the-art smart syringe pump, designed with a 3.5-inch TFT color touch screen. This advanced device is widely utilized in ICU rooms, operating theaters, ambulances, and various medical settings. While maintaining quality comparable to renowned brands like BBraun, BD, Turomo, Mindray, Medcaptain, and Smiths, our syringe pump offers exceptional value at half the price.
Key Features
- Precision and Reliability: All modules incorporate high-precision stepper motors ensuring accurate treatment delivery.
- Flow Compensation: The infusion pump features a flow compensation function to prevent errors caused by pipeline collapse.

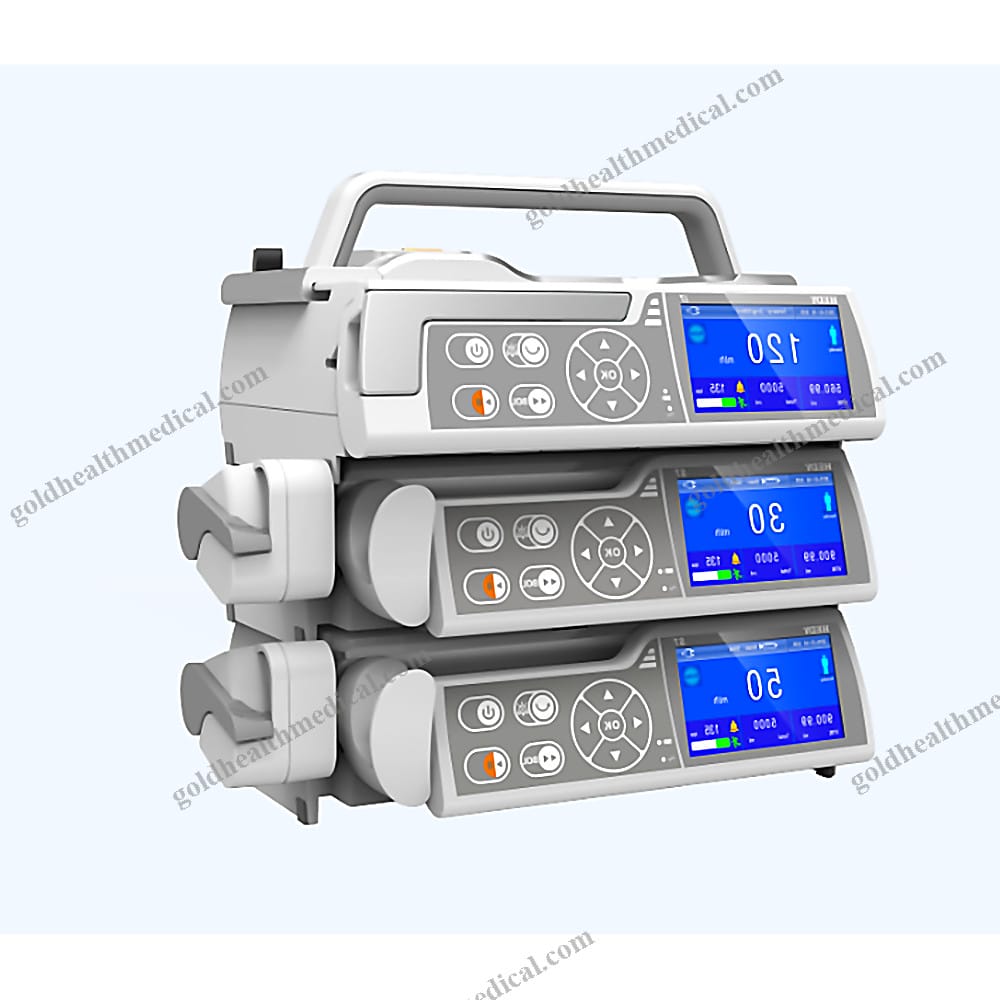

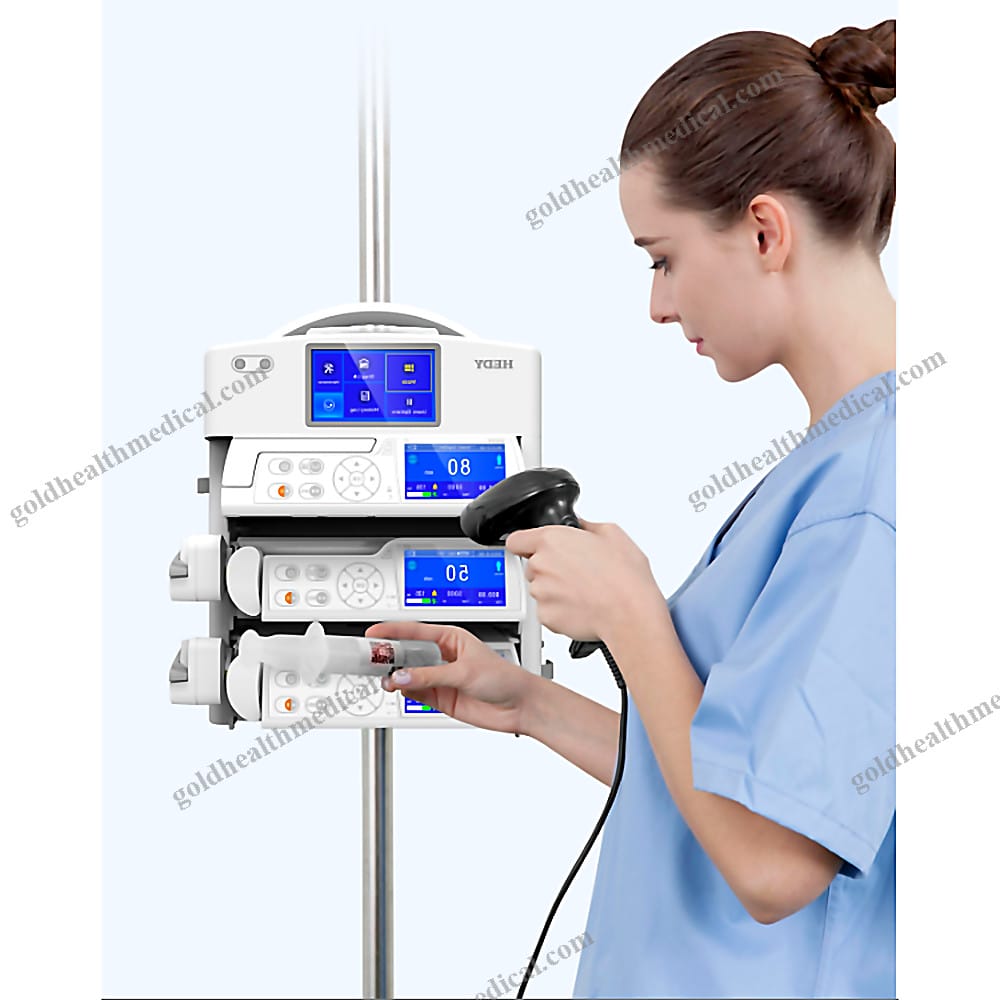

- Innovative Dock Cabin: Compatible with our patent-designed dock cabin for seamless power supply and pipeline management, enhancing ward comfort and enabling intelligent infusion management.
- Dual CPU Design: Ensures system safety and reliability.
- Dynamic Pressure Surveillance (DPS): Monitors pressure dynamically to ensure safe operation.
- Online Titration and Anti-Bolus Functions: Provides precise control over infusion rates.
- User-Friendly Interface: Equipped with a 3.5-inch color touch screen and mobile-style UI design for ease of operation.
- Versatile Infusion Modes: Offers a variety of modes to meet diverse clinical needs, including day/night and standby modes.
Product Parameters
- Waterproof Rating: IPX3
- Syringe Accuracy: ±2%
- Blockage Detection: 11-level adjustable, ranging from 10~135 kPa or 75~1012mmHg
- Mechanical Accuracy: ±0.5%
- IV-Set Compatibility: Compatible with B.Braun, BD, Wego, Medikus, and other standard infusion sets with automatic identification of infusion specifications
- Manual/Auto Bolus: Manual bolus rate range: 0.1-2000ml/h adjustable; double-click the bolus button and long press for fast infusion
- Bubble Detection: Single bubble detection at 25ul, 100ul, 250ul; Air Bubble Class (15min) has 2 levels: 300ul, 500ul
- KVO: Adjustable range (0.1~5.0) ml/h, step value 0.01ml
- Battery: Rechargeable lithium-ion battery 10-15V 2.5A; Charging Time: ≤4 hours; Working Time: ≥6 hours (at 25ml/hr)
- Event Log: More than 2000 entries
- Drug Library: No less than 2000 entries
- Screen: 3.5-inch touch screen with 9-level brightness
- Power Supply: AC: 100-240V, 50/60Hz, 35VA; DC: 10-15V, 2.5A
- Injection Rate Range:
- 5/6ml: (0.1～150)ml/h
- 10ml: (0.1～300)ml/h
- 20ml: (0.1～600)ml/h
- 30ml: (0.1～800)ml/h
- 50/60ml: (0.1～1500)ml/h
- Modes:
- Rate Mode
- V-T Mode
- R-T Mode
- Dosage Mode
- Relay Mode (with intelligent bedside workstation)
- Additional Modes: Ramping Mode, Intermittent Mode, Sequence Mode, Loading Dose Mode
Certifications
- TUV CE
- CE 0123 CFDA Certificate
- Compliant with 93/42/CE medical directive
- Medical electronic security equipment compliant with EN/IEC 60601-1 and EN/IEC 60601-2-24 standards
- EMC (electromagnetic compatibility) compliant with EN/IEC 60601-1 and EN/IEC 60601-2-24 standards
- RoHS Certificate compliant with EN/2002/95/EC Revise EN/2011/65/EU directive
Accessories
- Standard Configuration
- Optional Accessories:
- Syringe Pump
- Upstream Occlusion Detector
- Drop Sensor
- Tray
- Handle
- American/B
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Instrument Classification: Class II
Product Type: Syringe Pump
Product Overview
The GoldHealth Medical Syringe Pump is a cutting-edge medical device designed to deliver precise fluid infusion in a variety of healthcare settings. Engineered with dual CPUs for unparalleled reliability, this syringe pump ensures exceptional accuracy and performance, making it ideal for hospitals, clinics, laboratories, and home care environments. Its robust design and advanced features set a new standard for infusion technology.
Key Features
- Syringe Accuracy: ±2% for consistent and reliable dosing.
- Mechanical Accuracy: ±0.5% for precision in critical applications.
- Online Titration: Yes, enabling real-time adjustments for optimal patient care.
- One-Key Silent Operation: Simplifies use while maintaining a quiet environment.
- Anti-Corrosion Shell: Constructed from high-quality PBT plastic material for enhanced durability.
- Touchscreen Interface: 3.5-inch TFT color touch screen with an intuitive touchscreen and keypad input system.
Technical Specifications
- Syringe Rate Range: 0.1 ~ 1500 ml/h (increment: 0.01ml).
- Dimensions (WHD): 28070165 mm.
- Weight: 1.8 kg.
- Dual CPU System: Ensures redundancy and operational reliability.
Packaging Details
- Units per Carton: 6 units.
- Single Package Size: 50X40X40 cm.
- Single Gross Weight: 2.300 kg.
- Carton Labeling: Includes product specifications, reference codes, purchase order details, quantity, and case number for easy identification.
- Shipping Compatibility: Suitable for both sea and air transport.
Warranty and After-Sales Service
- Warranty Period: 2 years.
- After-Sales Service: Free spare parts provided to ensure uninterrupted performance.
Why Choose GoldHealth Medical?
Our syringe pump combines precision engineering, user-friendly design, and durable materials to meet the demands of modern healthcare. Whether for critical care, research, or rehabilitation, this device delivers unmatched accuracy and reliability, empowering healthcare professionals to provide the best possible care.
GoldHealth Medical – Precision Redefined.
