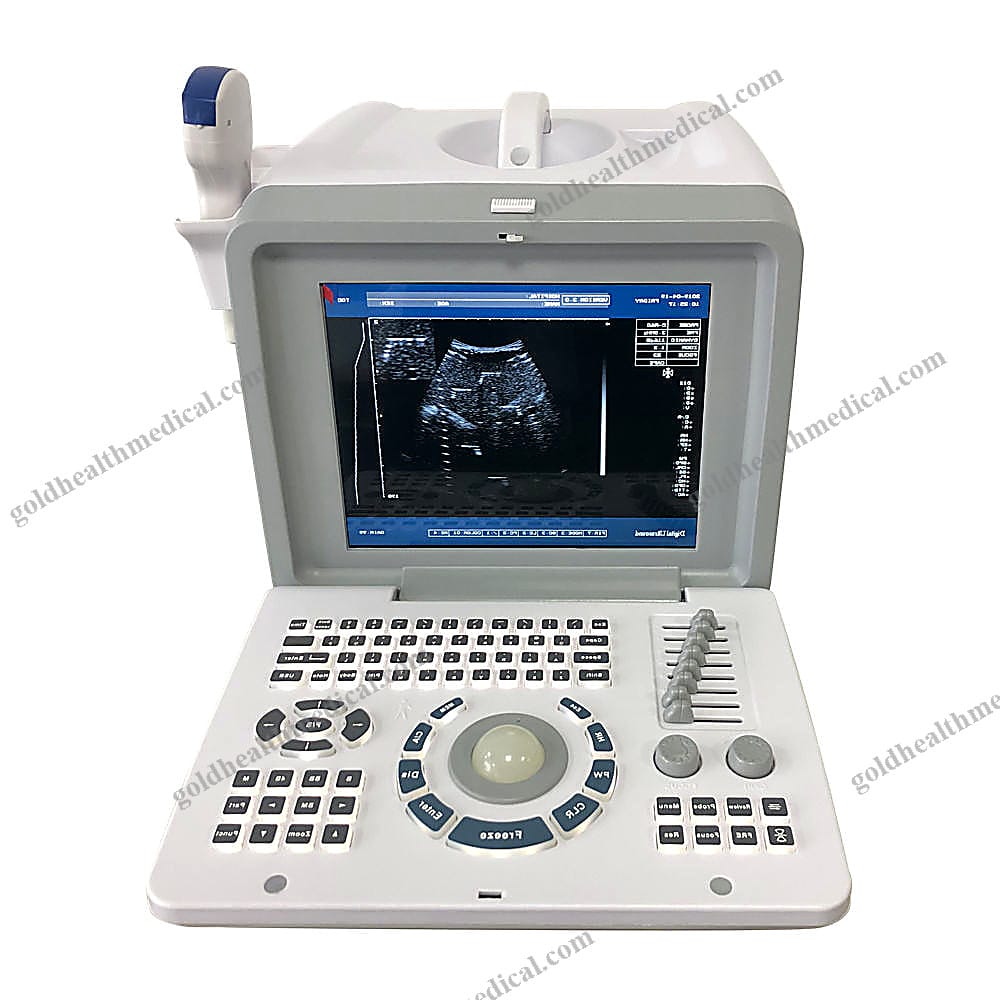

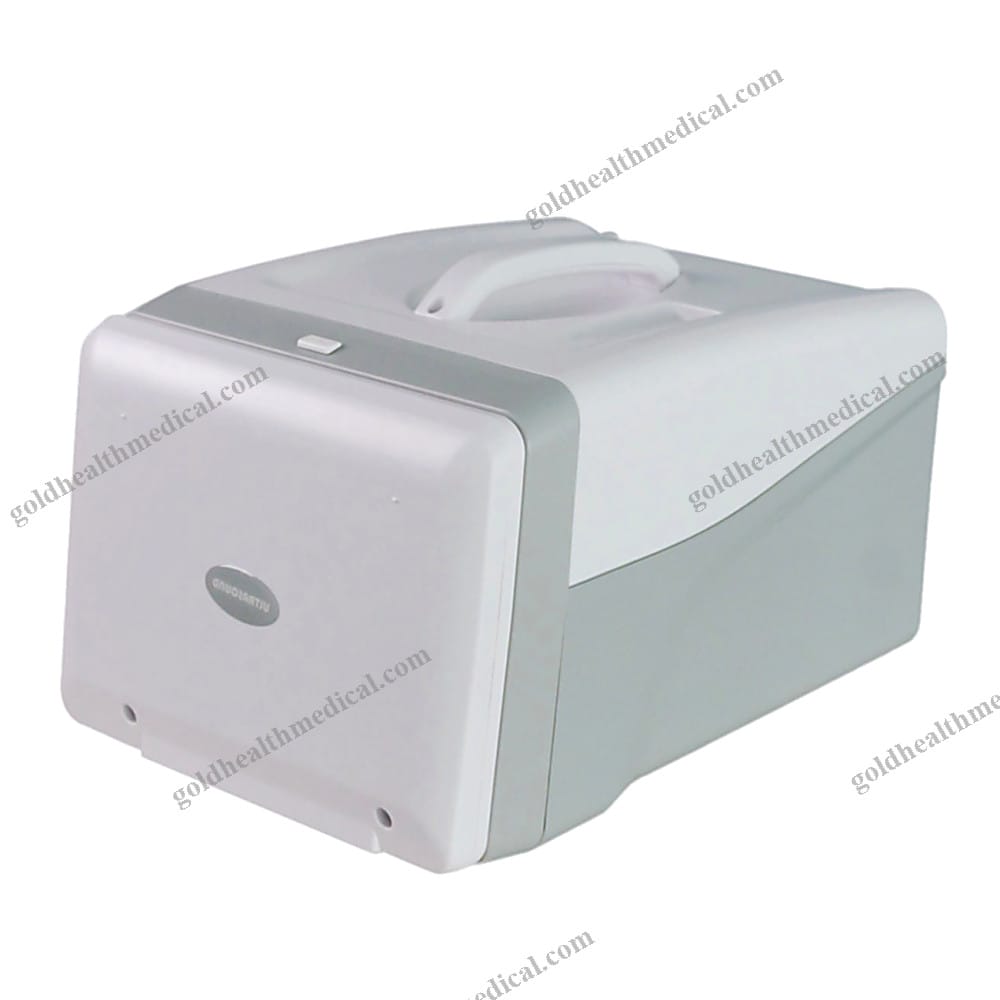

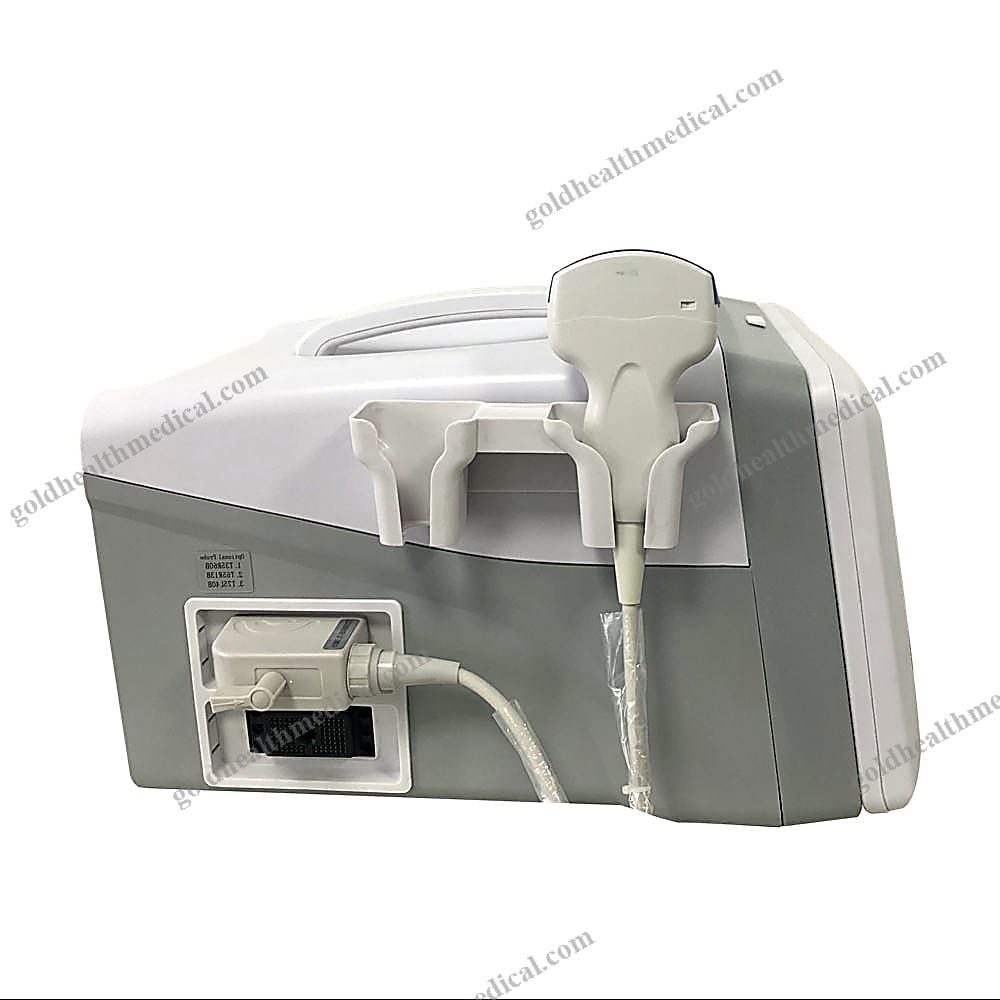

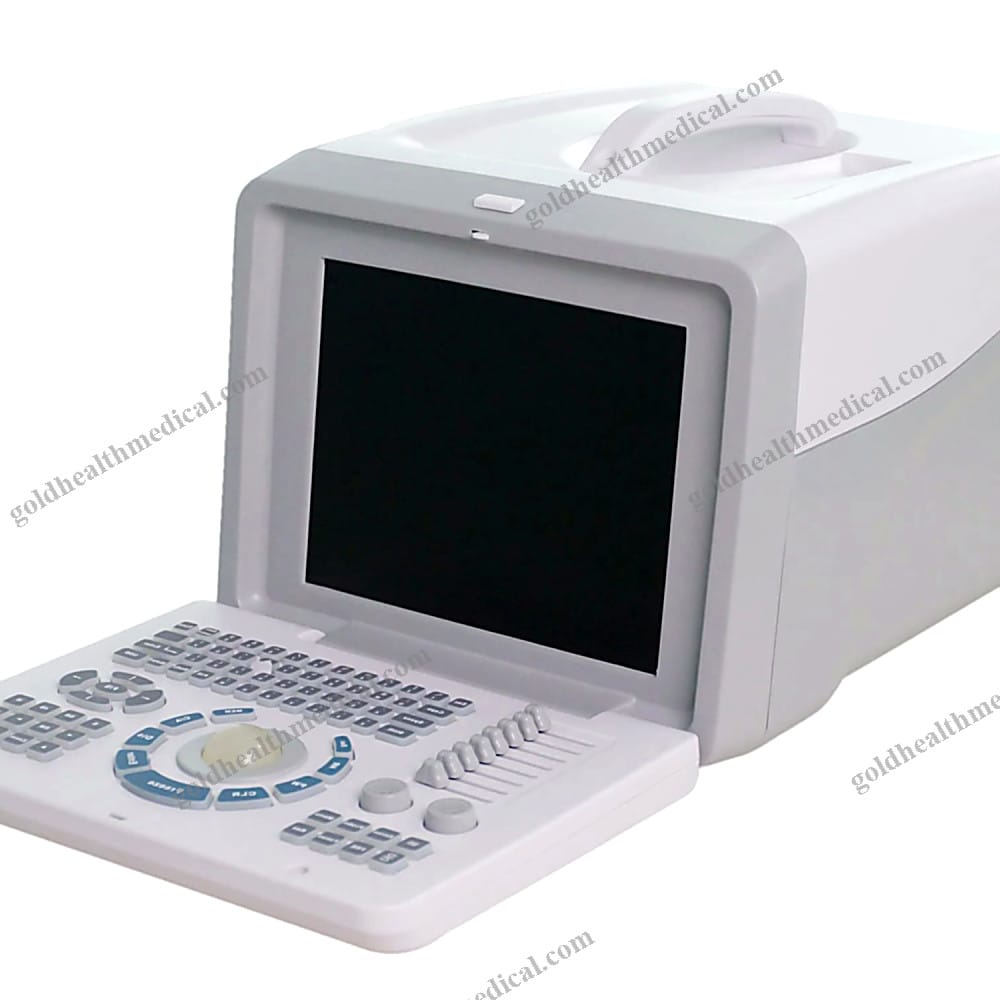

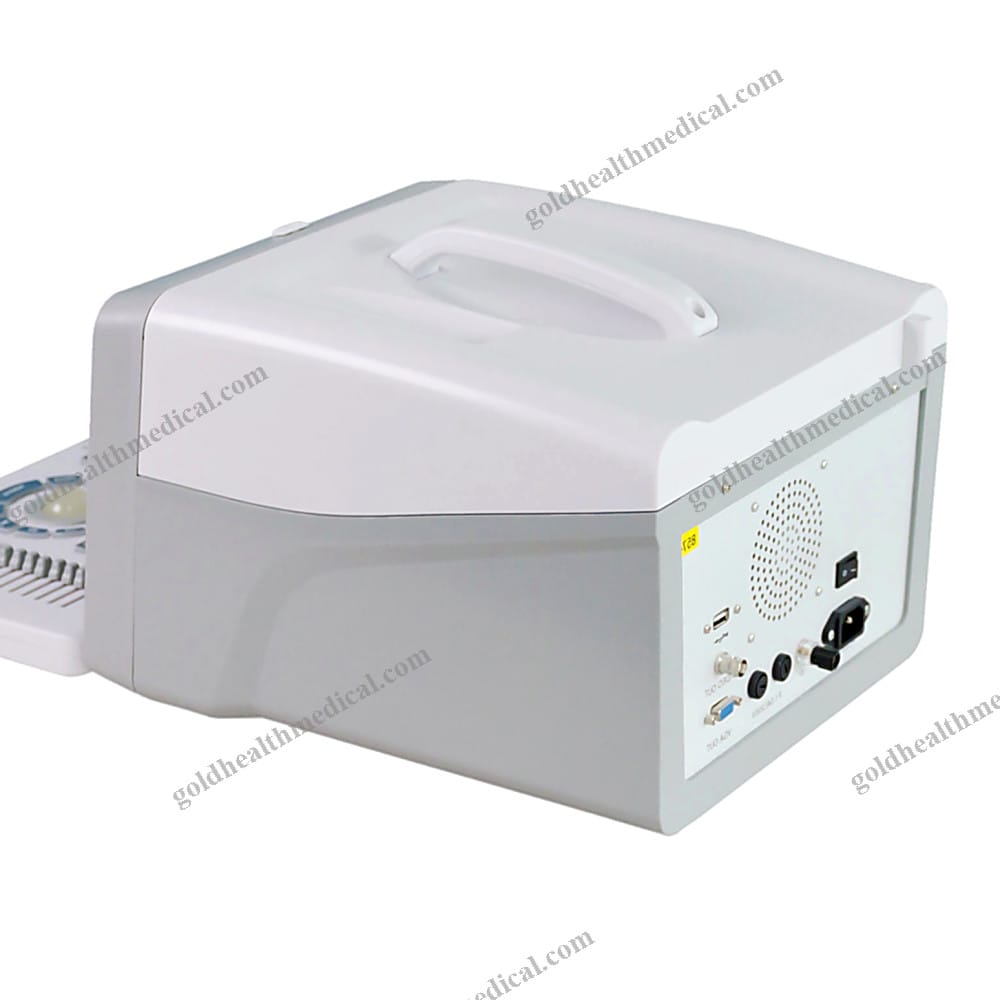

HBW2 Portable Medical Ultrasound Scanner BW Mode
Reference: 60751226824Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents the Full Digital Portable B/W Ultrasound Scanner
Engineered for precision and versatility, this state-of-the-art ultrasound scanner is designed to meet the demands of modern medical environments. Combining advanced imaging technology with an intuitive user interface, it delivers exceptional performance for a wide range of diagnostic applications.
Key Features
- Mass Memory & Permanent Storage: Capture and store up to 128 high-quality images permanently, with a cine loop feature enabling real-time playback of 256 consecutive images.

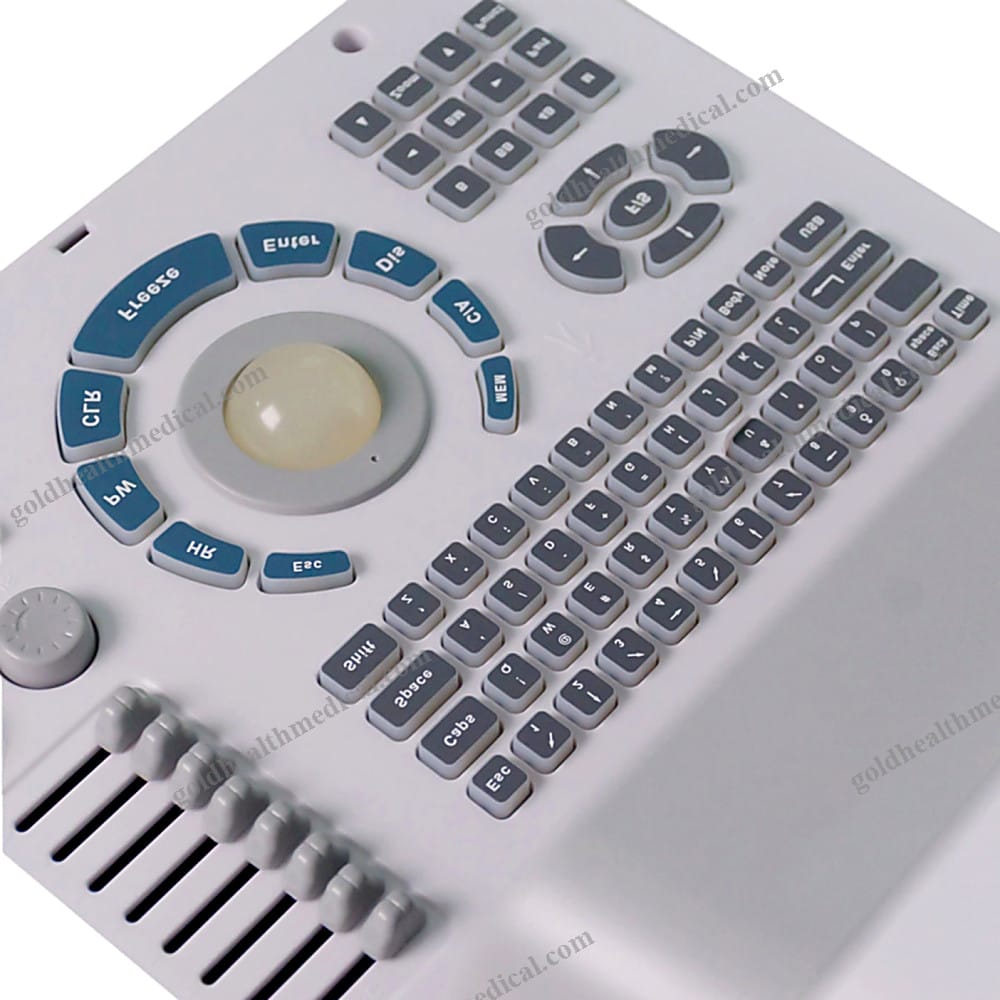

- Intelligent Controls: Choose between radium-caved buttons or silicon backlit buttons, complemented by an intelligent fluorescence trackball for seamless operation.
- Enhanced Imaging: Equipped with 8-segment TGC control and overall gain adjustment for precise image optimization.
- Expandable Connectivity: Includes 2 USB ports for external storage, upgraded printer functionality, and dual probe connectors with automatic probe identification.
- Versatile Outputs: Dual SVGA and PAL video outputs ensure compatibility with video recorders, image workstations, and external displays.
- Automated Workflow: Automatically generates report pages and adapts to user preferences, saving custom settings as boot defaults for a personalized experience.
Technical Specifications
Display Modes
- 3.5MHz Convex Array Probe: B, B/B, 4B, B+M, M
- 5MHz Dimpling Array Probe: B
- 6.5MHz Dimpling Array Probe: B
- 7.5MHz Line Array Probe: B
Image Magnification
- 3.5MHz Convex Array Probe: x0.8, x1.0, x1.2, x1.5, x1.8, x2.0 (6 modes)
- 6.5MHz Dimpling Array Probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
- 7.5MHz Line Array Probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-Zoom: Magnifies real-time images by 2x for enhanced detail.
Dynamic Range: Adjustable from 0 to 120dB for optimal contrast and clarity.
Focus Position: Supports 1, 2, 3, and 4-segment dynamic electronic focusing for superior image sharpness.
Image Processing: Advanced algorithms including γ correction, frame correlation, digital filtering, edge enhancement, and pseudo-color processing for unparalleled image quality.
Frequency Conversion: Five frequency ranges (2.5MHz to 7.5MHz) to match various probes and applications.
Measuring Functions: Comprehensive tools for distance, circumference/area (ellipse and loci methods), volume, heart rate, gestational weeks, fetal weight, and more.
Puncture Guide: Real-time puncture guide lines displayed in B mode for precision-guided procedures.
Gain Control: Independent adjustment of 8-segment TGC and overall gain for tailored imaging.
Image Polarity: Flip images left/right, black/white, or up/down for flexible viewing.
Playback Options: Series playback or individual image review for detailed analysis.
Output Interfaces: VGA and PAL outputs for seamless integration with external displays, printers, and workstations.
Standard Configuration
- One host machine
- One convex array probe (3.5MHz)
- USB port
- 10-inch CRT display
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions with uncompromising quality. With over two decades of expertise, our products are trusted by healthcare professionals worldwide. Designed for reliability, precision, and ease of use, this portable ultrasound scanner is an indispensable tool for hospitals, clinics, research institutions, and home care settings.
Experience the future of diagnostic imaging with GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge medical imaging solution designed to deliver precision, reliability, and versatility for healthcare professionals. Engineered with advanced technology, this device is ideal for hospitals, clinics, research institutions, and home healthcare settings, offering unparalleled performance in diagnostic imaging.
Key Features and Specifications
- Material: Constructed from high-grade metal for enhanced durability and longevity.
- Instrument Classification: Class II medical device, ensuring compliance with rigorous safety and performance standards.
- Safety Standard: Meets GB/T18830-2009 requirements, guaranteeing safe and reliable operation.
- Place of Origin: Proudly manufactured in Jiangsu, China, known for its excellence in medical device production.
- Power Source: Fully electric, providing consistent and efficient performance.
- Shelf Life: 1 year, ensuring optimal functionality and reliability.
- Quality Certification: CE-certified, reflecting adherence to international quality benchmarks.
Imaging Capabilities
- Display Modes: Supports multiple modes including B, B/B, 4B, B+M, and M for comprehensive diagnostic flexibility.
- Dynamic Range: Adjustable from 0~120dB, enabling precise control over image clarity and detail.
- Scanning Modes: Equipped with both convex array and linear array options for diverse clinical applications.
- Focus Position: Features dynamic digital electron focusing point-by-point for sharp, accurate imaging.
- Puncture Guide: Clearly displayed under B mode, aiding in guided procedures with precision.
- Permanent Storage: Capable of storing up to 128 images for convenient access and review.
- Image Playback: Supports one-by-one playback for detailed analysis and comparison.
After-Sale Support and Warranty
- Warranty: Backed by a 2-year warranty, ensuring peace of mind and long-term reliability.
- After-Sale Service: Access to online technical support, providing expert assistance whenever needed.
Packaging and Delivery
- Packaging Details: Securely packaged in durable cartons to protect against transit damage.
- Package Dimensions: 99x99x99 cm per unit.
- Gross Weight: 99.000 kg per unit.
- Supply Ability: Monthly production capacity of 1000 units, ensuring timely delivery for bulk orders.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare providers to achieve exceptional patient outcomes. This device exemplifies our dedication to quality, precision, and user-centric design.
