Full Digital Portable Ultrasound Scanner BW Mode
Reference: 62446670728Ultrasonic, Optical, Electronic Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

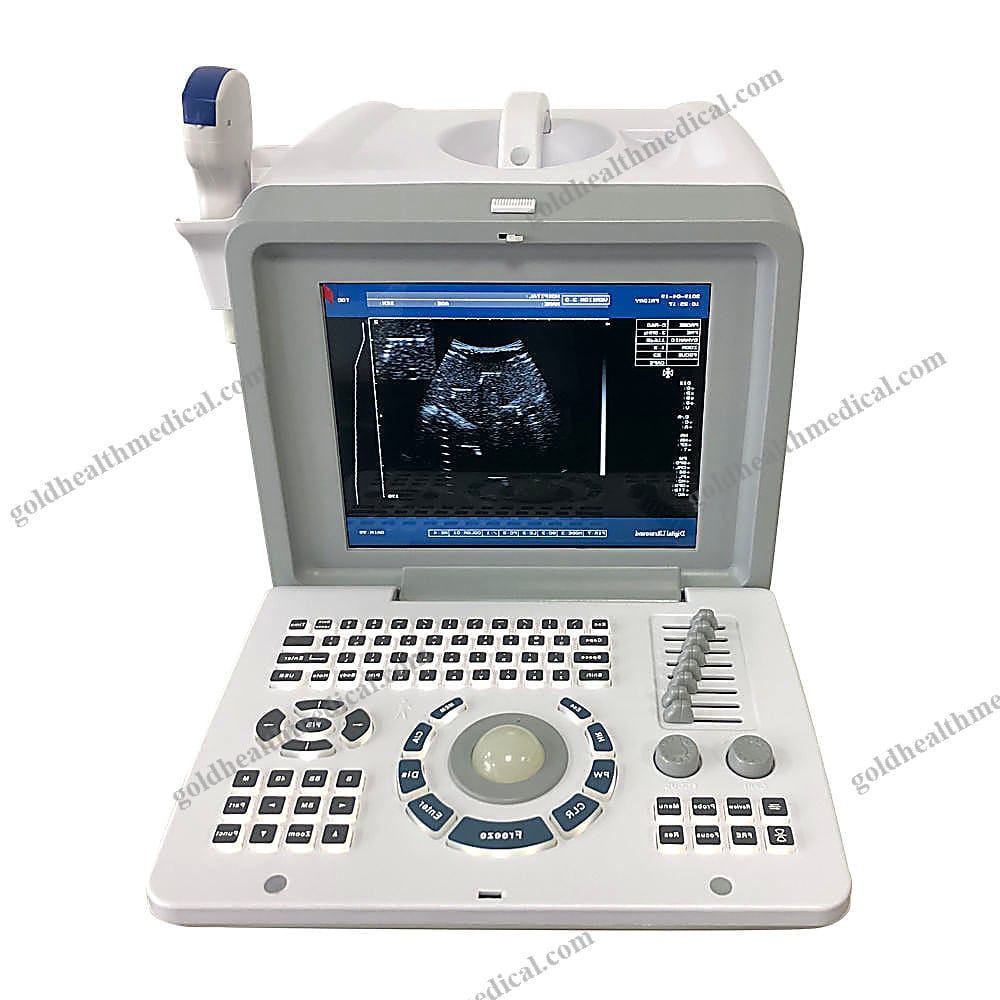

GoldHealth Medical Portable Ultrasound Scanner
Features:
- Advanced Memory Solutions: Equipped with mass memory, cine loop, and permanent storage for seamless image management.

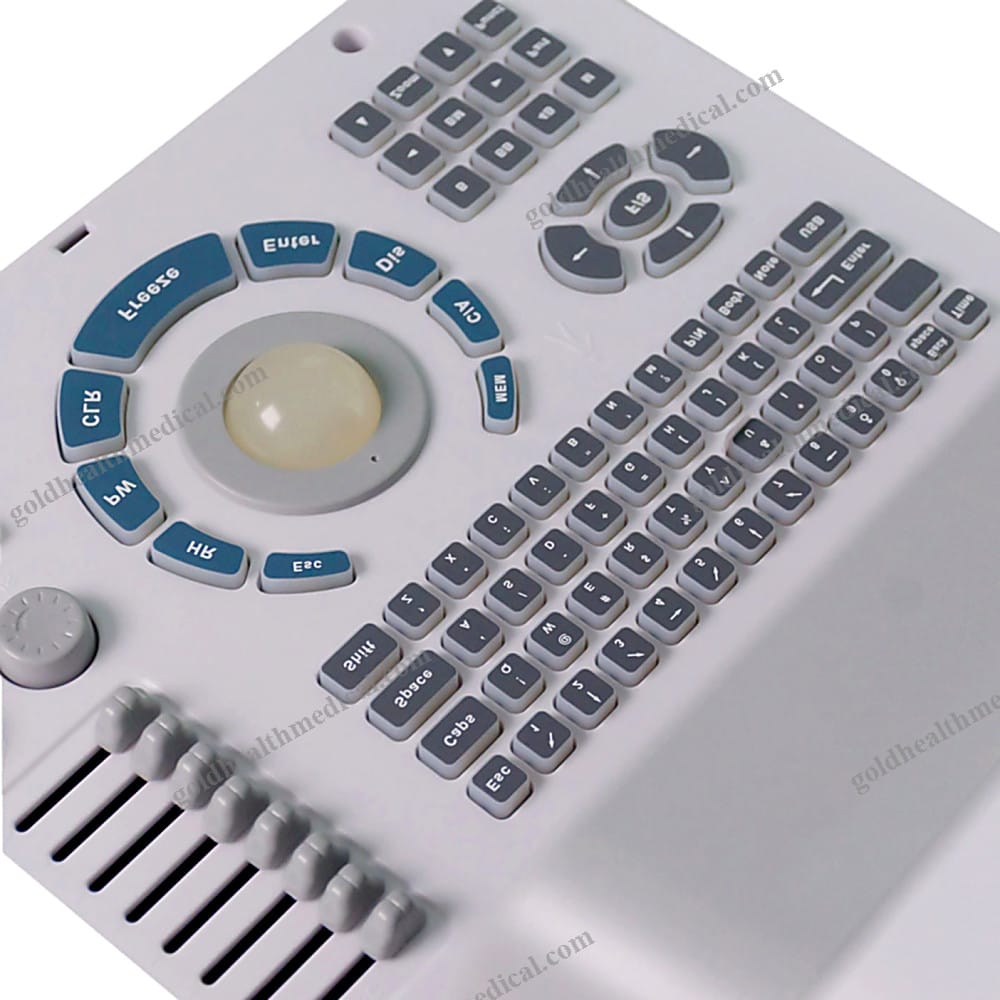

- Intuitive Control Options: Choose between Radium Caved buttons or Silicon backlit buttons for enhanced usability.
- Precision Trackball: Intelligent fluorescence trackball ensures accurate and responsive navigation.
- Comprehensive Gain Control: 8-segment TGC control and overall gain adjustment for precise imaging.
- Expandable Connectivity: 2 USB ports and upgraded printer functionality for versatile data handling.

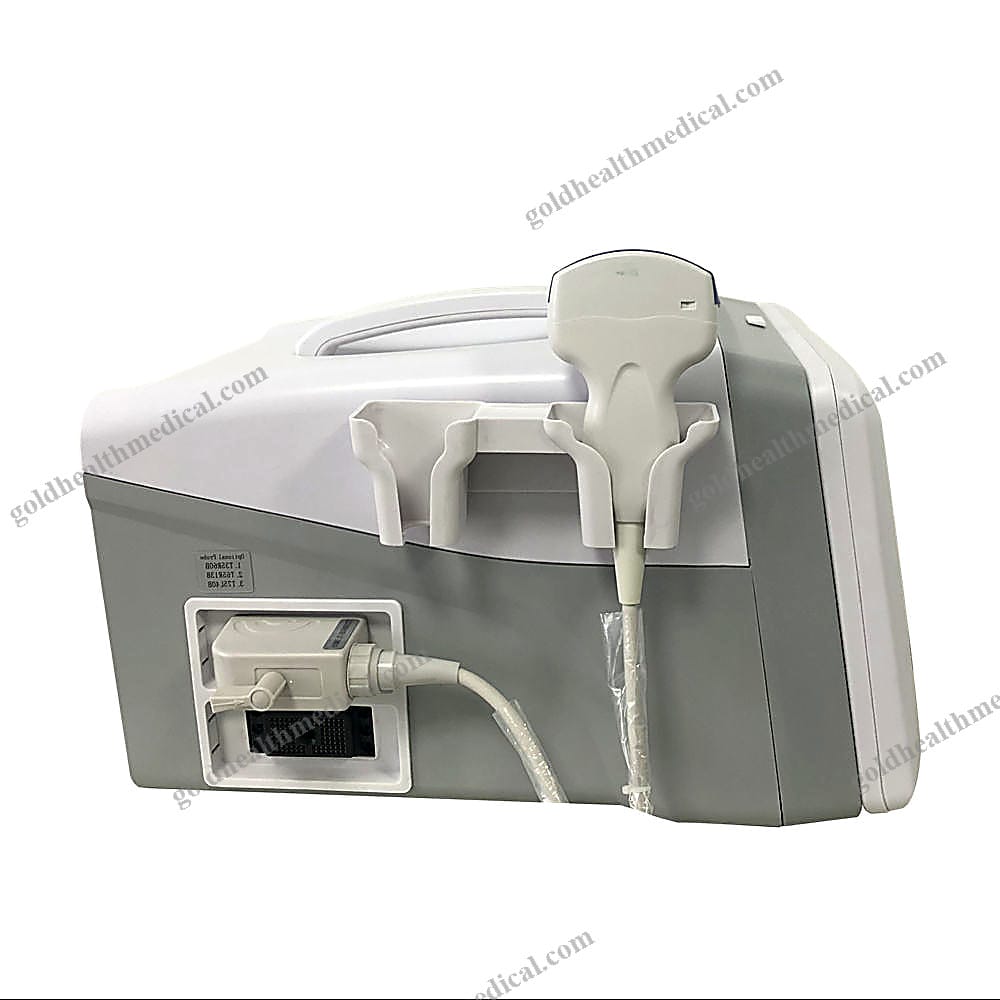

- Effortless Probe Management: 2 probe connectors with automatic probe identification for streamlined operations.
- High-Quality Video Outputs: 2 SVGA and 21 PAL video outputs for connection to video recorders and workstations.
- Automated Reporting: Report pages are generated automatically, saving time and effort.
- Customizable User Settings: Parameters are automatically set and saved based on user preferences, with the option to modify defaults in the menu.
Main Parameters:
Display Modes: - 3.5MHz Convex Array Probe: B, B/B, 4B, B+M, M - 5 MHz Dimpling Array Probe: B - 6.5MHz Dimpling Array Probe: B - 7.5 MHz Line Array Probe: B
Image Multiplying Factor: - 3.5MHz Convex Array Probe: x0.8, x1.0, x1.2, x1.5, x1.8, x2.0 (6 modes), x0.8, x2.0 (display penetration depth) - 6.5MHz Dimpling Array Probe: x0.8, x1.0, x1.2, x1.5 (4 modes) - 7.5MHz Line Array Probe: x0.8, x1.0, x1.2, x1.5 (4 modes)
E-zoom: Magnifies real-time images by 2 times.
Dynamic Range: Adjustable from 0~120dB.
Focus Position: 1, 2, 3, and 4-segment dynamic electron focusing.
Image Processing: Includes Ξ³ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement, and pseudo-color processing.
Frequency Conversion: Five frequency ranges (2.5MHz to 7.5MHz) to match high-frequency probes.
Measuring Function: Distance, circumference/area (ellipse, loci methods), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), expected date of confinement, and fetus weight.
Puncture Guide: Displays puncture guide line in B mode with the 3.5MHz convex array probe.
Gain Control: 8-segment TGC and overall gain adjustable independently.
Image Polarity: Left and right flip, black and white flip, up and down flip.
Capacity Cine Loop: Real-time display of 256 consecutive images.
Image Playback: Series playback or individual review.
Permanent Storage: Stores up to 128 images.

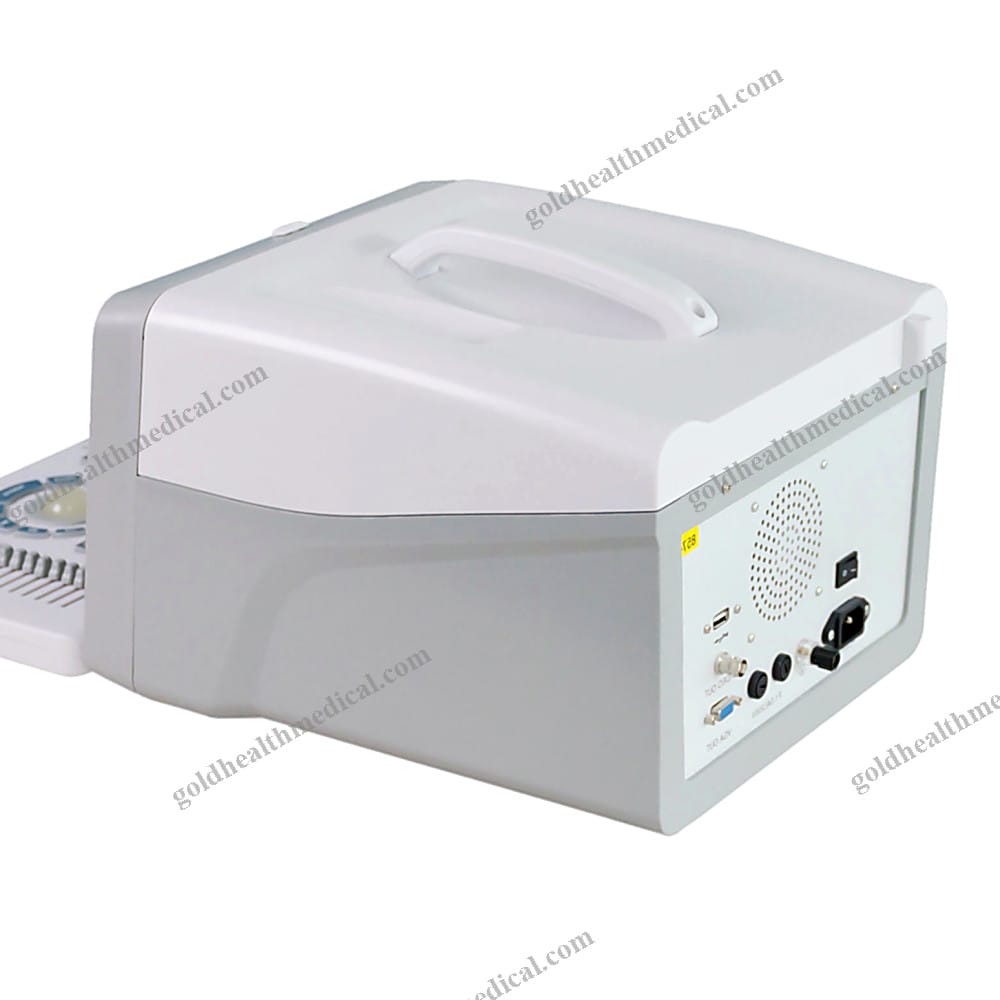

Output Interface: VGA video output for SVGA color display, PAL video output for PAL display, printer, video recorder, and image workstation.
USB Port: Facilitates image storage on USB flash disks.
Standard Configuration:
- One host machine
- One convex array probe: F=3.5MHz
- USB port
- 10-inch CRT display
GoldHealth Medical's portable ultrasound scanner is designed to deliver unparalleled precision and versatility, making it an indispensable tool for medical professionals across various settings. With its advanced features and customizable options, this device ensures optimal performance and reliability, setting a new standard in medical imaging technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Ultrasound Machine by GoldHealth Medical
Key Features and Benefits:
- Portable Design: Compact and lightweight, making it ideal for use in hospitals, clinics, research labs, and even home healthcare settings.
- Advanced Scanning Modes: Supports Convex, Linear Array, and Trans-vaginal scanning for versatile diagnostic applications.
- High-Quality Imaging: Equipped with a 12.4-inch LED screen, offering 256 levels of grayscale and a dynamic range adjustable from 0 to 120dB for unparalleled clarity.
- Multiple Display Modes: Includes B, B/B, 4B, B+M, and M modes to suit a wide range of clinical needs.
- Ample Storage: Stores up to 128 images permanently, ensuring critical data is always accessible.
Technical Specifications:
- Instrument Classification: Class II medical device
- Safety Standard Compliance: GB/T18830-2009
- Power Source: Electric
- Materials Used: Durable metal and high-quality plastic construction
- Shelf Life: 1 year
Certifications and Quality Assurance:
- Certified by CE and ISO standards, ensuring safety, reliability, and global compliance.
Warranty and Support:
- Warranty Period: 18 months for complete peace of mind.
- After-Sales Service: Access to online technical support for seamless troubleshooting and assistance.
Packaging Details:
- Selling Units: Single item
- Single Package Size: XX cm
- Single Gross Weight: XX kg
Unique Selling Points:
- Designed for precision and portability, this ultrasound machine is perfect for professionals seeking advanced imaging capabilities in a compact form.
- Its user-friendly interface and adjustable settings make it adaptable to various medical environments, from large hospitals to remote clinics.
Experience the future of diagnostic imaging with GoldHealth Medicalβs Ultrasound Machine β where innovation meets reliability.
