Full Digital Portable Ultrasound Machine with 12 Inch Screen for Hospital Examination
Reference: 1601246486241Medical Ultrasound Instruments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

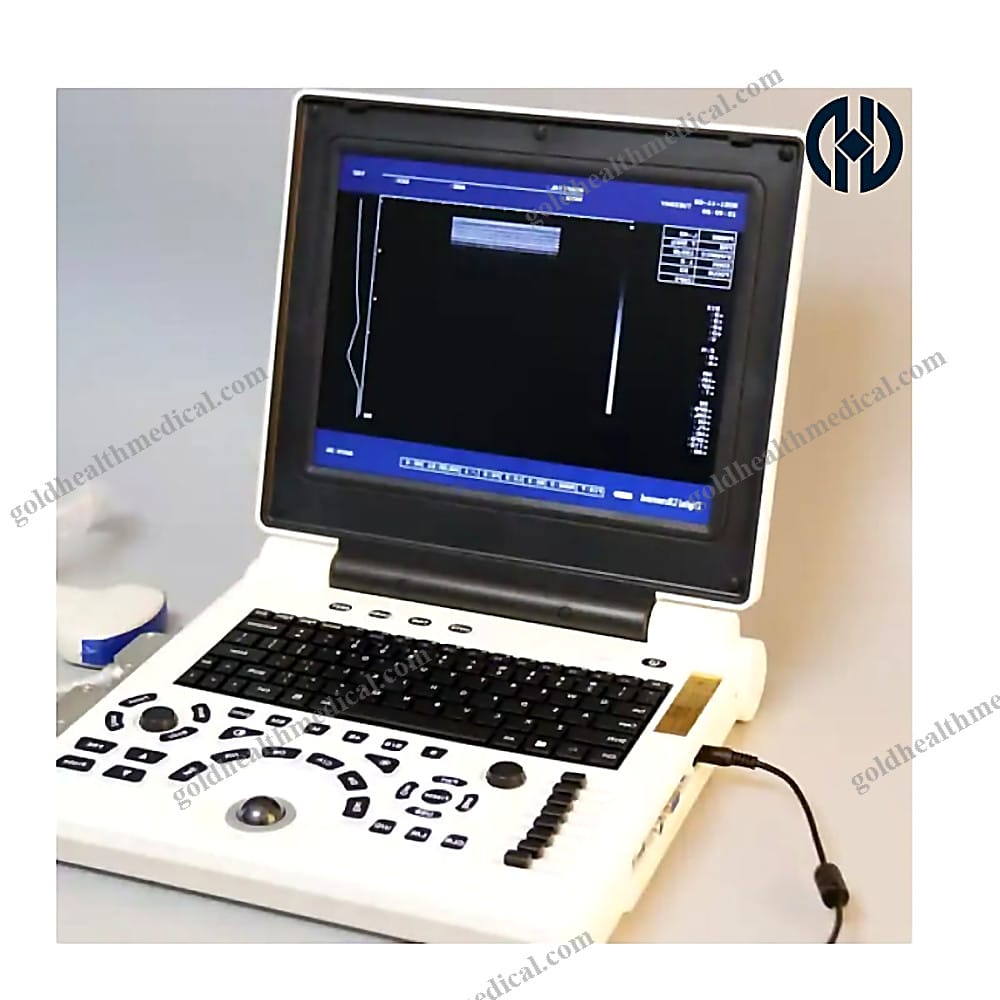

GoldHealth Medical Full Digital Portable Ultrasound Machine
Experience the future of medical imaging with GoldHealth Medical's Full Digital Portable Ultrasound Machine. Designed for versatility and precision, this device is engineered to meet the needs of modern healthcare environments.
Key Features
- Multi-Application Versatility: Ideal for abdomen, OB/GYN, small parts, peripheral vessels, urology, cardiac, rectum, pediatric, orthopedic, galactophore, intra-operative, and ultrasound-guided biopsy.
- Continuous High-Precision DBF: Delivers high-resolution imaging for accurate diagnostics.
- Parallel Scanning: Ensures a faster 2D frame rate for efficient scanning.
- PC Platform with Windows 7 Embedded O/S: Offers a simple, direct, and user-friendly workflow. Customized PC motherboard ensures system stability and reliability. Write protection of the ultrasound control program safeguards against virus attacks and power outages. One-click operation system restoration.
Complete Digital Solution
- Digital Core Module with DBF: Enhanced screen display with digital display via DVI.
- Digital Printing: Clearer printing without the need for adjustments.

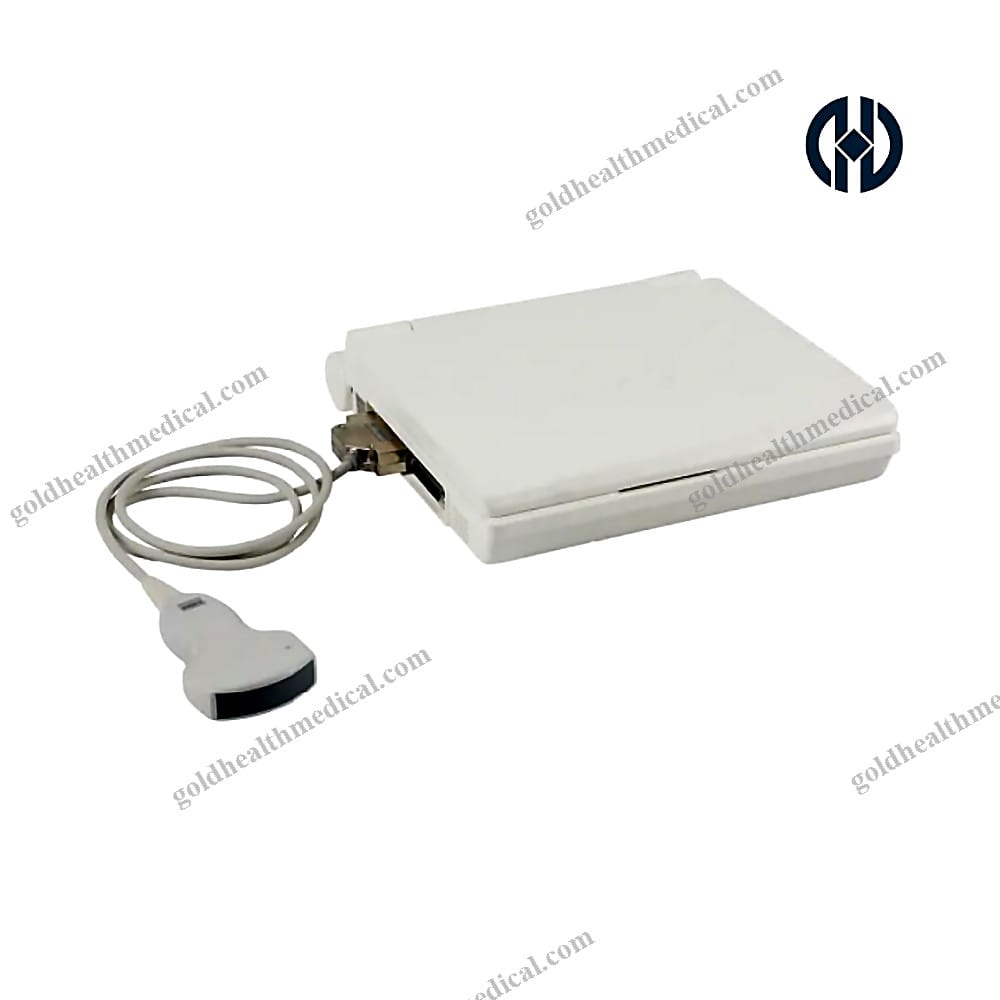

- Transducer: Self-owned transducer workshop with multi-frequency transducer series. Max frequency up to 12MHz.
- Multi-Language Interface: Supports English, French, Spanish, Polish, and more.
Advanced Specifications
- Operating System: Windows 7
- Display: 12-inch HD LCD monitor
- Probe Support: Convex, linear, trans-vaginal, micro-convex
- Display Modes: B/2B/4B/M/CFM/B+CFM/PDI/B+PDI/PW
- Design: Thin and light notebook design
- THI (Tissue Harmonic Imaging): For enhanced image clarity
- Storage: Built-in 120GB SSD
- Battery: Large capacity rechargeable battery
- Optional 3D Imaging: For advanced diagnostic capabilities
- Adaptive Image Optimization: Processing technology for superior image quality
- Automatic IMT Measurement: Displays results instantly
- Built-in Editable Report Page: Streamlines documentation
- Active Probe Interfaces: Dual probe sockets
Probe Selection and Frequency
- Convex Array Probe: Real-time scan at 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz
- Trans-vaginal Probe/Linear Array Probe: Real-time scan at 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz
Focus Position
- Sending: 1, 2, 3, and 4-segments dynamic electronic focusing; focus can be moved in 1,2 segments.
- Receiving: Real-time dynamic focus by focus.
Main Specifications
- Scanning Mode: Electronic scanning
- Display Modes:
- Convex Array Probe: B, B/B, 4B, B+M, M
- Micro Convex Probe: B, B/B, B+M, M
- Cavity Probe: B
- Linear Array Probe: B
- Image Multiplying Factor:
- Convex Array Probe: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0; ×0.8, ×2.0 (display penetration depth)
- Cavity Probe: ×0.8, ×1.0, ×1.2, ×1.5
Additional Features
- Display Size: 12-inch LCD screen
- Display Modes: Support B, B/B, 4B, B/M & M display modes

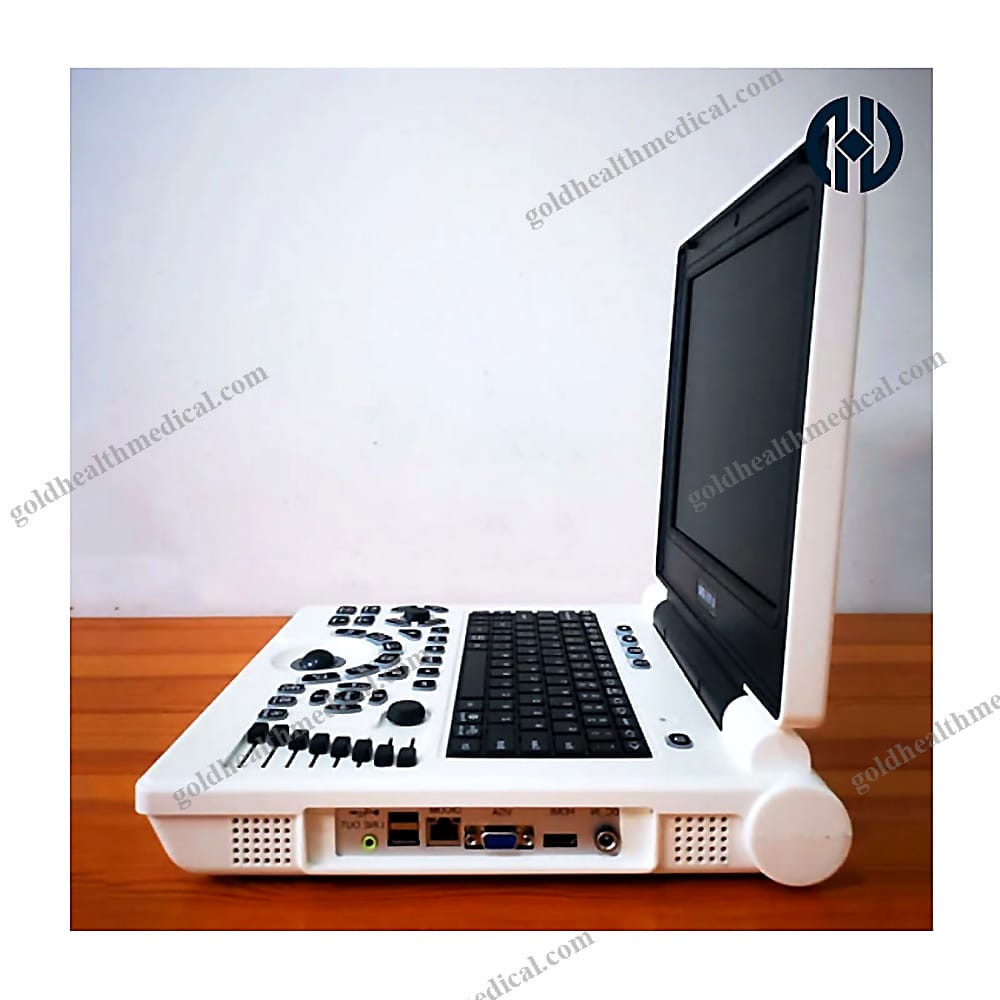

- External Interface: PAL video output, SVGA video output, USB
- Storage Space: 128 permanent storage
- Image Optimization: Support IMT automatic measurement & THI (Tissue Harmonic Imaging)
- Report Page: Support editable report page
- Battery Capacity: Built-in lithium battery with 2-hour standby
- Probe Interface: Dual probe socket
- System: Singlechip (SCM)
- Language: Support for multiple languages including English and Chinese
GoldHealth Medical is committed to delivering high-quality, reliable medical devices that enhance patient care and streamline clinical workflows. Our Full Digital Portable Ultrasound Machine is a testament to our dedication to innovation and excellence in the medical field.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Ultrasound Machine, a cutting-edge diagnostic tool designed to deliver unparalleled precision and versatility. Engineered for healthcare professionals, this device combines advanced imaging technology with a user-friendly interface, making it ideal for hospitals, clinics, research labs, and home healthcare environments.
Key Features
- Superior Imaging Capabilities: Equipped with multiple display modes including B, 2B, 4B, B+M, CFM, PDI, and PW, this machine ensures crystal-clear imaging for accurate diagnostics.
- Large High-Resolution Screen: A 12.1-inch display provides exceptional clarity, enabling detailed visualization of anatomical structures.
- Multilingual Support: Available in English, Russian, Spanish, and French, catering to a global audience.
- Built-in Battery: Ensures uninterrupted performance, offering flexibility in various clinical settings.
- Windows Operating System: Delivers seamless operation and easy integration with existing workflows.
Technical Specifications
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Power Source: Electric, with energy-efficient performance.
- Material: Durable, high-quality plastic construction for longevity and portability.
- Shelf Life: 3 years, maintaining optimal functionality over time.
- Quality Certifications: Compliant with CE and ISO standards, guaranteeing world-class quality.
Package Details
- Dimensions: 49 x 46 x 25 cm (compact and easy to transport).
- Weight: 5.5 kg, lightweight yet robust for effortless mobility.
Warranty and Support
- Warranty: 3-year comprehensive warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring quick resolution of any queries or issues.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to redefining healthcare through innovation. Our ultrasound machine stands out with its advanced features, ergonomic design, and exceptional durability, empowering medical professionals to deliver the highest standard of care. Whether for routine diagnostics or specialized applications, this device is your trusted partner in achieving precision and efficiency.
Ordering Information
- Minimum Order Quantity (MOQ): 1 unit, making it accessible for both large institutions and individual practitioners.
Experience the future of medical imaging with GoldHealth Medical’s Ultrasound Machine – where precision meets performance.
