FTL50DRB3 Dual Column Digital XRay System
Reference: 1601269150846Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

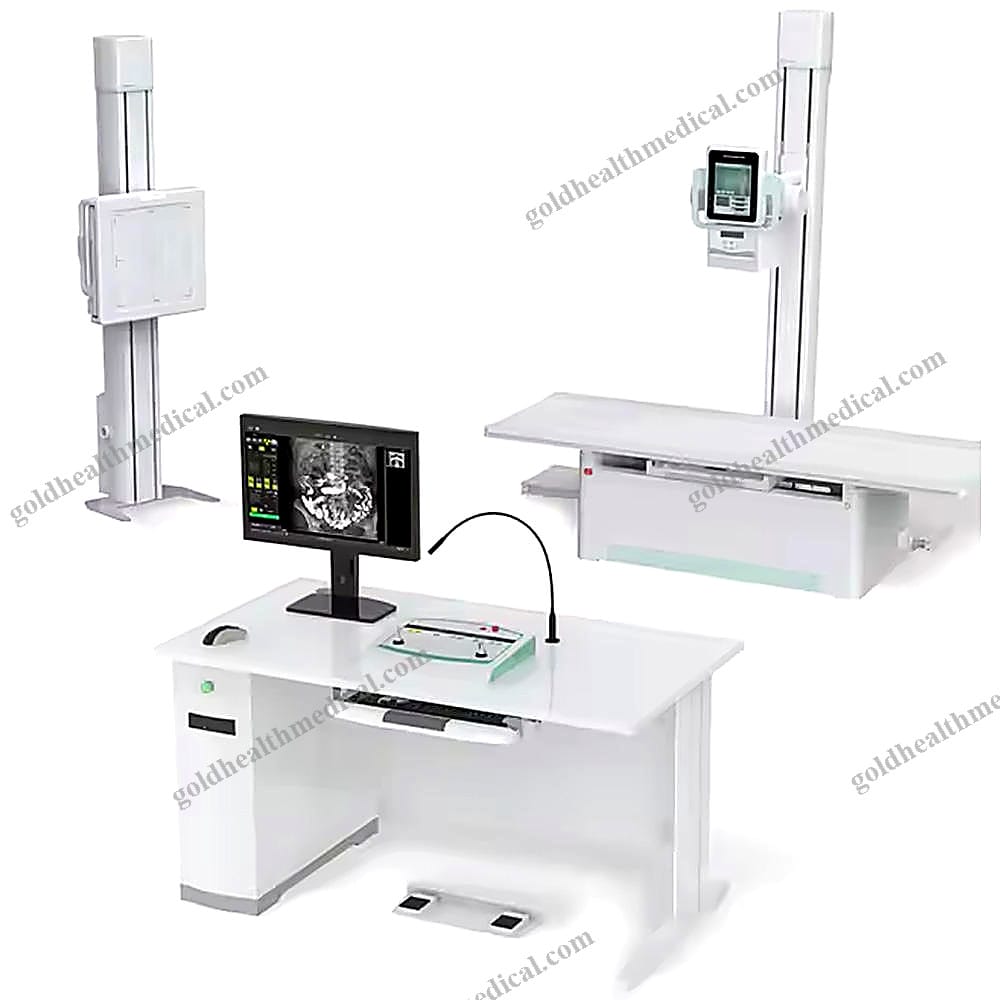

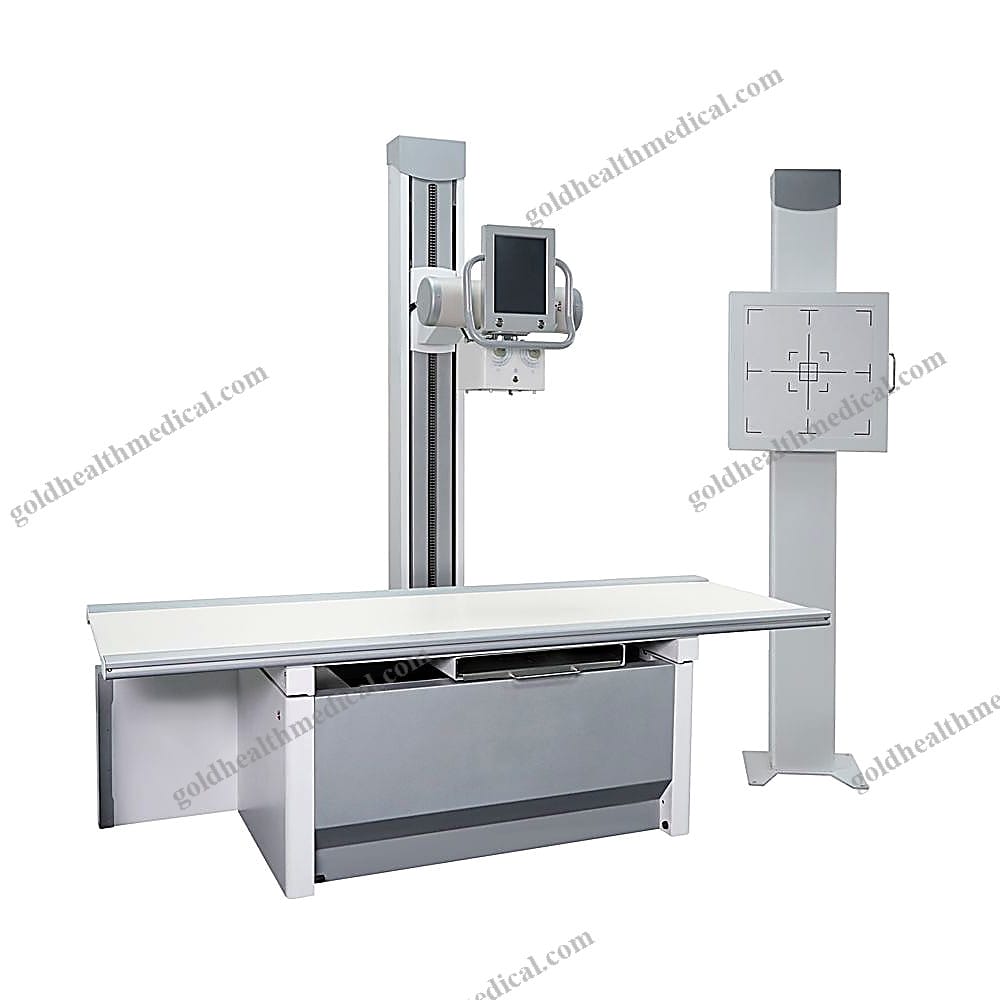

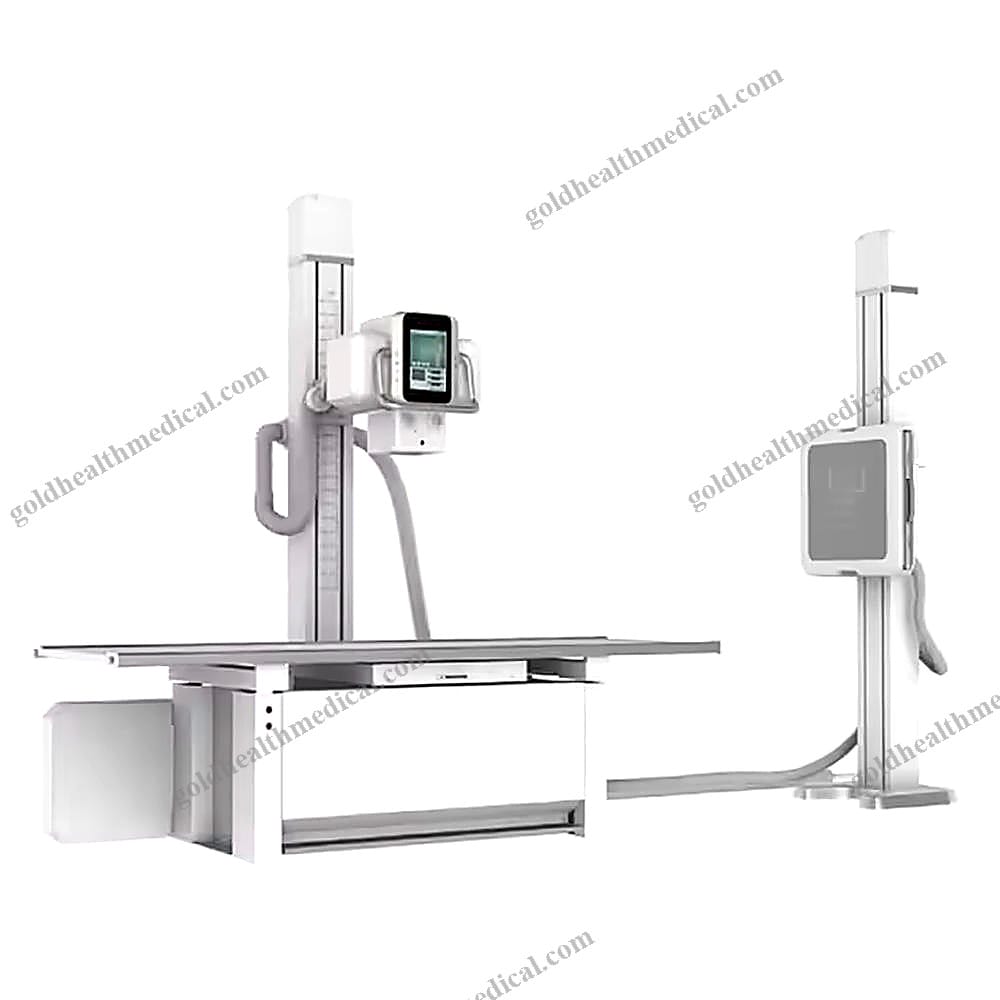

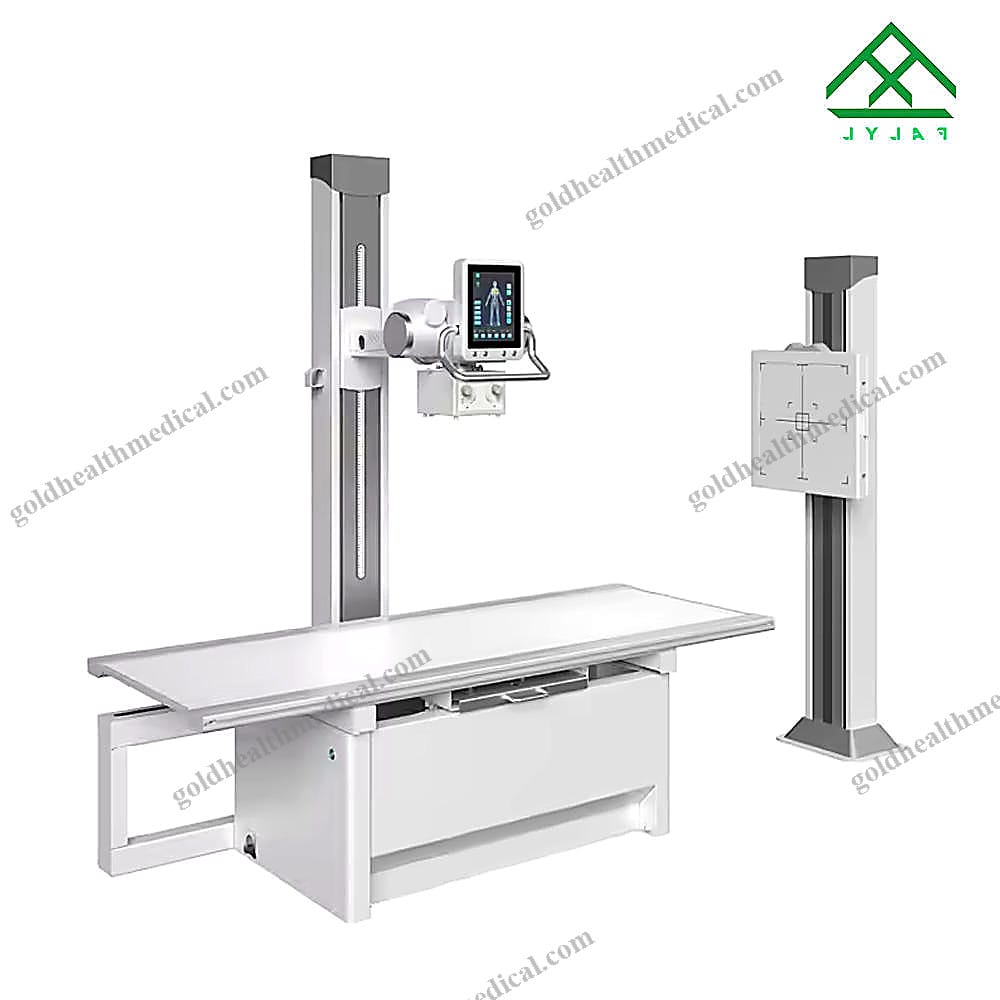

GoldHealth Medical All-in-One Digital X-ray System
Revolutionize radiography with GoldHealth Medicalβs cutting-edge floor-to-ceiling digital X-ray system. Designed for precision, safety, and versatility, this system is ideal for hospitals, clinics, research labs, and more. Featuring advanced imaging technology and a robust design, it ensures unparalleled performance and reliability.
Product Highlights
- High-performance radiography with dual power options: 50kW and 65kW.
- Advanced safety features for both patients and operators.
- High-penetration imaging for superior diagnostic clarity.
- Durable construction for long-term use in demanding environments.
Technical Specifications
- Max. Power Output: 32kW (220V/380V available)
- Power Supply: 50Hz/60Hz, wire diameter >4mmΒ², internal resistance <0.5Ξ©
- KV Range: 40-125kV (adjustable in 1kV increments)
- mA Range: 10-400mA
- mAs Range: 0.1-320mAs
- Exposure Time: 0.001-10s (adjustable in 1ms increments)
- Focus: Dual focus (1.0x1.0mm / 2.0x2.0mm)
- Rotating Speed & Heat Capacity: 2800rpm / 1300KHU
- Inverter Frequency: 50kHz-220kHz
- Tube Movement: Up/down lift, left/right rotation
- Column: Left/right movable

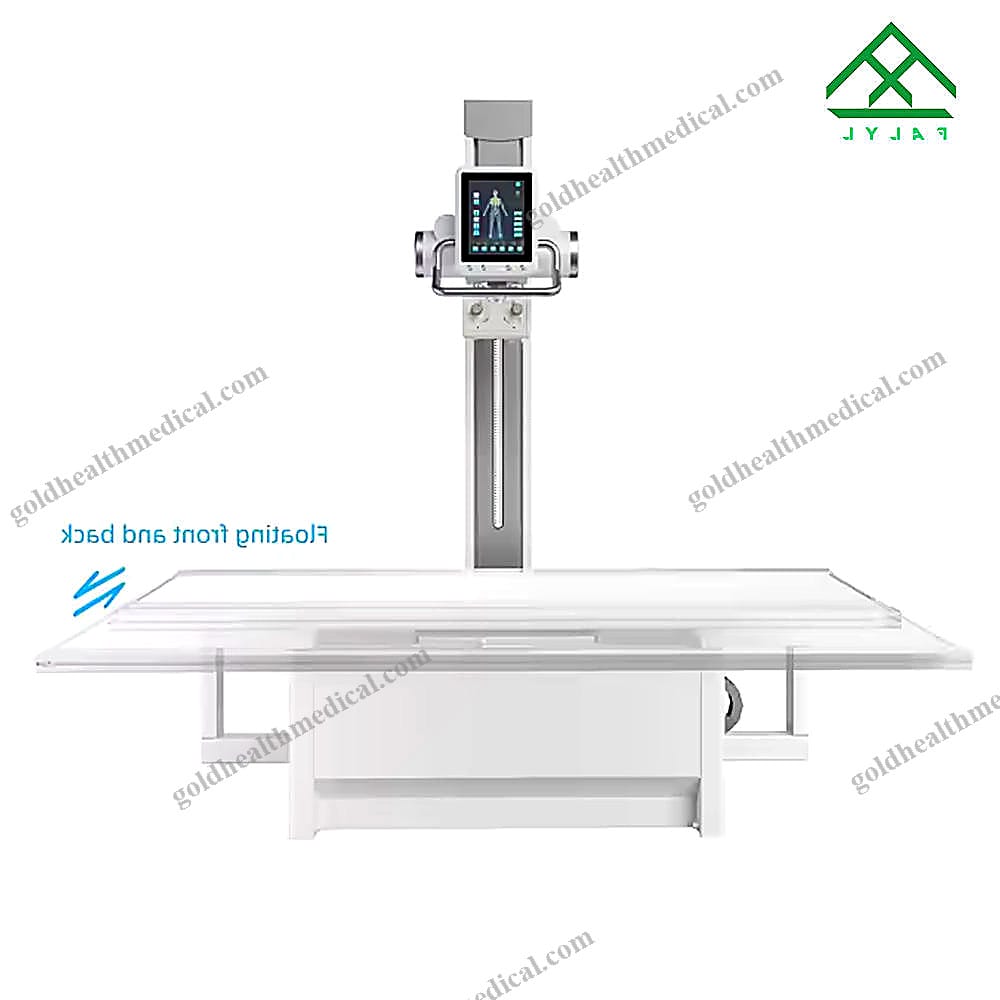

- Radiography Table: Four-way floating design
- Flat Panel Detector: Amorphous silicon cesium iodide
- Detector Size: 17x17 inches
- Pixel Resolution: 3072x3072
- Pixel Pitch: 139Β΅m
- A/D Conversion: 16-bit
- Spatial Resolution: 3.6lp/mm
- Detector Dimensions: 460x460x15mm
- Interface: Wired (wireless optional)
- Software: Professional medical software with multi-language support
- Workstation: Intel i5 CPU, 8GB memory, 2GB graphics card, 128GB SSD, RS232 interface, 22.5-inch display
Why Choose GoldHealth Medical?
- Versatility: Suitable for clinics, hospitals, laboratories, and mobile units.
- Customization: Tailored solutions to meet specific power and mobility needs.
- Efficiency: Quick production times for small to medium orders.
- Global Reach: Trusted by healthcare providers and distributors worldwide.
Applications
- Hospitals and clinics
- Community health programs
- University research facilities
- Government tenders and laboratory use
- Mobile diagnostic units
GoldHealth Medicalβs digital X-ray system is engineered to deliver exceptional imaging quality, operational flexibility, and long-lasting durability. Elevate your diagnostic capabilities with a system designed to meet the demands of modern healthcare.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Double Column X-ray Machine by GoldHealth Medical
Key Features:
- Unmatched Durability & Precision: Crafted with high-quality metal materials, this X-ray machine is built to last while delivering consistent, reliable performance.
- Advanced Technology: Operates at a working frequency of 50kHzβ220kHz, ensuring superior imaging quality for accurate doctor diagnoses.
- Ease of Use: Designed with user-friendly controls, making it convenient for medical professionals to operate with minimal training.
- Versatile Application: Ideal for hospitals, clinics, research labs, and rehabilitation centers, supporting a wide range of diagnostic needs.
Technical Specifications:
- Power Source: Electric
- Frequency: 50Hz/60Hz
- Instrument Classification: Class II
- Shelf Life: 1 year
- Place of Origin: Guangdong, China
- Ports: Guangzhou, Shenzhen
Unique Advantages:
- GoldHealth Medical Expertise: As a professional manufacturer, we bring years of industry experience and innovation to every product.
- Comprehensive Support: Backed by a 1-year warranty and online technical support, ensuring peace of mind for your operations.
- Secure Packaging: Each unit is carefully packed in a robust wooden box to ensure safe delivery.
Certifications & Compliance:
- CE-certified for safety and quality assurance.
Why Choose GoldHealth Medical?
Our Double Column X-ray Machine combines cutting-edge technology, durability, and ease of operation to meet the rigorous demands of modern healthcare environments. Whether for clinical diagnostics or advanced research, this machine is engineered to deliver exceptional results every time.
Color Options: Available in the color shown in product images.
Applications: Specifically designed for doctor's diagnoses, this machine is a vital tool for accurate and efficient medical imaging.
GoldHealth Medical β Elevating Healthcare Standards Worldwide.
