FPDXRay Pro Wireless Flat Panel Detector for Digital Radiography Systems
Reference: 60778517989High-Energy-Ray Medical Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

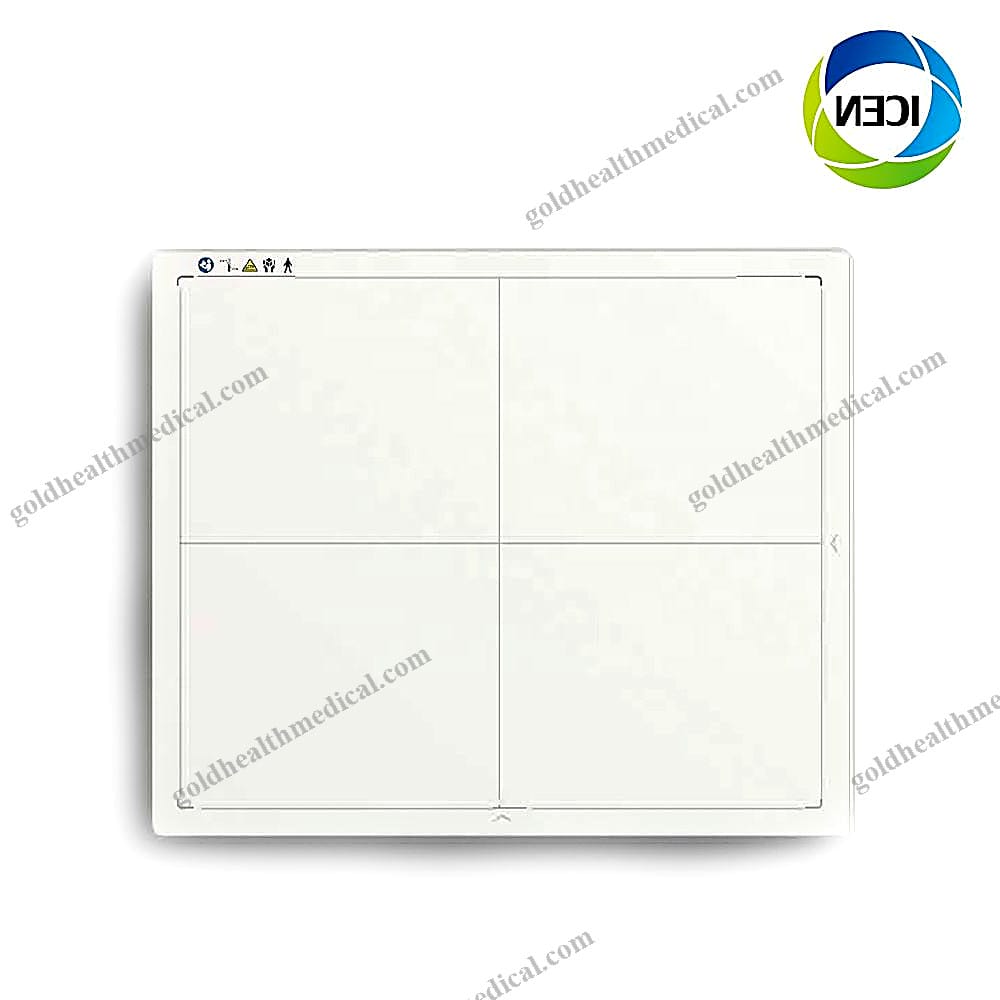

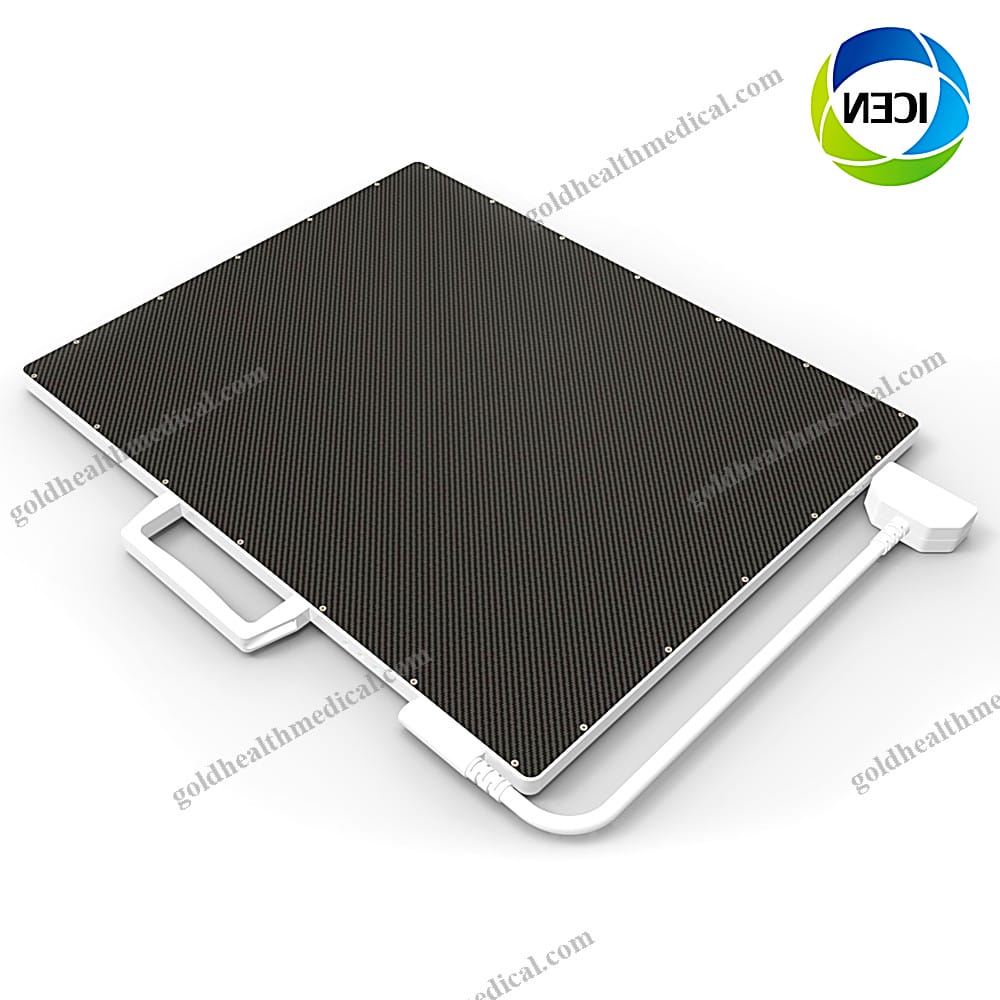

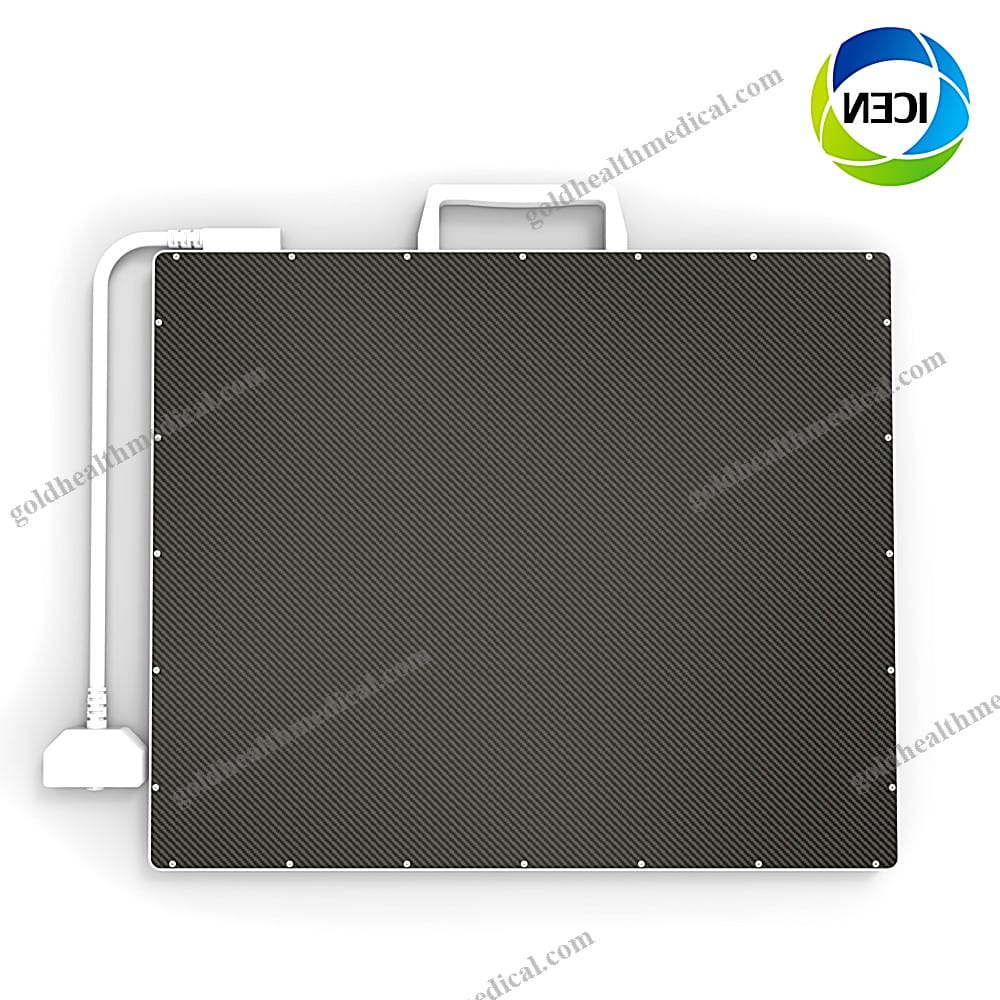

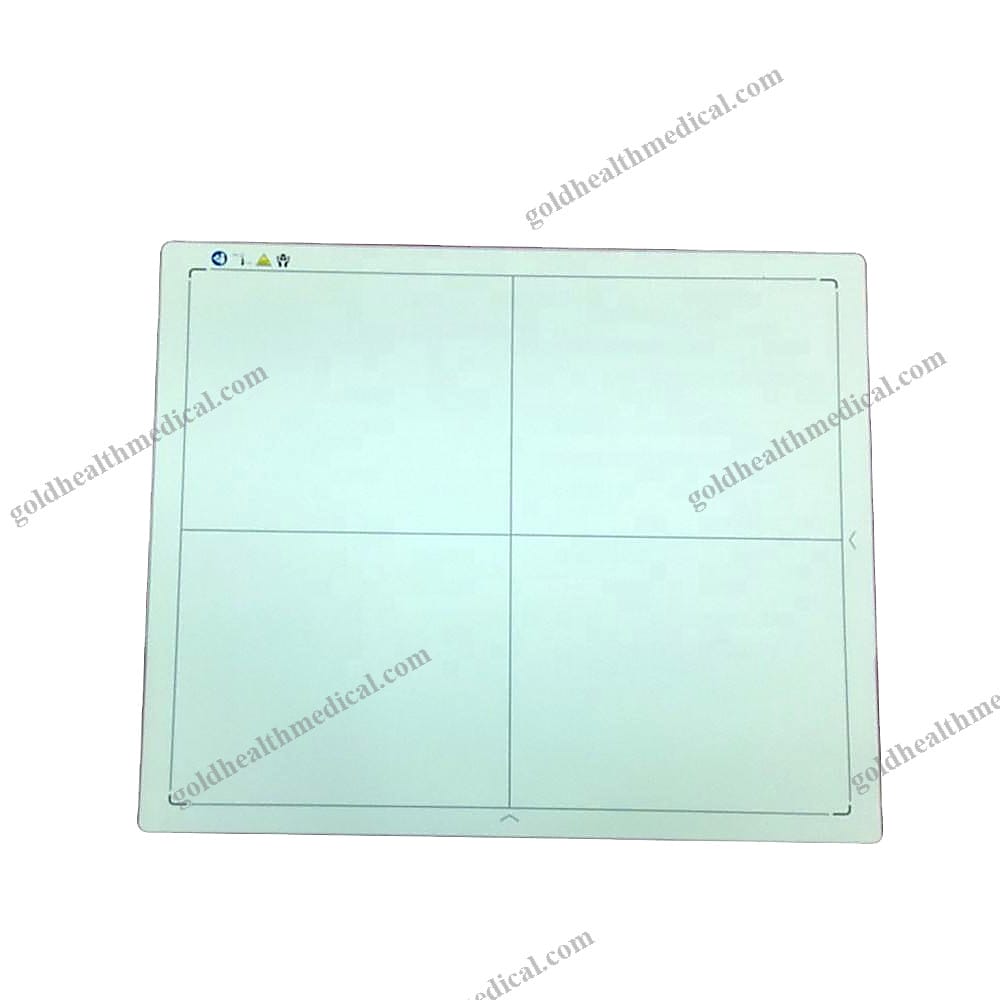

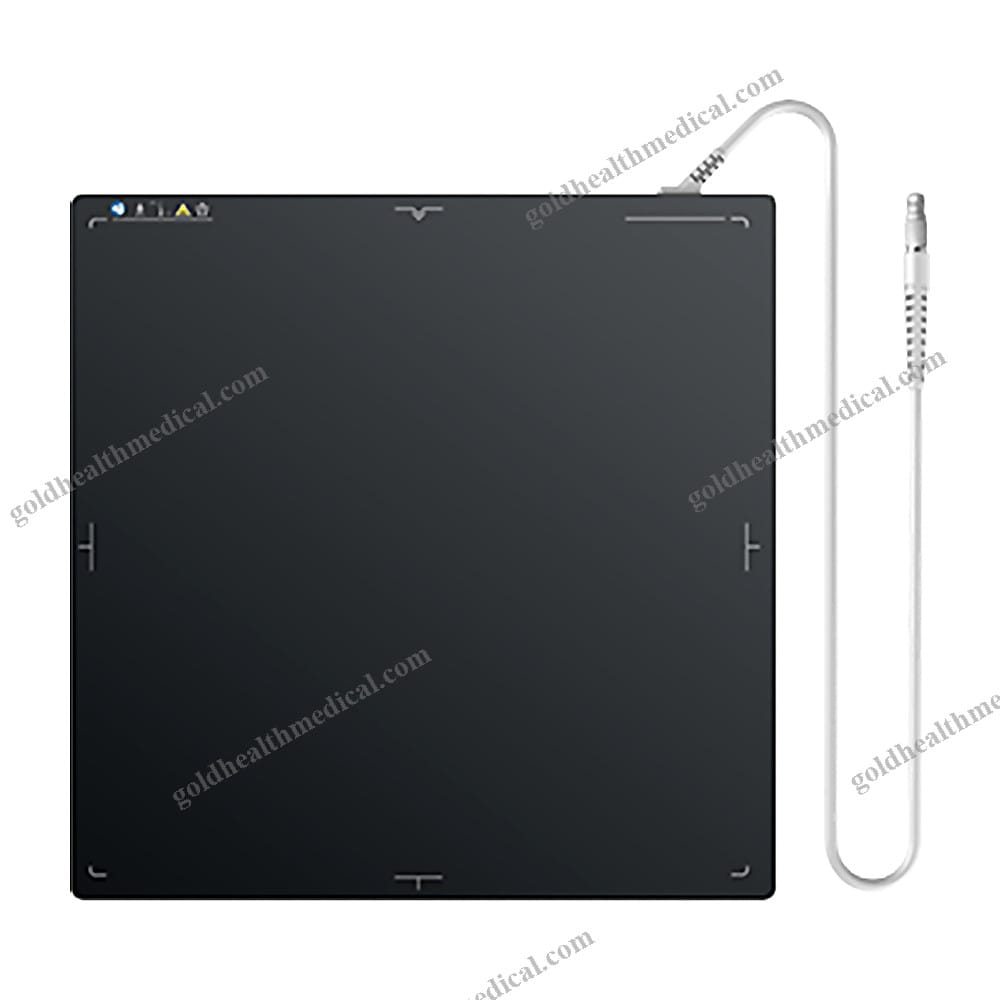

Wireless X-ray Flat Panel Detector by GoldHealth Medical
GoldHealth Medical presents a cutting-edge wireless X-ray flat panel detector designed to revolutionize medical imaging. Engineered with precision and reliability in mind, this detector is ideal for hospitals, clinics, research institutions, and more.
Key Features and Technical Specifications
- Detector Technology: Amorphous Silicon
- Scintillator Options: Csl/GOS
- Active Area: 345.6 mm x 420 mm
- Pixel Pitch: 150 μm
- Number of Pixels: 2304 x 2800
- Spatial Resolution: 3.4 Ip/mm
- AD Conversion: 14-bit
- Preview Image Speed: 3 seconds
- Full Image Speed: 7 seconds
- Data Interface and Control: WiFi-enabled
- Trigger Modes: AED, Software, Inner
- Wireless Standard: IEEE 802.11n
- Internal Image Storage: Up to 200 images
- Battery Life: 3.5 hours
- Charging Time: 2.5 hours
- Operating Temperature: 10°C to 35°C
- Storage Temperature: -20°C to 55°C
- Operating Humidity: 30% to 80% (non-condensing)
- Storage Humidity: 10% to 95% (non-condensing)
- Dimensions: 460 mm x 384 mm x 15.2 mm
- Weight: 3.5 kg (GOS) / 3.6 kg (Csl), excluding battery
- Power Consumption: 14 watts
Why Choose GoldHealth Medical?
GoldHealth Medical is a trusted name in the medical equipment industry, offering innovative solutions tailored to meet the needs of healthcare professionals. Our wireless X-ray flat panel detector stands out with its advanced imaging capabilities, seamless wireless connectivity, and robust design. Designed for efficiency and precision, it ensures high-quality diagnostic imaging while maintaining ease of use.
Unique Selling Points
- High-Resolution Imaging: Achieve exceptional clarity with 3.4 Ip/mm spatial resolution and 14-bit AD conversion.
- Wireless Freedom: Operate effortlessly with IEEE 802.11n wireless technology, eliminating the constraints of cables.
- Rapid Imaging: Preview images in just 3 seconds and full images in 7 seconds, optimizing workflow efficiency.
- Compact and Lightweight: At only 15.2 mm thick and weighing as little as 3.5 kg, it’s portable and easy to handle.
- Reliable Performance: Built to perform in diverse environments, from hospitals to field clinics.
GoldHealth Medical is committed to delivering excellence in medical technology. Our products are designed to empower healthcare providers with tools that enhance patient care and streamline operations. Partner with us to experience innovation that makes a difference.
Applications
- Hospitals and Clinics
- Diagnostic Laboratories
- Research Institutions
- Mobile Medical Units
- Rehabilitation Centers
- Home Healthcare Settings
Transform your imaging capabilities with GoldHealth Medical’s wireless X-ray flat panel detector—a perfect blend of precision, portability, and performance.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Wireless Flat Panel Detector by GoldHealth Medical
Product Overview:
The Wireless Flat Panel Detector from GoldHealth Medical is a cutting-edge solution designed for high-precision imaging in medical, research, and diagnostic environments. Engineered with advanced technology, this detector delivers exceptional image quality, portability, and reliability, making it an ideal choice for hospitals, clinics, laboratories, and home healthcare settings.
Key Features and Specifications:
- Active Area: 345.6 x 420 mm, ensuring comprehensive coverage for accurate imaging.
- Pixel Pitch: 150 μm, providing unparalleled image resolution and clarity.
- Power Consumption: Just 14W, offering energy efficiency without compromising performance.
- Internal Image Storage: Capable of storing up to 200 images, enabling seamless operation in remote or mobile settings.
- Wireless Connectivity: Equipped with IEEE 802.11n for fast, reliable data transfer without the constraints of cables.
- Lightweight Design: Weighing only 3.5 kg (GOS) / 3.6 kg (Gsl) without battery, ensuring effortless portability.
- Compact Dimensions: 460 x 384 x 15.2 mm, making it easy to integrate into various clinical environments.
Performance Highlights:
- Classified as a Class I medical instrument, ensuring safety and precision.
- Powered by an electric source, delivering consistent and dependable performance.
- Engineered for high-energy-ray medical equipment applications, meeting the demands of advanced imaging needs.
Packaging and Delivery Details:
- Selling Units: Single item
- Single Package Size: 50 x 50 x 50 cm
- Single Gross Weight: 2.000 kg
Quality Assurance:
- Backed by GoldHealth Medical’s commitment to excellence, this detector is CE-certified, guaranteeing compliance with international standards.
- Comes with a 12-month warranty, ensuring peace of mind for users.
- Supported by online technical support, providing expert assistance whenever needed.
Why Choose GoldHealth Medical’s Wireless Flat Panel Detector?
This detector combines innovative engineering with user-centric design, delivering superior imaging capabilities in a compact, portable format. Whether you’re conducting X-ray diagnostics in a hospital or performing fieldwork in remote locations, this device ensures precision, efficiency, and reliability. Elevate your imaging capabilities with GoldHealth Medical’s state-of-the-art technology.
