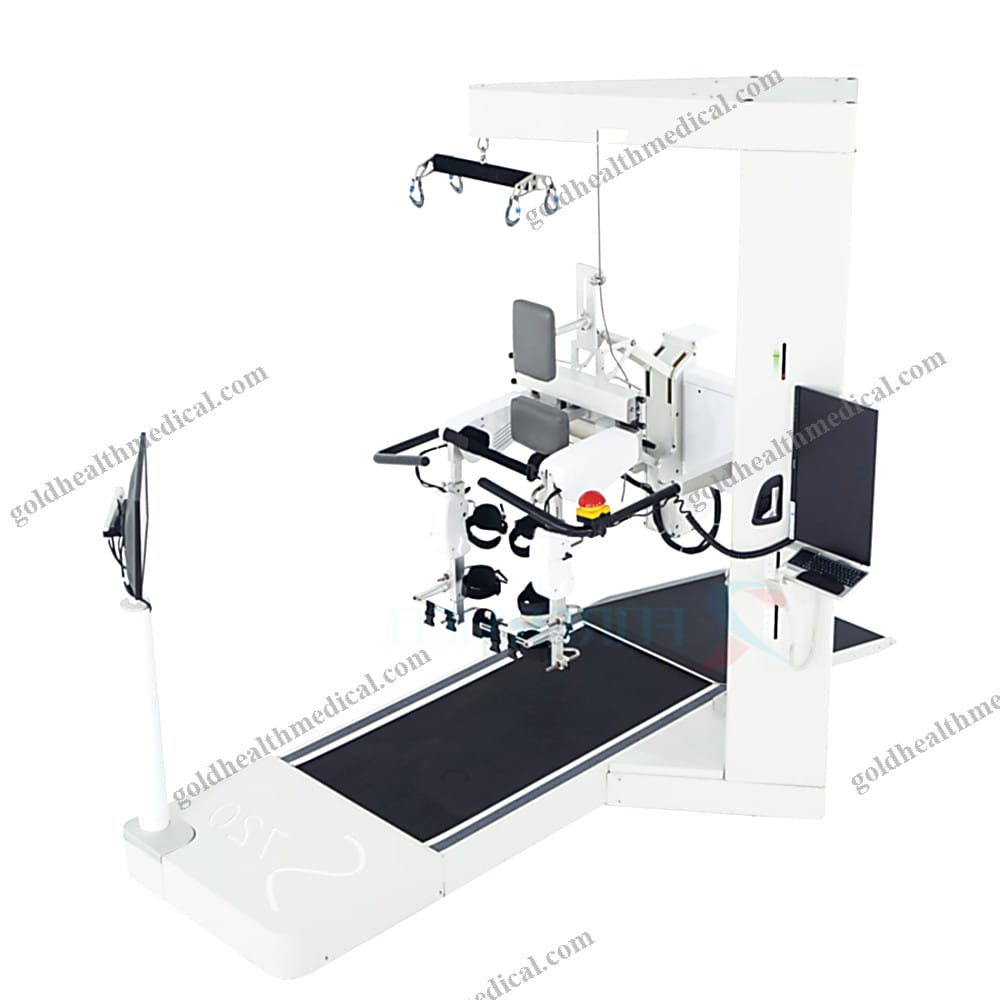

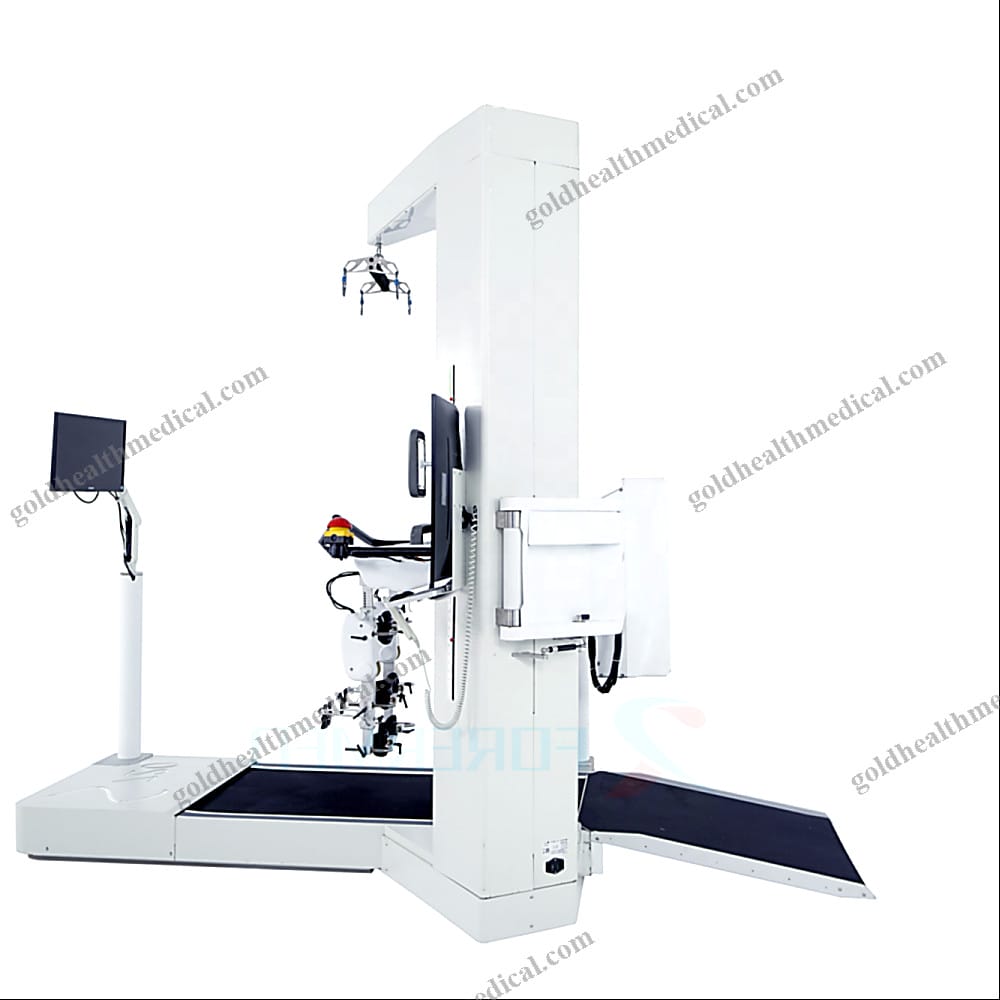

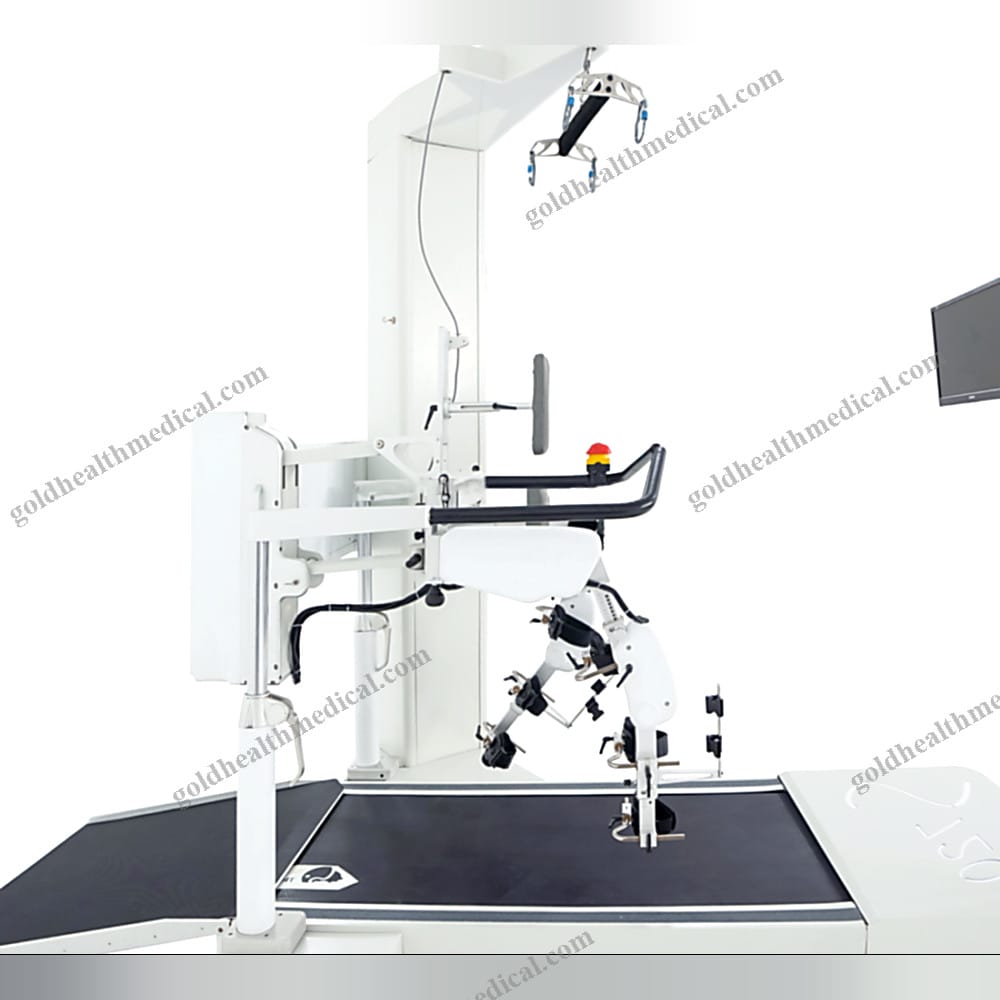

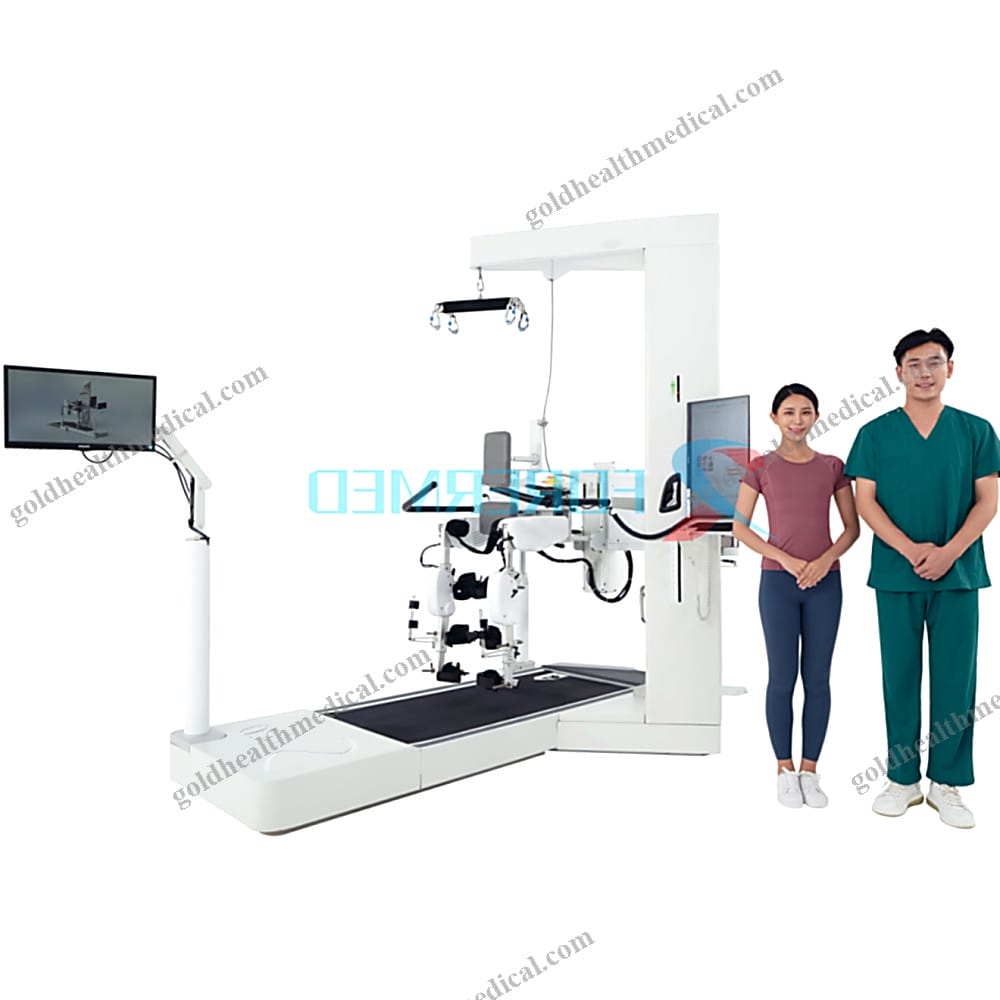

Exoskeleton Gait Training Rehabilitation System
Reference: 1601187464204Physical Therapy Equipment
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents an advanced robot-assisted gait training system, a cutting-edge rehabilitation solution designed for patients with mobility impairments. This innovative walking device offers simultaneous control of unweighting, posture, and balance, making it ideal for use on both treadmills and firm surfaces. With its dynamic unweighting capabilities, this system is a versatile tool for addressing a wide range of gait disorders. It ensures proper posture, reduces physical strain, eliminates balance challenges, and enhances motor coordination during training.
The system features uniquely designed harnesses that provide unilateral or bilateral body support, allowing for gradual adjustments from fully loaded to fully unloaded states. Additionally, it enables precise manual control of lower limb and pelvic movements, ensuring optimal motion patterns. Its configurability makes it adaptable to various patient needs, while optional extras allow for further customization, creating the ultimate Partial Weight Bearing System for any facility.
Key Features:
- Operating Platform: A 23-inch host computer powered by Windows 10, featuring dual displays (portrait and landscape).
- Human-Machine Interface: Dual-screen setup includes a vertical display with wireless controls for therapists and a horizontal screen for patients, enabling immersive situational interactive training.
- Virtual Scene Training: Immersive virtual walking environments enhance treatment engagement and make rehabilitation more enjoyable.
- Walking Training Method: Simulates natural human gait patterns, displaying real-time gait curves for precise monitoring.
- Training Drivers: Four Panasonic servo motors control hip and knee movements for each leg, with adjustable training speeds ranging from 0.1 km/h to 3.5 km/h. Hip joint angles: 30°–50°; Knee joint angles: 50°–80°.
- Training Modes: Supports both active and passive training modes with soft, continuously adjustable guidance forces.
- Gait Modes: Designed based on normal physiological gait curves, it effectively adjusts walking parameters such as hip and knee motion, step frequency, and speed.
- Spasticity Detection: Adjustable sensitivity (10%–100%) detects spasms, halting the treadmill and mechanical legs synchronously to ensure patient safety.
- User Information Management: Records detailed treatment data for each patient.
- Weight Support System: Offers static and dynamic support modes, with a maximum weight reduction of 75 kg and real-time adjustments to simulate natural center-of-gravity shifts during walking.
- Real-Time Control Platform: Achieves millisecond-level fine-tuning for synchronized mechanical leg operation, step-by-step calibration, and external patient-specific adjustments. Includes a seamless running platform to prevent injuries.
- Emergency Stop Mechanism: Two emergency stop switches—one manual and one photoelectric—ensure immediate cessation of gait training and treadmill operation if needed.
Specifications:
- Power Supply: AC220V, 50Hz
- Rated Power: 1,000 VA
- Patient Height: Up to 200 cm
- Patient Weight: Up to 135 kg
- Leg Length Adjustment: Thigh (34–47 cm), Knee to Ankle (28–36 cm)
- Joint Range of Motion: Hip (30°–50°), Knee (50°–80°)
- Guidance Force: Adjustable from 1% to 100%
- Training Speed: 0.1–3.5 km/h
- Treatment Duration: 1–99 minutes
- Spasticity Sensitivity: Adjustable from 10% to 100%
- Gait Offset: 20 adjustable levels
- Weight Support Range: 0–38 cm
- Back Cushion Depth: Adjustable from 0–10 cm
- Hip Cushion Depth: Adjustable from 0–11 cm
- Hip Cushion Width: Adjustable from 0–22 cm
GoldHealth Medical’s gait training system redefines rehabilitation with its precision engineering, adaptability, and focus on patient safety. Designed for hospitals, clinics, research labs, and home care, this device sets a new standard in restoring mobility and independence.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: Walking Robotic-Assisted Gait Training Systems by GoldHealth Medical
Key Features:
- Advanced Robotic Assistance: Designed to provide precise and adaptable gait training for patients, ensuring optimal rehabilitation outcomes.
- Customizable Settings: Offers adjustable guidance (1%-100%), spasm sensitivity (10%-100%), and steering offset (20 gears), tailored to individual patient needs.
- Durable and Reliable: Built with high-quality materials to withstand intensive use in medical and rehabilitation environments.
- LED Light Source: Integrated LED lighting for enhanced visibility and energy efficiency.
Technical Specifications:
- Power Input: AC220V, 50Hz
- Rated Power: 1000VA
- Patient Height Compatibility: Up to 200cm
- Training Speed Range: 0.1-3.5 km/h
- Treatment Duration: Adjustable from 1 to 99 minutes
- Weight: 880 kg
- Instrument Classification: Class II
Applications:
- Ideal for healthcare facilities, rehabilitation centers, research institutions, and home care settings.
- Supports gait rehabilitation for patients recovering from injuries, strokes, or neurological conditions.
Packaging Details:
- Package Dimensions: 250 x 110 x 220 cm
- Gross Weight: 880 kg
Warranty & Support:
- Warranty Period: 1 Year
- After-Sales Service: Comprehensive online technical support to ensure seamless operation and maintenance.
Unique Selling Points:
- Combines cutting-edge robotics with user-friendly features for superior patient care.
- Adjustable parameters and robust design make it versatile for a wide range of rehabilitation needs.
- Engineered to deliver consistent performance, ensuring safety and reliability for both patients and practitioners.
Place of Origin: Henan, China
GoldHealth Medical: Elevating rehabilitation technology to empower healthcare professionals and improve patient outcomes worldwide.
