EUR VET Pro AED Cardiac Defibrillator for Pets
Reference: 1601201865306Veterinary Instrument
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

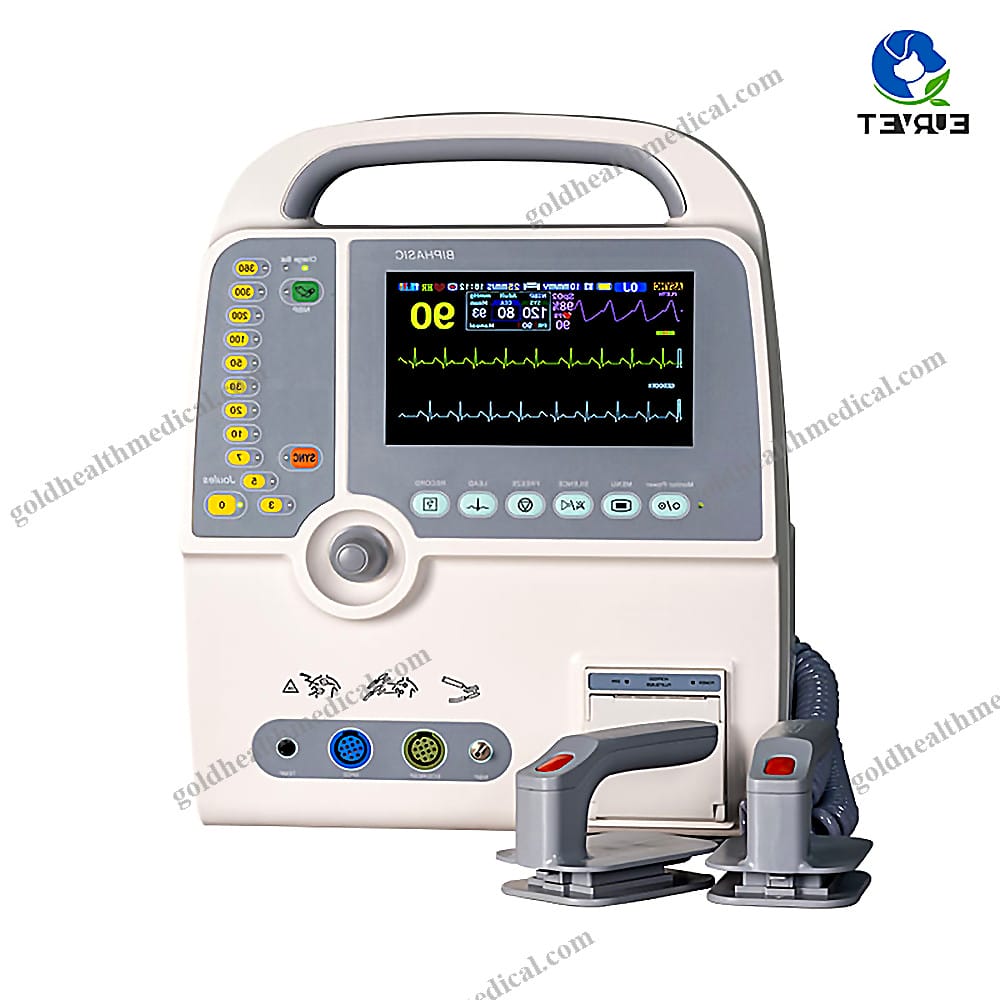

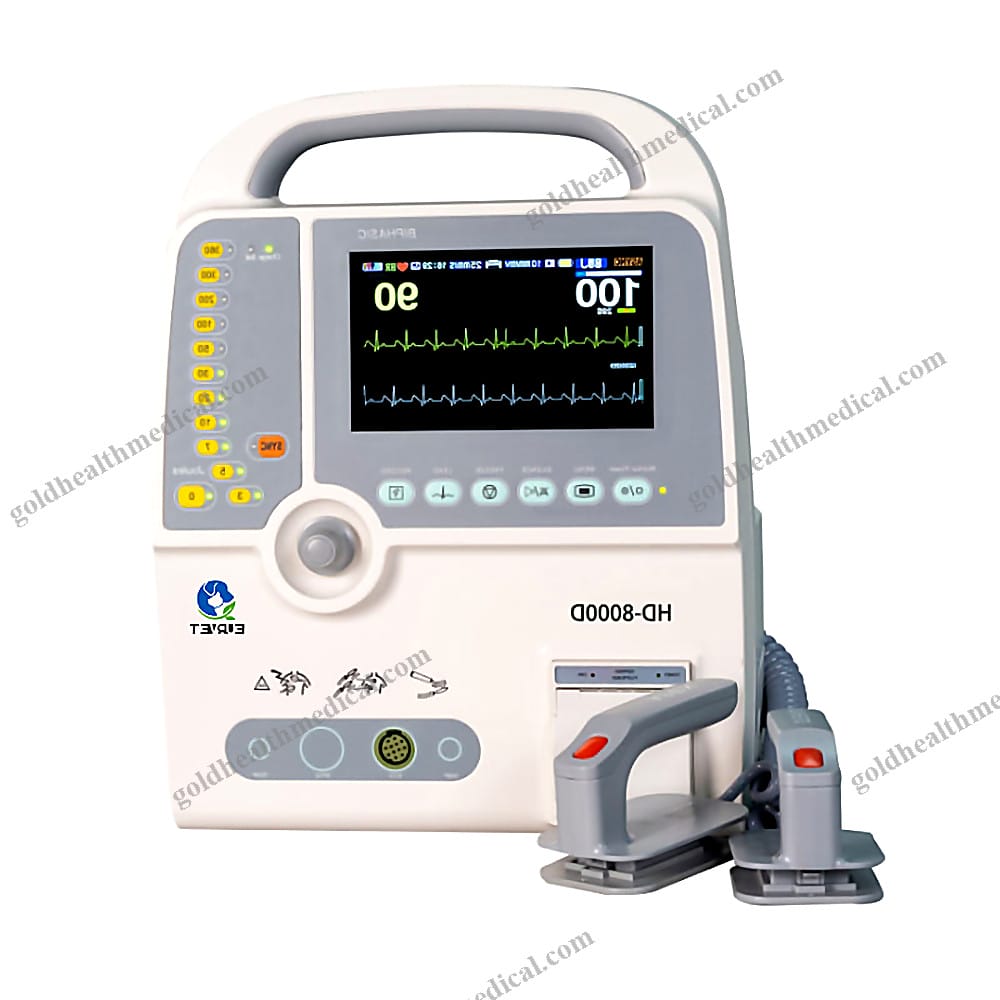

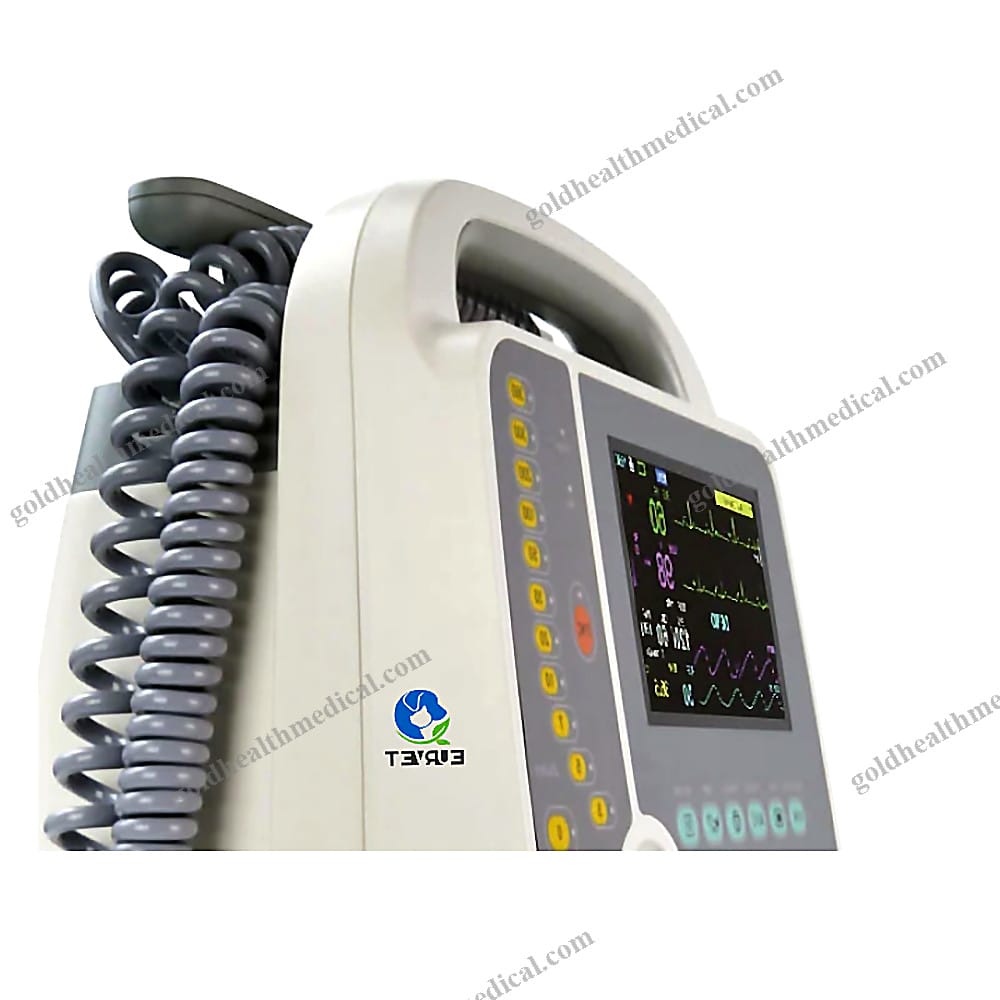

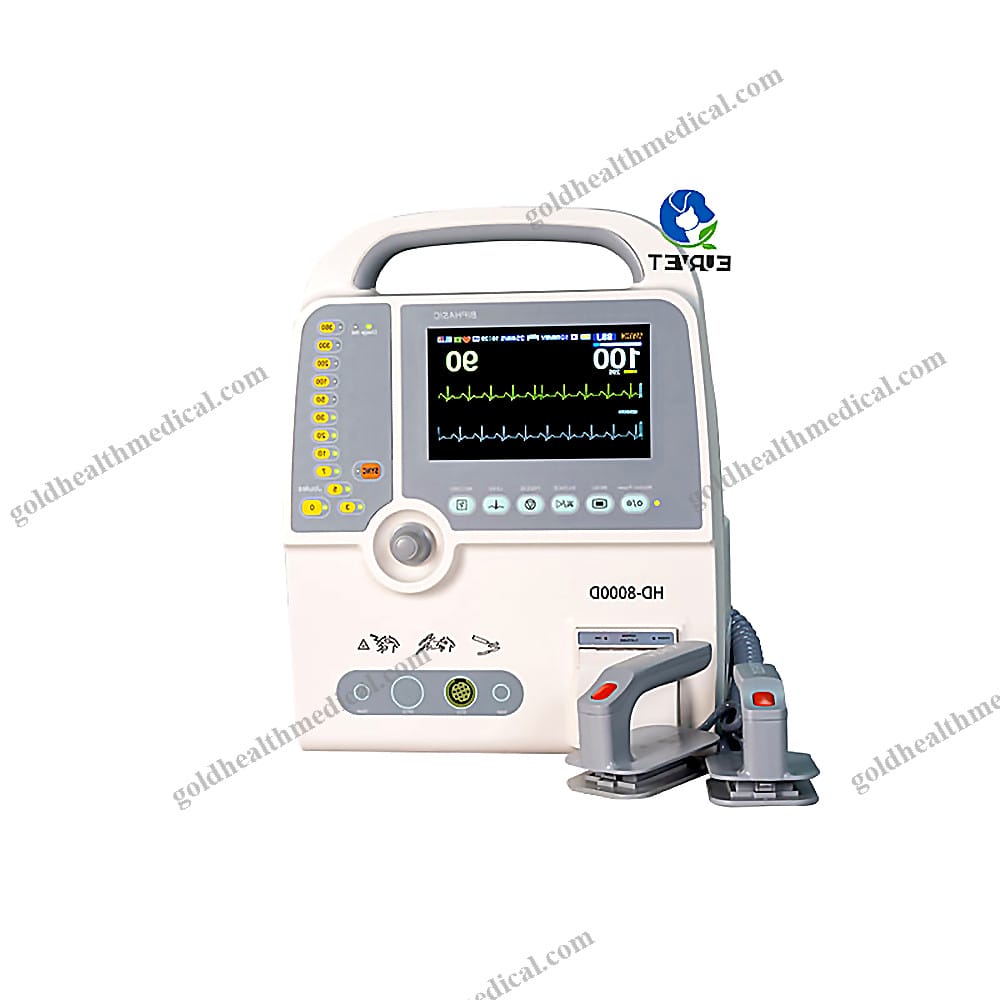

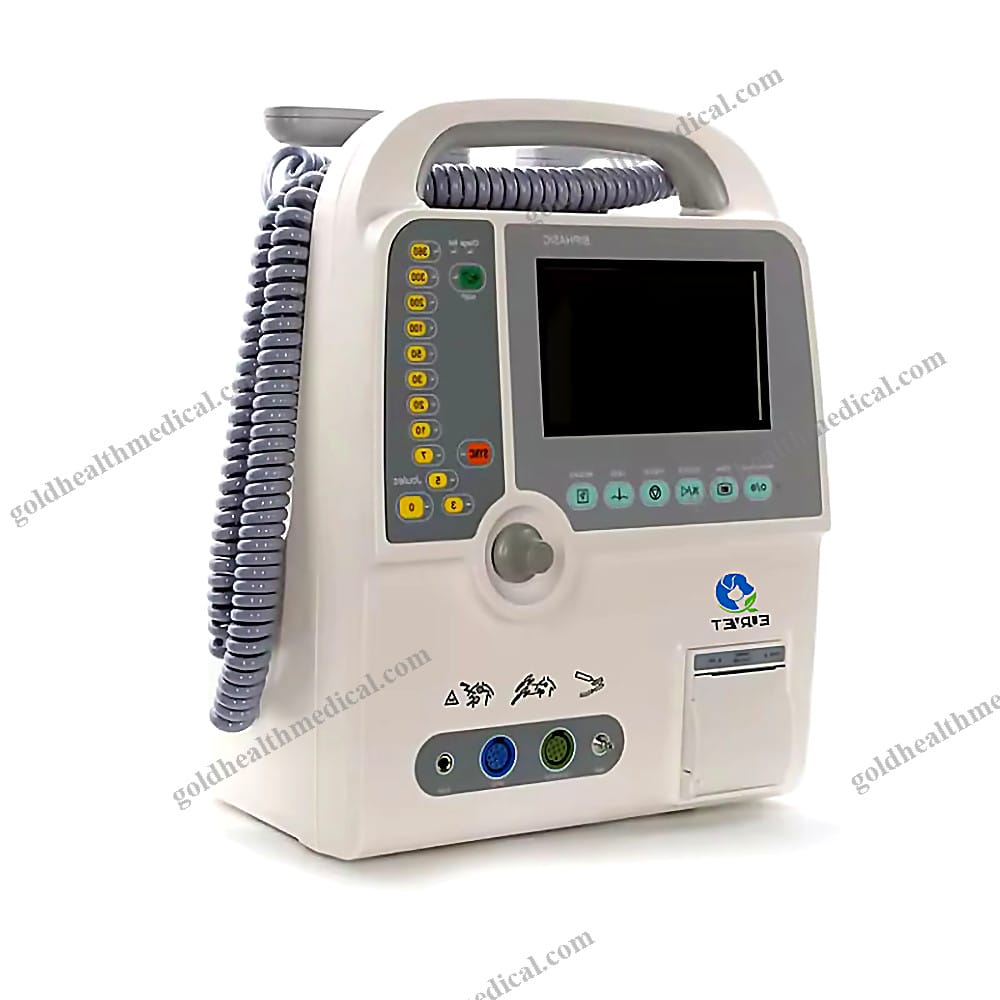

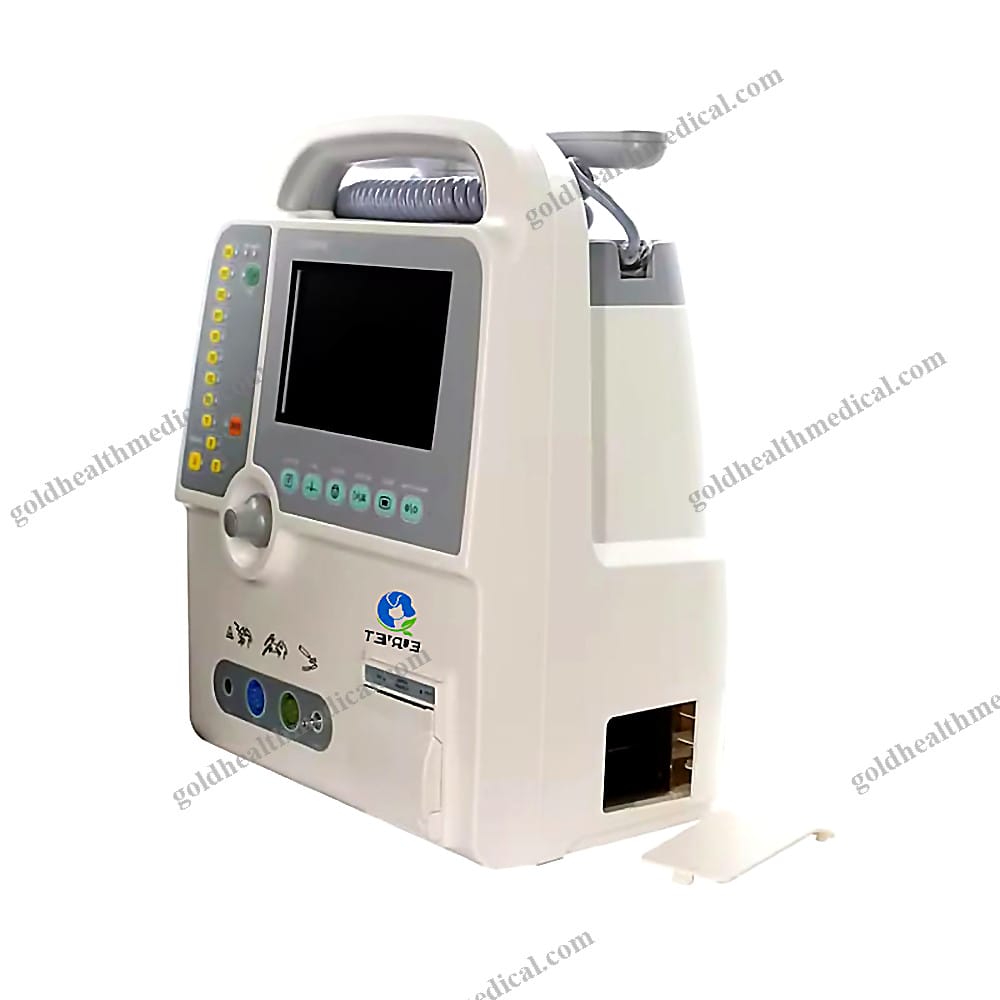

GoldHealth Medical Veterinary Defibrillator
GoldHealth Medical presents a cutting-edge Automatic External Biphasic Defibrillator designed specifically for veterinary use. With over two decades of expertise in veterinary equipment, we deliver comprehensive solutions tailored to meet the needs of veterinary clinics worldwide.
Display Features
- Screen Type: High-resolution TFT color display
- Screen Size: 7 inches (17.7cm) diagonal
- Sweep Speed: Adjustable at 12.5/25/50mm/sec
- Displayed Information: Heart rate, lead selection, alarm status, delivered energy
- Resolution: 800x480 pixels
ECG Capabilities
- Patient Connection: Compatible with 3-lead or 5-lead ECG cables and paddles
- Lead Selection: Monitor and paddles display I, II, III, AVR, AVL, AVF, V
- ECG Size: Adjustable at 2.5, 5, 10, 20, 30 mm/mV
- Heart Rate Range: 20-350 BPM
- Protection: Resists 4000V AC/50Hz isolation, electrosurgical interference, and defibrillation effects
Defibrillator Specifications
- Waveform: Advanced biphasic technology
- Defibrillation Modes: Manual external synchronous/asynchronous
- Charge Time: Less than 10 seconds to reach 360 Joules
- Energy Display: Monitor shows both selected and delivered energy levels
- Charge Prompts: Voice and visual guidance
- Energy Selection: Adjustable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 Joules
- Paddles: Reusable adult paddles with integrated pediatric functionality
Battery Performance
- Type: Dual Li-ion batteries (Li1104c, 11.1Vdc, 4000mAh each)
- Capacity: Up to 10 hours of ECG monitoring or 60 full-energy discharges
- Low Battery Indicator: Visual alerts on display and panel
- Recharge Rate: 80% in 3 hours, 100% in 5 hours
Built-in Recorder
- Paper Type: 50mm thermal paper
- Printing Method: High-resolution thermal print head
- Recorded Data: Date, time, sweep speed, waveform gain, heart rate, energy (joules), and ECG waveform
- Print Modes:
- HR exceed limits alarm recording
- Auto-timed recording
- Real-time recording
- Defibrillation discharge trigger recording
Power and Portability
- Power Supply: AC-DC dual-use (AC100V~240V, 50/60 Hz) with optional DC 12V vehicle compatibility
- Maximum Power: 600W
- Dimensions: L320 x W205 x H410 mm
- Weight: 7.5kg
Optional Features
- Pulse Oximeter: Displays SpO2 value, waveform, and pulse; compatible with adult, pediatric, and neonatal patients
- AED Mode: Voice and screen prompts with programmable energy sequences:
- 200, 300, 360 Joules
- 150, 150, 200 Joules
- 50, 75, 100 Joules
- 30, 30, 50 Joules
Unique Selling Points
- Advanced TFT Color Display: Ensures clear and precise monitoring
- Built-in Recorder: Captures critical data for analysis and documentation
- Long-lasting Battery: Provides extended operation for uninterrupted care
- Comprehensive Functionality: Combines biphasic defibrillation, ECG, NIBP, TEMP, SpO2, pulse monitoring, and printing capabilities
Packaging Details
- Packing Size: 560x460x470mm
- Net Weight: 8.3kg
- Gross Weight: 15.3kg
- Packaging: Individually packed in a durable carton
GoldHealth Medical’s veterinary defibrillator is engineered to deliver unparalleled performance, reliability, and ease of use, making it an indispensable tool for veterinary professionals worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Defi-Monitor/Biphasic
Product Highlights
- Advanced Veterinary Defibrillator: Designed for precision and reliability, the Defi-Monitor/Biphasic is a state-of-the-art device tailored for veterinary professionals. It ensures optimal performance in critical care scenarios, whether in clinics, labs, or field environments.
- Dual Power Functionality: Operates seamlessly on both AC (100V~240V, 50/60 Hz) and DC power, ensuring uninterrupted functionality during emergencies.
- Intelligent Energy Management: Features a rapid recharge system, reaching 80% capacity in just 3 hours and full charge in 5 hours.
Technical Specifications
- Screen Size: 7 inches (17.7 cm) diagonal display for clear and detailed monitoring.
- Sweep Speed Options: Adjustable speeds of 12.5, 25, and 50 mm/sec to suit various diagnostic needs.
- Lead Selection: Comprehensive lead options displayed on the monitor, including I, II, III, AVR, AVL, AVF, and V.
- Energy Display: Real-time monitoring of both selected and delivered energy levels for precise control.
Key Features
- Compact and Portable Design: Lightweight at 13 kg with a single package size of 54 x 45 x 37 cm, making it easy to transport and store.
- 1-Year Warranty: Backed by GoldHealth Medical’s commitment to quality and reliability.
- Versatile Applications: Ideal for hospitals, clinics, research labs, rehabilitation centers, and home care environments.
Why Choose GoldHealth Medical?
GoldHealth Medical combines cutting-edge technology with user-centric design to deliver equipment that meets the highest standards of veterinary care. The Defi-Monitor/Biphasic is engineered to empower medical professionals with confidence and precision in life-saving situations.
Keywords
Veterinary Equipment, Defibrillator, Biphasic Technology, Medical Monitoring
