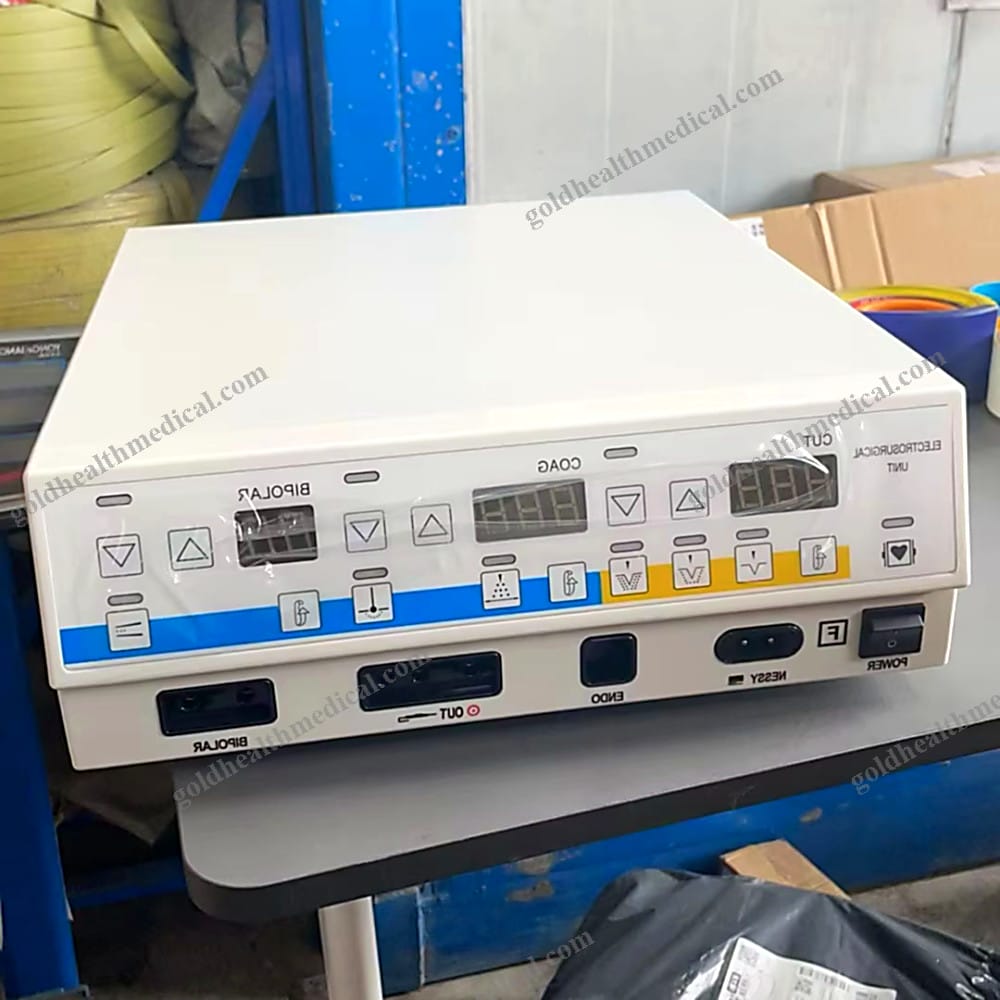

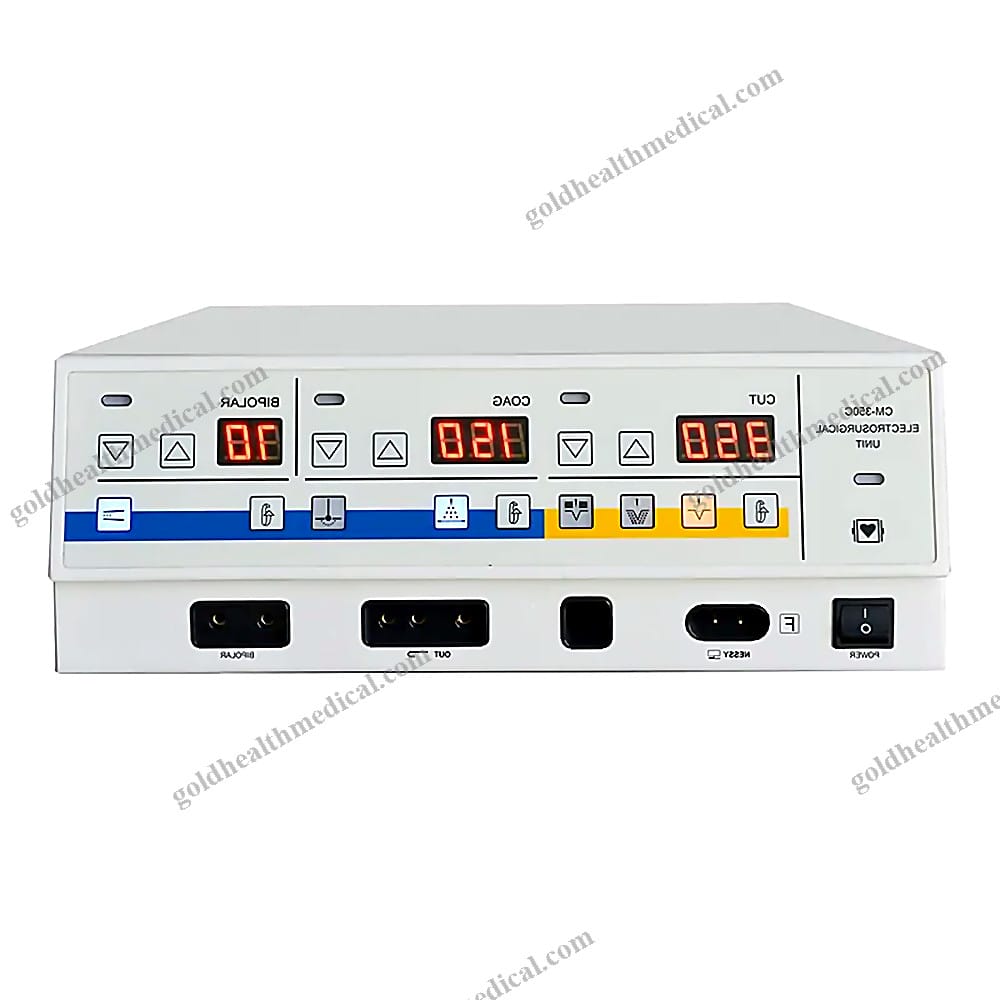

ESU 400W Six Mode Digital Electrosurgical Generator Unit
Reference: 1601371824913Medical High-Frequency Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Electrosurgical Generator
Product Overview
GoldHealth Medical presents a state-of-the-art electrosurgical generator designed to deliver precision and reliability in surgical procedures. Engineered with cutting-edge technology, this device ensures optimal performance and safety for both medical professionals and patients.
Key Features
- Advanced Neutral Electrode Monitoring: Equipped with a high-performance system that continuously evaluates the contact quality between the electrode and skin. If unsafe conditions are detected, the system automatically shuts off and provides an alert.
- Memory Functionality: Retains the last used settings for seamless operation.
- High-Definition LED Display: Offers clear visual and audio indications for enhanced usability.
- Automatic Monitoring and Error Detection: Ensures consistent performance with real-time error notifications.
- Power Stabilization: Features automatic compensation to maintain stable output power, minimizing energy loss.
- Underwater Cutting Capability: Ideal for procedures in challenging environments, including areas with high fat content.
Technical Specifications
- Safety Standards: Compliant with I-type BF-type standards.
- Operating Conditions:
- Ambient Temperature: +10°C to +40°C
- Relative Humidity: 30% to 75%
- Atmospheric Pressure: 700 to 1060 hPa
- Power Supply: 220V ± 22V, 50Hz ± 1Hz
- Operating Frequency: 530KHz ± 2
- Load Specifications:
- Monopolar Cut/Coagulation: 300Ω
- Bipolar Coagulation: 100Ω
- Rated Output Power:
- Pure Cut: 1W to 400W (Peak Voltage 1500V)
- Mixed Cut 1: 1W to 250W (Peak Voltage 2000V)
- Mixed Cut 2: 1W to 150W (Peak Voltage 2500V)
- Electrocoagulation 1: 1W to 100W (Peak Voltage 3500V)
- Bipolar Coagulation: 1W to 50W (Peak Voltage 620V)
- Energy Consumption: ≤1400VA
- Transport and Storage Conditions:
- Ambient Temperature: -40°C to +55°C
- Relative Humidity: ≤93%
- Atmospheric Pressure: 500hPa to 1060hPa
Surgical Modes
- Pure Cut: Delivers refined cutting with no escharosis, suitable for all tissue types.
- Blend 1: Combines cutting with minimal coagulation for precise results.
- Blend 2: Optimized for endoscopic procedures, offering enhanced coagulation during cutting.
- Electrocoagulation 1: Provides deep coagulation with a small effect area, ideal for endoscopic use.
- Electrocoagulation 2: Achieves rapid coagulation with a larger effect area, compatible with endoscopic applications.
- Bipolar Coagulation: Ensures rapid coagulation while preventing tissue adhesion.
Why Choose GoldHealth Medical?
GoldHealth Medical is dedicated to delivering innovative and reliable medical solutions. Our electrosurgical generator is designed to meet the demands of modern healthcare, offering unparalleled precision, safety, and versatility. Whether for hospitals, clinics, or research institutions, this device sets a new standard in electrosurgical technology.
Applications
- Hospitals and Clinics
- Research Laboratories
- Rehabilitation Centers
- Home Healthcare Settings
GoldHealth Medical is committed to advancing healthcare through excellence in design and engineering. Experience the difference with our cutting-edge electrosurgical generator.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the Electrosurgical Unit, a cutting-edge device designed to deliver precision, safety, and reliability in surgical procedures. Engineered for versatility, this Class II medical instrument is ideal for hospitals, clinics, research institutions, and home healthcare environments. With advanced features and robust performance, it ensures optimal outcomes in electrosurgical applications.
Key Features and Specifications
- Power Source: Electricity
- Operating Frequency: 330~460kHz for seamless cutting and coagulation
- Power Consumption: ≤1100VA (Cut function at 400W)
- Voltage Input: 220V±22V, 50Hz±1Hz
- Type Classification: CF (Cardiac Floating) for enhanced patient safety
- Weight: Lightweight at 7.5kg for easy portability
- Dimensions: Compact design at 440mm x 400mm x 280mm
Environmental and Operational Parameters
- Ambient Temperature Range: 5°C to 40°C
- Relative Humidity Range: ≤80%
- Atmospheric Pressure Range: 86.0~106.0kPa
Quality Assurance and Compliance
- Certifications: CE-approved for international standards
- Shelf Life: 3 years, ensuring long-term reliability
- Warranty: Comprehensive coverage for peace of mind
Packaging Details
- Single Package Size: 44cm x 40cm x 28cm
- Single Gross Weight: 7.5kg
After-Sale Support
GoldHealth Medical is committed to customer satisfaction with:
- Free spare parts included for seamless operation
- Dedicated after-sale service to address any concerns
Why Choose GoldHealth Medical's Electrosurgical Unit?
Our Electrosurgical Unit stands out with its precision engineering, user-friendly design, and adherence to the highest safety standards. Whether for advanced surgical procedures or routine operations, this device delivers consistent performance, making it an indispensable tool for medical professionals worldwide.
Applications
- Hospitals and Clinics
- Research Laboratories
- Rehabilitation Centers
- Home Healthcare Settings
GoldHealth Medical: Empowering healthcare innovation with reliable, high-performance medical solutions.
