Product summary

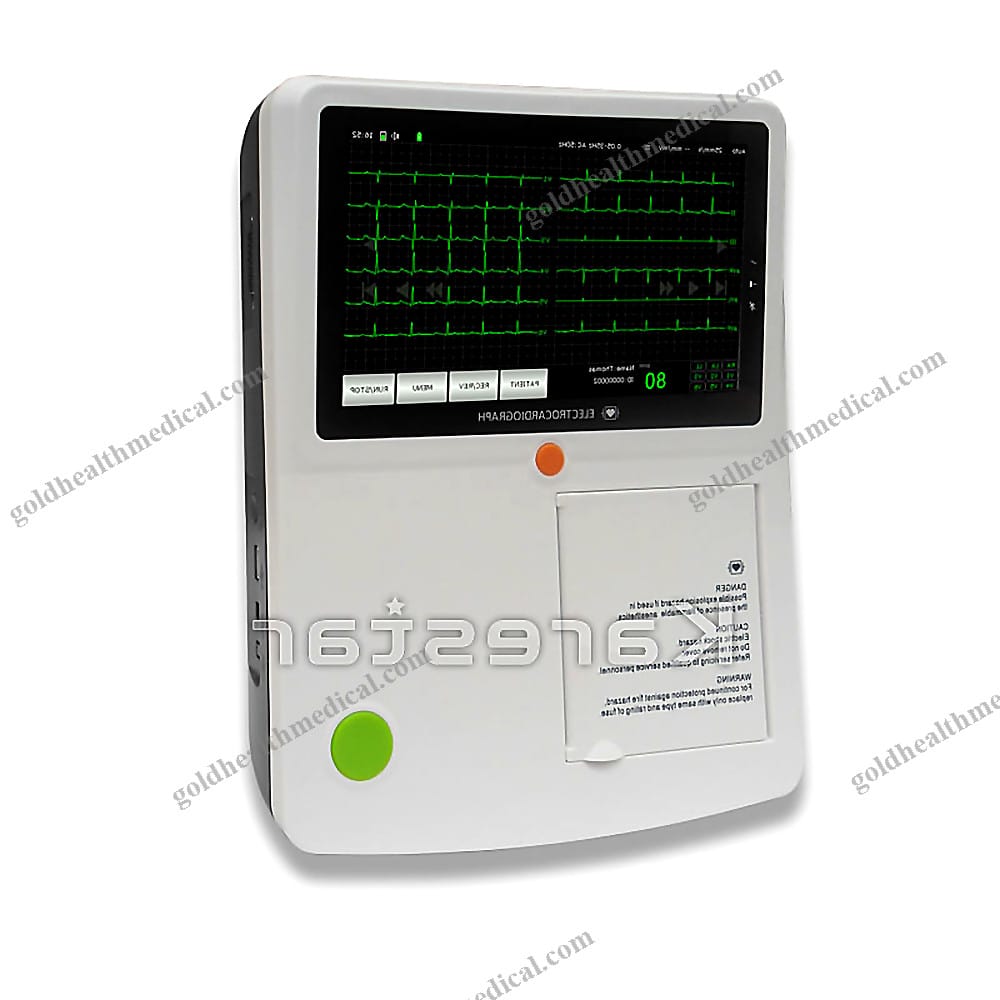

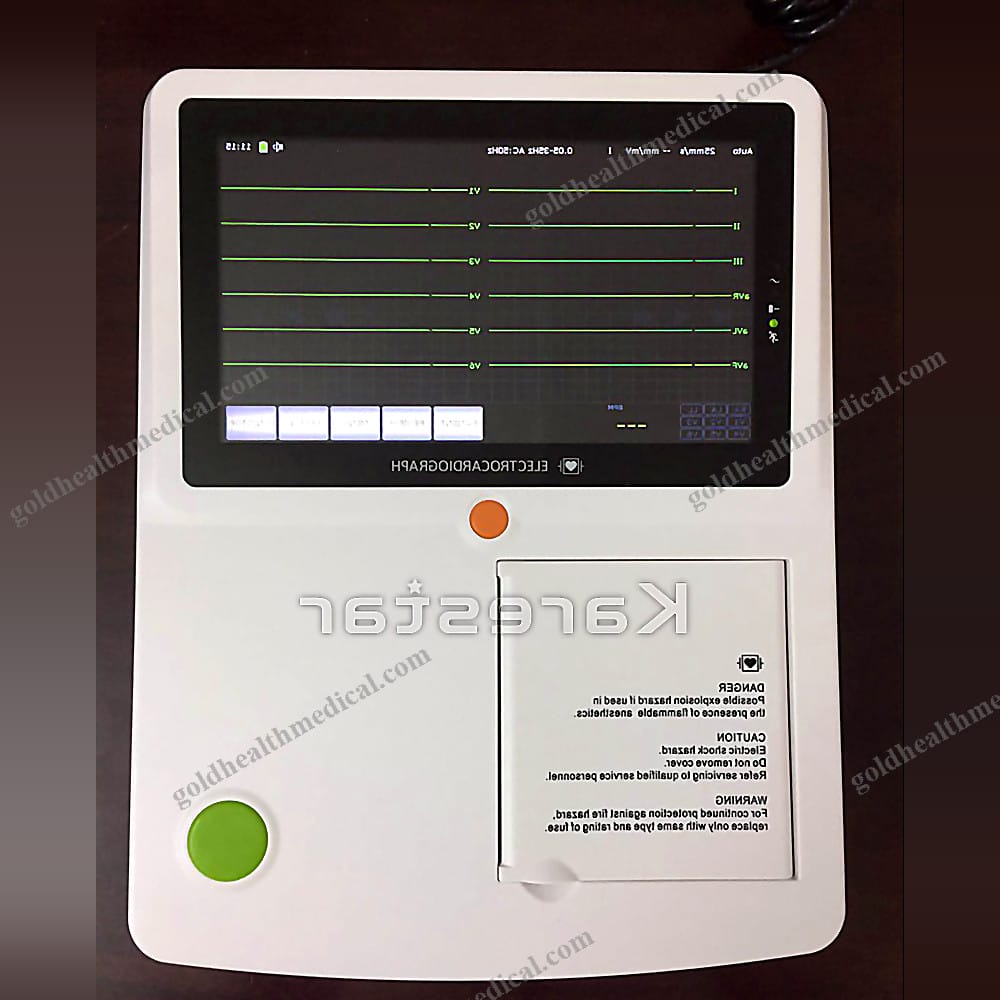

GoldHealth Medical Digital Electrocardiograph
Experience precision and reliability with the GoldHealth Medical Digital Electrocardiograph, designed to deliver exceptional performance for healthcare professionals. This advanced ECG machine combines cutting-edge technology with user-friendly features, making it an indispensable tool for accurate cardiac diagnostics.
Key Features:
- Simultaneous Acquisition: Capture all 12 leads with a full-screen display of 3-channel ECG waveforms for comprehensive analysis.
- 7-inch Color Touch Screen: Intuitive interface ensures effortless operation and quick access to critical data.
- Built-in Rechargeable Battery: Powered by a long-lasting lithium-ion battery, ensuring uninterrupted functionality during critical procedures.
- Automated Analysis: Equipped with automatic measurement, calculation, waveform freezing, and diagnostic tools for enhanced efficiency.
- Data Management: Review, print, and store historical data and patient information with ease.
- Expandable Storage: Supports USB flash drives and SD memory for transferring reports to PCs via ECG playback software.
- High-Capacity Memory: Store over 400 ECG reports directly on the device for convenient access.
Technical Specifications:
- CMRR: ≥ 100dB with AC Filter
- Calibrating Voltage: 1mV ± 3%
- Input Circuit: Floating design with voltage tolerance of ± 500mV
- Input Circuit Current: ≤ 0.1µA
- Time Constant: > 3.2s
- Resolution: 12bit/1000Hz
- Frequency Response: 0.05Hz ~ 150Hz
- Operation Modes: Manual and Auto
- Noise Level: ≤ 15µVp-p
- Filters: AC, EMG, Anti-Drift System
- Paper Speed: 12.5, 25, 50mm/s (± 3%)
- Input Impedance: > 50MΩ
- Sensitivity: 5, 10, 20mm/mV
- Patient Current Leakage: < 10µA
- Recorder: High-resolution thermal printer
- Battery: Built-in rechargeable Li-ion battery, 11.1V (2200mAh)
- Recording Paper: Thermal recording paper

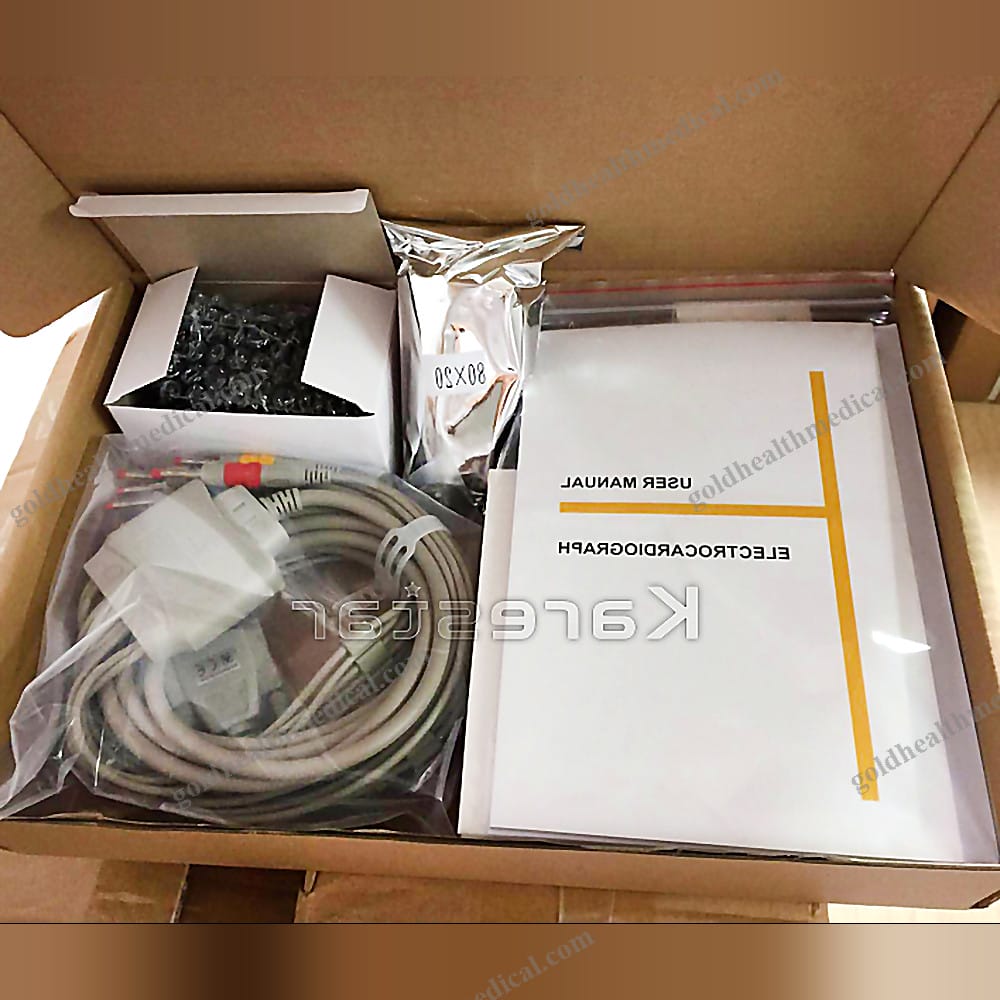

Standard Configuration:
- Main unit
- Thermal paper
- Patient cable
- Limb electrodes (set of 4)
- Chest electrodes (set of 6)
- Power cable
- Paper axis
Why Choose GoldHealth Medical?
GoldHealth Medical is a trusted name in the healthcare industry, with over 7 years of manufacturing expertise. Our commitment to quality, innovation, and customer satisfaction ensures that every product meets the highest standards. Whether you're managing a hospital, clinic, or home healthcare setup, our ECG machine is designed to meet your needs with precision and reliability.
Recommended Accessories:
- Portable ultrasound machines
- Infusion pumps
- Customizable OEM options available
GoldHealth Medical’s Digital Electrocardiograph is more than just a device—it’s a reliable partner in delivering accurate diagnostics and improving patient outcomes. Choose excellence, choose GoldHealth Medical.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Elevating Cardiac Care with Precision and Innovation
- Material: Crafted with a robust combination of high-grade metal and durable plastic, ensuring long-lasting performance in demanding medical environments.
- Instrument Classification: Class II medical device, designed for reliable and accurate cardiac monitoring.
- Safety Standard Compliance: Meets the rigorous requirements of GB/T18830-2009, guaranteeing safety and precision in every use.
- Place of Origin: Proudly manufactured in Jiangsu, China, known for its advanced medical technology manufacturing capabilities.
- Power Source: Powered by electricity with a built-in rechargeable lithium-ion battery, offering 3-4 hours of continuous operation for enhanced mobility and convenience.
- Shelf Life: 1 year, ensuring optimal performance and reliability.
- Quality Certification: CE certified, meeting international standards for safety and quality assurance.
- Display: Features a 7-inch color touch screen, providing intuitive navigation and crystal-clear visualization of ECG data.
- Leads: Simultaneous acquisition of 12 leads for comprehensive and precise cardiac analysis.
- Working Modes: Offers versatile functionality with manual, auto, and arrhythmia analysis modes, catering to diverse clinical needs.
- Smart Detection: Equipped with lead-off and lack-of-paper detection, ensuring uninterrupted operation and minimizing errors.
- Data Management:
- Historical data and patient information can be saved, stored, and printed for seamless record-keeping.
- Supports USB flash disk and SD memory for easy data transfer and storage.
- Over 400 ECG reports can be stored locally, with the ability to analyze data on a PC via specialized software.
- Energy Efficiency: Includes a sleep mode feature to conserve energy during periods of inactivity.
- Battery Life: Built-in rechargeable lithium-ion battery provides 3-4 hours of reliable performance, ideal for both stationary and mobile use.
- Packaging Details:
- Single item packaging with dimensions of 35 x 18 x 25 cm.
- Gross weight of 3.000 kg, ensuring secure and efficient transportation.
GoldHealth Medical’s cutting-edge ECG solution combines advanced technology, user-centric design, and unmatched reliability, empowering healthcare professionals to deliver superior cardiac care.
