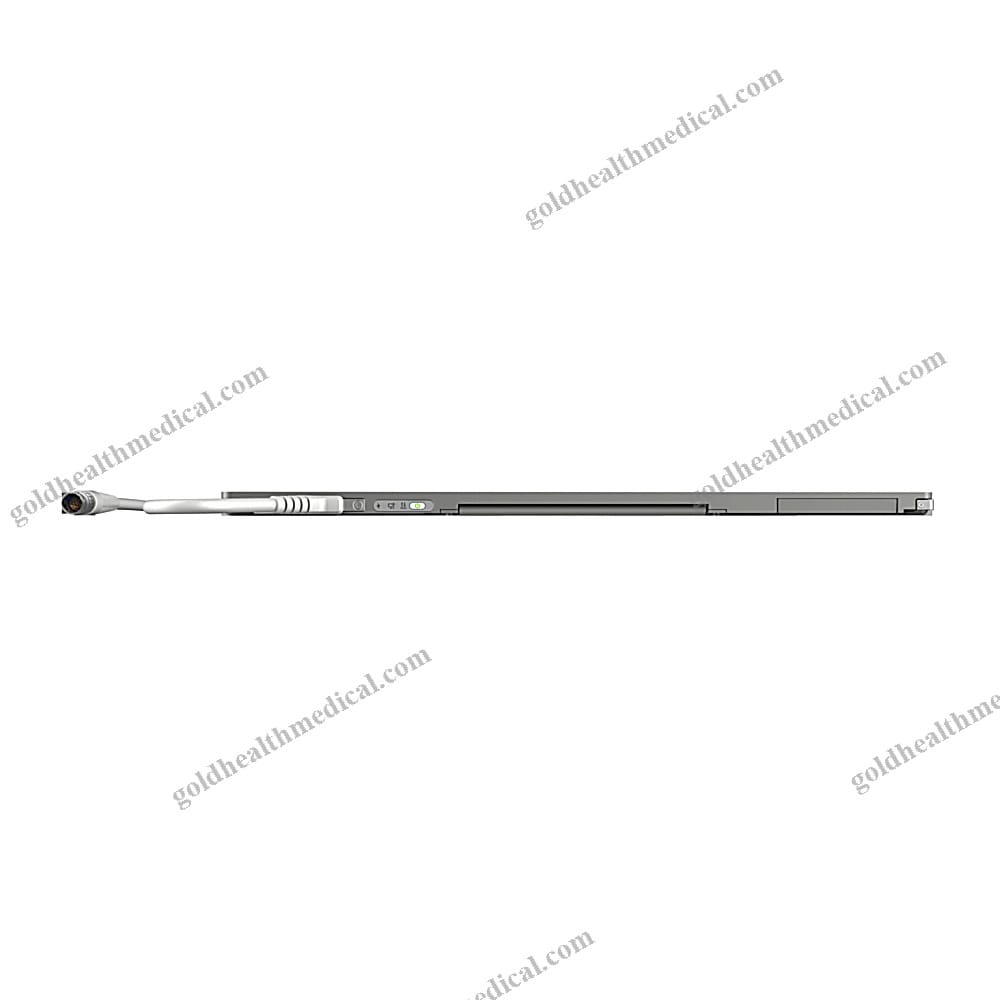

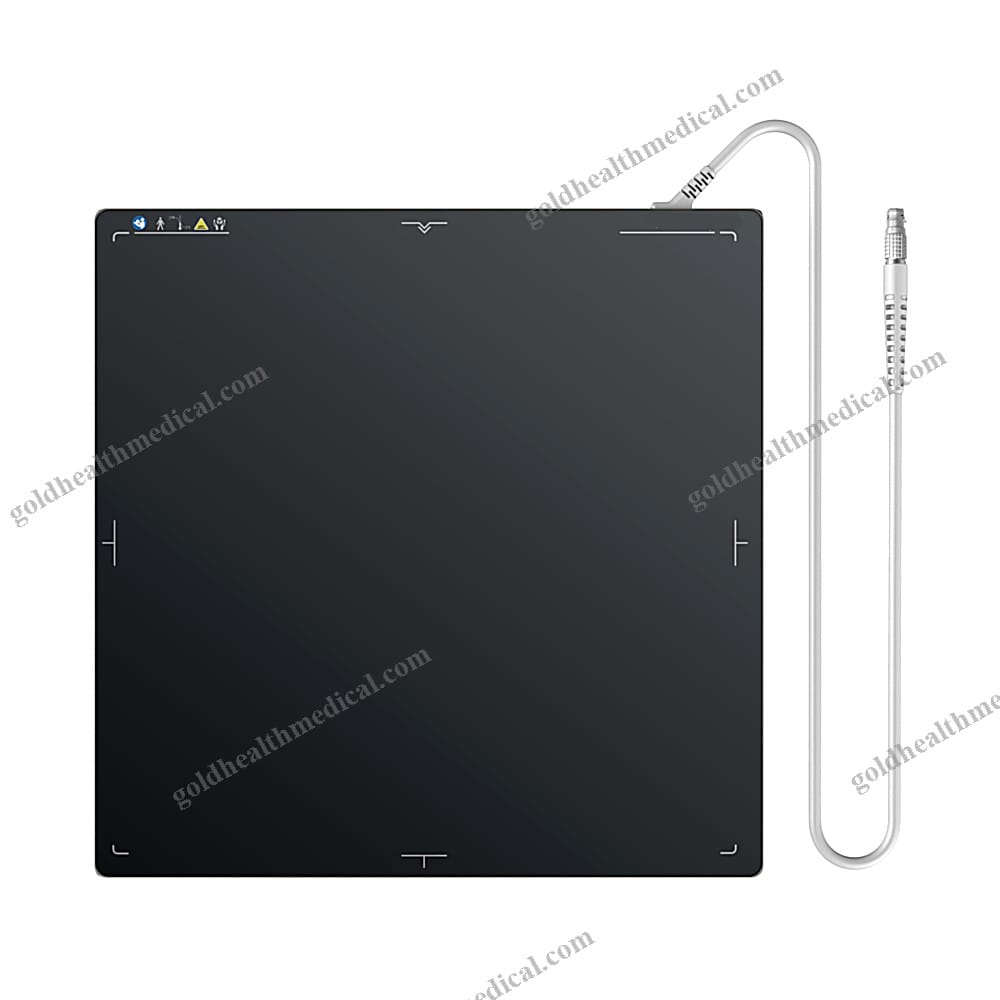

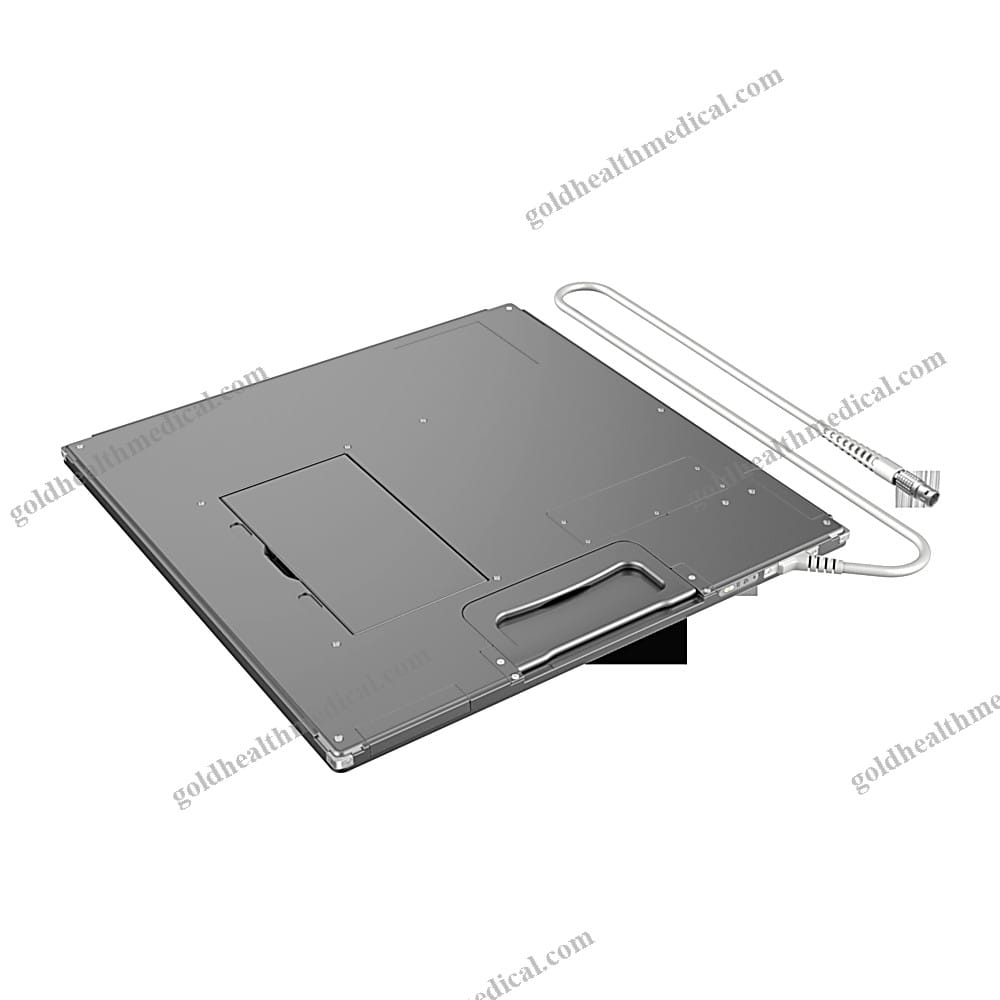

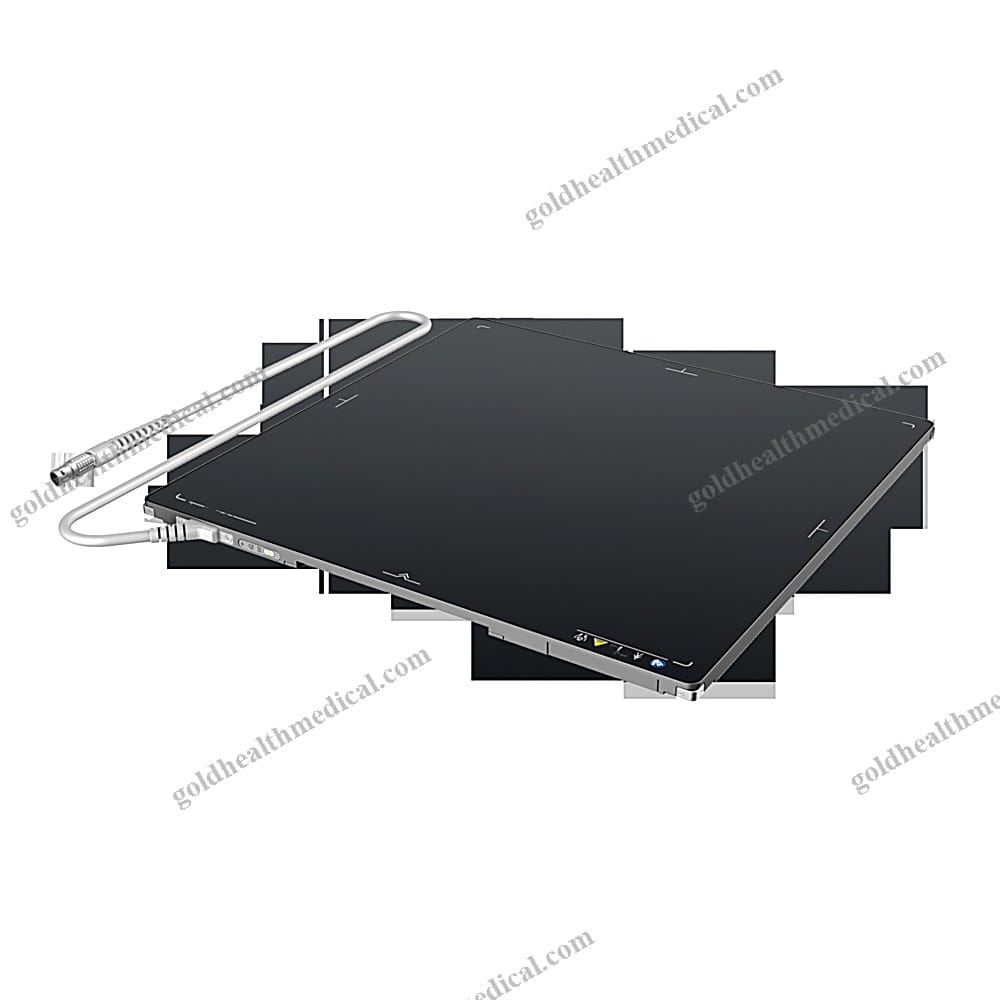

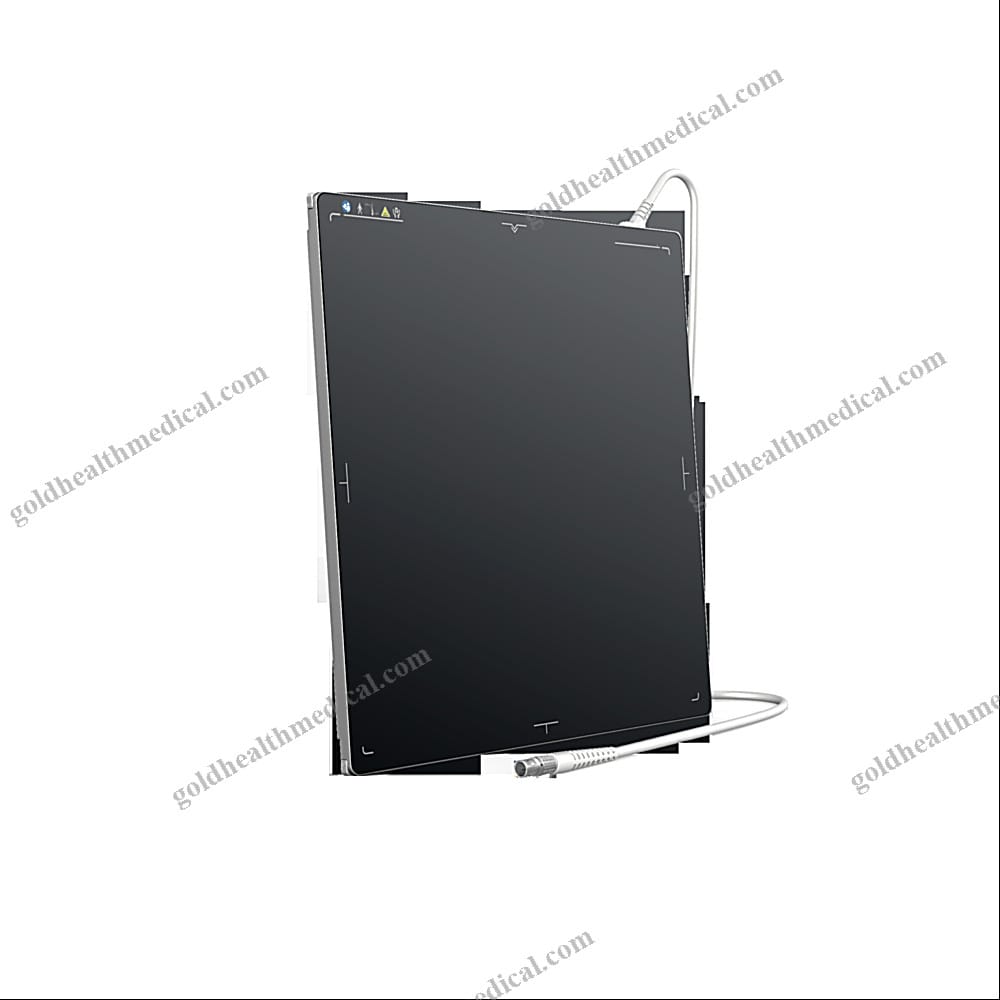

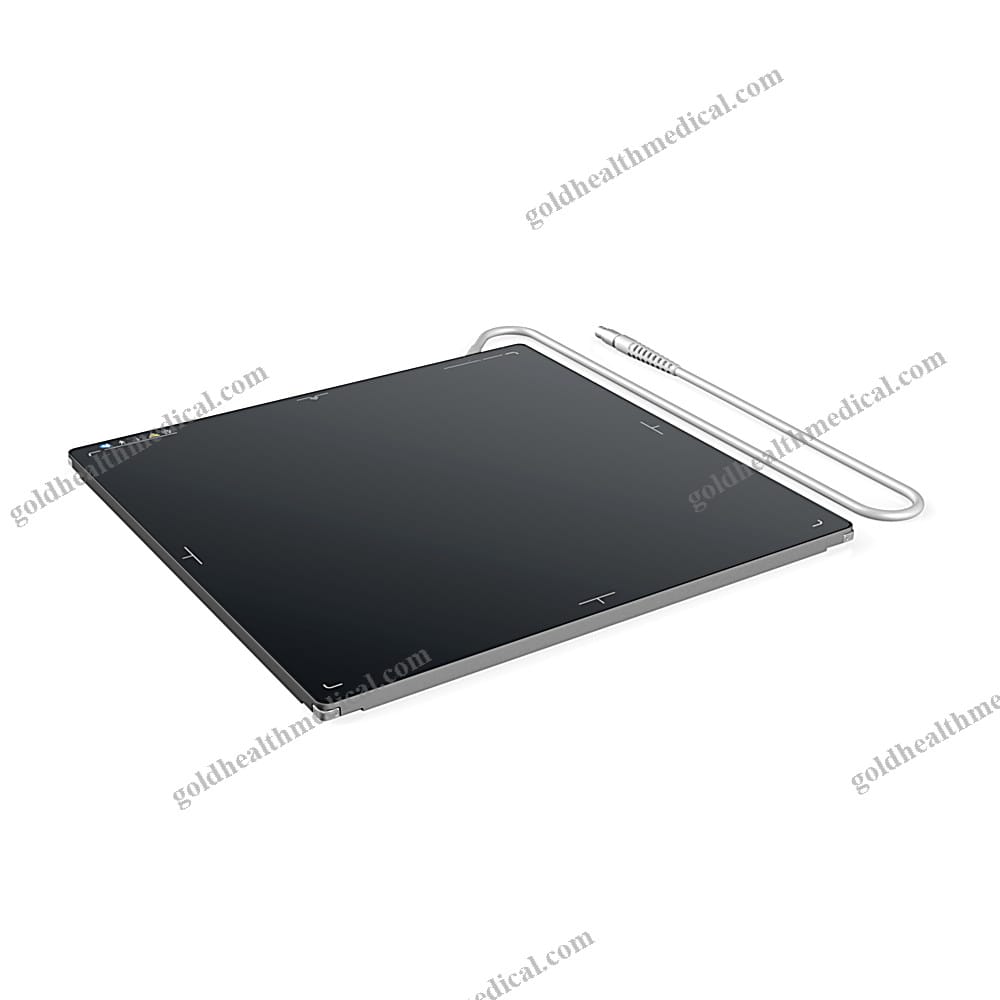

Dynamic Flat Panel XRay Detector DE 1717X
Reference: 1601014957740Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Superior 14/17 x 17-inch Flat Panel Detector by GoldHealth Medical
Experience the next generation of radiographic imaging with GoldHealth Medical's cutting-edge wireless and wired cassette-sized Flat Panel Detector (FPD). Designed for both retrofit and new DR system solutions, this detector combines advanced technology with an intuitive workflow to deliver exceptional performance.
Key Features
- Dual-Band Wireless Support: Seamlessly integrates with both 2.4 GHz and 5 GHz networks for effortless data sharing.
- Extended Battery Life: Ensures uninterrupted operation with a long-lasting battery designed for demanding environments.
- Direct Deposition CsI Technology: Delivers superior image quality while minimizing radiation dose for enhanced patient safety.
- Fast Workflow: Optimized for efficiency, enabling quicker imaging processes without compromising accuracy.
- Reliable AED: Equipped with stable iSync+ Automatic Exposure Detection for consistent performance.
Technical Specifications
- Detector Technology: Amorphous Silicon
- Scintillator: CsI
- Active Area: 14/17 x 17 inches
- Pixel Matrix: 3072 x 3072
- Pixel Pitch: 139 μm
- Spatial Resolution: 3.6 lp/mm
- AD Conversion: 16-bit
- Battery Autonomy: Up to 5 hours
- Wi-Fi Standards: 2.4G and 5G, IEEE802.11a/b/g/n/ac
- Trigger Modes: AED (optional) / Software
- Full Image Time: 5 seconds
- Dimensions: 460 x 460 x 15 mm
- Weight: 4.6 kg
- Static Loading: 150 kg uniformly distributed
- Center Loading: 135 kg @ 4 cm
- Ingress Protection: IPX1
- Operating Temperature: 5°C to 35°C
- Storage & Transport Temperature: -20°C to 55°C
- Operating Humidity: 10% to 90% RH (non-condensing)
- Storage & Transport Humidity: 5% to 95% RH (non-condensing)
Why Choose GoldHealth Medical?
GoldHealth Medical’s Flat Panel Detector is engineered to meet the rigorous demands of modern medical imaging. Its dual-band wireless capabilities and long battery life ensure reliable performance in any setting, while its advanced CsI scintillator technology provides unparalleled image clarity with reduced radiation exposure. Whether you’re upgrading an existing system or implementing a new DR solution, this detector is the ultimate choice for precision, durability, and efficiency.
Additional Product Highlights
- Wireless Cassette Design: Meets ISO 4090 standards and fits seamlessly into existing bucky trays.
- High Image Detail: Achieved through a 139 μm pixel pitch and 16-bit ADC for sharper, more detailed images.
- Versatile Applications: Ideal for hospitals, clinics, research labs, and mobile imaging units.
GoldHealth Medical is committed to delivering innovative solutions that empower healthcare professionals to achieve better outcomes. Explore the possibilities with our state-of-the-art imaging technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge medical imaging solution designed to deliver unparalleled precision and reliability. Engineered for healthcare professionals, this advanced device combines innovative technology with robust construction to meet the demands of modern medical environments. Whether in hospitals, clinics, or research labs, this product ensures exceptional performance and seamless integration into your workflow.
Key Features and Specifications
- Detector Technology: Utilizes state-of-the-art Amorphous Silicon technology for superior image quality.
- Scintillator: Equipped with Csl (Cesium Iodide) for enhanced sensitivity and clarity.
- Active Area: Offers a generous active area of 14/1717 inches, ensuring comprehensive coverage for diverse imaging needs.
- Pixel Matrix: High-resolution 3072 x 3072 matrix for sharp, detailed images.
- Pixel Pitch: 139 µm for exceptional precision in capturing fine details.
- Spatial Resolution: Achieves an impressive 3.6 lp/mm, delivering clear and accurate diagnostic results.
- AD Conversion: 16-bit for superior digital signal processing and image fidelity.
- Battery Autonomy: Up to 5 hours of continuous operation, ensuring uninterrupted performance during critical procedures.
- WIFI Connectivity: Dual-band support (2.4G and 5G) with IEEE802.11 a/b/g/n/ac standards for fast and reliable data transfer.
- Trigger Mode*: Flexible AED/Software triggering options to suit various operational preferences.
Design and Build
- Material: Constructed with a durable combination of metal and high-grade plastic for long-lasting reliability.
- Instrument Classification: Class II medical device, ensuring compliance with stringent industry standards.
- Power Source: Electric-powered for consistent and efficient operation.
Quality Assurance
- Shelf Life: 3 years, guaranteeing long-term usability and performance.
- Quality Certification: SGS-certified, reflecting our commitment to excellence and safety.
- Warranty: Backed by a comprehensive 1-year warranty for peace of mind.
After-Sale Support
- Online Technical Support: Access to expert assistance whenever you need it, ensuring minimal downtime and maximum productivity.
Packaging and Delivery
- Each unit is meticulously packed in a standard export box, surrounded by protective foam to safeguard against transit damage.
- Supply Ability: Capable of delivering up to 1000 units per month, ensuring timely availability for large-scale projects.
GoldHealth Medical is dedicated to empowering healthcare providers with innovative tools that enhance patient care and streamline operations. This product exemplifies our commitment to quality, precision, and reliability.
