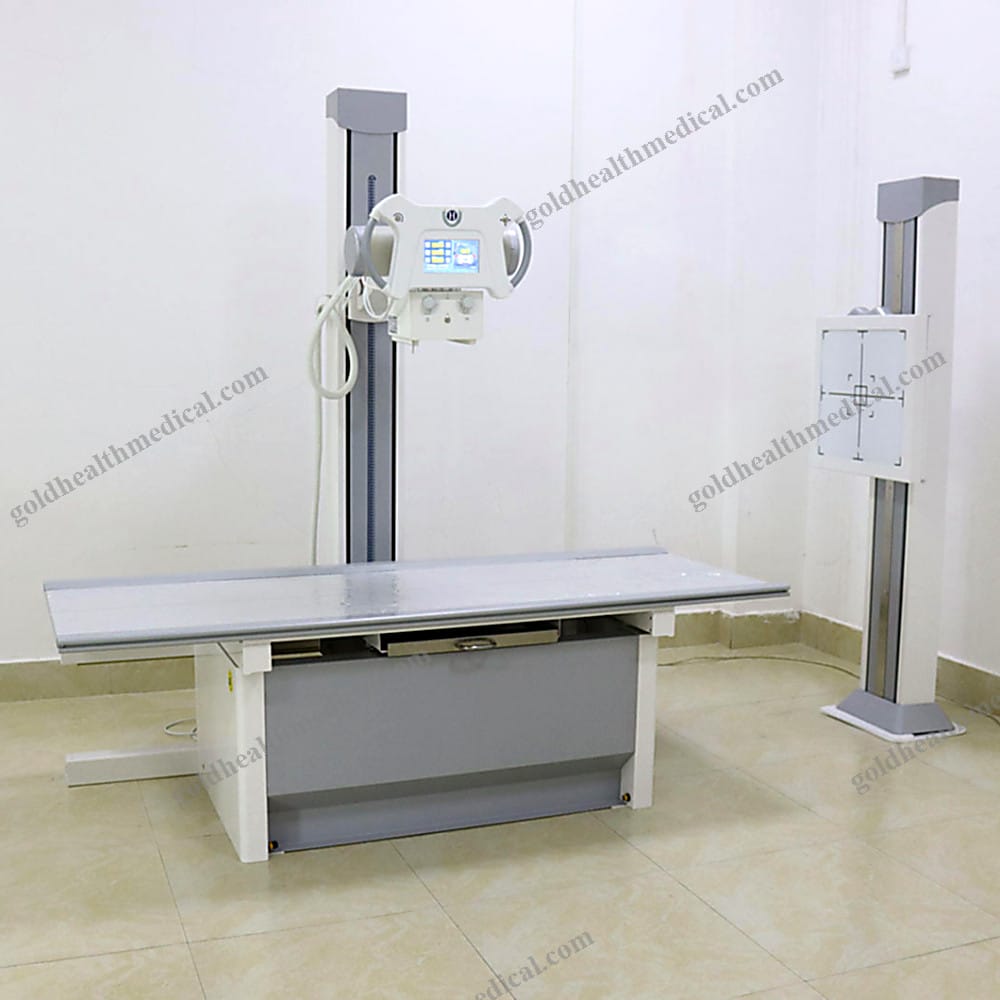

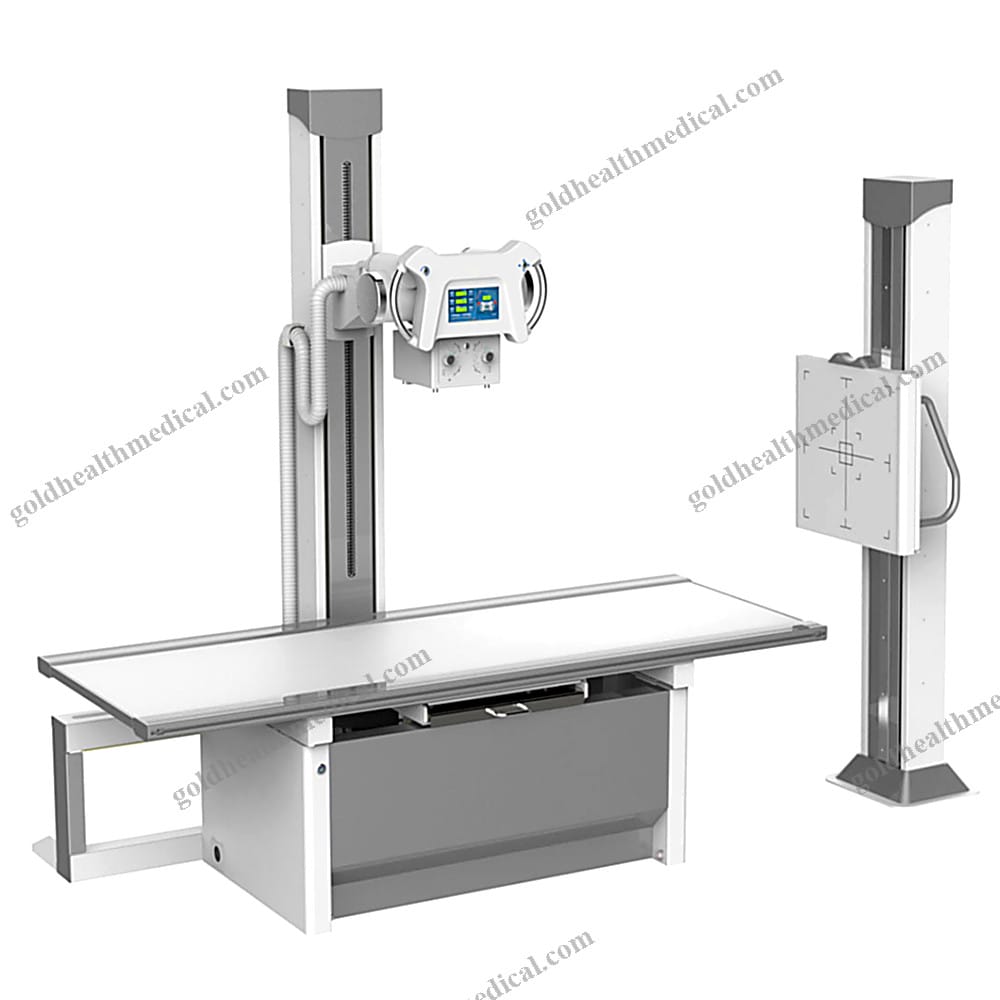

DR Xray Digital Radiography Machine for Hospitals
Reference: 1600424716574Medical X-ray Equipments & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical presents an advanced X-ray Radiography Machine designed for superior medical imaging.
Applications
This state-of-the-art radiography system is ideal for orthopedics, emergency rooms, operating rooms, and more. It supports comprehensive diagnostic imaging for the human head, limbs, chest, spine, and lumbar spine.
Key Features
- Future-Ready Design: Equipped with rich DR upgrade reserve interfaces for seamless integration with advanced technologies.
- Intelligent Self-Diagnostics: Built-in fault detection and protection to ensure consistent performance and reliability.
- Precision Calibration: Automatic calibration of tube current for accurate and repeatable imaging.
- Energy Efficiency: X-ray tube features filament dormancy to conserve energy during idle periods.
- Adaptive Exposure Control (AEC): Optional ionization chambers for precise dose management tailored to patient needs.
- Dual Control System: Combines analog and digital control loops for intuitive operation and high intelligence.
- Powerful Penetration: High kV, high current, and high power output ensure exceptional imaging, even for obese patients.
Technical Specifications

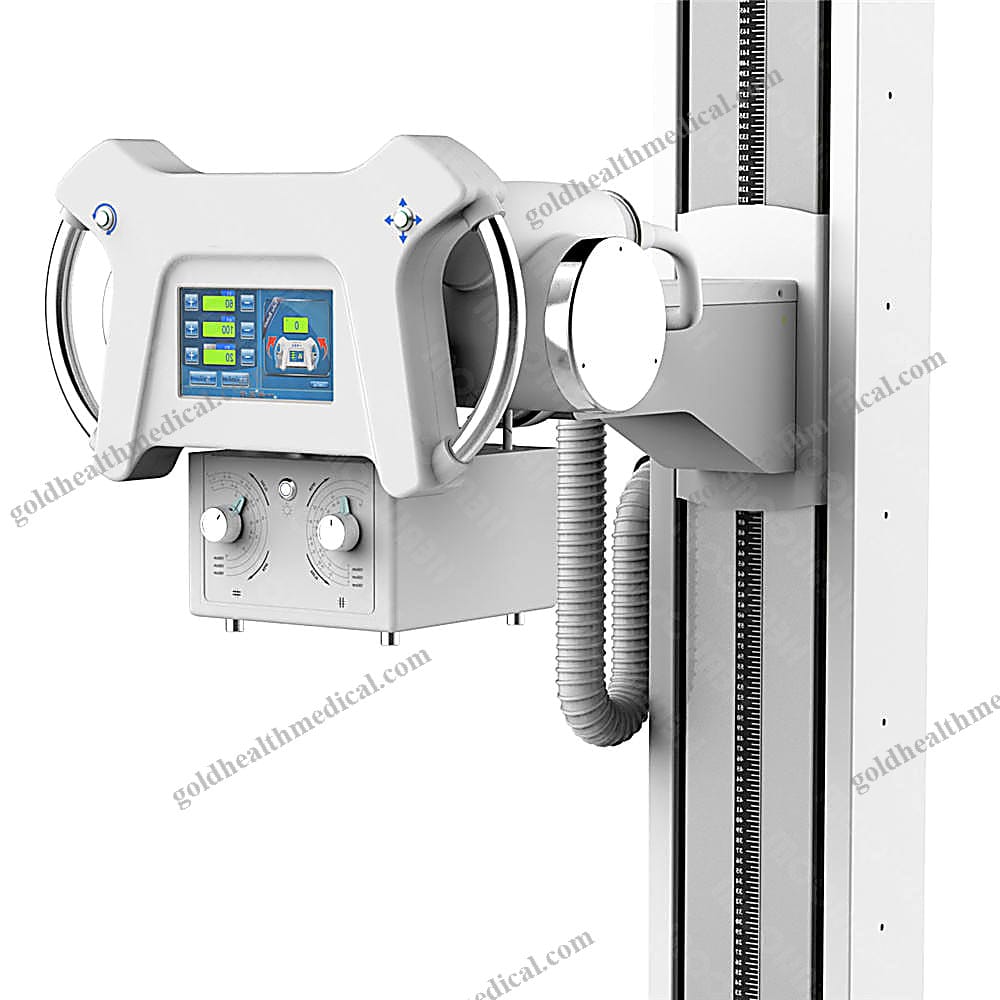

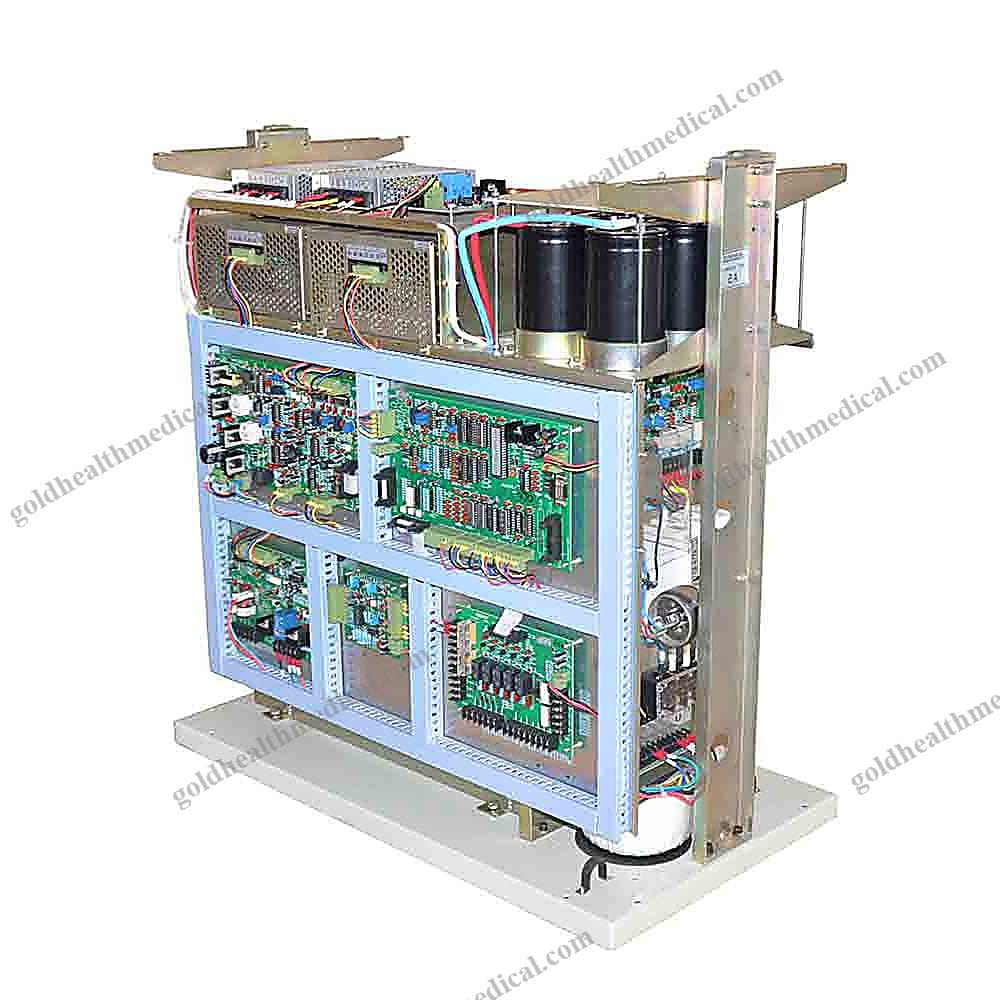

- X-ray Generator:
- Output Power: 50KW
- Power Voltage: 380V ± 38V
- kV Range: 40–150kV
- mA Range: 10–630mA
- mAs Range: 0.1–630mAs
- Exposure Time: 0.002–6.3 seconds
- X-ray Tube:
- Anode Heat Storage Capacity: 240kHU
- Small Focus: 0.6
- Large Focus: 1.2
Anode Speed: 3000r/min
Collimator:
- Inherent Filtration: 1.0mm Al / 75kV
Light Source: LED
Radiographic Table:
- Top Table Size: 2100 x 800 x 650mm
- Bucky Size: 18 x 18 inches
- Table Longitudinal Movement: ≥900mm
Cassette Movement Distance: ≥500mm
Vertical Chest Stand:
- Vertical Moving Range: ≥1200mm
Bucky Size: 18 x 18 inches
Double Grid:
- Size: 18 x 18 inches
- Ratio: 1:1
- Focal Distance (F.D.): 100cm
- Density: 40 L/cm
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical imaging solutions with uncompromising quality. Our systems are engineered for precision, durability, and ease of use, ensuring optimal outcomes for healthcare providers and patients alike. With decades of expertise, we have earned a reputation for excellence across global markets, including Africa, the Middle East, Europe, Asia, and South America.
Quality Assurance
We provide a one-year warranty for all medical equipment, covering minor issues with free spare parts and offering replacements for major concerns. Our products are meticulously crafted to meet the highest standards, ensuring reliability and performance.
Delivery and Support
Each unit is custom-built to order, with a standard delivery time of 15 days post-order confirmation. For urgent needs, inquire about stock availability for expedited delivery.
GoldHealth Medical is your trusted partner in advancing healthcare through innovative imaging technology.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical presents a cutting-edge Class II medical instrument designed to deliver unparalleled precision and reliability for a wide range of diagnostic applications. Engineered with advanced technology and robust materials, this device is ideal for hospitals, clinics, research institutions, and rehabilitation centers seeking high-performance equipment.
Key Features and Specifications
- Power Source: Electricity
- Output Power: 50KW
- Power Voltage: 380V ± 38V
- kV Range: 40~150kV
- mA Range: 10~630mA
- mAs Range: 0.1~630mAs
- Exposure Time: 0.002~6.3 seconds
- Small Focus: 0.6
Design and Build Quality
- Constructed with premium materials including metal, plastic, and steel for enhanced durability and longevity.
- Compact and ergonomic design ensures seamless integration into any medical environment.
Certifications and Compliance
- Quality certified with CE standards, ensuring safety and reliability for professional use.
Packaging and Delivery
- Securely packaged in a durable wooden case to protect against transit damage.
- Single package dimensions: 99 x 99 x 99 cm
- Single gross weight: 99.000 kg
- Available for shipment from major ports: Shanghai, Tianjin, Ningbo
Supply and Support
- Annual supply capacity: 2000 units
- Comprehensive 1-year warranty for peace of mind.
- Dedicated online technical support to ensure uninterrupted performance and address any operational queries.
Why Choose GoldHealth Medical?
Our commitment to innovation, precision engineering, and customer satisfaction sets us apart. This product is designed to meet the rigorous demands of modern healthcare, offering exceptional performance, ease of use, and long-term reliability. Partner with GoldHealth Medical to elevate your diagnostic capabilities and deliver superior patient care.
