Digital Radiography Xray Machine 400mA 32KW
Reference: 1600230534782Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

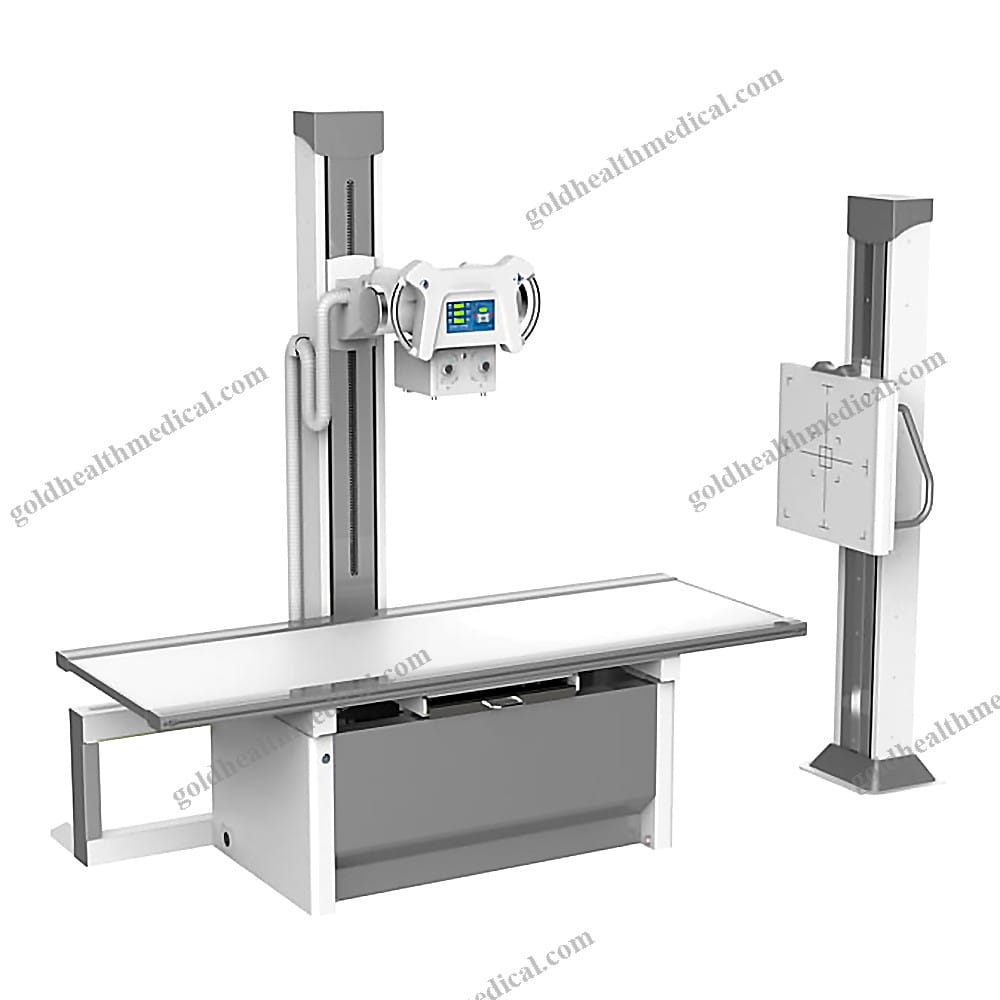

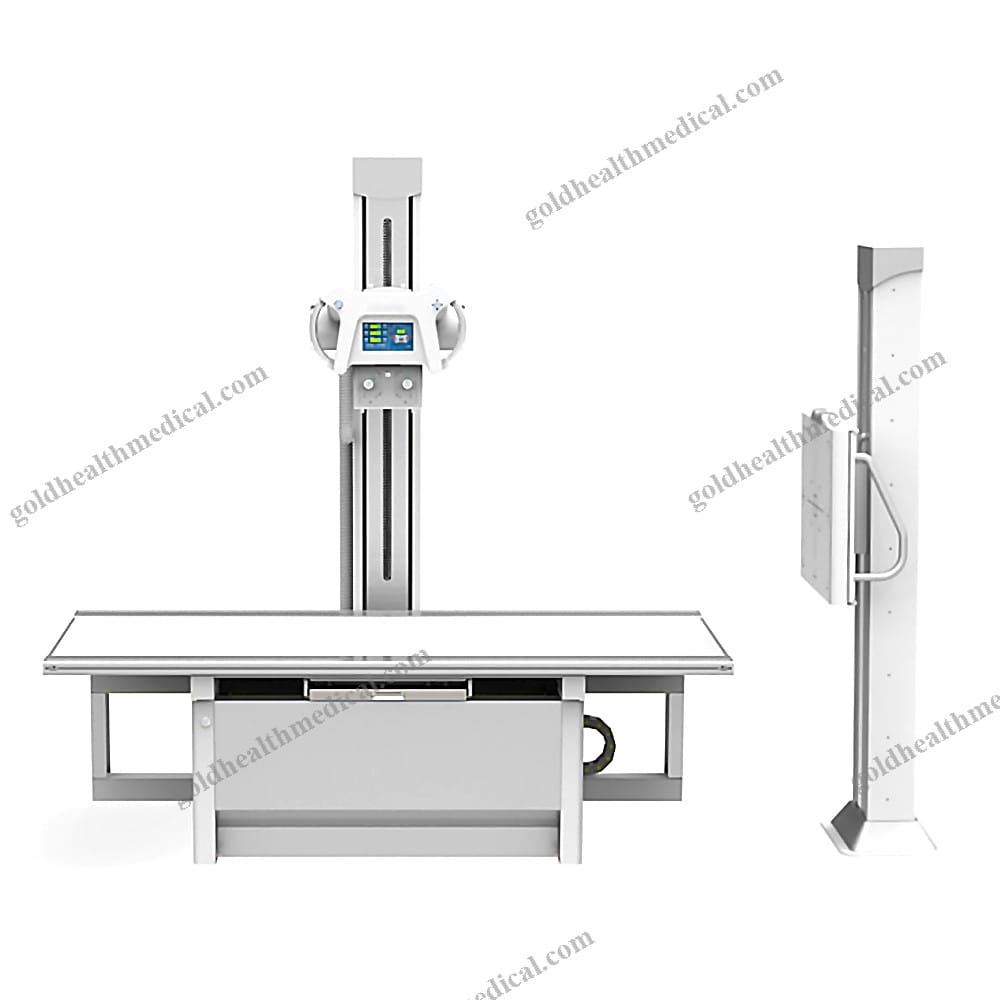

GoldHealth Medical High Frequency X-ray Radiography Machine
Product Overview
GoldHealth Medical introduces a cutting-edge high-frequency X-ray radiography machine designed for superior medical imaging. This system is ideal for orthopedics, emergency rooms, operating rooms, and more, providing precise diagnostic capabilities for human head, limbs, chest, spine, and lumbar spine examinations.
Key Features
- Advanced DR Upgrade Interface: Ensures seamless integration with digital radiography systems.
- Self-Diagnosis and Protection: Automatically detects and addresses system faults to ensure consistent performance.
- Automatic Tube Current Calibration: Delivers precise imaging with minimal user intervention.
- Filament Dormancy Function: Extends the lifespan of the X-ray tube by reducing wear during idle periods.
- AEC Functionality: Offers optional ionization chambers for automatic exposure control, enhancing image quality.
- Dual Analog-Digital Control Loop: Combines simplicity with high intelligence for effortless operation.
- High Penetration Power: Equipped with high kV, high current, and high power settings to accommodate obese patients with ease.
Technical Specifications

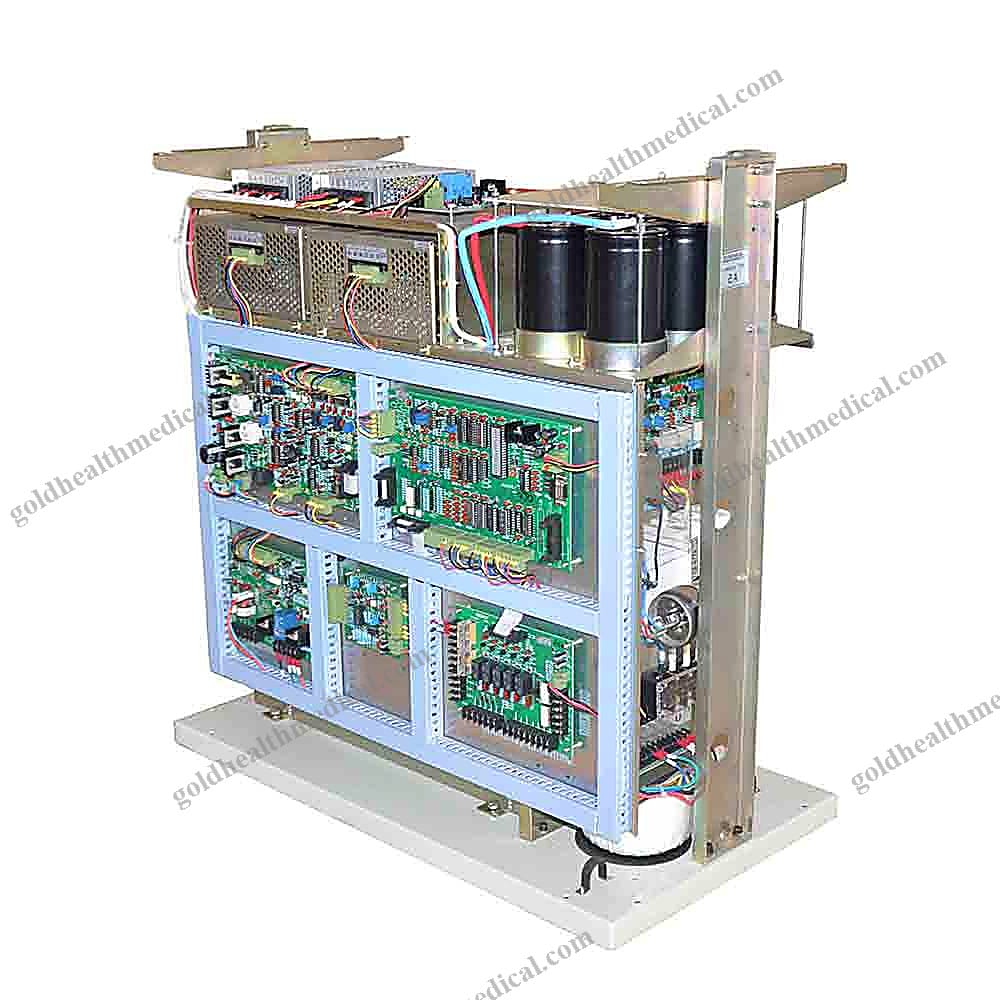

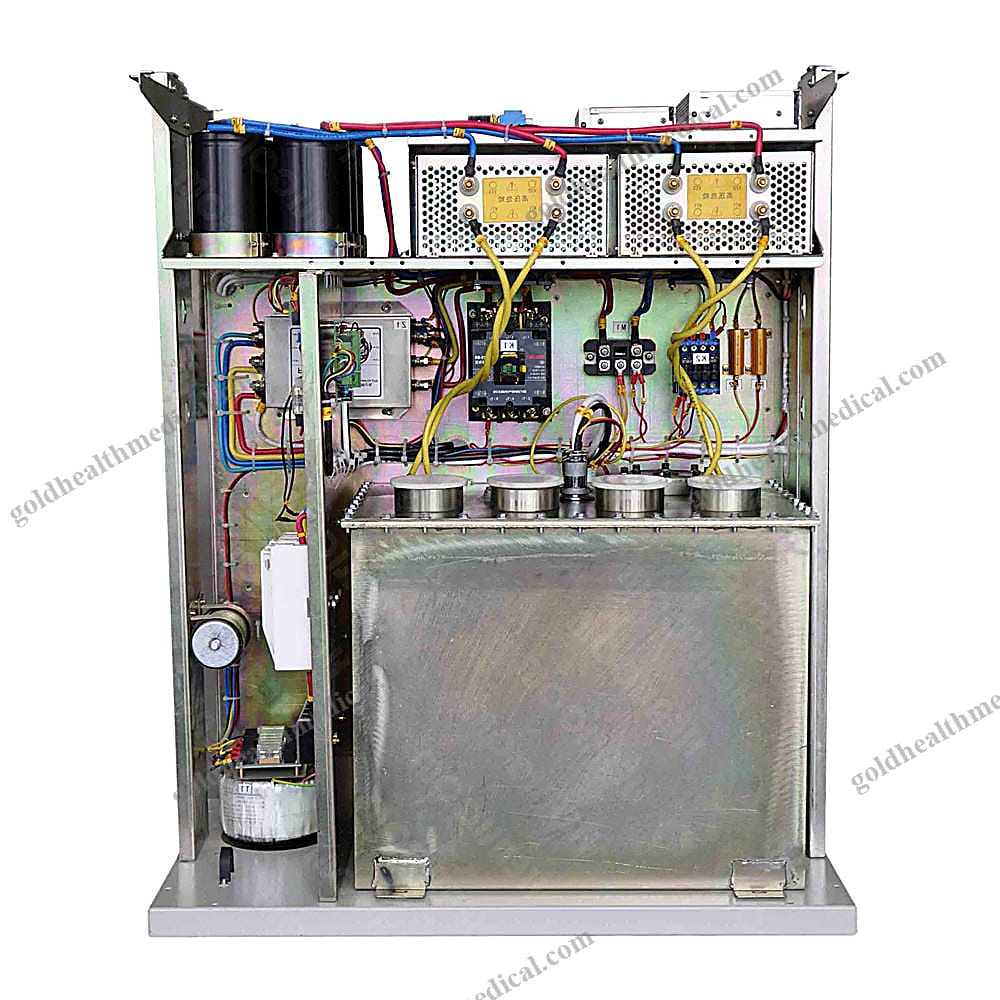

- X-ray Generator
- Output Power: 32KW
- Power Voltage: 220V ± 22V
- kV Range: 40–125kV
- mA Range: 32–400mA
- mAs Range: 0.32–400mAs
Exposure Time: 0.002–6.3 seconds

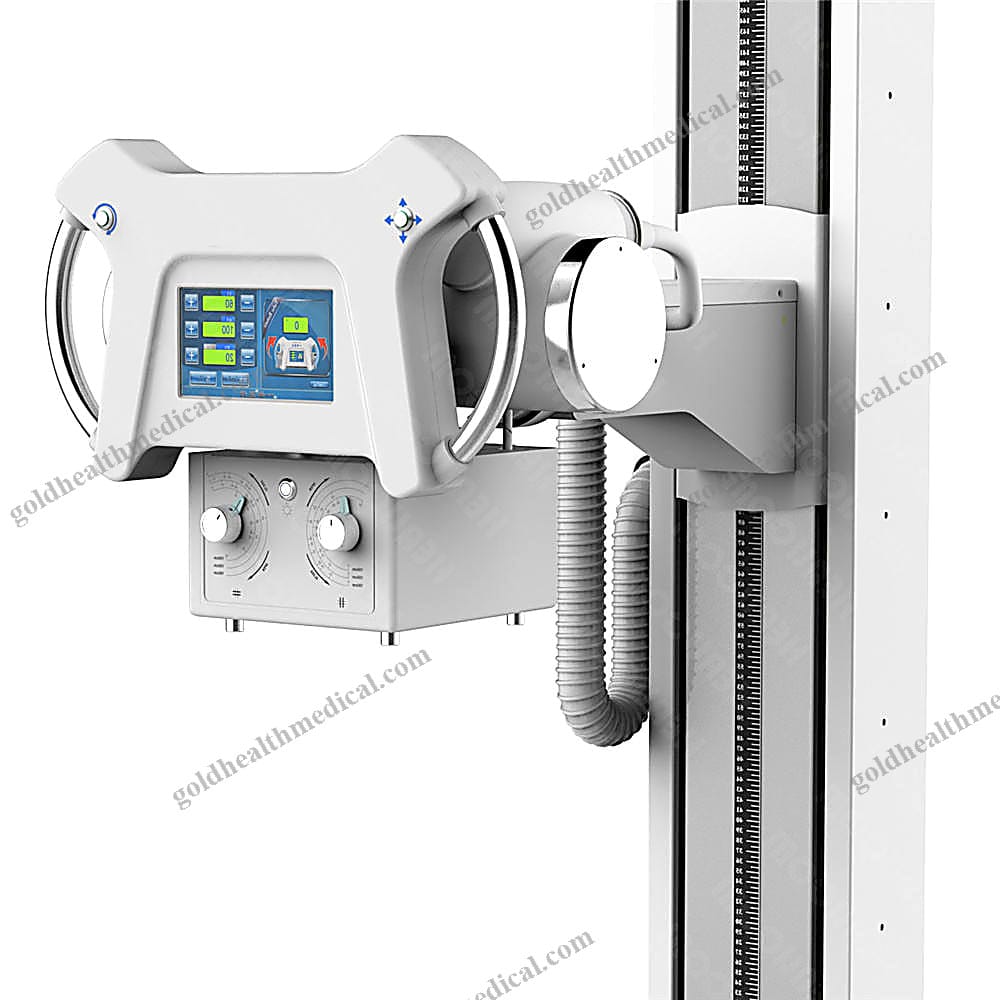

X-ray Tube
- Anode Heat Storage Capacity: 240kHU
- Small Focus: 0.6
- Large Focus: 1.2
Anode Speed: 3000r/min
Collimator
- Inherent Filtration: 1.0mm Al / 75kV
Light Source: LED
Radiographic Table
- Top Table Size: 2100 x 800 x 650mm
- Bucky Size: 18 x 18 inches
- Table Longitudinal Movement: ≥900mm
Cassette Movement Distance: ≥500mm
Vertical Chest Stand
- Vertical Moving Range: ≥1200mm
Bucky Size: 18 x 18 inches
Double Grid
- Size: 18 x 18 inches
- Ratio: 1:1
- F.D.: 100cm
- Density: 40 L/cm
Why Choose GoldHealth Medical?
GoldHealth Medical stands out with its commitment to precision, durability, and innovation. Our X-ray radiography machine is engineered to meet the demands of modern healthcare facilities, offering unparalleled performance and reliability. With decades of expertise in medical imaging, we deliver solutions that empower healthcare professionals to achieve accurate diagnoses and improve patient outcomes.
Related Products
- Portable Radiology Equipment: Compact and battery-powered for flexible use.
- Mobile Digital X-ray Machine: Equipped with a flat panel detector for advanced imaging.
- Floor-Mounted DR X-ray System: Automated U-arm design for seamless operation.
- Wireless X-ray Detector: Ideal for veterinary and digital radiography applications.
- Medical X-ray Film Printer: High-quality thermal imaging for DR, CT, CR, and MRI.
Frequently Asked Questions
- Competitive Pricing: Our products are priced competitively without compromising on quality, ensuring value for money.
- Quality Assurance: We provide a one-year warranty and free replacement parts for minor issues.
- Delivery Time: Custom orders are delivered within 15 days, with expedited options for stock items.
- Payment Options: Flexible terms including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram.
GoldHealth Medical is your trusted partner in medical imaging, delivering innovative solutions tailored to meet the needs of hospitals, clinics, and research institutions worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly introduces a cutting-edge Class II medical instrument designed to deliver unparalleled precision and reliability in diagnostic imaging. Engineered with advanced technology, this device is ideal for hospitals, clinics, research institutions, and rehabilitation centers seeking exceptional performance and safety.
Key Features and Specifications
- Power Source: Electricity-driven for consistent and reliable operation.
- Output Power: 32KW, ensuring robust performance across diverse applications.
- kV Range: 40~125kV, offering versatile imaging capabilities tailored to specific diagnostic needs.
- mA Range: 32~400mA, enabling precise control over current for optimal image quality.
- mAs Range: 0.32~400mAs, providing flexibility for various imaging protocols.
- Exposure Time: 0.002~6.3 seconds, delivering rapid and accurate results.
Design and Build Quality
- Material: Constructed with high-grade metal and durable plastic for long-lasting performance.
- Safety Standards: Designed to meet stringent quality benchmarks, ensuring user and patient safety.
- Quality Certification: CE-certified, guaranteeing compliance with international standards.
Warranty and Support
- Warranty: Comprehensive 1-year warranty for peace of mind.
- After-Sales Service: Access to online technical support, ensuring seamless operation and troubleshooting.
Packaging and Delivery
- Packaging: Securely packed in robust wooden cases to protect against transit damage.
- Supply Capacity: Up to 1000 units per month, ensuring timely delivery for bulk orders.
Additional Details
- Shelf Life: 1 year, maintaining optimal functionality under recommended storage conditions.
- Place of Origin: Jiangsu, China, renowned for its advanced manufacturing capabilities.
GoldHealth Medical’s commitment to innovation and excellence ensures that this diagnostic imaging solution stands out as a reliable and future-ready choice for healthcare professionals worldwide.
