Digital ECG Machine 36 Channel 12Lead E
Reference: 1601070445261Examination Therapy Equipments
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

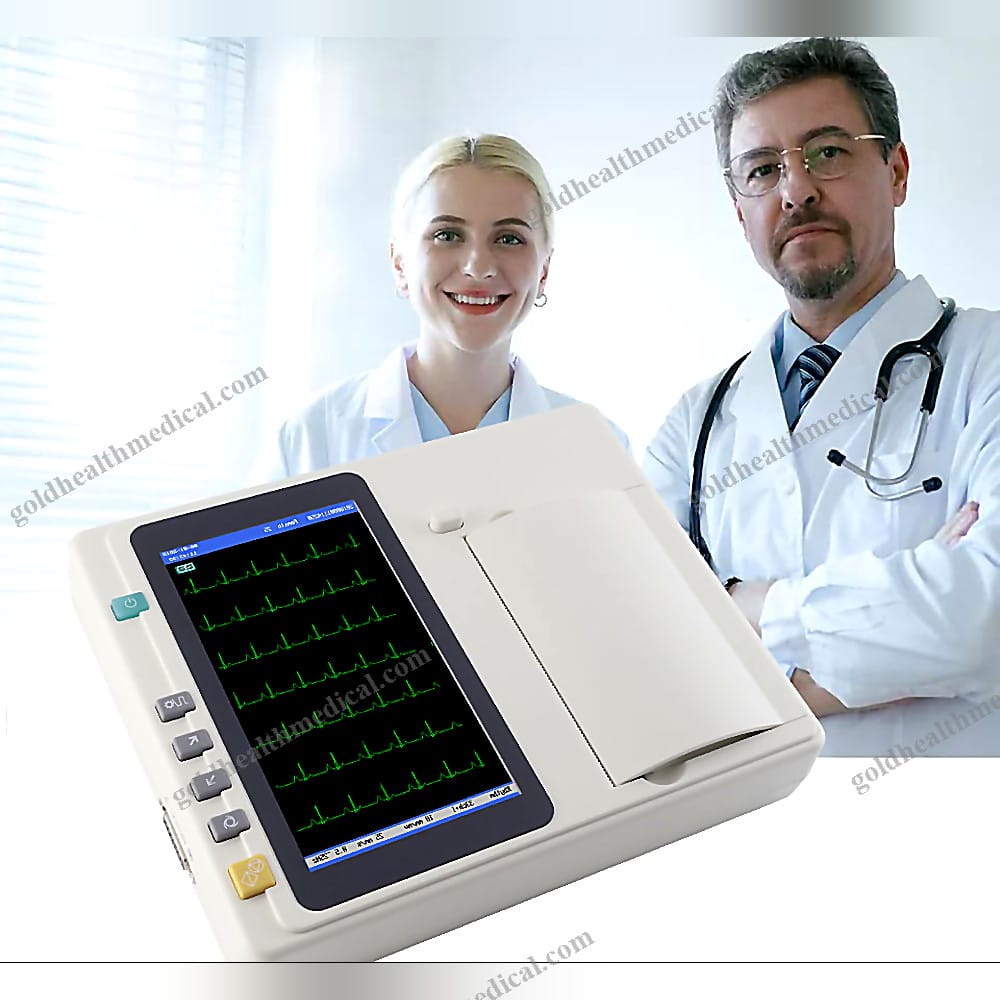

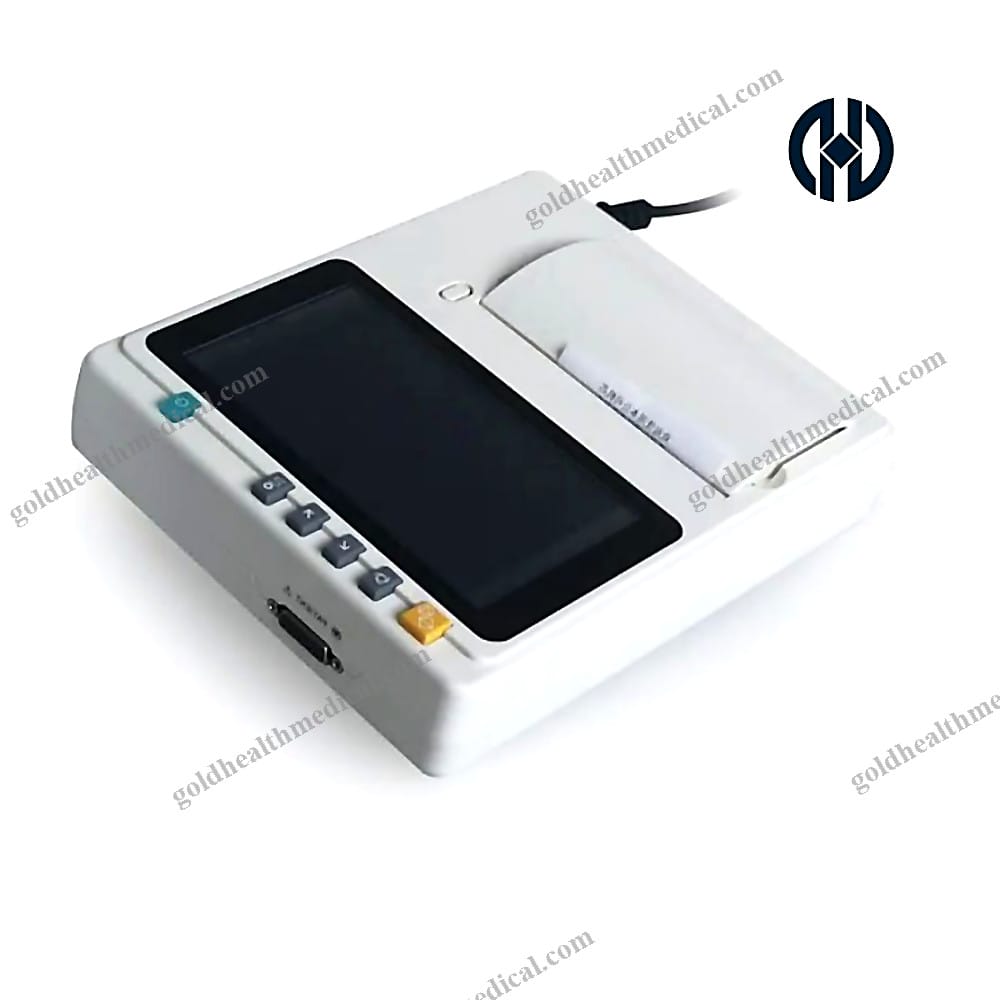

GoldHealth Medical Portable Digital ECG Machine
Product Overview
GoldHealth Medical introduces a cutting-edge portable digital ECG machine designed for precision, reliability, and ease of use. Featuring a 7-inch high-resolution color LCD touch screen, this device combines advanced functionality with an intuitive interface, making it ideal for both clinical and field applications. Whether you're in a hospital, clinic, or conducting remote diagnostics, this ECG machine delivers exceptional performance.
Key Features

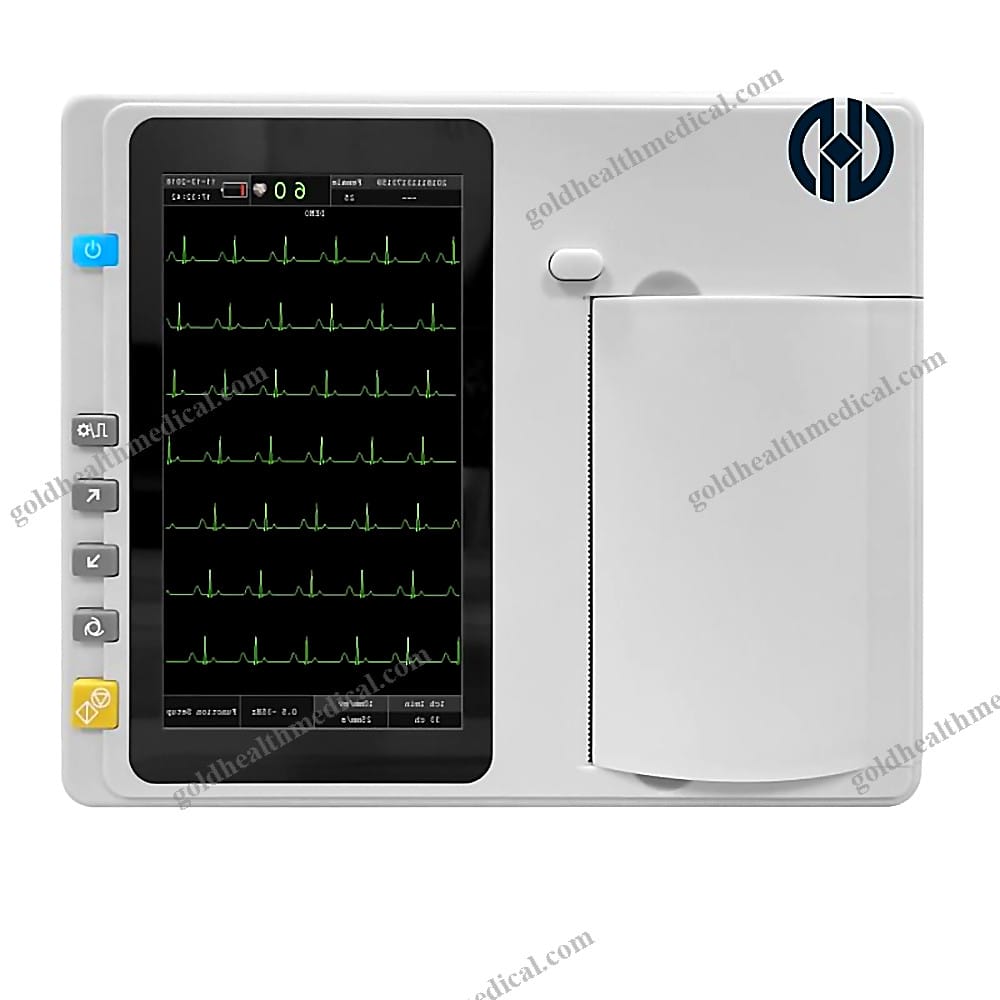

- 7-inch High-Resolution Color Touch Screen: Operate seamlessly via touch or function buttons for maximum convenience.
- 12-Lead Simultaneous Acquisition and Display: Capture comprehensive ECG data with precision.
- Automatic Measurement and Interpretation: Advanced algorithms ensure reliable results tested against CSE and AHA databases.
- Advanced Digital Filters: Resists baseline drift, AC, and EMG interference for clear, accurate readings.
- Compact and Lightweight Design: Engineered for portability without compromising durability.
- Expandable Memory: Supports USB flash drives and micro SD cards for extended storage.
- Software Upgrade Capability: Effortlessly update via USB or SD card.
- Built-in Rechargeable Lithium-Ion Battery: Ensures uninterrupted operation during critical procedures.
Additional Highlights
- 6-Lead Simultaneous Acquisition: Provides flexibility for various diagnostic needs.
- Smart Alerts: Detects lead-off connections and low battery capacity, ensuring consistent performance.
- Automatic Baseline Adjustment: Optimizes print quality for professional reporting.
- Optional Data Management Software: Streamlines ECG file organization and analysis on PC.
- Memory Capacity: Stores up to 12 ECG files internally and 250 files on an optional SD card.
Technical Specifications
- Sampling Rate: 1000 samples per second per channel for precise data capture.
- Safety Standards: Compliant with IEC I/CF standards.

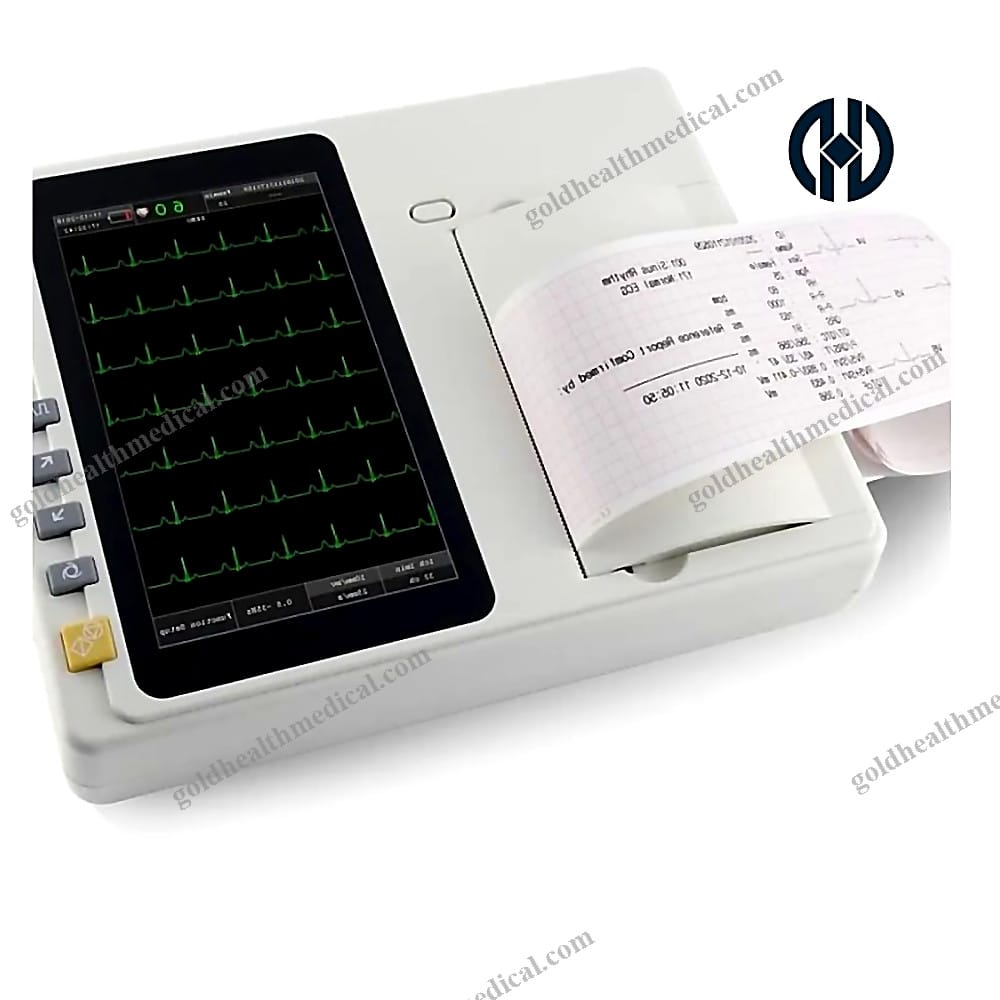

- Paper Speed Options: 12.5mm/s, 25mm/s, 50mm/s.
- Power Supply: AC/DC adaptable (100-240V, 50/60Hz), with up to 10 hours of standby time and over 3 hours of continuous printing.
- Battery: Built-in 14.8V/2200mAh lithium-ion battery.
- Weight and Dimensions:
- Single package size: 32x25x17cm
- Gross weight: 2.8kg
Clinical Applications
This ECG machine processes and analyzes static ECG data to provide critical measurement parameters such as heart rate (HR) and automatic interpretation. These insights assist physicians in diagnosing cardiovascular conditions with confidence.
Electrode Placement Guide
For optimal results, place chest electrodes as follows: - C1 (V1): Fourth intercostal space at the right sternal margin. - C2 (V2): Fourth intercostal space at the left sternal margin. - C3 (V3): Midway between C2 and C4. - C4 (V4): Intersection of the midclavicular line and the fifth intercostal space. - C5 (V5): Left anterior axillary line, aligned with C4. - C6 (V6): Left midaxillary line, aligned with C4.
Clean the skin with alcohol and apply conductive paste before attaching electrodes for enhanced conductivity.
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering innovative, high-quality medical devices that meet the needs of healthcare professionals worldwide. Our products are designed with precision, reliability, and user-centric features to ensure superior performance in any setting.
Packing Details
- Single Package Size: 32x25x17cm
- Single Gross Weight: 2.8kg
- Carton Capacity: 8 units per carton
- Carton Dimensions: 54x33x75cm
- Total Gross Weight: 22kg
GoldHealth Medical’s portable digital ECG machine is a trusted solution for accurate diagnostics and efficient patient care. Elevate your practice with a device that combines advanced technology with unparalleled usability.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Overview
GoldHealth Medical proudly presents the ECG Machine, a cutting-edge solution designed for precision, reliability, and ease of use in cardiac diagnostics. Engineered to meet the demands of modern healthcare, this Class II medical instrument is ideal for hospitals, clinics, research institutions, and home care environments. Backed by a 3-year warranty and comprehensive online technical support, it ensures uninterrupted performance and peace of mind.
Key Features and Specifications
- Power Source: Electric, ensuring consistent and reliable operation.
- Material: Constructed with high-quality metal and durable plastic for enhanced longevity.
- Instrument Classification: Class II, guaranteeing safety and compliance with medical standards.
- Quality Certifications: CE, ISO-certified, reflecting our commitment to global quality benchmarks.
- Place of Origin: Shandong, China, renowned for advanced manufacturing capabilities.
Performance and Longevity
- Shelf Life: 3 years, ensuring extended usability and reliability.
- Warranty: 3 years, underscoring our confidence in the product’s durability and performance.
Packaging Details
- Package Type: Carton packing for secure transportation.
- Single Package Size: 32 x 25 x 17 cm.
- Single Gross Weight: 6.000 kg.
Supply Capacity
- Monthly Supply Ability: 2000 sets, ensuring scalability to meet high demand.
Why Choose GoldHealth Medical’s ECG Machine?
- Precision Engineering: Delivers accurate and consistent ECG readings, critical for effective cardiac care.
- User-Centric Design: Intuitive interface and robust construction make it suitable for both professional and home environments.
- Global Standards: Complies with international safety and quality certifications, ensuring trust and reliability.
- Comprehensive Support: Benefit from our dedicated online technical support team, available to assist with any queries or troubleshooting.
GoldHealth Medical’s ECG Machine is more than just a diagnostic tool—it’s a reliable partner in delivering exceptional patient care.
