Diabetes Care Insulin Pump Pro
Reference: 1601048047354Injection & Infusion Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

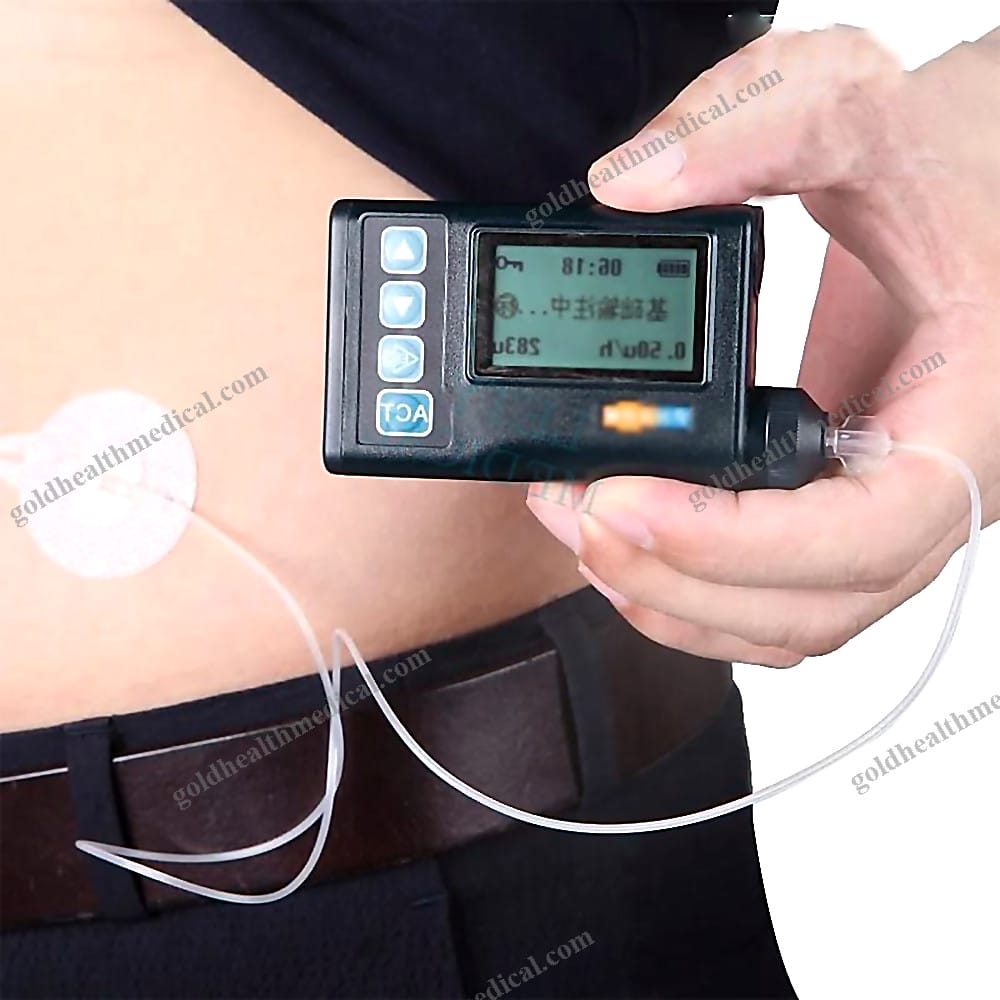

GoldHealth Medical Insulin Pump
GoldHealth Medical presents an advanced insulin pump designed to redefine diabetes management. Engineered with precision and reliability, this insulin pump offers a seamless experience for both patients and healthcare providers. As a pioneer in setting industry benchmarks, GoldHealth Medical ensures that every device exceeds national and international standards, delivering unparalleled safety and effectiveness in blood sugar control.
Key Features
- Basal Infusion Options:
- 24/48 programmable basal rates for personalized treatment plans.
Basal infusion range: General (0–2u/hour); Doctor (0–5u/hour).
Infusion Frequency:
Adjustable from 2 to 60 times per hour for precise insulin delivery.
Increment Precision:
Minimum increment of 0.05u for highly accurate dosing.
Infusion Modes:
Basal infusion, temporary basal infusion, bolus infusion (intelligent mode/meals mode), and square wave infusion for versatile therapy options.
Bolus Infusion Range:
General: 0–40u; Doctor: 0–85u, with fixed increments of 0.1u.
Temporary Basal Infusion:
Adjustable up to 200% in 10% increments for up to 24 hours.
Daily Total Range:
General: 60u; Doctor: 0–200u, ensuring flexibility for varying patient needs.
Automated Filling System:
Motor-driven screw mechanism with auto-reset and auto-calculation for insulin filling.
Advanced Safety Features:
- Dual CPU system for continuous cross-checking and enhanced reliability.
- Comprehensive alarms for low battery, empty reservoir, occlusion, and more.
Maximum bolus, basal, and daily total limits to prevent overdosing.
Waterproof Design:
IPX8 rating for use in challenging environments.
Reservoir Capacity:
3.0ml reservoir with a standard luer lock connector compatible with all major insulin sets.
Battery Life:
Powered by a single 1.5V AAA alkaline battery with energy-saving sleep mode.
Operating Conditions:
- Temperature: 5°C–40°C.
- Relative Humidity: ≤93%.
Pressure: 8.6kPa–106kPa.
Storage Conditions:
- Temperature: -20°C–50°C.
- Relative Humidity: ≤93%.
- Pressure: 8.6kPa–106kPa.
Display and Interface
- High-Resolution LCD:
- 128x64 dot matrix with backlight for clear visibility.
Auto-display of remaining insulin, battery life, operation status, time, and basal rate.
User-Friendly Menu:
- Simple list-driven interface for intuitive navigation.
Dimensions and Weight
- Compact and lightweight design:
- Dimensions: 78x52x20mm.
- Net Weight: 55 grams.
Advanced Motor Technology
- Equipped with a Swiss micro DC motor for smooth and reliable insulin delivery.
Memory and History Tracking
- Comprehensive Memory Features:
- Last 50 daily insulin totals with time and date stamps.
- Last 50 bolus records with time and date stamps.
- Auto-memory for the last settings and preset waiting times (10/20/30 minutes).
Additional Features
- Standard Luer Interface:
Compatible with all brands of insulin sets.
Language Options:
Available in Chinese and English (preset one language per device).
Color Options:
- Stylish black and deep green designs.
GoldHealth Medical’s insulin pump is engineered to empower patients and healthcare providers with cutting-edge technology, unmatched precision, and peace of mind. Transform diabetes management with a device that combines innovation, safety, and ease of use.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the next-generation Insulin Pump, meticulously engineered to redefine diabetes management with precision, reliability, and user-centric design.
Product Highlights
- Advanced Infusion Technology: Achieve unparalleled accuracy with a basic infusion set precision of 0.1/0.05u and a minimum dosage of 0.05u, ensuring tailored insulin delivery for every patient.
- Customizable Infusion Frequency: Offers adjustable infusion rates ranging from 2 to 60 times per hour, empowering healthcare providers to optimize treatment plans.
- Daily Dosage Flexibility: Supports a normal daily maximum of 60u, extendable to 200u under medical supervision, catering to diverse patient needs.
- Swiss Engineering Excellence: Equipped with a Swiss micro DC motor for smooth, silent, and precise operation, ensuring consistent performance day and night.
- Dual-CPU System: Features a double CPU design for enhanced safety, reliability, and real-time monitoring, minimizing risks and maximizing peace of mind.
Design and Durability
- Premium Build Quality: Constructed with high-grade PVC material, ensuring durability and resistance to wear and tear.
- Superior Waterproof Performance: Rated IP*8, this insulin pump is designed to withstand daily exposure to water, offering unmatched reliability in any environment.
- Compact and Portable: Sized at 22x11x50 cm, it is lightweight and easy to carry, making it ideal for both home and professional use.
- Elegant Aesthetic: Finished in a sleek dark green color, combining functionality with a modern, professional appearance.
Safety and Compliance
- Class III Medical Instrument: Designed to meet the highest standards of safety and efficacy for critical care applications.
- Quality Assurance: Certified with CCC, ensuring compliance with rigorous quality control measures.
- Long Shelf Life: With a shelf life of 1 year, this product is ready for immediate deployment in clinics, hospitals, or home settings.
Key Specifications
- Maximum Medicine Capacity: Holds up to 305u of insulin, reducing the need for frequent refills.
- Precision Motor: Swiss micro DC motor ensures accurate and consistent insulin delivery.
- Package Details:
- Single item per package
- Package dimensions: 29x12x26 cm
- Gross weight: 1.500 kg
Why Choose GoldHealth Medical?
GoldHealth Medical is committed to delivering cutting-edge medical solutions that empower healthcare professionals and improve patient outcomes. Our insulin pump combines innovative technology, robust engineering, and user-focused design to provide a seamless and reliable experience for diabetes management.
Experience the future of insulin therapy with GoldHealth Medical – where precision meets performance.
