CONTEC TLC9803 3Channel 24
Reference: 1600094811525Household Medical Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

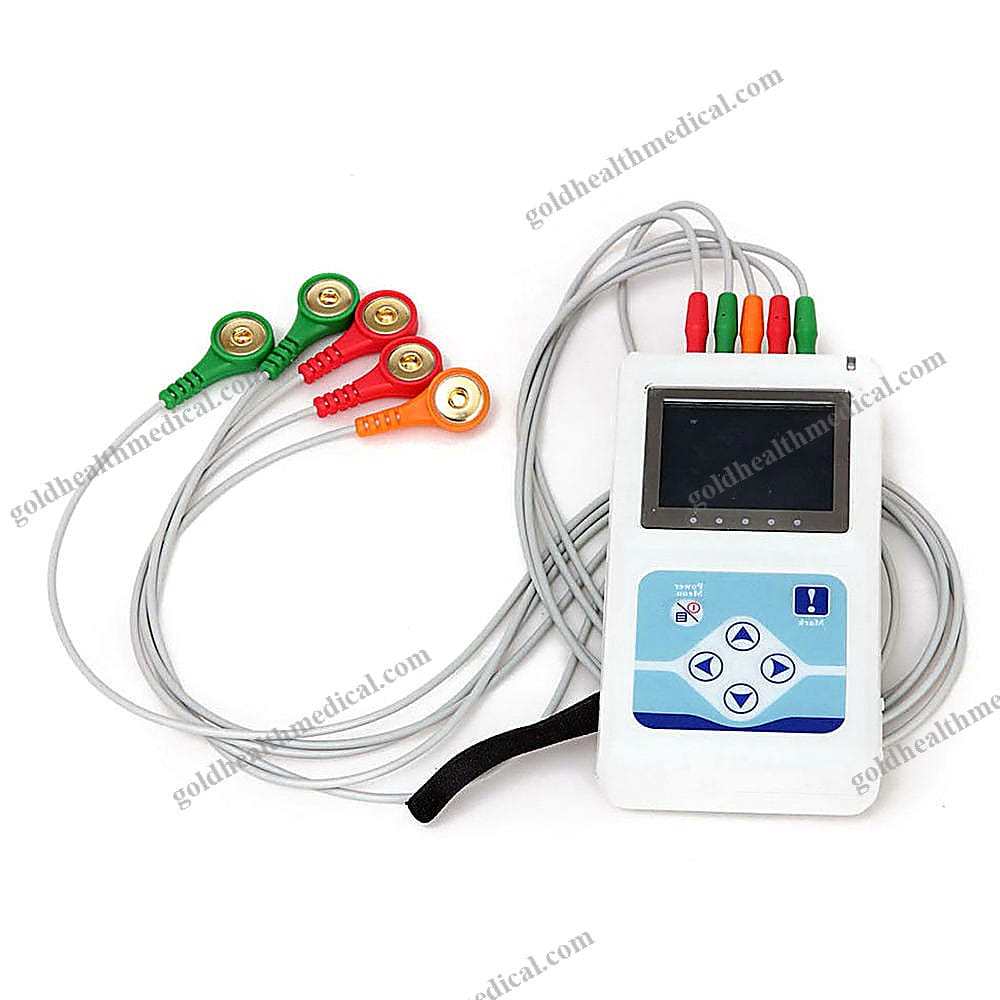

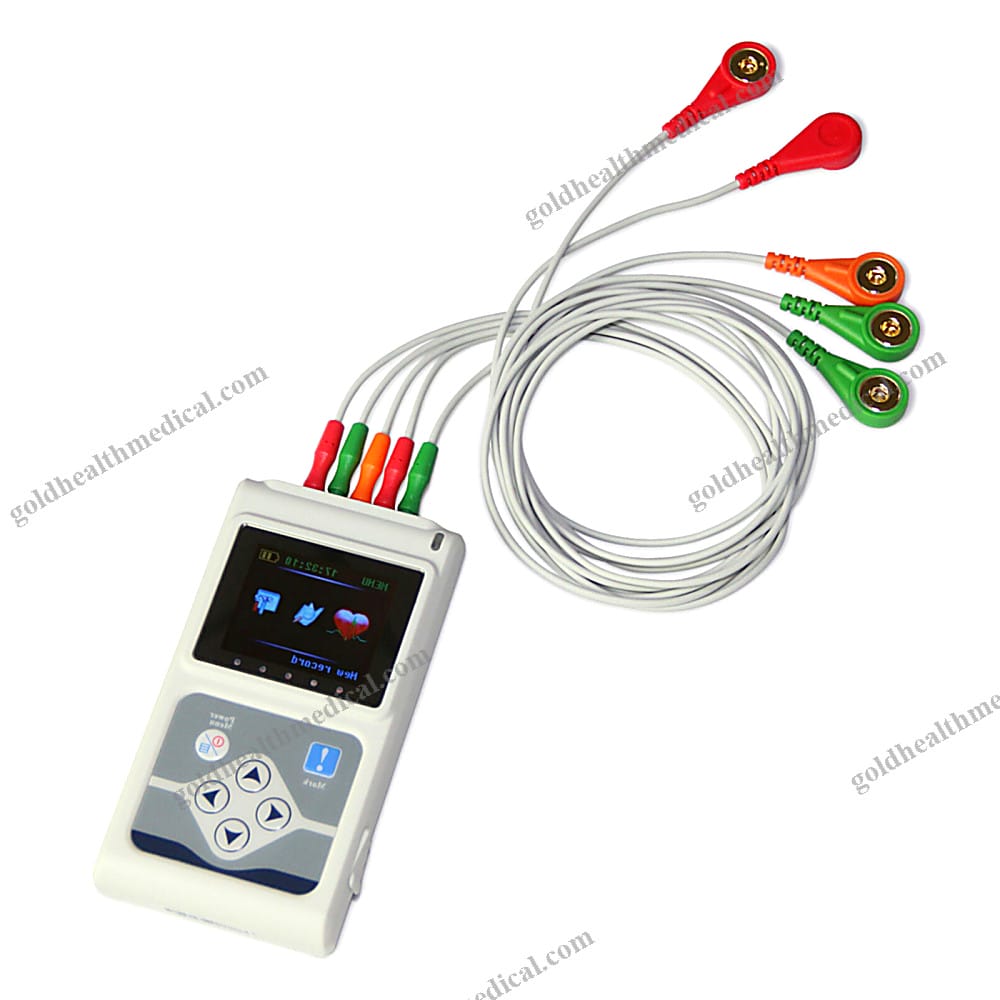

GoldHealth Medical Dynamic ECG Holter
Product Description
The GoldHealth Medical Dynamic ECG Holter is a state-of-the-art device designed for continuous ECG waveform recording over 24 hours. It utilizes advanced PC software to analyze the recorded data, making it an essential tool for medical institutions and community healthcare.
Features
- Real-Time Data Storage: Capable of storing ECG data in real-time for 24 hours.
- Advanced Arrhythmia Analysis: Employs MCSSTM and TMCATM technologies to significantly reduce the workload on healthcare professionals.
- Comprehensive Templates: Includes over 10 templates (e.g., atrial premature beat, ventricular premature beat) and customizable modules to identify various pathological waveforms.
- Flexible Analysis Channels: Allows selection of any channel as the primary analysis channel.
- Atrial Fibrillation Analysis: Offers both AUTO and manual analysis options for precise results.
- Pacemaker Analysis: Equipped to analyze all types of pacemakers, including AAI, VVI, DDD, with specialized pacing analysis templates.
- Fast Review Function: Enables review of single or full-lead ECGs from any time segment.
- Heart Rate Variability Analysis: Provides analysis for 5-minute, 1-hour, and 24-hour intervals.
- One-Key Print: Simplifies report printing with a single button.
- Case Management: Offers robust case management features.
- Sleep Apnea Prediction: Unique "Sleep Apnea Syndrome" analysis predicts the risk of sleep-related breathing issues.
- Myocardial Infarction Risk Prediction: "HRT" analysis function assesses the death risk in myocardial infarction patients.
- T-Wave Alternation: An important indicator for predicting malignant arrhythmia and sudden cardiac death.
Performance
- Lead: 3-lead
- Record Time: 24-hour
- Power Supply: Two “AA” batteries

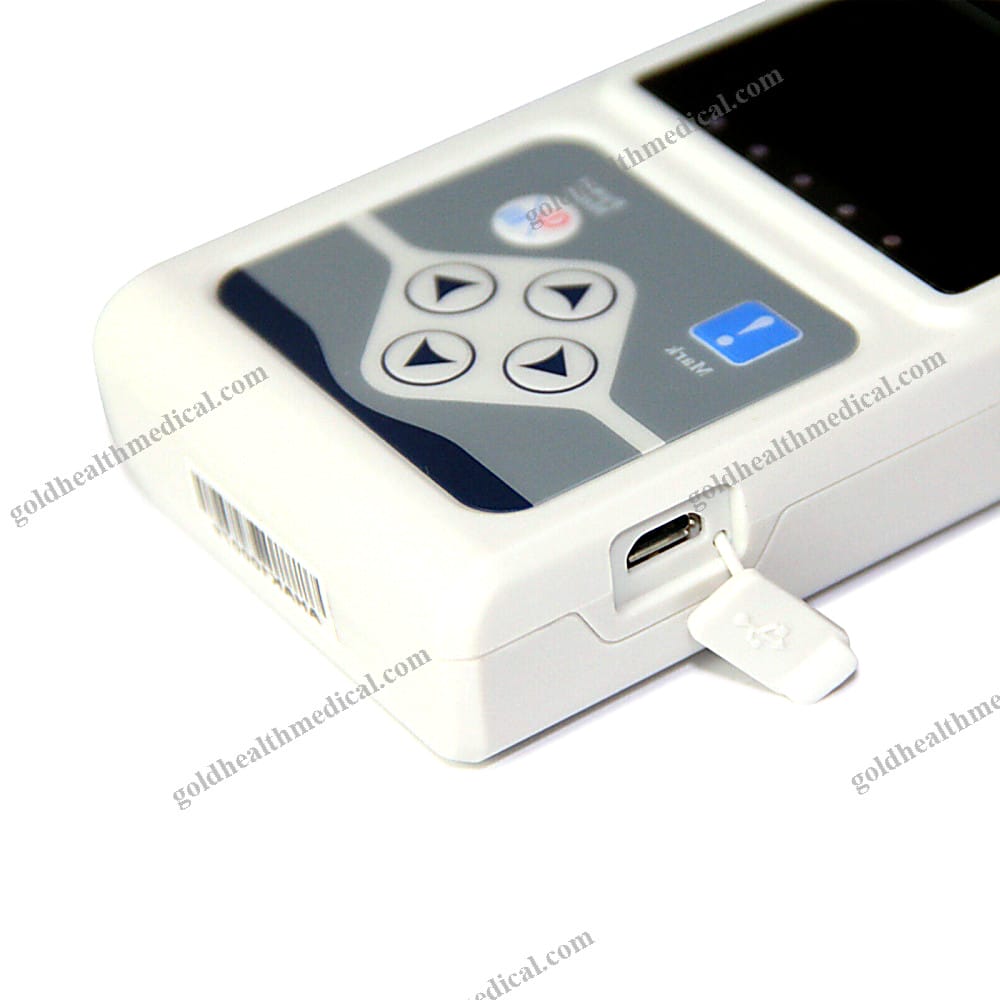

- Interface: USB 2.0
- Calibration Voltage: 1mV ± 5%
- Noise Level: ≤30μV
- CMRR: ≥60dB
- Low-Frequency Characteristics: Time constant ≥ 3.2s
- Scan Speed: 25mm/s ± 5%
- Polarizing Voltage: ±300mV, Sensitivity: ≤±10%
- Minimum Measure Signal: 50 µV p-p
Physical Specifications
- Dimension: 111mm(L) × 60mm(W) × 25mm(H)
- Weight: Approximately 105g (without batteries)
Package Included
- 1x Dynamic ECG System Machine
- 1x Set Lead Cable
- 1x Bag ECG Electrode
- 1x USB Cable
- 1x Bag
- 1x User Manual
Certifications
- CE ISO
GoldHealth Medical's Dynamic ECG Holter stands out with its precision, ease of use, and comprehensive analytical capabilities, ensuring top-tier cardiovascular monitoring for healthcare providers worldwide.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Dynamic ECG Machine
Product Overview
The Dynamic ECG Machine by GoldHealth Medical is a state-of-the-art diagnostic tool designed for precision and reliability in cardiac monitoring. Engineered with cutting-edge technology, this device delivers high-accuracy pathological analysis, making it indispensable for professional testing in medical healthcare environments. Its sleek design and advanced functionality cater to hospitals, clinics, research labs, and home users seeking dependable cardiac diagnostics.
Key Features
- High-Accuracy Diagnostics: Equipped with advanced sensors and algorithms, this ECG machine ensures precise heart activity monitoring for reliable results.
- LCD Digital Display: A crisp, easy-to-read screen provides real-time data visualization, enhancing usability and efficiency.
- Data Storage Capability: Built-in memory allows for comprehensive date storage, enabling detailed analysis and long-term tracking of patient data.
- Professional-Grade Testing: Designed for both clinical and research applications, this device meets the rigorous demands of healthcare professionals.
Technical Specifications
- Instrument Classification: Class II
- Power Source: Electric (Plug-in mode)
- Material: Durable acrylic and resin construction for longevity and performance.
- Color: Elegant brown finish for a professional aesthetic.
- Safety Standards: Compliant with ISO and CE certifications, ensuring the highest levels of safety and quality.
- Accuracy: Exceptional precision in diagnosing cardiac conditions.
- Application: Ideal for medical healthcare, pathological analysis, and professional testing.
Packaging Details
- Single Package Size: 29.3 x 18.3 x 8.8 cm
- Single Gross Weight: 0.560 kg
Warranty & Support
- Warranty Period: 1 year, reflecting our confidence in product durability and performance.
- After-Sale Service: Access to online technical support ensures seamless operation and troubleshooting assistance.
Shelf Life
- Duration: 3 years, maintaining optimal functionality and reliability over time.
GoldHealth Medical’s Dynamic ECG Machine is more than just a diagnostic tool—it’s a commitment to excellence in cardiac care. With its innovative design, robust performance, and adherence to global safety standards, this device sets a new benchmark in pathological analysis equipment.
