Contec Portable Fetal Doppler Monitor with 8MHz Probe and Three
Reference: 1600747148814Fetal heart rate monitor
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary

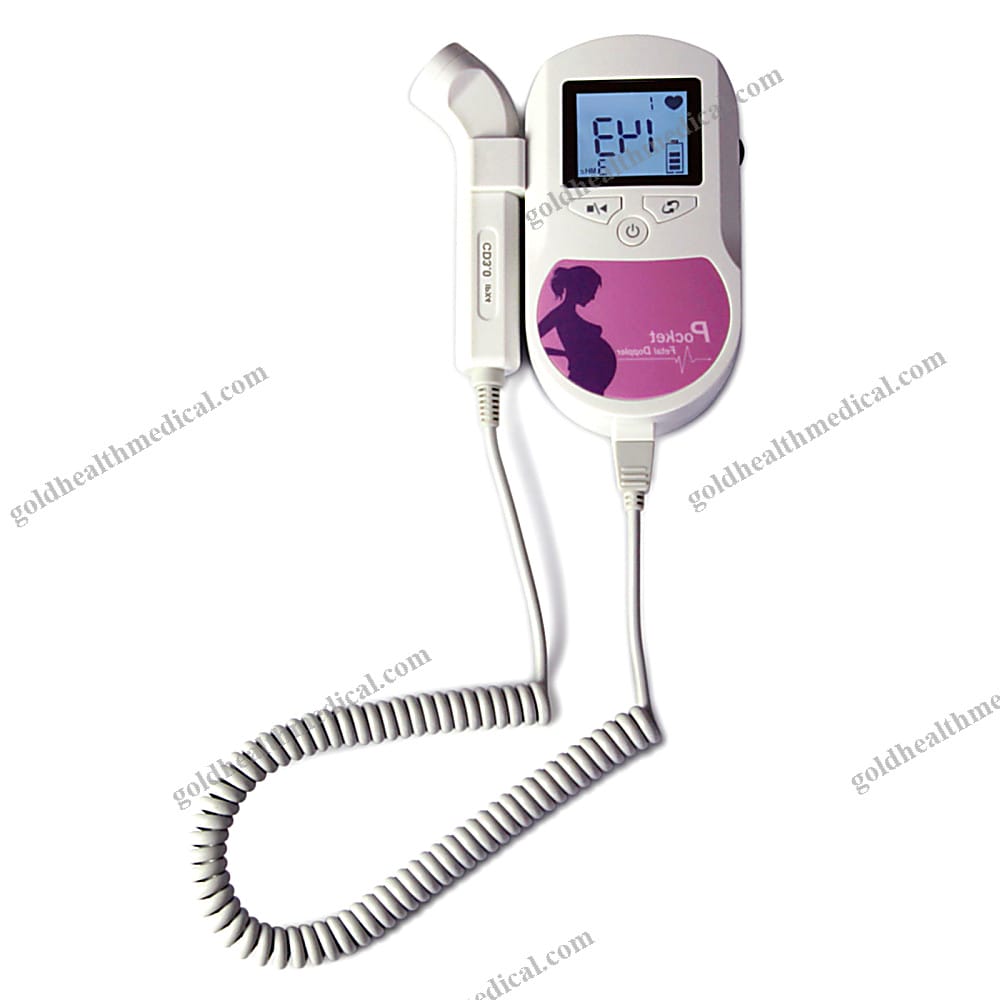

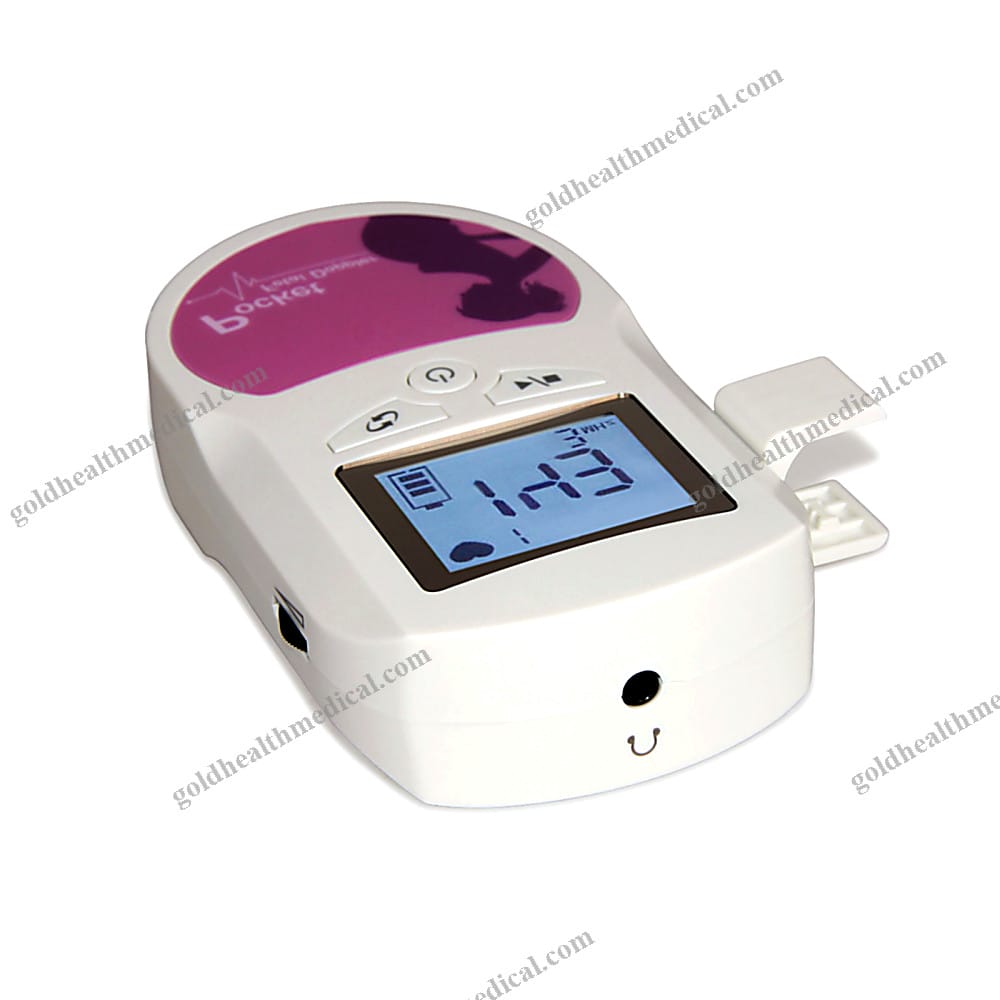

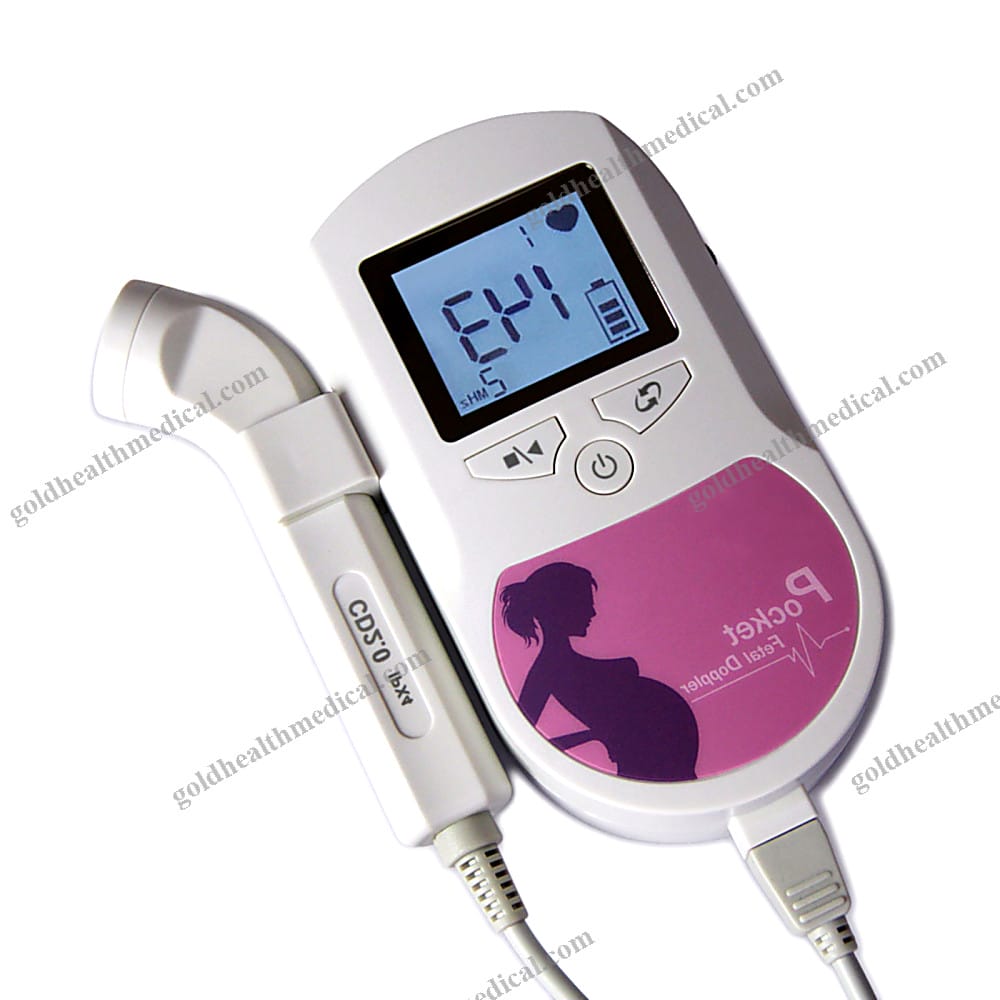

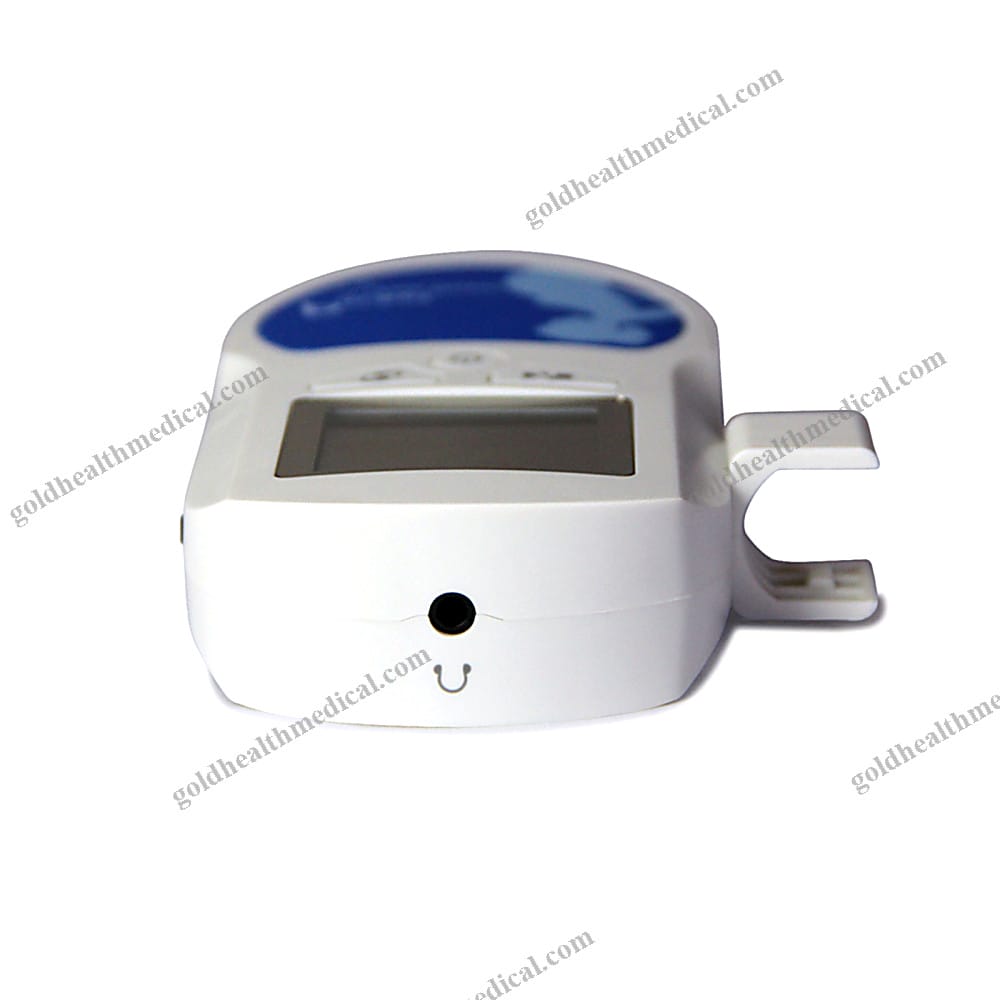

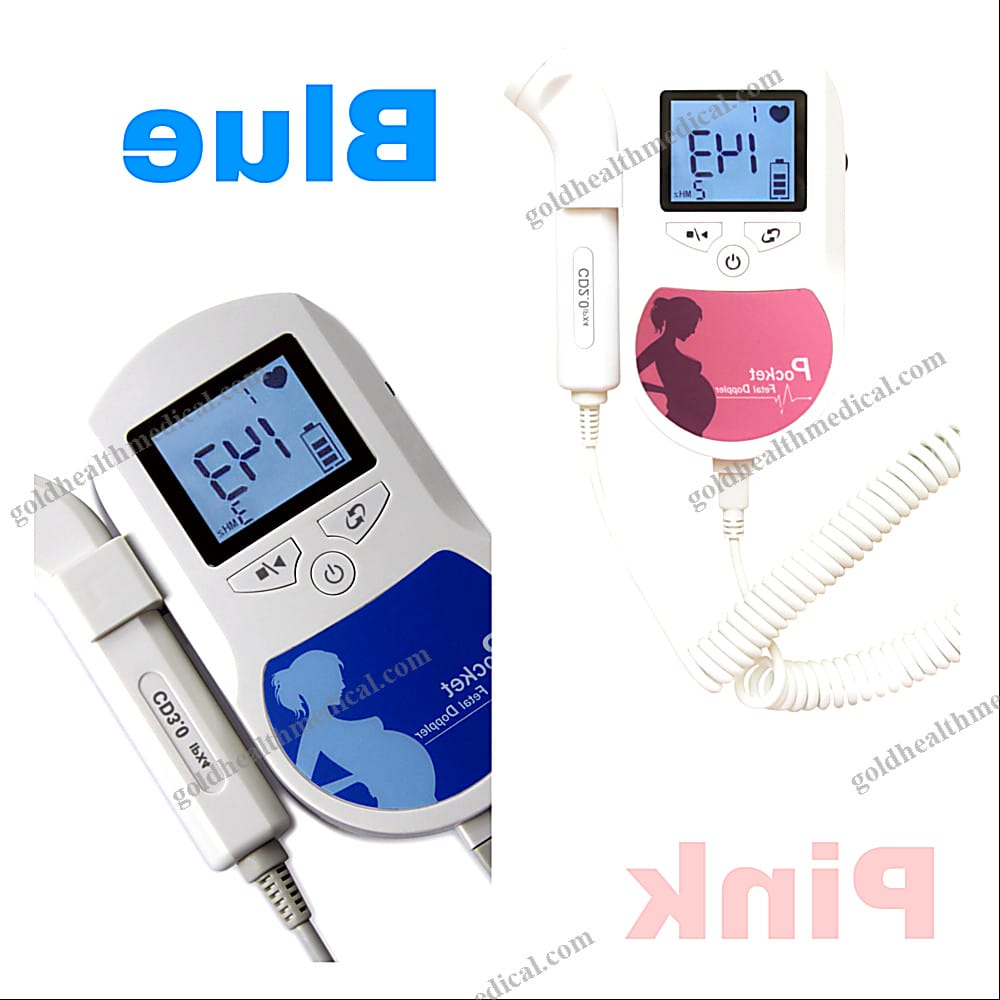

GoldHealth Medical Pocket Fetal Doppler
The GoldHealth Medical Pocket Fetal Doppler is a sophisticated handheld device designed to detect and display fetal heart rates using advanced Doppler technology. Featuring a crisp digital LCD screen, this device ensures precise readings while offering unparalleled ease of use. Designed for both professional and personal settings, it empowers healthcare providers and expectant mothers alike to monitor fetal health with confidence, enabling early detection and care.
Key Features
- Compact and Ergonomic Design: Lightweight and portable, it combines portability with intuitive operation, making it ideal for daily use in hospitals, clinics, or at home.
- Enhanced Comfort with Crooked Probe: The thoughtfully designed probe structure ensures effortless handling and superior comfort, reflecting a commitment to user-centric innovation.
- Three Intelligent Modes:
- Real-time FHR Display Mode
- Averaged FHR Display Mode
- Manual Mode
- High-Precision LCD Screen: A 38 mm × 32 mm display provides clear and accurate fetal heart rate readings.
- Smart Safety Features:
- Automatic probe disconnection detection
- Real-time battery status indication
- Flexible Probe Interface: The pluggable USB design allows for easy replacement of probes, ensuring long-term usability.
- Energy Efficiency: Automatically powers off after 1 minute of inactivity to conserve battery life.
- Real-Time Audio Recording: Equipped with an audio interface to connect to external recording devices, capturing fetal heart sounds seamlessly.
- Extended Battery Life: Powered by two AA LR6 batteries, offering over 8 hours of continuous use.
Performance Highlights
- Safety Classification: Internally powered, type CF applied part for safe and reliable operation.
- Fetal Heart Rate Range: 50 BPM to 240 BPM (beats per minute).
- Resolution and Accuracy:
- Resolution: 1 BPM
- Accuracy: ± 2 BPM
- Power Consumption: Less than 1 W for energy-efficient performance.
- Operational Voltage: Rated at DC3 V.
Probe Specifications
- Nominal Frequency: 8.0 MHz
- Working Frequency: 8.0 MHz ± 10%
- Maximum Output Sensitivity: ≥90 dB
- Ultrasonic Output Power: P < 20 mW
- Negative Peak Sound Pressure: P_ < 1 MPa
- Output Beam Intensity: Iob < 20 mW/cm²
- Spatial-Peak Temporal-Average Derived Intensity: Ispta < 100 mW/cm²
- Working Mode: Continuous wave Doppler
- Effective Radiating Area: < 157 mm²
Why Choose GoldHealth Medical?
With over 25 years of expertise in research, design, and production, GoldHealth Medical is a trusted name in the medical device industry. Our commitment to quality and innovation ensures that every product meets the highest standards of precision and reliability. Whether you're a healthcare provider, researcher, or family user, our Pocket Fetal Doppler is designed to deliver exceptional performance and peace of mind.
GoldHealth Medical supports customization to meet your unique needs, from tailored packaging to branded designs. Partner with us to experience cutting-edge technology and unparalleled service.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical presents the BABYSOUND C Doppler Ultrasound Equipment – a precision-engineered solution designed for accurate and reliable fetal heart rate monitoring.
Product Highlights:
- Advanced Fetal Heart Monitoring: Equipped with a high-resolution 38 mm x 32 mm LCD screen, the BABYSOUND C delivers real-time fetal heart rate readings with an accuracy of ±2 BPM and a resolution of 1 BPM, ensuring precise diagnostics.
- Portable and Lightweight Design: Weighing just 207 grams (with batteries) and measuring 157mm (L) x 99mm (W) x 27mm (H), this compact device is perfect for use in clinics, hospitals, or home environments.
- Flexible Power Options: Powered by a removable battery, the device ensures uninterrupted performance, making it ideal for both stationary and mobile use.
- Durable Construction: Crafted from high-quality plastic, the BABYSOUND C balances durability with a sleek, professional aesthetic.
- Class II Medical Instrument: Designed to meet the rigorous demands of medical professionals, this device is classified as a Class II instrument, ensuring safety and reliability during operation.
Technical Specifications:
- Power Source: Electric with removable battery
- Dimension: 157mm (L) x 99mm (W) x 27mm (H)
- Weight: Approximately 207g (with batteries)
- Display: 38mm x 32mm LCD screen
- Accuracy: ±2 BPM
- Resolution: 1 BPM
- Shelf Life: 1 year
Packaging Details:
- Single Package Size: 20cm x 20cm x 18cm
- Single Gross Weight: 1.000 kg
After-Sale Support:
- Comprehensive Warranty: Backed by a 1-year warranty, GoldHealth Medical ensures peace of mind for every user.
- Dedicated Online Technical Support: Our expert team is available to provide prompt assistance and troubleshooting, ensuring seamless operation.
Experience the next level of precision and reliability with the BABYSOUND C Doppler Ultrasound Equipment – engineered by GoldHealth Medical to empower healthcare professionals and caregivers worldwide.
