CONTEC CMS8000VET MultiParameter Veterinary Monitor
Reference: 1600338818050Veterinary Monitoring Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical Veterinary Monitor

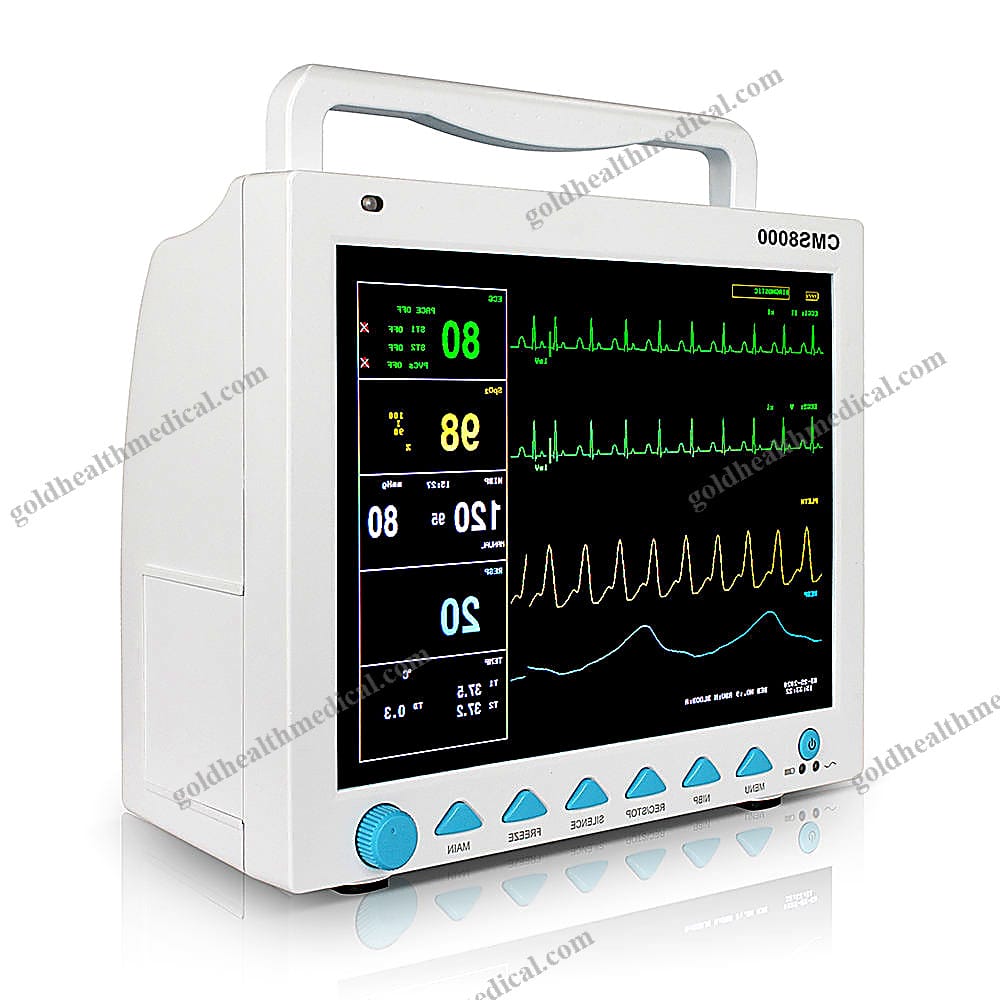

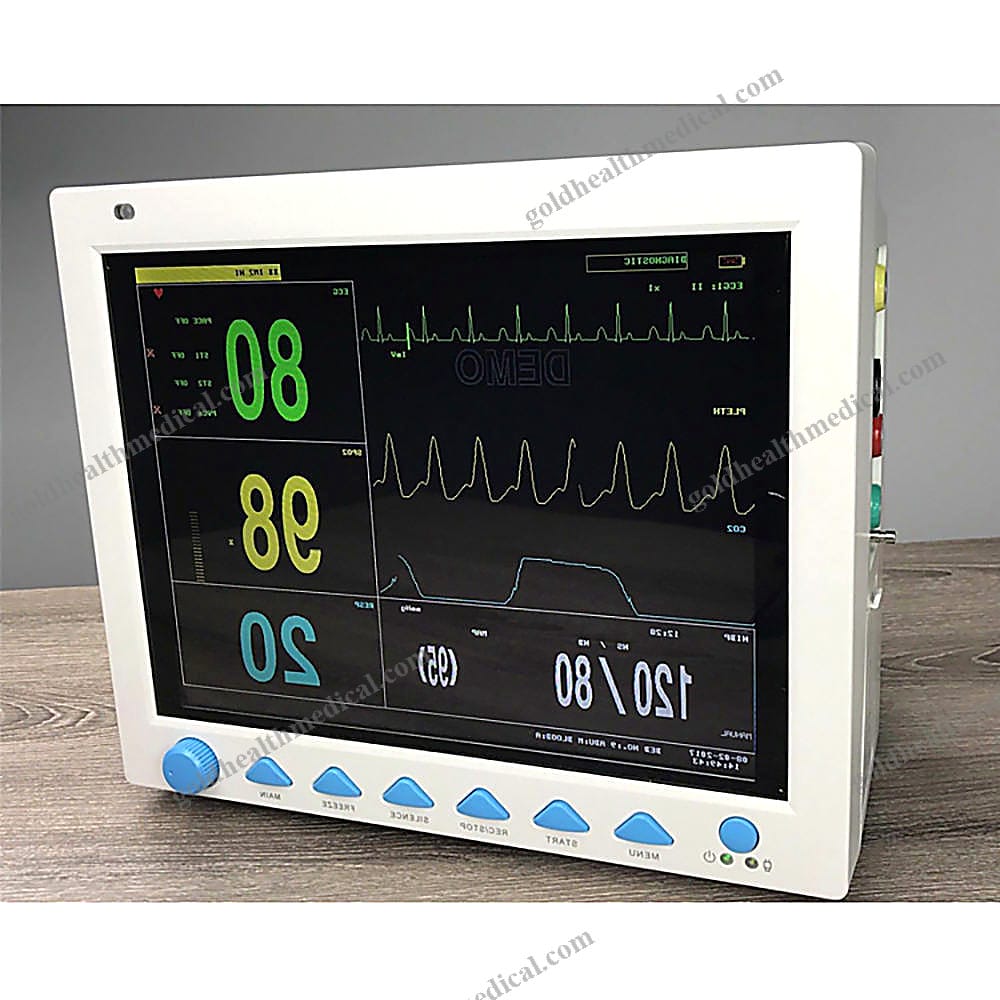

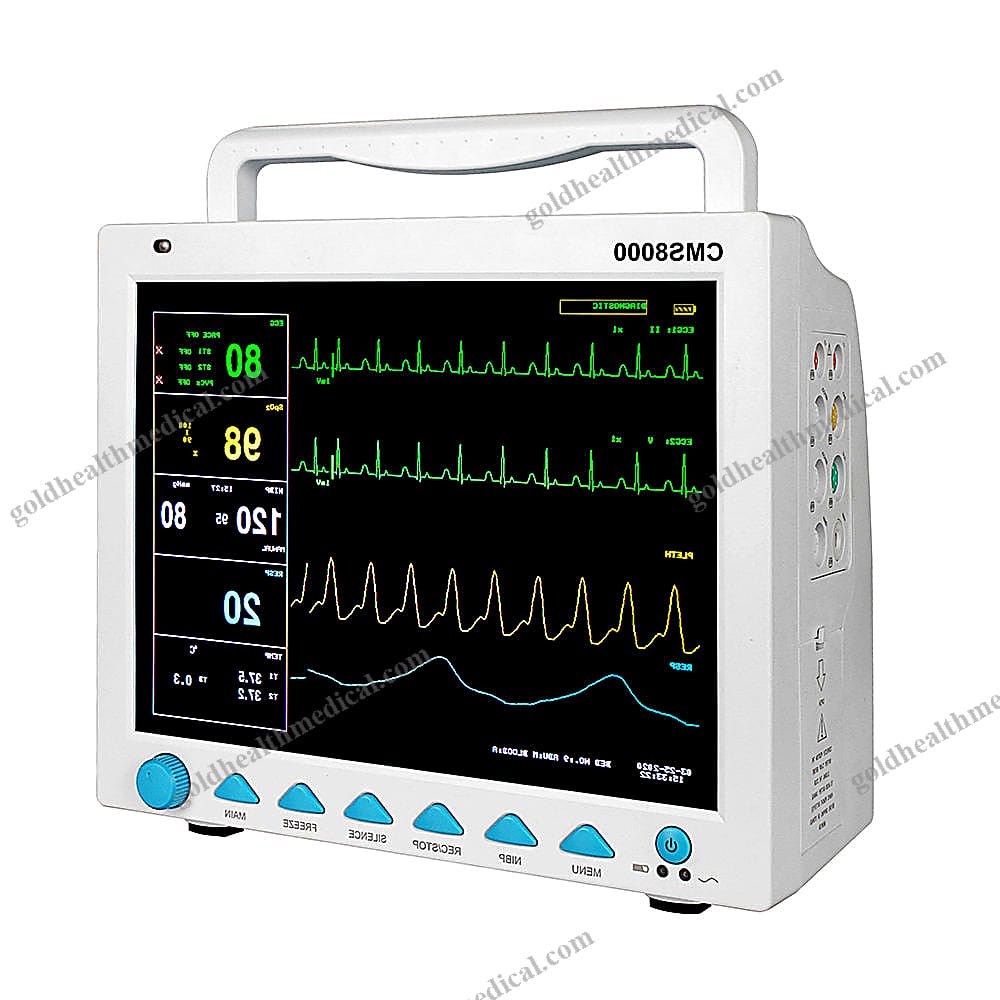

The GoldHealth Medical Veterinary Monitor is a state-of-the-art device designed for comprehensive monitoring of cats, dogs, and other animals. Tailored to meet diverse requirements, this monitor offers customizable parameter configurations. It features a 12.1-inch TFT color LCD display for real-time data and waveforms, capable of showing up to 8-channel waveforms and all monitoring parameters simultaneously. The device can integrate into a network monitoring system via wired or wireless connections.

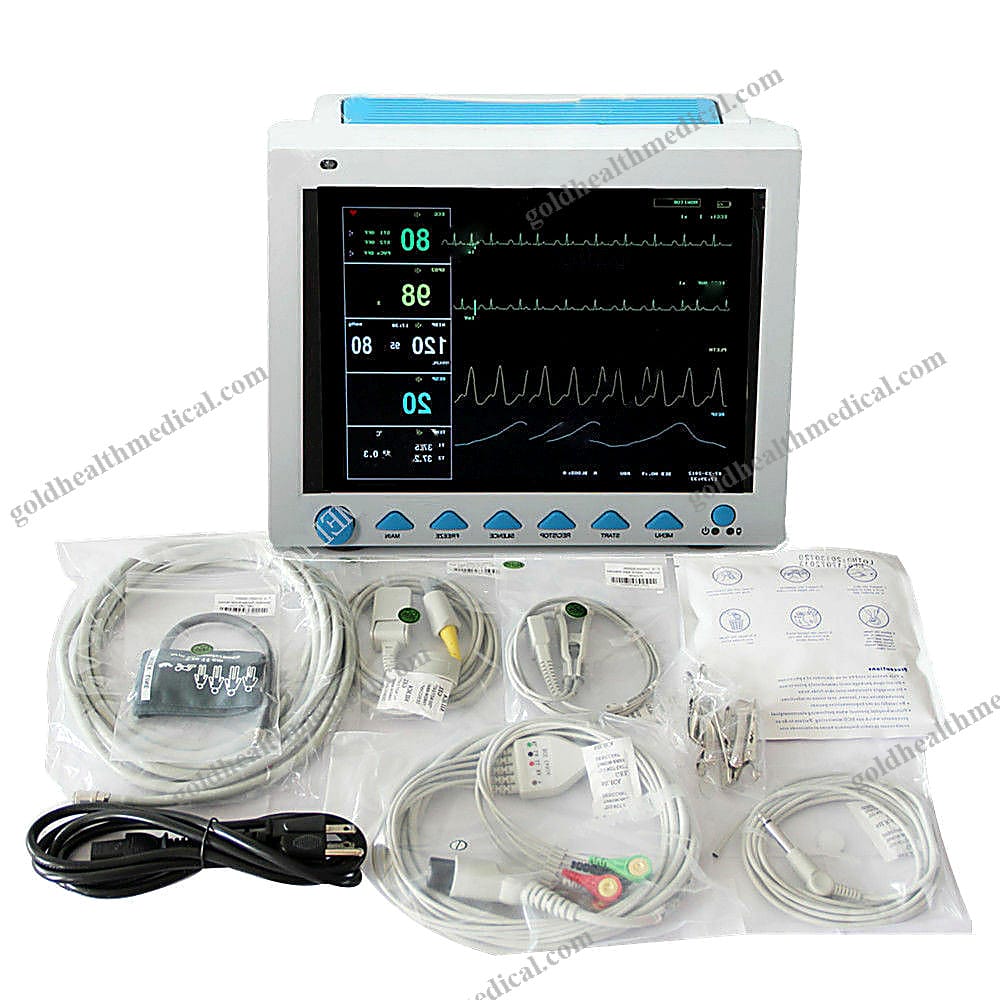

This compact and portable equipment integrates parameter measurement modules, display, and recorder in one unit. Its built-in replaceable battery ensures mobility and convenience.
Functions
- Standard Parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
- ECG: Heart rate (HR), ECG waveform, arrhythmia, and ST-segment analysis
- RESP: Respiration rate (RR), respiration waveform
- SpO2: Oxygen saturation (SpO2), plethysmogram (PLETH) waveform, pulse rate (PR), bar graph
- NIBP: Systolic pressure (SYS), diastolic pressure (DIA), mean pressure (MEAN)
- TEMP: T1, T2, TD
Additional features include audible and visual alarms, trend data storage and output, NIBP measurement, alarm event marking, and drug concentration calculation.
Features
- Display: 12.1-inch TFT color LCD with multi-language interface
- Design: Fanless, quiet, energy-saving, and clean, reducing cross-infection risks
- Interfaces: Standard interface, OxyCRG, trend chart, big character interface, and view bed for easy observation
- Operation: Keys and buttons
- Waveforms: Display up to 8-channel waveforms on one screen, 7-lead ECG waveform with ECG step function
- SpO2 Technology: Digital SpO2, anti-motion and anti-ambient light interference, effective in weak filling conditions
- NIBP Measurement: Manual/AUTO/STAT modes, storage for 4800-group NIBP data
- Alarm Review: 71 alarm events for all parameters and 60 arrhythmia alarm events
- Drug Calculation: Drug concentration calculation and titration table functions
- Printing: One-key print trend table data
- Connectivity: Connect to Central Monitoring System via 3G, WiFi, or wired mode
- Power: AC/DC, built-in rechargeable lithium battery for uninterrupted monitoring
- Safety: Anti-high frequency surgical unit, defibrillation-proof (special leads required)
Performance
- ECG
- Lead Mode: 3-lead or 5-lead
- Lead Selection: I, II, III, aVR, aVL, aVF, V
- Waveform: 5-lead, 2-channel; 3-lead, 1-channel
- Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV
- Scan Speed: 12.5mm/s, 25 mm/s, 50 mm/s
- HR: Measurement and alarm range: 15~350bpm, accuracy: ±1% or ±1bpm, resolution: 1 bpm
- ST-segment Monitoring: Range: -2.0mV~+2.0mV, accuracy: -0.8mv~+0.8mv ±0.04mv or ±10%
- Arrhythmia Analysis: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Pacemaker: Yes
Respiration
- Method: R-F(RA-LL) Impedance
- Respiration Rate: Range: 0~150rpm, resolution: 1 rpm, accuracy: ±2 rpm, alarm accuracy: ±3 rpm
- Apnea Alarm: 10~40s
Scan Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s
NIBP
- Method: Oscillometry
- Mode: Manual/AUTO/STAT
- Measurement Interval in AUTO Mode: 1/2/3/4/5/10/15/30/60/90/
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Brand Name: GoldHealth Medical
Product Name: Advanced Veterinary Health Monitor
Key Features:
- Precision Health Monitoring: Designed to detect and analyze body health with an accuracy rate of 99.5%, ensuring reliable results for veterinary professionals.
- Multilingual Support: Offers 18 optional language versions, making it adaptable for global use in diverse medical environments.
- High-Resolution Display: Equipped with a 12.1" TFT display, providing clear, detailed visuals for effortless monitoring.
- Extensive Memory Capacity: Stores up to 190,000 results, enabling comprehensive tracking of patient health trends over time.
Technical Specifications:
- Color: Professional blue finish for a sleek, modern appearance.
- Certifications: Compliant with CE and ISO standards, guaranteeing safety and quality.
- Compact and Portable Design: Single package dimensions of 39x39x39 cm and a lightweight gross weight of 6.480 kg for easy transportation and installation.
Unique Selling Points:
- A state-of-the-art testing device tailored for veterinary applications, offering unparalleled precision and versatility.
- Ideal for hospitals, clinics, research labs, and rehabilitation centers seeking advanced tools to enhance animal healthcare outcomes.
Applications:
- Suitable for professional veterinary practices, research institutions, and home care environments, ensuring optimal health monitoring for animals of all sizes.
