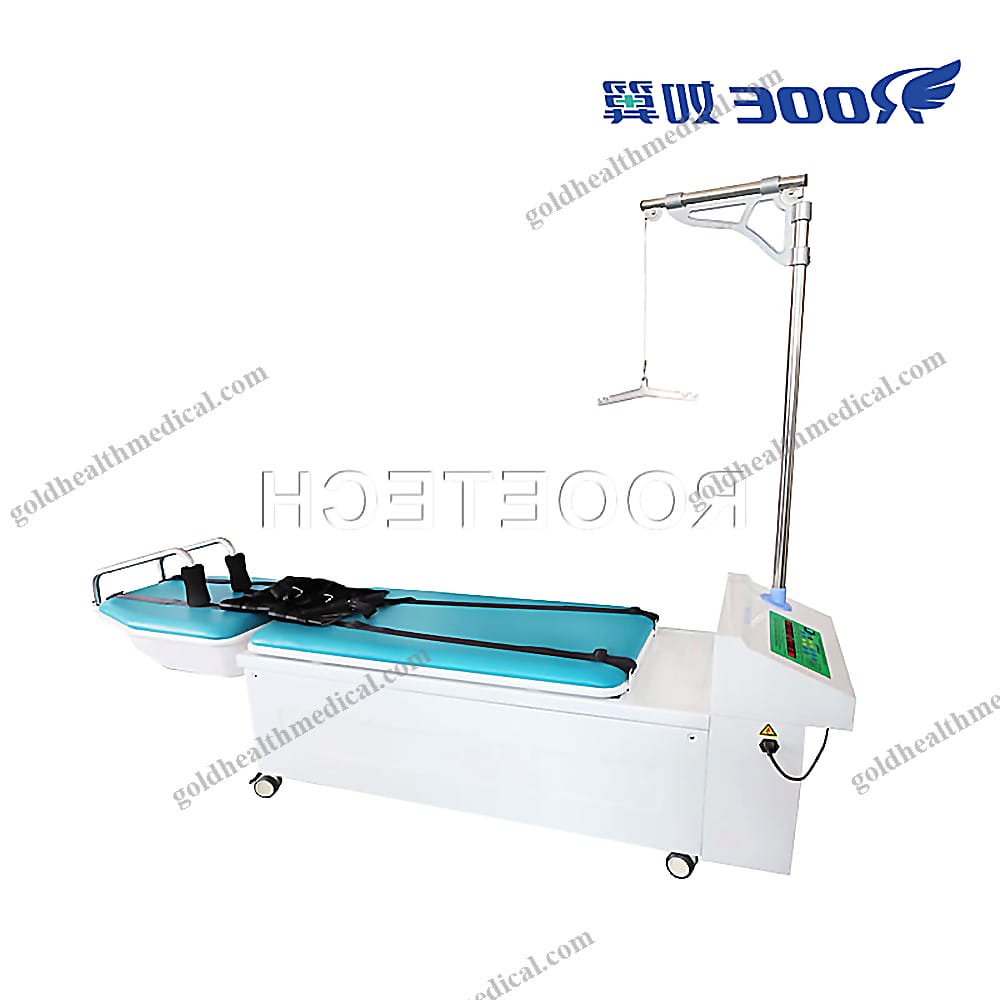

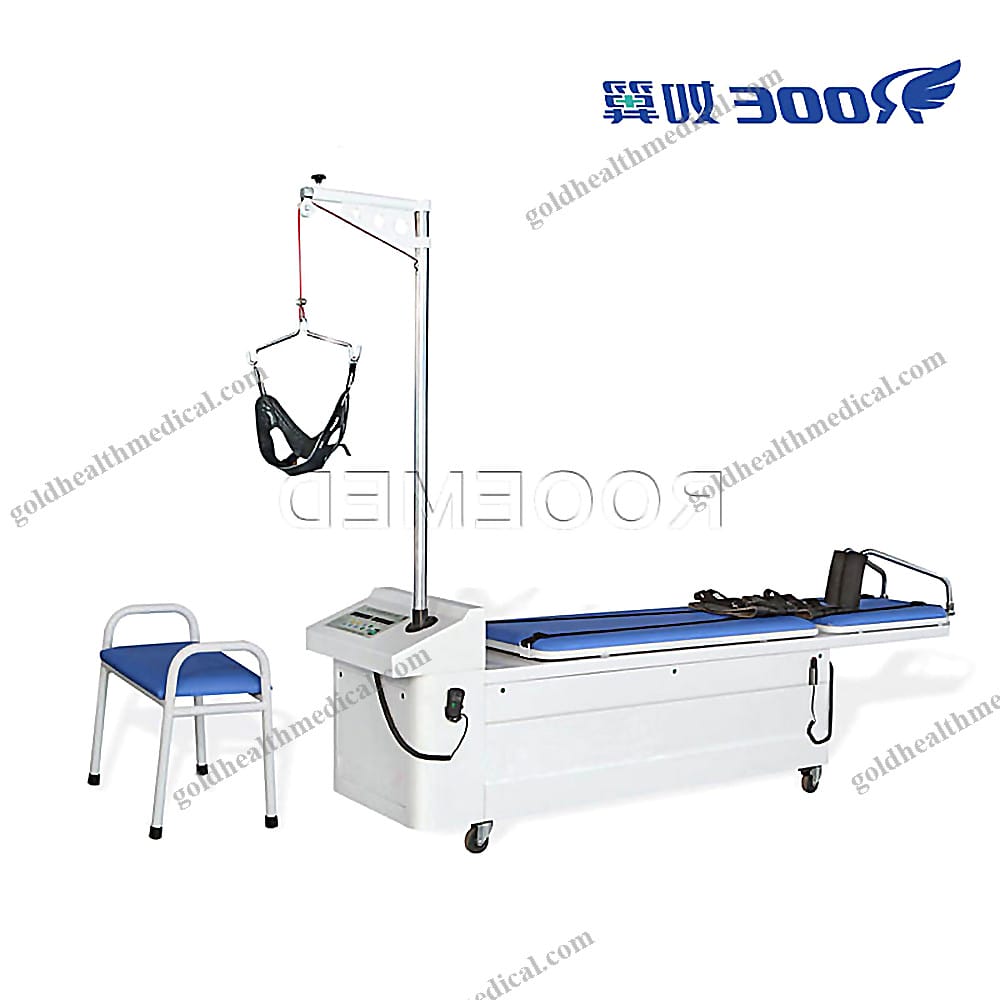

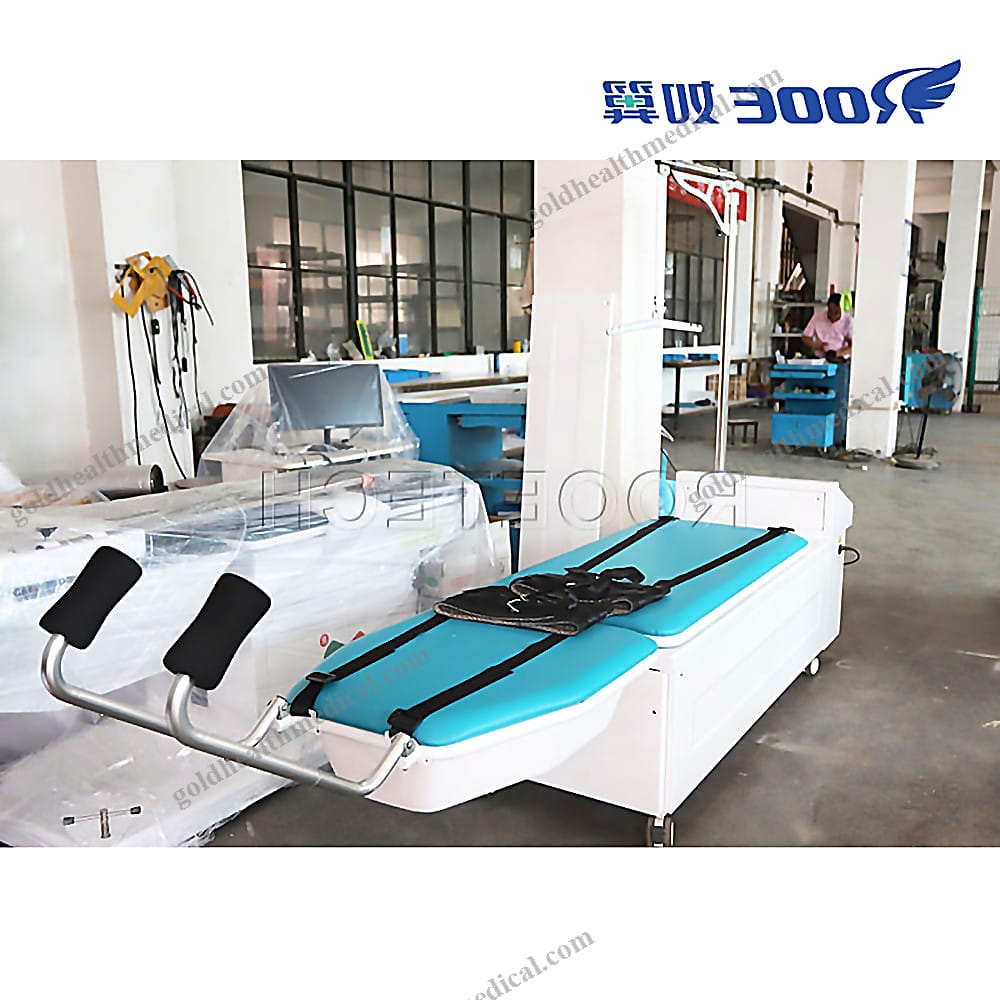

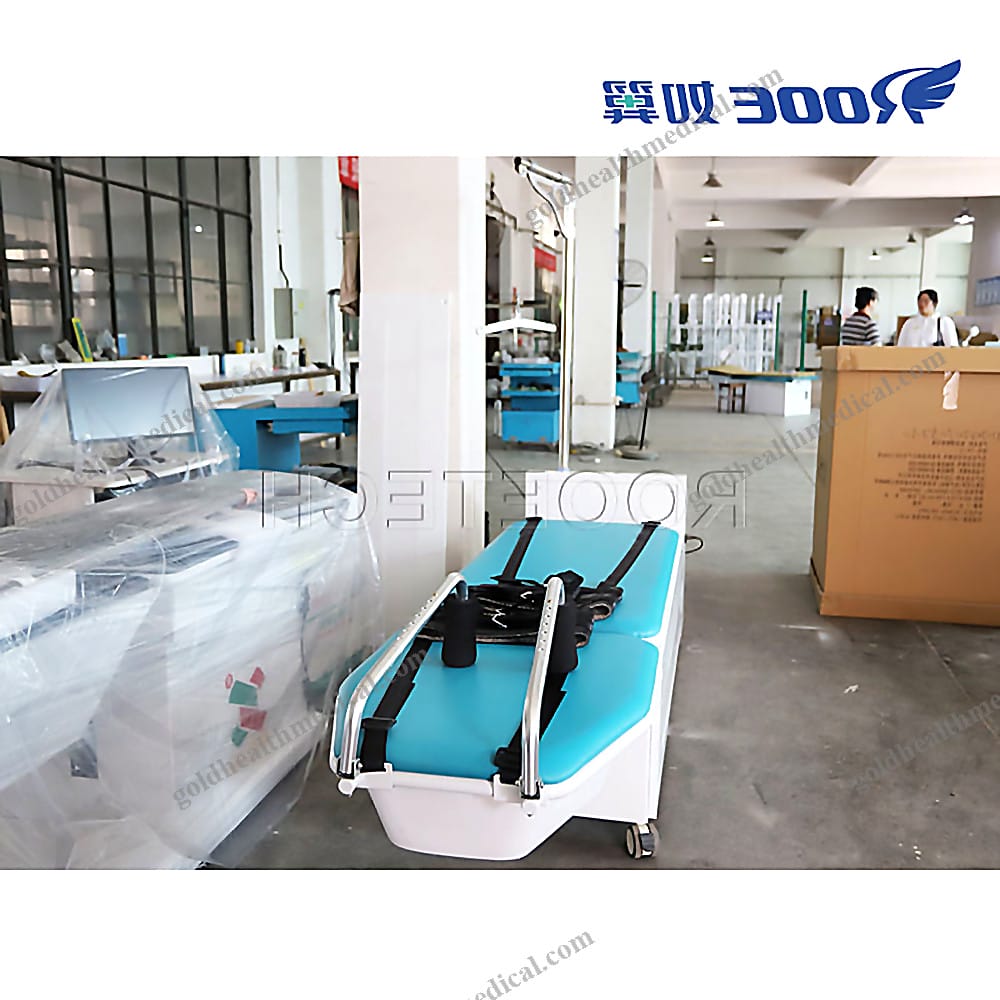

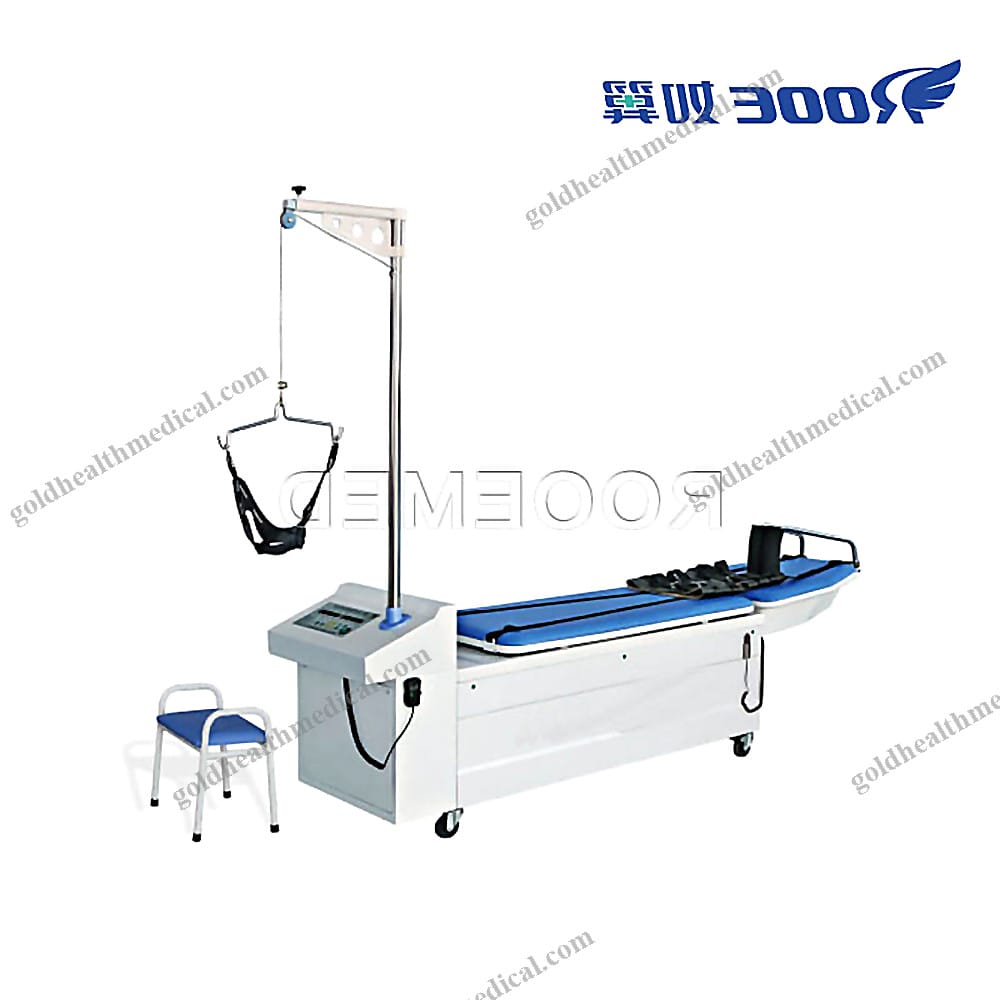

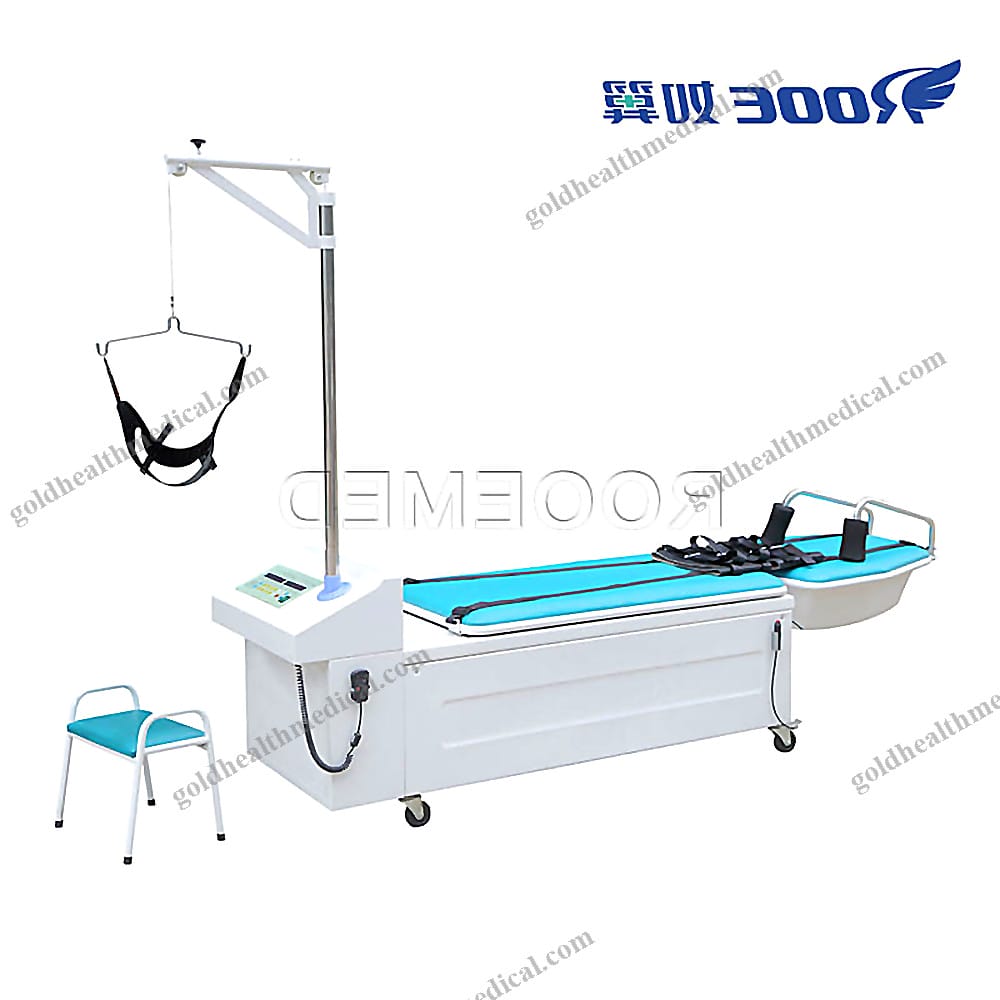

Cervical Lumbar Traction Therapy Bed
Reference: 1600605082637Traction and Correction Devices
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
Revolutionary Rehabilitation Solutions by GoldHealth Medical
Experience the future of physical therapy with GoldHealth Medical's advanced treatment bed, designed for cervical and lumbar traction. Engineered with precision and care, this state-of-the-art system redefines rehabilitation.
Key Features:
- Intelligent Control System: Advanced integrated module and microcomputer software ensure seamless control over all operations, including traction time, force, intermittent periods, and modes. Simplified key-in methods make setup effortless.
- Superior Motor Performance: Equipped with a direct-current motor for exceptional stability, reliability, and minimal noise, ensuring a smooth and quiet therapy experience.
- Dual-Patient Capability: Simultaneously or independently perform cervical and lumbar traction for two patients, maximizing efficiency in clinical settings.
- Three-Dimensional Traction: Offers longitudinal, rotating, and angle traction, which can be used individually or in combination for comprehensive treatment.
- Smart Force Compensation: Utilizes an electric sensor to automatically adjust and compensate traction force when deviations occur, maintaining precise therapeutic levels.
- Versatile Modes: Choose from eight distinct traction modes tailored to specific rehabilitation needs.
- Case Storage: Save and retrieve up to 20 curing cases, allowing for personalized and repeatable treatment plans.
- Enhanced Safety: Multiple security features include a Patient Emergency Retreat Switch and a Medical Staff Operation Emergency Retreat Key, ensuring peace of mind during therapy.
- Comprehensive Treatment: Effective for a range of conditions, including lumbar disc issues, cervical fractures, dizziness, headaches, and more. Suitable for both resupine and prostrate traction based on patient needs.
- Advanced Display Options: Select from digital, LCD, or touch screen interfaces for intuitive operation.
Technical Specifications:
- Power Supply: 220V/50HZ
- Power Consumption: 100VA / 300VA
- Product Dimensions: 2450x600x720mm / 2480x600x730mm
- Packing Dimensions: 2580x680x780mm / 2580x690x800mm
- Net Weight: 125kg / 115kg
- Gross Weight: 145kg / 140kg
Lumbar Traction Parameters: - Slow traction distance: 0~200mm - Swing angle: -40°~40° - Forming angle: -10°~20° - Total traction time: 0~60min / 0~99min - Traction time: 0~9min - Intermittent time: 0~90s - Traction force: 0~99Kg
Cervical Traction Parameters: - Traction distance: 0~300mm - Total traction time: 0~60min / 0~99min - Traction time: 0~9min - Intermittent time: 0~90s - Traction force: 0~30Kg
GoldHealth Medical is committed to delivering innovative, reliable, and effective rehabilitation solutions. Our products are crafted with over 20 years of manufacturing expertise, ensuring the highest standards of quality and performance. Whether for hospitals, clinics, or home use, our treatment bed is designed to meet the diverse needs of healthcare professionals and patients alike.
Transform your rehabilitation practice with GoldHealth Medical’s cutting-edge technology and unparalleled support.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
GoldHealth Medical: Electric Cervical and Lumbar Traction Bed
Product Overview:
The GoldHealth Medical Electric Cervical and Lumbar Traction Bed is a state-of-the-art solution designed for orthopedic care, offering precise and customizable traction therapy. Engineered for both clinical and home use, this device combines advanced functionality with user-friendly design to deliver exceptional therapeutic outcomes.Key Features:
- Instrument Classification: Class II medical device, ensuring safety and reliability.
- Versatile Application: Specifically designed for orthopedic use, aiding in cervical and lumbar rehabilitation.
- Adjustable Parameters:
- Traction force: 0–99 kg for personalized treatment.
- Traction distance: 0–300 mm for comprehensive coverage.
- Slow traction distance: 0–200 mm for gentle, controlled therapy.
- Traction time: Adjustable from 0–9 minutes for optimal session customization.
- Power Specifications: Dual power options of 100/300VA to suit various settings.
- Dimensions: Available in two sizes:
- 2450 x 600 x 720 mm
- 2480 x 600 x 730 mm
Color: Sleek and professional blue finish.
Packaging Details:
- Each unit is securely packaged in a robust wooden case to ensure safe transit.
- Single package dimensions: 258 x 69 x 80 cm.
Gross weight per package: 140 kg.
Supply and Delivery:
- Monthly supply capacity: Up to 500 sets, ensuring consistent availability for bulk orders.
Ships from Shanghai, providing efficient global logistics.
Warranty and Support:
- Comprehensive 2-year warranty for peace of mind.
Dedicated online technical support to assist with setup, troubleshooting, and maintenance.
Unique Selling Points:
- Precision engineering for accurate and repeatable traction therapy.
- Ergonomic design for enhanced patient comfort and practitioner ease of use.
- Ideal for hospitals, clinics, rehabilitation centers, and home care environments.
Experience the GoldHealth Medical difference—where innovation meets reliability in orthopedic care.
