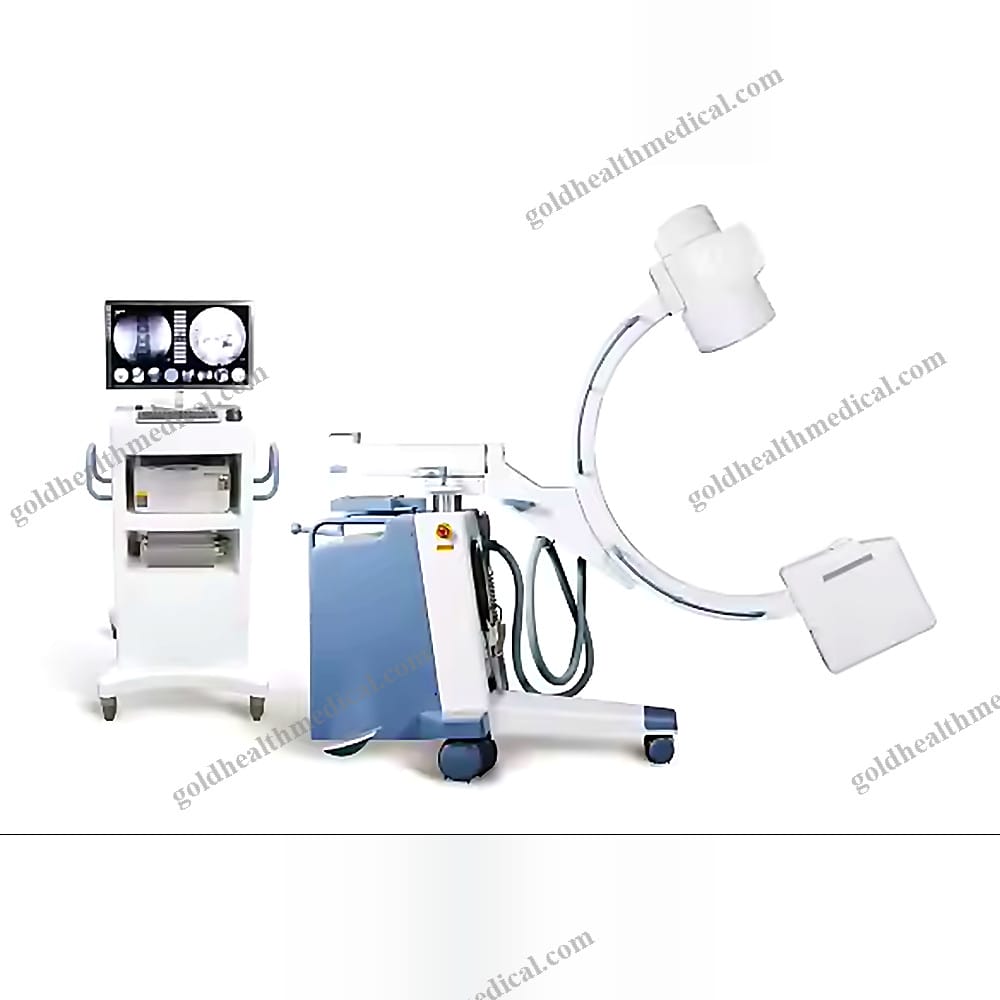

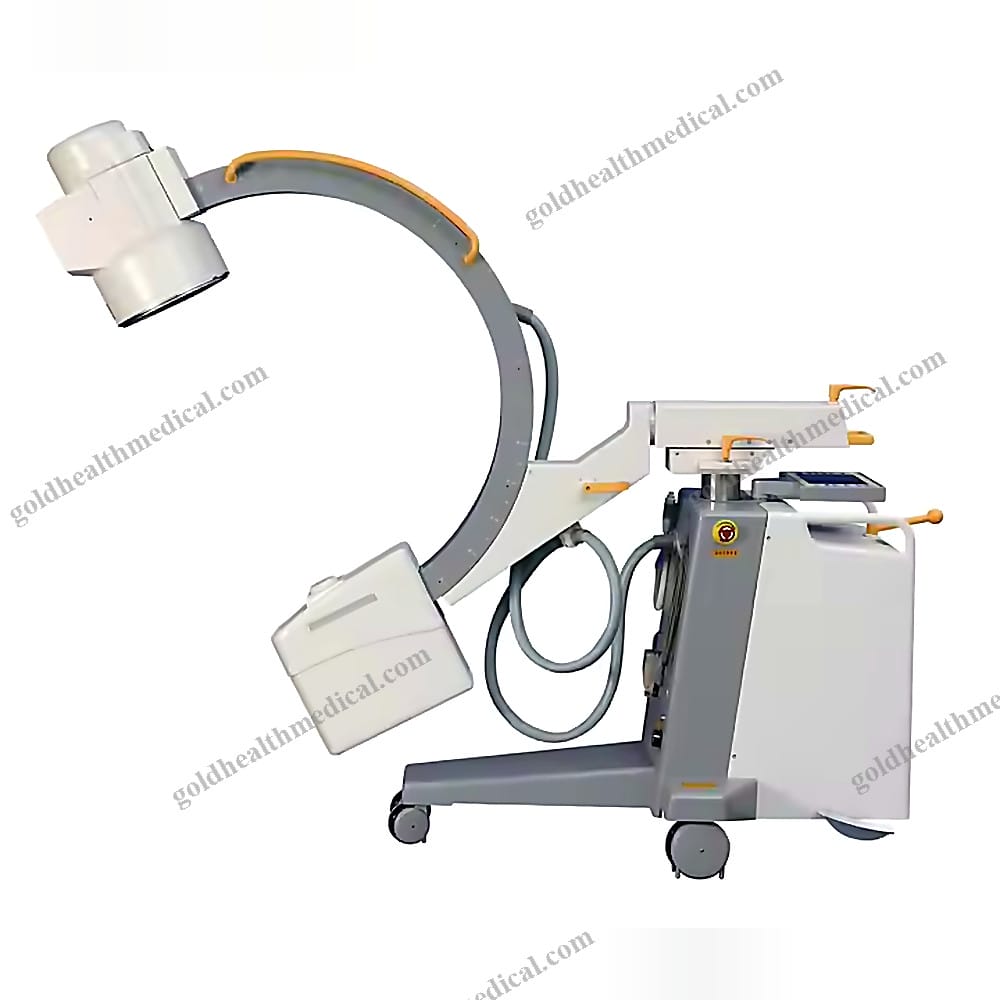

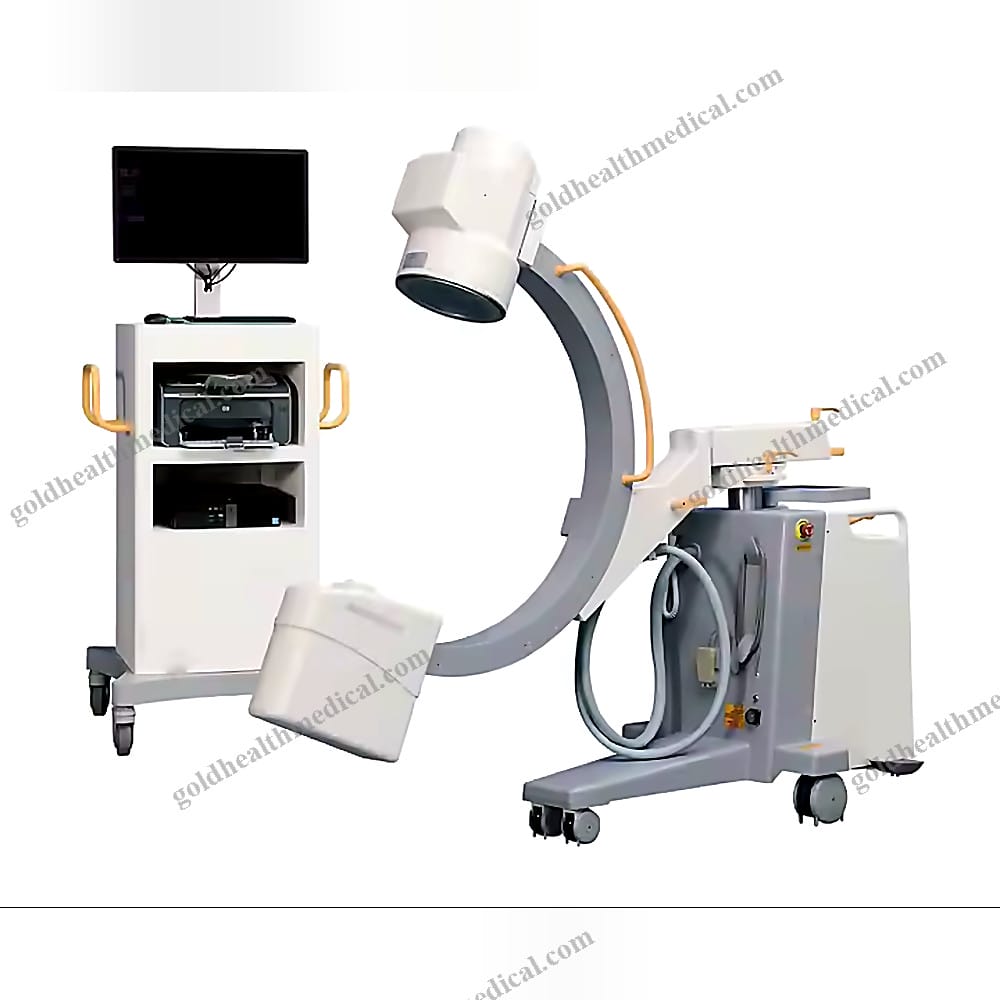

CArm XRay Machine with Multipurpose Operating Table for Radiography Diagnosis
Reference: 1601293223941Radiology Equipment & Accessories
Interested in this product?Ask about specifications, quantities and delivery.
Associated tags
No tags assigned
Product summary
GoldHealth Medical - Advanced X-ray System
Product Overview
GoldHealth Medical presents a cutting-edge X-ray system designed for precision, stability, and ease of use. This state-of-the-art equipment is engineered to deliver high-quality imaging and exceptional performance, making it ideal for a wide range of medical environments.
Key Features
- Stable Performance: Equipped with HF & HV generator, inverter, and a high-quality image intensifier, ensuring consistent and reliable operation.
- Intuitive Control: Features a 10.4" LCD control board with a user-friendly interface that rotates up to 180° (L90°, R90°) for optimal accessibility.
- Clear Diagnostics: Pulse and boost fluoroscope capabilities provide clear diagnostic images for patients of all sizes.
- Directional Mobility: A steering handle allows for quick directional adjustments during movement, with an added parallel movement function for enhanced flexibility.
- Safety First: Unique block line wheels prevent accidents while the machine is in motion.
- Ample Workspace: Offers a large free space in the arc, reaching up to 800mm, providing convenience during procedures.
- Versatile Imaging: Three fields of vision (9", 6", 4.5") facilitate detailed diagnosis and partial enlargement.
- Rotating Camera: CCD camera with a 360° rotation range ensures comprehensive imaging angles.
- Smooth Movement: Original Korean linear slide rail ensures flexible and smooth machine movement.
- Enhanced Durability: Utilizes Omron Relay technology to reduce noise and extend the equipment's lifespan.
Technical Specifications
- Power Source: Electric
- X-ray Generator: 5kW, 120kV, 40kHz
- X-ray Tube: Rotating anode, dual focus 0.3/0.6mm
- Anode Thermal Capacity: 150KJ/200kHu
- Fluoroscopy: 40-120kV, 0.5-10mA
- Radiography: 20-80mA, max. 100mA
- Image Storage: Thousands of images can be stored
- Resolution: 22 LP/cm

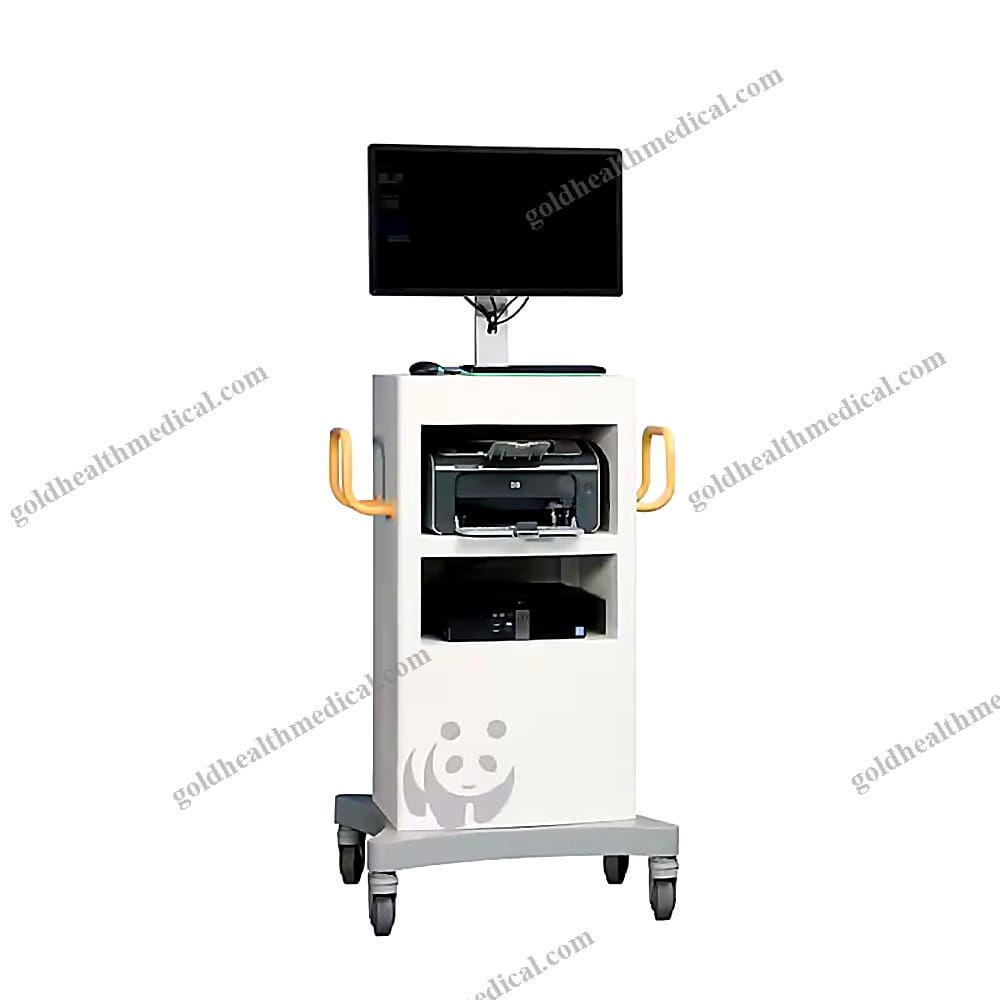

- Monitor: One 23" LCD monitor capable of displaying multiple images on a single screen
- DICOM 3.0: Included
- PACS: Compatible
Quality and Safety
- Material: Metal, Plastic
- Shelf Life: 3 years
- Quality Certification: CE
- Instrument Classification: Class II
- Safety Standard: GB/T18830-2009
Packaging and Delivery
Professional, environmentally friendly, convenient, and efficient packaging services are provided to ensure the safety of your goods during transit.
Frequently Asked Questions
What is the delivery time? Since our products are produced according to each specific order, the delivery period will be 15 days after order confirmation. For small or sample orders, please check with us regarding stock availability for quicker delivery.
Why are some prices higher compared to other suppliers? While some products may appear similar, our commitment to quality and innovation sets us apart. We use premium materials and maintain rigorous quality control, unlike cheaper alternatives that may compromise on these aspects.
GoldHealth Medical is dedicated to providing superior medical imaging solutions that enhance diagnostic accuracy and patient care.
Shipping & Delivery FAQ
How are products prepared before shipment?
Each item is checked against the catalog record, protected with suitable packaging materials, and prepared with available product documentation for procurement review.
Can you support international delivery requests?
The support team can coordinate delivery options by destination, product type, and documentation requirements before confirming availability.
Are fragile or calibrated products handled differently?
Sensitive products are packed with additional cushioning and handling notes; calibration or compliance documents can be reviewed during the inquiry process.
How can I estimate lead time?
Lead time depends on stock status, destination, carrier availability, and any requested documentation. Contact the product team for a product-specific estimate.
Before you choose a medical product
Practical answers about product configuration, consumables, documents, quantities and support before a medical supply inquiry.
How do I confirm the right model and configuration?
Include the product reference, intended care setting and the functions or dimensions you need. Ask which accessories are included and which are optional. Images and a shared product name may cover more than one configuration, so confirm the exact version in the supplier response.
Will accessories or consumables fit my existing equipment?
Provide the equipment manufacturer, model and the relevant connector, size or part reference. Request compatibility information for the specific combination rather than relying on visual similarity. Follow the equipment and accessory manufacturers' instructions.
Which product documents can I request?
Depending on the product, useful requests may include a specification sheet, instructions for use, packaging details or available regulatory documents. State your destination market and the exact document required. A catalog listing does not establish that every model has a particular approval or certification.
Are all consumables sterile or suitable for single use?
No assumption should be made across the catalog. Check the labeling and instructions for the exact product, including whether it is supplied sterile, its stated use, expiry information and storage requirements. Ask for clarification before purchasing if these details are missing.
Can I ask about samples, pack sizes or minimum quantities?
Yes. Tell us the item reference, the quantity you want to evaluate and the quantity expected for the project. Sample availability, pack sizes and minimum purchase quantities depend on the product and must be confirmed individually.
What should I confirm for installation and ongoing use?
For equipment, ask about power supply, installation space, setup instructions, training materials, spare parts and the applicable service or warranty terms. Confirm which support is available for the selected model and destination before agreeing to a purchase.
How are price, lead time and delivery confirmed?
Send quantities, destination and required timing with your inquiry. Request a written response covering the selected configuration, packing, commercial terms and delivery estimate. Published product information is a starting point; an inquiry is not an order confirmation.
About Gold Health
Medical supplies for the way care is delivered
Explore Gold Health: medical equipment, clinical consumables and veterinary supplies for professional procurement.
Different care settings, one place to begin
A hospital department, an independent clinic, a laboratory and a veterinary practice can have very different purchasing needs. Our catalog brings equipment, instruments and everyday supplies into a browsable starting point for these different settings.
Explore by category, inspect the product images and use the listed details to build a shortlist. Availability and the exact configuration are confirmed for the selected item when you contact the team.
Look beyond the product name
A useful product choice depends on more than a headline. Dimensions, materials, model references, accessories, packaging and instructions can all affect whether an item belongs on your purchasing list.
We encourage buyers to identify these details early and ask for the product-specific information they need before making a decision.
Equipment and consumables need different questions
For equipment, ask about the supplied configuration, compatible accessories, electrical requirements and available service information. For consumables, confirm the stated intended use, pack quantity, storage conditions and any sterile or single-use labeling for that exact item.
The catalog helps organize the conversation. Product suitability and any clinical use must be assessed using the relevant manufacturer instructions and qualified professional review.
Turn a shortlist into a useful conversation
Send the product names or references together with your quantities, destination and preferred timing. If several items form one project, explain which accessories or consumables need to work together.
This gives the team a practical basis for discussing specifications, available documents, packaging and the next commercial steps. Please keep patient information and other sensitive records out of your inquiry.
Product attributes
Product Name: C-Arm X-Ray Machine with 5kW, 120kV, 40kHz X-Ray Generator
Brand Name: GoldHealth Medical
Key Features
- Precision and Power: Equipped with a 5kW, 120kV, 40kHz X-ray generator for exceptional imaging performance.
- Advanced X-Ray Tube: Rotating anode with dual focus (0.3/0.6mm) ensures high-resolution imaging with minimal distortion.
- High Thermal Capacity: Anode thermal capacity of 150KJ/200kHu supports extended use without overheating.
- Versatile Imaging Modes:
- Fluoroscopy: Adjustable range of 40-120kV and 0.5-10mA for real-time imaging.
- Radiography: Supports 20-80mA with a maximum output of 100mA for detailed static images.
- Image Storage: Capable of storing thousands of images, ensuring comprehensive patient records.
- High Resolution: Delivers exceptional clarity with a resolution of 22 LP/cm.
- Integrated Display: Includes a 23" LCD monitor that allows multiple images to be displayed simultaneously on one screen.
- DICOM 3.0 Compatibility: Seamlessly integrates with existing medical imaging systems for enhanced workflow efficiency.
Technical Specifications
- Instrument Classification: Class II
- Safety Standard Compliance: GB/T18830-2009
- Materials: Constructed with durable plastic, metal, and steel for long-lasting reliability.
- Power Source: Electric
- Shelf Life: 1 year
Quality Assurance
- Warranty: 1-year comprehensive warranty for peace of mind.
- After-Sale Service: Access to online technical support for uninterrupted performance.
- Certifications: CE-certified for safety and quality assurance.
Packaging and Delivery
- Package Dimensions: 200 x 200 x 200 cm
- Gross Weight: 500 kg
Why Choose GoldHealth Medical?
GoldHealth Medical’s C-Arm X-Ray Machine is engineered to deliver unparalleled precision, durability, and versatility. Designed for hospitals, clinics, research institutions, and rehabilitation centers, this device combines cutting-edge technology with user-friendly features to meet the demands of modern medical imaging. Its robust construction, advanced imaging capabilities, and seamless integration make it an indispensable tool for professionals seeking reliable and high-quality diagnostic solutions.
Place of Origin: Guangdong, China
